Throw Ratio is one of the most important specifications when choosing a projector. It determines how far a projector must be placed from the screen to create a specific image size.

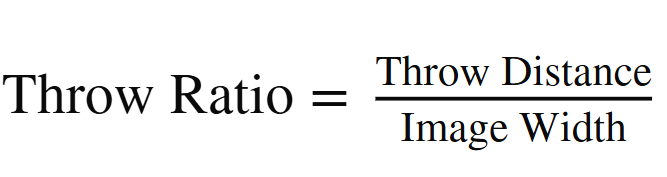

The formula is simple:
In other words, throw ratio describes the relationship between the distance from the projector lens to the screen and the width of the projected image. A lower throw ratio allows a larger image from a shorter distance, while a higher throw ratio requires more installation space.
Before evaluating brightness, resolution, or contrast ratio, you must ensure the projector can physically create the image size you need within your available room space.
For example:
A projector with a 1.5:1 throw ratio requires 1.5 meters of distance for every 1 meter of image width.
A projector with a 0.5:1 throw ratio can create the same image from much closer to the screen.
If the throw ratio doesn't match your room, even the best projector may not work properly.
The calculation is straightforward:
Desired screen width:
2 metersProjector throw ratio:
1.5:1Required distance:
The projector should be installed approximately 3 meters from the screen.
Projector distance:
4 metersThrow ratio:
0.8:1Image width:
This projector can create a very large image from a relatively short distance.
Typical Throw Ratio:
1.2:1 – 2.0:1Best for:
Conference rooms
Classrooms
Home theaters
Auditoriums
Advantages:
Flexible screen sizes
Traditional ceiling installation
Cost-effective
Standard throw projectors require moderate to long installation distances.
Typical Throw Ratio:
0.4:1 – 1.0:1Best for:
Golf simulators
Interactive classrooms
Small meeting rooms
Immersive projection
Advantages:
Large image from short distance
Reduced shadows
Less glare
Short throw projectors are increasingly popular in education and simulation environments.
Typical Throw Ratio:
Below 0.4:1Best for:
Home theater
Laser TV systems
Small living rooms
Advantages:
Installation only inches from the wall
Minimal shadows
Clean room layout
UST projectors are designed to sit directly below the screen or wall surface.

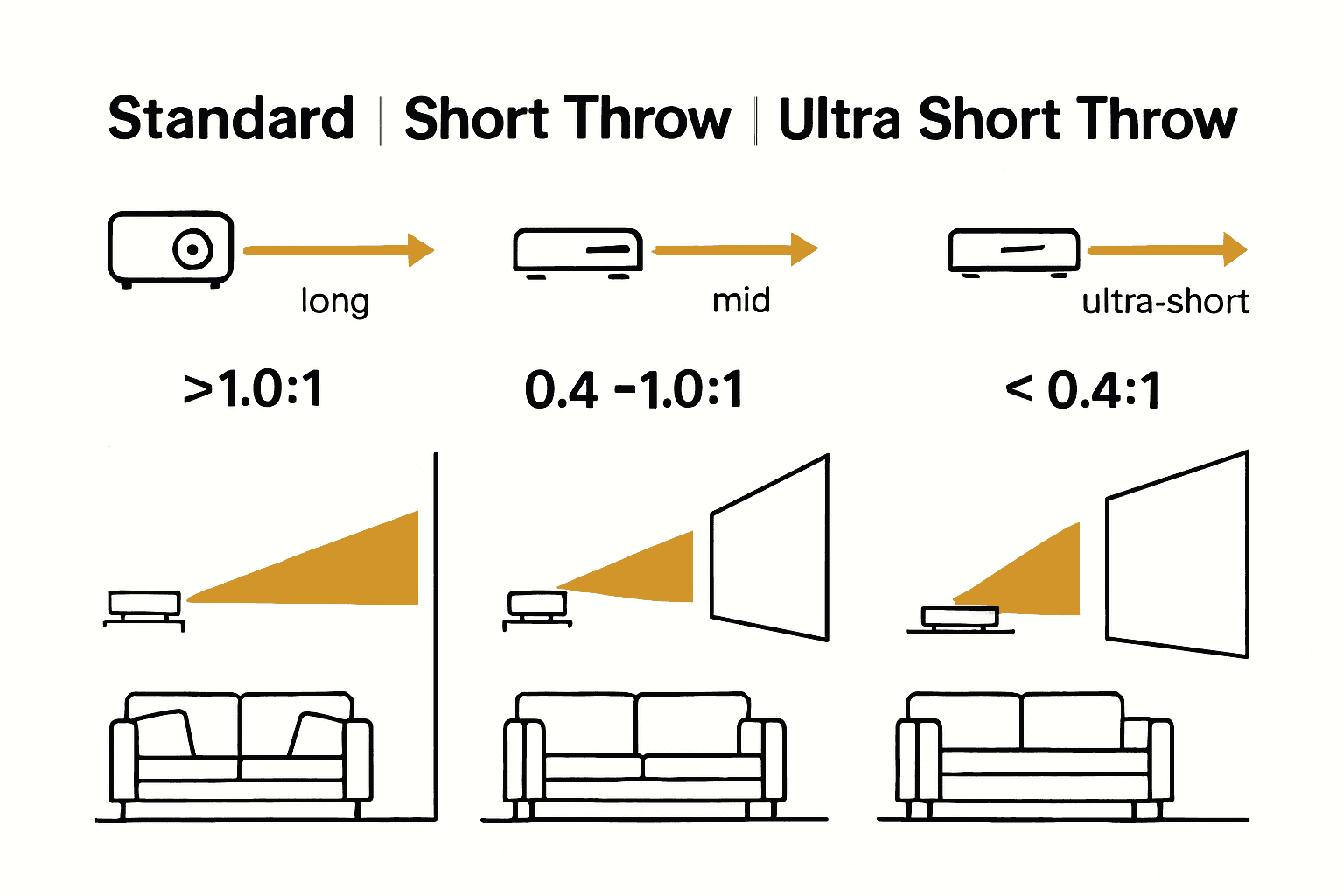

Type | Typical Throw Ratio | Installation Distance |
|---|---|---|
Ultra Short Throw | <0.4:1 | Very Close |
Short Throw | 0.4:1–1.0:1 | Close |
Standard Throw | 1.2:1–2.0:1 | Medium |
Long Throw | 2.0:1+ | Far |
One common mistake is using screen diagonal size instead of image width.
Throw ratio calculations are always based on:
Screen Widthnot
Screen DiagonalFor example:
A 100-inch 16:9 screen is approximately:
87 inches widenot 100 inches wide.
This is why professional installers always calculate using image width.
Many projectors list a throw ratio range such as:
1.2 – 1.8 : 1This is because the projector includes an optical zoom lens.
Example:
Wide zoom = larger image
Tele zoom = smaller image
A wider zoom range provides more installation flexibility.
Throw ratio determines where the projector can be placed.
Lens shift determines where the image can be positioned.
Together they provide:
Installation flexibility
Better image alignment
Easier ceiling mounting
Professional installation projectors often include:
Lens Shift
Optical Zoom
Interchangeable Lenses
for maximum flexibility.
Recommended:
UST or Standard ThrowDepending on room size.
Recommended:
Standard ThrowProvides flexible mounting options.
Recommended:
Short ThrowReduces shadows and protects equipment.
Recommended:
Short ThrowAllows large images in limited spaces.
Recommended:
Short Throw or Interchangeable Lens ProjectorsDepending on building size and projection distance.
4000 Lumen Ultra Short Throw Laser Projector
4500 Lumen Ultra Short Throw Laser Projector
5000 Lumen Ultra Short Throw Laser Projector
22000 Lumens High Brightness Laser Projector
It depends on your installation space. Small rooms generally benefit from short throw projectors, while larger rooms can use standard throw models.
Not necessarily. A lower throw ratio is useful when installation space is limited, but standard throw projectors may offer greater flexibility for larger venues.
Yes. Projectors with optical zoom lenses typically have a throw ratio range rather than a fixed value.
Throw ratio is a specification of the lens, while throw distance is the actual distance between the projector lens and the screen.
Throw Ratio is the foundation of projector installation. It determines how large an image a projector can create from a given distance and directly affects room layout, screen size, and installation flexibility. Whether you're designing a home theater, golf simulator, immersive room, conference room, or projection mapping system, understanding throw ratio ensures you choose the right projector for your space.
