12000 Lumens Laser Projector | WUXGA 3LCD Projector for Events & Projection Mapping

  • 12000 ANSI Lumens for high ambient light environments
  • 3LCD technology with superior color brightness
  • WUXGA resolution with 4K signal compatibility
  • Edge blending & geometric correction support
  • Flexible optional lenses for different throw distances
  • 20,000-hour laser light source for 24/7 operation
  • 360° installation for immersive projection projects
  • OEM / ODM support for global AV brands
Availability:
Quantity:
Inquire Add to Basket

  • MX-X12000UM

  • SMX

12000 Lumens Laser Projector | WUXGA 3LCD Projector for Events & Projection Mapping

Professional high brightness projector designed for projection mapping, events, and large venue applications.

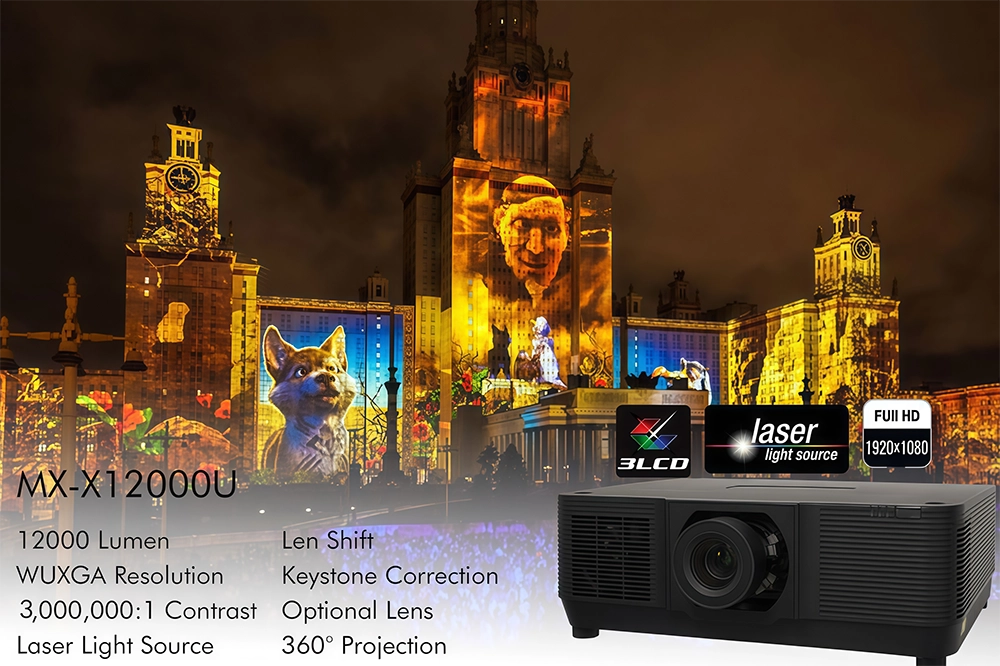

12000 Lumen Laser Projector WUXGA.webp

Key Specifications

  • 12000 ANSI Lumens for bright environments

  • 3LCD technology for true color performance

  • 20,000-hour laser light source

  • Edge blending & geometric correction

  • 360° flexible installation

  • Optional lenses for any projection distance

High Brightness Projector for Projection Mapping & Events

This 12000 lumens laser projector is ideal for professional AV applications such as projection mapping, stage events, and large venue installations. With powerful brightness and stable performance, it ensures clear visuals even in challenging lighting environments.

Applications

  • Building Projection Mapping

  • Church Projection

  • Large Conference Room

  • Museum Immersive Projection

  • Stage Event Projection

  • Exhibition Hall Display

Explore projection mapping solutions
View event projectors

12000 lumen laser projector application.webp

Key Features

12000 Lumens High Brightness

Powerful brightness for large venues, ensuring clear and vivid images even in high ambient light environments.

WUXGA Resolution(1920x1200)

Full HD clarity with support for 4K input signals, delivering sharp and detailed visuals.

3LCD Technology

Higher color brightness and more accurate color reproduction compared to single-chip DLP projectors.

20,000 Hours Laser Light Source

Long-lasting laser engine reduces maintenance costs and supports continuous 24/7 operation.

360° Flexible Installation

Supports portrait mode, ceiling mounting, and full 360° installation for maximum project flexibility.

Edge Blending & Geometric Correction

Seamless multi-projector setup for large displays, immersive projection mapping, and creative installations

Motorized and Manual Kens Shift & Optional Lenses

Flexible installation with multiple optional lenses for short, standard, and long throw applications.

HDBaseT & Multiple Interfaces

Long-distance signal transmission and easy integration with professional AV systems.

Designed for Large Venue Applications

Ideal for auditoriums, churches, museums, exhibitions, and rental & staging projects.

OEM / ODM Customization Available

Private label, hardware customization, and bulk production support for global distributors.

Projection Mapping System Solution

For large-scale mapping projects, multiple projectors can be combined using edge blending technology to create seamless visuals across buildings and stages.

  • Multi-projector synchronization

  • Edge blending

  • Large surface coverage

  • Flexible installation design

Why Choose SMX 12000 Lumens Laser Projector?

  • Lower maintenance cost than lamp projectors

  • Better color brightness than single-chip DLP

  • Flexible lens options for different installations

  • Designed for rental & staging applications

  • OEM support for AV distributors worldwide

OEM & ODM Projector Manufacturer

SMX provides OEM and ODM projector solutions for AV integrators, distributors, and rental companies worldwide.

  • Private label branding

  • Hardware customization

  • Lens customization

  • Bulk production

Start OEM Project

Frequently Asked Questions

Is 12000 lumens enough for projection mapping?

Yes, it is suitable for medium to large mapping projects, especially when used in multi-projector setups.

Can this projector be used outdoors?

Yes, with proper setup and brightness planning.

Does it support edge blending?

Yes, it supports multi-projector edge blending systems.

Get Quote for 12000 Lumens Projector

Contact us for pricing, system design, and OEM solutions.

Request Quote

Download Catalog

Model

ModelMX-X12000U
Key parts

Brightness

(Ansi Lumens)

12000 Lumen
Light source Laser
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source
    Life time		Normal mode 20000hrs
ECO mode 20000hrs
Projection LensLen TypeZoom Lens
Zoom/FocusManual
Throw Ratio（16：10）1.46-2.95
F#(Wide-Tele)F1.7~2.37
f(mm)24.4-48.6
Zoom Ratio2

Screen size

 (Performance guarantee range)

40-500 inch
(40-200 inch)
WeightApprox 0.8kg
Lens Shift V+50%，-10%
Lens Shift H±20%
CRContrast Ratio(Min)100,000:1
NoiseNoise(dB)Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
UniformityUniformity(Actual Min)
    -JISX6911 		80%
ARAspect RatioNative:16:10 / Compatible: 4:3/16:9/normal
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1（5V/1.5A)
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)Optional
Audio in
    （mini jack,3.5mm）		*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
    （mini-jack,3.5mm）		*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
AudioSpeakerN/A
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Temp.&HumidityOperating Temp.5 to 40°C
Operating Thumidity.20-80%
Store Temp.-10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
    H: ±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
OSD Languages26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN ControlLAN Control-RoomView
    (Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ Link Yes
Scanning
    Frequency		H-Synch Range15~100KHz
V-Synch Range24~85Hz
Display
     Resolution		Computer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic，Standard，Cinema，Colorboard，DICOM,blackboard（green）
Cooling time0s,30s,Normal
High altitude Yes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others 360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
    (WxHxD mm)		600*218*503
Net. Weight (KG)~25kg
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black), Remote control&RC Battery


download SMX 12000-22000 Lumens Large Venue Laser Projector.pdf

download SMX 12000 Lumen Laser Projector Specification.pdf
