10000 Lumens Laser Projector | 4K High Brightness Projector for Events & Large Venues | SMX

Elevate your visual standards with our 10,000 Lumens Dual-Color 4K Laser Projector. Engineered for high-impact professional venues, it delivers cinema-grade color accuracy and razor-sharp UHD clarity.



Key Features:

  • Dual-Color Laser: Enhanced red and blue lasers for a wider, more vibrant color gamut.

  • True 4K Resolution: 8.3 million pixels for flawless, high-detail imagery.

  • 10,000 Lumens: Ultra-bright performance that cuts through ambient light.

  • Pro-Grade Build: Dust-proof sealed engine designed for 24/7 operation and 20,000-hour longevity.

  • Flexible Setup: 360° installation and motorized lens shift for complex mapping and blending.

Ideal for: Projection Mapping, Immersive Rooms, Museums, and Large-Scale Events.

Availability:
Quantity:
Inquire Add to Basket

  • MX-DL95100K

  • SMX

10000 Lumens 4K Laser Projector

Professional high brightness projector for events, large venues, and immersive projection applications.

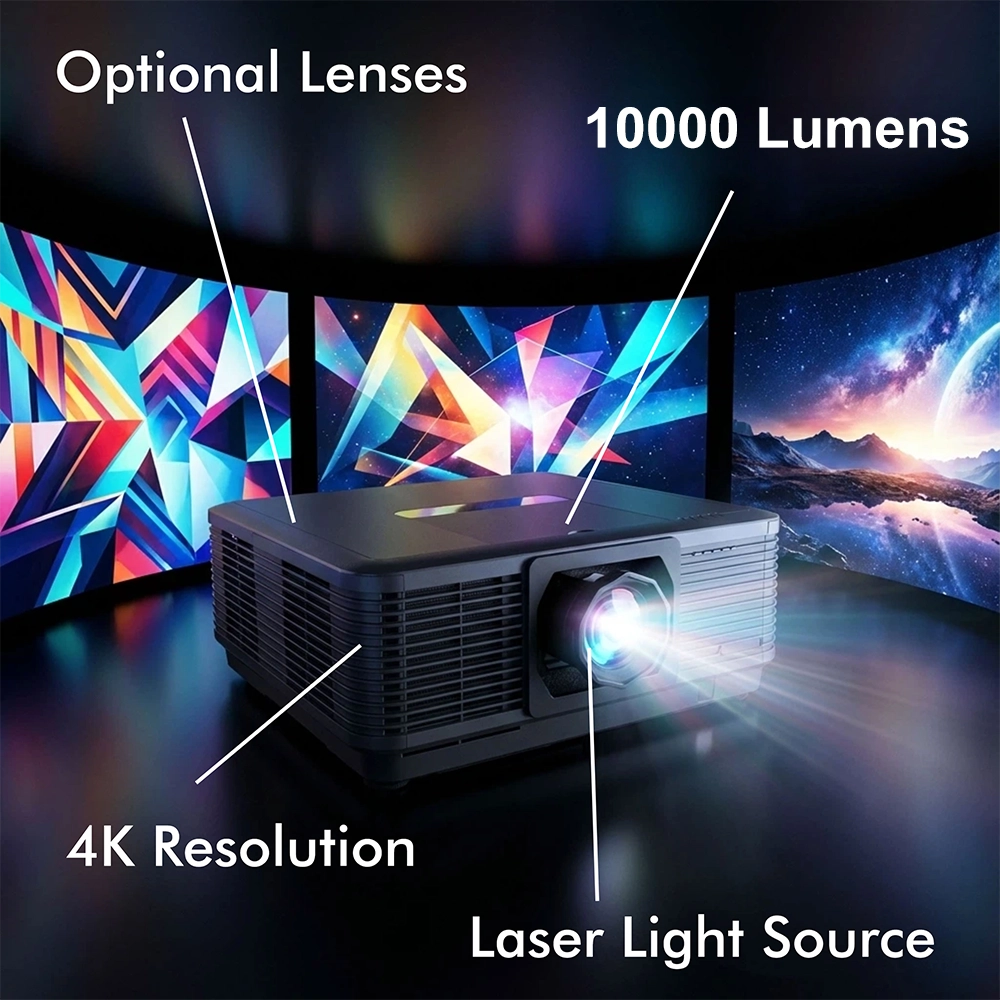

10000 Lumens 4K Laser Projector.webp

Key Specifications

  • Brightness: 10000 Lumens

  • Resolution: 4K

  • Light Source: Dual Color Laser

  • Technology: 3LCD

  • Contrast Ratio: High Contrast

  • Lamp Life: 20,000 Hours

High Brightness Projector for Events & Large Venues

This 10000 lumens laser projector is designed for professional applications such as stage events, conferences, exhibitions, and projection mapping. It delivers powerful brightness and sharp 4K visuals even in environments with ambient lighting.

Applications

  • Events and stage projection

  • Conference and exhibition

  • Projection mapping

  • Church and auditorium

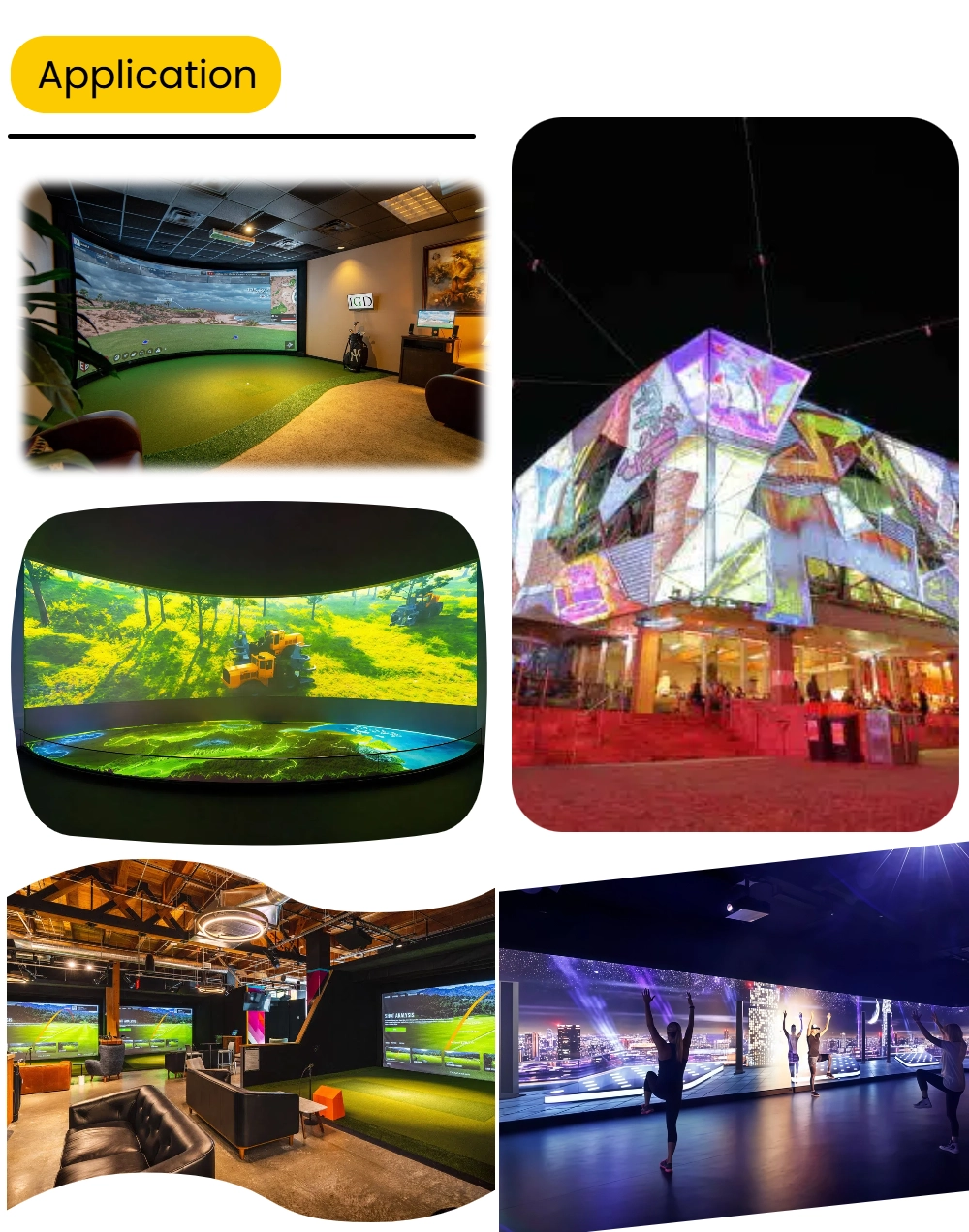

10000 Lumens 4K Laser Projector Application.webp

Explore event projector solutions   Learn about projection mapping projectors

Key Features

10000 Lumens High Brightness

Ensures clear and vivid projection in large and bright environments.

4K Ultra HD Resolution

Delivers detailed and sharp images for professional applications.

Laser Light Source

Provides long lifespan and stable brightness performance.

Flexible Installation

Supports lens shift, keystone correction, and multiple installation options.

OEM & ODM Projector Manufacturing

SMX is a professional projector factory providing OEM and ODM services for global distributors and AV companies.

  • Private label branding

  • Hardware customization

  • Firmware customization

  • Global supply chain

Start OEM Project

Frequently Asked Questions

Is a 10000 lumen projector enough for events?

Yes, it is suitable for medium to large events and indoor venues.

Can this projector be used for projection mapping?

Yes, it supports high brightness and multi-projector setups.

What is the lifespan of the laser light source?

Up to 20,000 hours with minimal maintenance.

Get Quote for 10000 Lumens Projector

Contact us for pricing, OEM solutions, and project recommendations.

Request Quote

Download Catalog

Key   Parts

Mode   No.MX-PL9510K
Brightness(Ansi Lumen)10000
Resolution4K
Overall   Spec
Display DeviceDisplay   Technology3LCD   (3*0.64")
Native Resolution4K
Light source
    Lifetime		Normal mode20000hrs
Projection LensZoom/Focus typeManual
Throw Ratio (optional lens)1.08-1.76
F#(Wide-Tele)1.58-2.02
f(mm)15.3-24.6
Screen size30-300"
Lens ShiftV: +45%~0%
    H:±21%
CRContrast Ratio5000000:1
NoiseNoise(dB）Normal: 39dB Long life: 39dB
    Quietness: 32dB
UniformityUniformity80%
ARAspect Ratio16:10
I/O Terminal
InputHDMI IN*2 (HDMI 2.0)
DVI-D*1
HD BaseT*1
3G-SDI*1（Optional)
USB-A*1
USB-B*1（Display）
RJ45*1（Display）
Audio in
    (mini jack,3.5mm）		*1
OutputHDMI OUT*1 (HDMI 2.0)
Audio out
    (mini-jack,3.5mm）		*1
ControlRS232*1
Wired Remote(IN)*1
Wired Remote(OUT)*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
DMX512*1
General Spec
Signal input parameterH-Synch Range15~100KHz
V-Synch Range24~120Hz
Video signal inputup to 4K @ 60Hz
Power ConsumptionPower  Requirements100~240V@   50/60Hz
ECO Standby Power<0.5W
Power Consumption
    (Normal) -Standard		755W
Temp.&HumidityOperating Temp.5 to 45 ℃
Operating  altitude

Normal: 0~1700m

Altitude: 1700~3650m

Operating Thumidity.20-80%
Store Temp. -10 to 50 ℃
Store Thumidity.20-80%
Other Functions
KeystoneKeystone Correction（Lens@center)H/V keystone

4 Corner Correction

Pincushion/Barrel Correction

6 Corner

Geometry   correction

Grid image tune

LAN ControlLAN Control-RoomView (Crestron)Yes
LAN Control--
AMX Discovery		Yes
LAN Control--PJ LinkYes
Others360° projectionYes
Kensington lockYes
Sealed designYes
Filter-less designYes
Real-time clockYes
NFCYes
PW   presenterYes
Dimension&Weight

MAX Dimensions
    (WxDxH mm)		490x510x205
Net. Weight (kg)~18.5
Packaging Size
    (WxDxH mm)		800*740*440
Gross. Weight (kg)~28



Optional Lenses



PL   Series optional Lens Spec
Model No.MX-EP10ZLMX-EP06ZLMX-EP17ZL
F1.58-2.021.7~1.81.63~1.98
f15.3mm-24.6mm9.66mm-11.65mm24.47mm-41.6mm
Image circle21.51mm22.2mm22.2mm
Zoom/FocusManualMotorizedManual
Throw Ratio1.08(wide)   -1.78(tele)0.669(wide)-0.821(tele)1.74(wide)-2.97(tele)
Zoom Ratio1.61.211.7
Screen size30-300  inch50-500inch50-500inch
Lens ShiftV:+45%~0%
    H:±21%		V:+50%~0%
    H:±23%		V:+50%~0%
    H:±23%
Weight(G)370764~764

Standard   lens


download 10000 Lumen Dual Color Laser Projector Catalog.pdf
