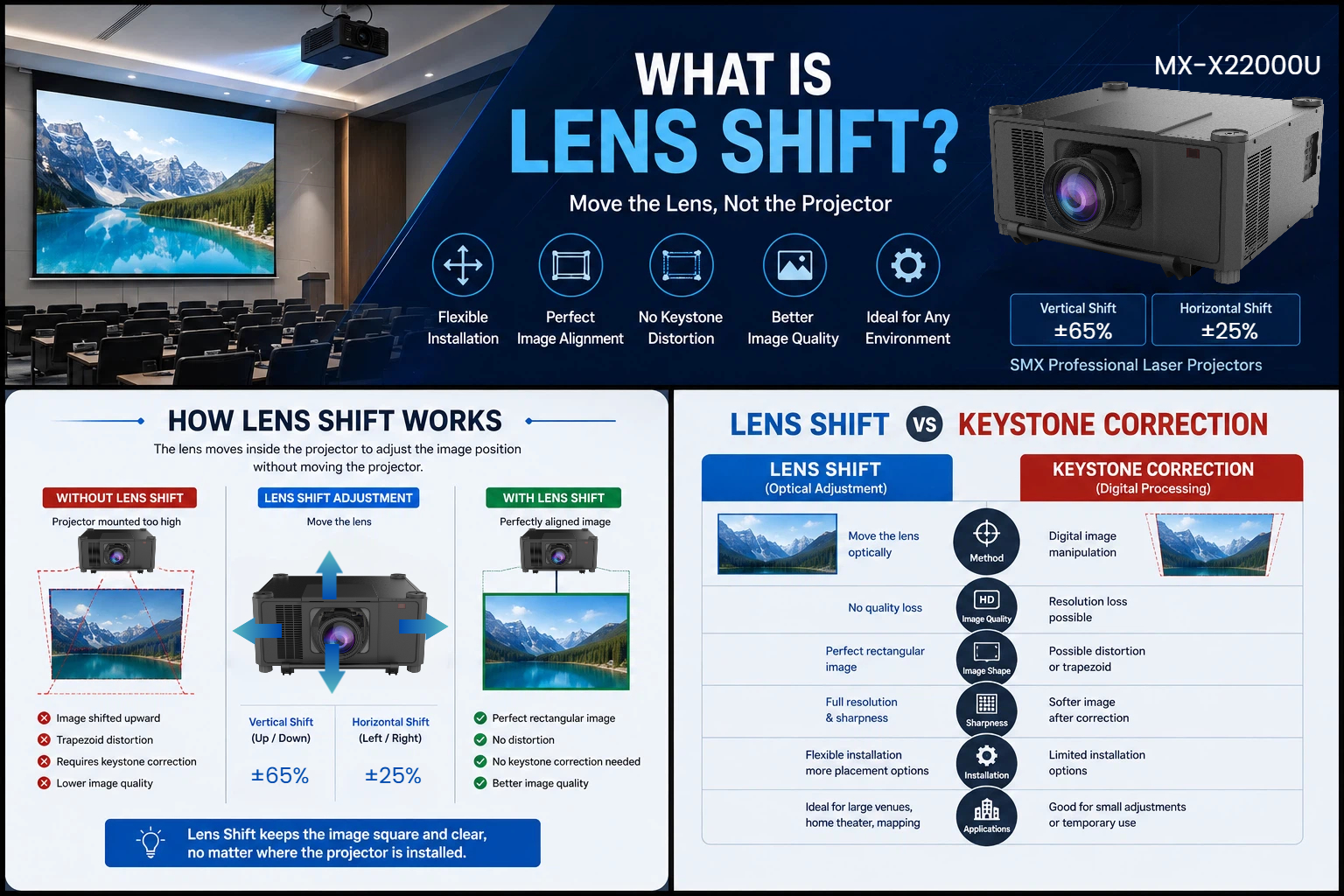

Lens Shift is a projector feature that allows the projected image to move vertically or horizontally without physically moving the projector itself. Instead of digitally altering the image, the projector mechanically adjusts the lens position to align the image with the screen. This preserves image quality and avoids geometric distortion.
For professional installations, lens shift is one of the most valuable projector features because it provides greater flexibility in projector placement while maintaining a perfectly rectangular image.
In an ideal installation, a projector would be perfectly centered with the screen.
However, real-world installations often involve:
Ceiling-mounted projectors
Off-center mounting positions
Structural obstacles
Large venue installations
Projection mapping systems
Lens shift allows installers to reposition the image without tilting the projector, helping maintain full resolution and image quality.
Unlike digital correction methods, lens shift physically moves the optical lens assembly inside the projector.
The projector remains fixed while the image moves:
Moves the image:
Up
Down
Commonly used for:
Ceiling installations
High mounting positions
Conference rooms
Home theaters
Moves the image:
Left
Right
Commonly used when:
The projector cannot be centered
Structural columns interfere with installation
Side-mounted installations are required
Professional installation projectors often support both vertical and horizontal lens shift.
The lens is adjusted using physical knobs or dials.
Advantages:
Lower cost
Reliable operation
Simple installation
Common in:
Mid-range installation projectors
Education projectors
Conference room projectors
The lens is adjusted electronically using a remote control.
Advantages:
Precise adjustment
Memory settings
Easy operation
Common in:
High-end laser projectors
Home theater projectors
Large venue projectors
Projection mapping systems
Many users confuse Lens Shift with Keystone Correction.
They are very different technologies.
Feature | Lens Shift | Keystone Correction |
|---|---|---|
Adjustment Method | Optical | Digital |
Image Quality | No Loss | Reduced |
Resolution Impact | None | May Reduce Effective Resolution |
Professional Installation | Recommended | Not Recommended |
Distortion | None | Possible |
Lens shift preserves the original image because the lens physically moves, while keystone correction digitally manipulates the image and can reduce sharpness or brightness.
Type | Purpose |
|---|---|
Vertical Lens Shift | Move image up and down |
Horizontal Lens Shift | Move image left and right |
Combined Lens Shift | Maximum installation flexibility |
Most professional 3LCD projectors offer larger lens shift ranges than comparable DLP projectors.
Allows ceiling-mounted projectors to align perfectly with the screen.
Benefits:
Cleaner installation
Better image quality
Flexible room design
Projectors can be installed away from lighting fixtures or HVAC systems while maintaining perfect screen alignment.
Essential for:
Auditoriums
Churches
Universities
Event halls
Lens shift helps installers align multiple projectors accurately before applying edge blending and warping adjustments.
Common in:
Building projection mapping
Immersive projection
Museum installations
Stage events
High-end installation projectors often combine:
Lens Shift
Zoom
Focus
Interchangeable Lenses
This combination allows engineers to optimize projector placement while maintaining image quality.
For example:
Short throw lens
Standard lens
Long throw lens
Ultra long throw lens
can all be used with lens shift functionality.
General recommendations:
Application | Recommended Lens Shift |
|---|---|
Home Theater | ±50% Vertical |
Conference Room | ±50% Vertical, ±15% Horizontal |
Large Venue | ±60% Vertical, ±20% Horizontal |
Projection Mapping | Maximum Available |
The larger the lens shift range, the greater the installation flexibility.
Allows projectors to be placed in non-ideal locations.
No digital scaling or image manipulation.
Reduces the need for awkward projector positioning.
Helpful for edge blending and projection mapping systems.
Supports changing room layouts and screen configurations.
For professional installations, lens shift is especially valuable in:
These models provide installation flexibility for conference rooms, churches, museums, immersive spaces, and projection mapping projects.
Yes. Lens shift preserves image quality because it uses optical adjustment instead of digital image manipulation.
No. Lens shift physically moves the lens and does not affect resolution or image sharpness.
No. Lens shift is typically found on professional installation projectors, large venue projectors, and premium home theater projectors.
Yes. Lens shift improves alignment and installation flexibility before applying warping and edge blending adjustments.
Lens Shift is one of the most important features in professional projector installation. By allowing the image to move without moving the projector, it provides greater installation flexibility while maintaining full image quality. Whether you are designing a home theater, conference room, immersive projection environment, or large-scale projection mapping project, lens shift can significantly simplify setup and improve results.
