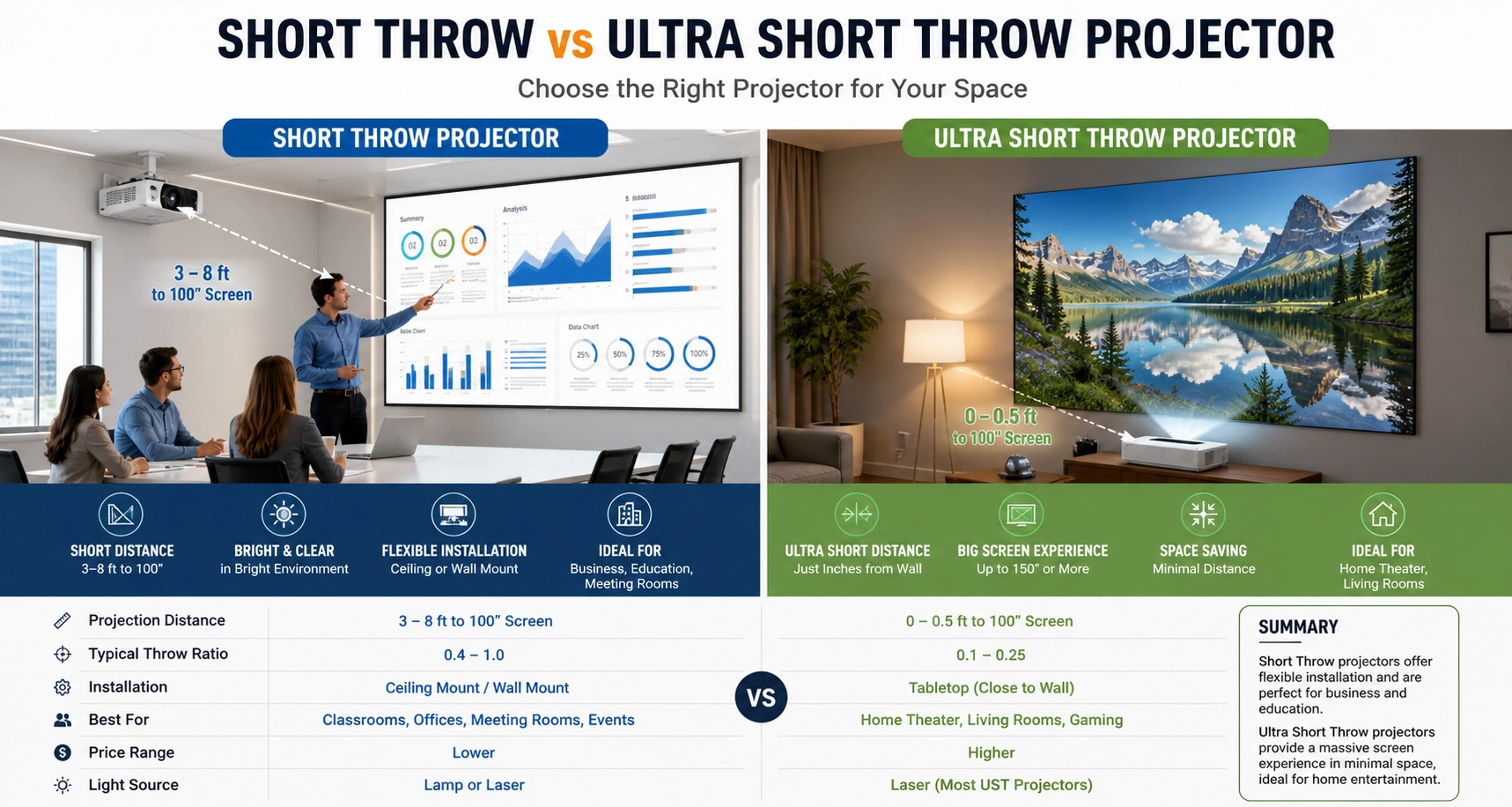

Compare short throw and ultra short throw projectors by throw ratio, installation distance, shadow control, screen requirements and application. The best choice depends on your available space and installation geometry.
The main difference is optical geometry. Short throw projectors require some distance from the screen, while ultra short throw projectors are designed to operate extremely close to the projection surface.
| Comparison Factor | Short Throw | Ultra Short Throw |
|---|---|---|
| Typical Throw Ratio | Approx. 0.4–1.0 | Typically below 0.4 |
| Lens-to-Screen Distance | Short distance | Extremely close to screen |
| Installation Flexibility | Generally more flexible | More position-sensitive |
| Shadow Risk | Lower than standard throw, but shadows can still occur | Can further reduce people crossing the light path |
| Screen Flatness Sensitivity | Moderate | Usually higher |
| Alignment Sensitivity | Moderate | Higher due to extreme projection angle |
| Typical Applications | Classroom, golf simulator, training, exhibition, professional AV | Classroom, meeting room, digital signage, compact interactive spaces |
| Best When | Some mounting distance is available and flexibility is important | Projector clearance is extremely limited |
Two short throw projectors can require very different mounting distances for the same image width. The actual distance is determined by the projector's throw ratio, not simply by whether it is labeled “short throw.”
Throw ratio changes more than projector distance. It also affects mounting position, light-path geometry, shadow risk, screen sensitivity and how precisely the projector must be aligned with the projection surface.
Not automatically. Moving the projector closer to the screen can greatly reduce the area where people cross the projection path, but shadow performance still depends on projector position, screen size, user location and the specific optical geometry.
Both projector types solve limited-distance installations, but they do so in different ways. The right choice depends on how much space you have, how precise the installation can be, what screen is being used and how people interact with the projected image.
Short throw projectors generally require more distance than UST models, but that extra distance can provide greater freedom for ceiling mounting, positioning and project-specific optical planning.
Ultra short throw projectors minimize lens-to-screen distance and can reduce accessible light paths, but the installation can become more sensitive to projector alignment and screen geometry.
The best projector type depends on how the room is used. Classroom, meeting room, golf simulator, simulation and exhibition projects all have different requirements for projection distance, user position, shadows, screen geometry and mounting flexibility.
| Application | Short Throw | Ultra Short Throw | Main Selection Factor |
|---|---|---|---|
| Classroom | Excellent | Excellent for very compact rooms | Teaching position & available distance |
| Meeting Room | Very Suitable | Strong option for limited space | Room depth & screen location |
| Golf Simulator | Often Practical | Requires careful evaluation | Hitting position, swing & shadow path |
| Simulation & Training | Very Flexible | Useful in very compact layouts | Optical geometry & user movement |
| Museum & Exhibition | Strong Flexibility | Good where clearance is minimal | Visitor path & installation space |
| Interactive Display | Suitable | Particularly useful near the screen | User proximity to screen |
Both ST and UST can work well in education environments. The decision depends mainly on classroom depth, teacher position and how close people need to stand to the screen.
Meeting rooms often benefit from compact projector placement, especially where tables, lighting fixtures or limited ceiling space affect the installation.
Golf installations require more than a short projector distance. The projector must create the required image without interfering with the golfer's position, swing path or shadow geometry.
Simulators frequently involve multiple surfaces, operators and equipment, making projector position an important part of the complete system layout.
Public visitor movement, architectural constraints and limited projector visibility can strongly influence optical selection in exhibition environments.
When users must stand very close to the displayed content, the accessible projection path becomes an important part of the system design.
Golf simulator projector selection should start with impact screen width, available ceiling position, hitting position and swing clearance. A shorter optical distance is useful only if the projector remains outside the golfer's movement area and minimizes shadows.
Read Golf Simulator Guide →Golf simulator projection is different from a normal classroom or meeting room installation. The golfer stands between the projector and impact screen, so projector placement must be planned around image width, hitting position, shadow path and swing clearance.
Short throw optics can create a large image while keeping the projector relatively close to the impact screen. This often provides useful flexibility for ceiling-mounted golf simulator layouts.
Ultra short throw can place the projector very close to the impact screen, but golf simulator installations require additional attention to screen flatness, projector protection and golfer movement.
The examples below show why the lowest throw ratio is not automatically required. The correct mounting distance must also fit the golfer's position and room geometry.
Learn how to calculate throw ratio, select brightness and plan projector placement around the impact screen, golfer position and room dimensions.
View Golf Simulator Guide →The best choice starts with your actual installation geometry. Measure the image width, available projector distance, user position and screen conditions first, then decide whether short throw or ultra short throw is the better fit.
Throw ratio is only one part of projector selection. These frequently asked questions explain the practical differences between short throw and ultra short throw projectors and clarify several common misconceptions about distance, shadows, brightness and installation.
The main difference is optical geometry. Short throw projectors typically operate at approximately 0.4–1.0 throw ratio, while ultra short throw projectors typically use ratios below 0.4. A lower throw ratio allows the projector to create the same image width from a shorter lens-to-screen distance.
No. UST is useful when projector-to-screen distance must be extremely small, but short throw can offer more practical mounting flexibility. The better option depends on room dimensions, screen geometry, user position, mounting location and the application.
A 0.44:1 projector is generally considered short throw rather than ultra short throw. UST commonly refers to projectors with a throw ratio below approximately 0.4, although category boundaries can vary between manufacturers and products.
Not completely. Because the projector is positioned very close to the screen, UST can reduce the accessible projection path and therefore reduce many common shadow problems. However, shadows still depend on the optical path, projector position and where users stand.
Screen requirements depend on the projector and installation environment. Because UST light reaches the projection surface at a steep angle, screen flatness and surface characteristics can become especially important. Always check the projector and screen specifications before final installation.
Short throw is often practical for golf simulator installations because it can provide useful ceiling-mounting options while keeping the projector relatively close to the impact screen. UST can also be considered, but projector protection, screen geometry, hitting position and swing clearance must be evaluated carefully.
No. Brightness and throw ratio are different specifications. Lumens describe projector light output, while throw ratio determines the relationship between image width and lens-to-screen distance. A high-brightness projector can still use short throw optics.
Measure the required horizontal image width and the available lens-to-screen distance, then calculate the required throw ratio:
Enter your image width and available projector distance to calculate the throw ratio required by your room.
Throw Ratio Calculator → Short Throw Distance Guide →Once you understand the difference between short throw and ultra short throw, the next step is to match the projector to your actual image width, available distance, application, brightness requirement and installation conditions.
