20000 Lumens WUXGA Laser Projector | High Brightness for Large Venues & Events | SMX

The 20000 lumens WUXGA laser projector is perfect for large venues, immersive events, and projection mapping. With high brightness, 3LCD technology, and up to 20,000 hours of laser light source lifespan, it ensures clear and vibrant images. Customizable for OEM/ODM projects.The 20000 lumens WUXGA laser projector is perfect for large venues, immersive events, and projection mapping. With high brightness, 3LCD technology, and up to 20,000 hours of laser light source lifespan, it ensures clear and vibrant images. Customizable for OEM/ODM projects.
Availability:
Quantity:
Inquire Add to Basket

  • MX-X20000U

  • SMX

20000 Lumens WUXGA Laser Projector

Perfect for large venues, professional events, and immersive projection mapping.

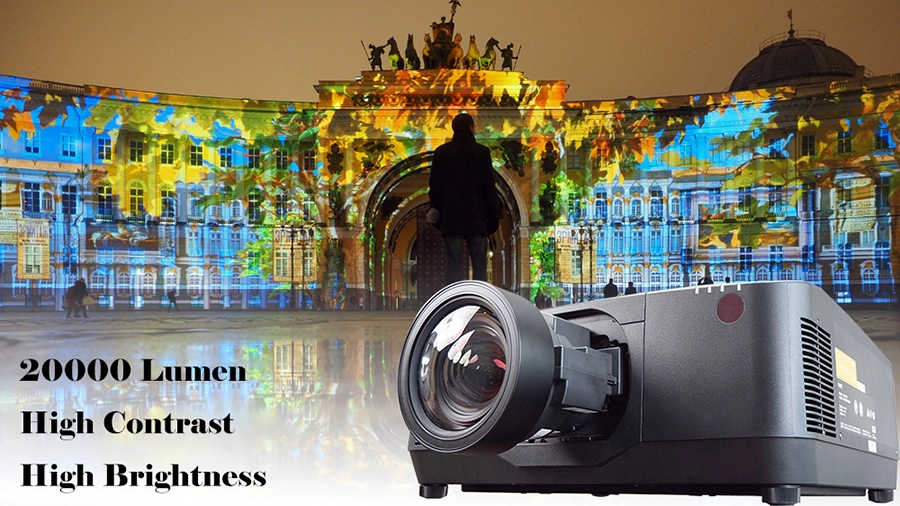

20000 lumen laser projector for mapping.webp

Key Specifications

  • Brightness: 20000 Lumens

  • Resolution: WUXGA (1920×1200)

  • Display Technology: 3LCD

  • Light Source: Laser

  • Lamp Life: 20,000 Hours

  • Lens: Optional Manual Lens

  • Multi-projector Setup & Edge Blending

High Performance for Large Venues & Events

This 20000 lumens WUXGA laser projector is built to deliver unparalleled brightness and color accuracy in large venues, for live events, and projection mapping. With 3LCD technology and a laser light source, this projector offers up to 20,000 hours of reliable performance, ensuring vibrant visuals and high-quality projection in demanding environments.

Applications

  • Large Venue Projection

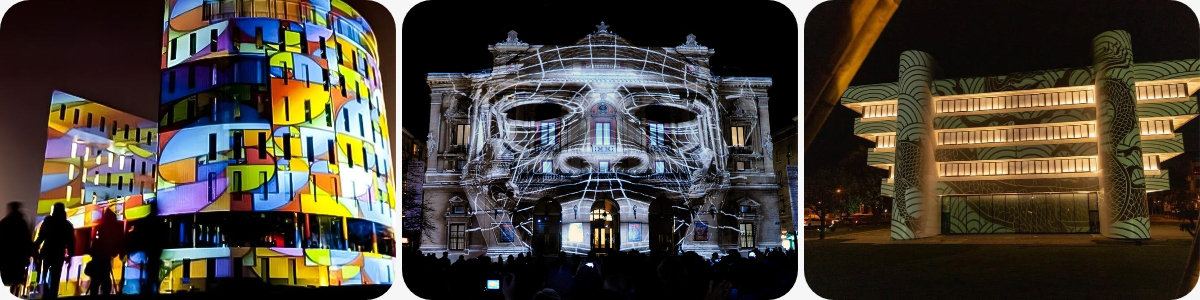

  • Projection Mapping

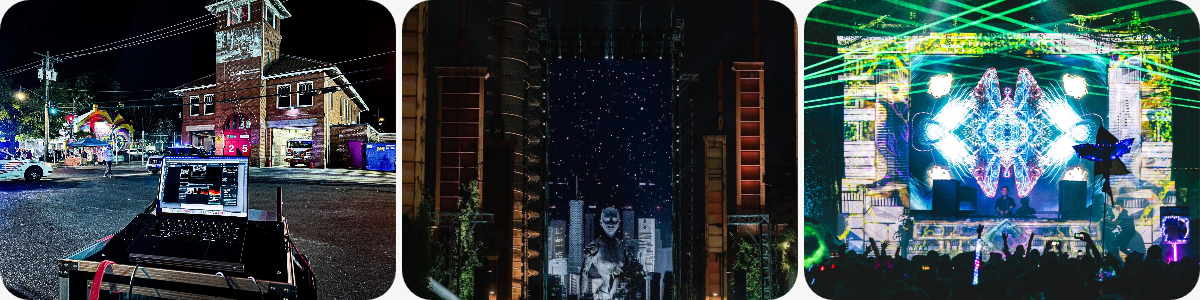

  • Live Events and Stage Shows

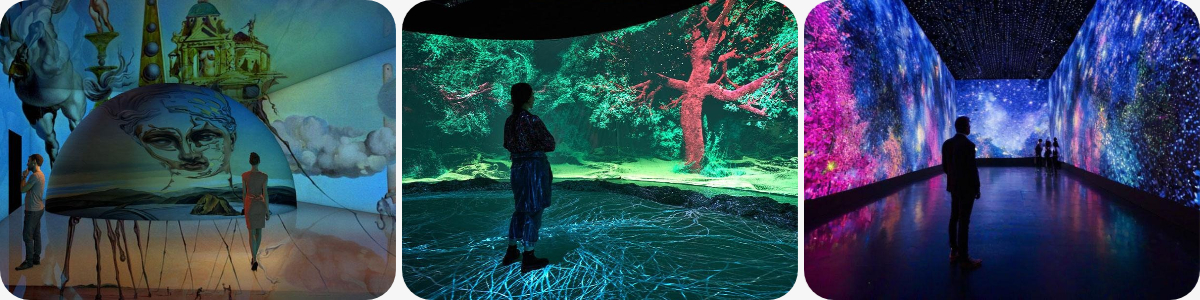

  • Exhibitions and Conferences

Explore our Projection Mapping Solutions

20000 Lumens 4K Laser Projector Application.webp

Key Features

20000 Lumens Brightness

Delivers high visibility even in large spaces or brightly lit environments.

3LCD Technology

Ensures accurate colors and clear images for all applications.

Laser Light Source

Up to 20,000 hours of maintenance-free operation for long-term installations.

Edge Blending Support

Allows seamless integration of multiple projectors for larger visual displays.

OEM & ODM Projector Solutions

SMX offers custom projector solutions for large-scale AV integrators, rental companies, and distributors worldwide. Our OEM/ODM services allow you to tailor the projectors to meet your specific needs.

  • Private Labeling

  • Custom Hardware & Firmware

  • Mass Production

Start Your OEM Project

3D mapping projection projector.png

Frequently Asked Questions

Is this projector suitable for large venues?

Yes, it provides high brightness and clarity for large indoor or outdoor venues.

How long does the laser light source last?

The laser light source lasts up to 20,000 hours, reducing the need for frequent replacements.

Can I use this projector for projection mapping?

Yes, it supports multi-projector setups and edge blending for seamless projection mapping.

Get Quote for 20000 Lumens Projector

Contact us for pricing, system design, and OEM solutions tailored to your needs.

Request Quote

Download Catalog

Model

Model#MX-X20000U
Key parts

PJ LensOptional
Light sourceLaser
MainchipTopaz Prime PWC895
Brightness

Brightness(Lumen)20,000
Overall Spec
PanelDisplay Panel3x1.0"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Laser
    Life time		Normal mode20000hrs
ECO mode30000hrs
Projection Lens
    (STD)		Len ModelMX-EG12ZLM(Optional)
Zoom/FocusMotorized
Throw Ratio (16:10)1.24-2.01 @100inch
F1.8-2.24
f27.7-44.3mm
Zoom Ratio1.62
Screen size
    (Performance guarantee range)		60-500 inch
(80-500 inch)
Lens Shift V±65%
Lens Shift H±25%
CRContrast Ratio(Min)3,000,000:1
NoiseNoise(dB)Full: 46db
Normal:44db
Eco1:43db
Eco2:42db
UniformityUniformityTYP：90%
ARAspect RatioNative:16:10
Compatible: 4:3/16:9/normal/16:6
Terminal(I/O   port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI (3G-SDI)Optional
Audio in
(mini jack,3.5mm)		*1 (VGA/DVI-D share)
DMX512*1

HDMI 1.4(OUT)*1
Audio out
(mini-jack,3.5mm)		*1
ControlRS232C (Input)*1
RS232C (Output)*1
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
AudioSpeakerN/A
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
    (Full) (Max)		1155W
Power Consumption
    (Normal) (Max)		1000W
Power Consumption
    (ECO1) (Max)		825W
Power Consumption
    (ECO2) (Max)		580W
ECO Standby Mode
    Power Consumption		<0.5W
Temp.&HumidityOperating Temp.0 to 50°C
Operating Thumidity.20%-80%
Store Temp. -10 to 50°C
Store Humidity.20%-80%
Other   Functions
KeystoneKeystone CorrectionV: ±30°
    H：±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
LAN ControlLAN Control-RoomView
    (Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ LinkYes
Others360° projection360° Install
Edge BlendingYes
Adjustable brightnessYes
Lens position memory, lens locking functionYes
DMX512 lighting protocolYes
Dimension&Weight

MAX   Dimensions
    (WxHxD mm)		599X240.2X493.8mm (not including len)
599X232.2X493.8mm (not including len)
Net. Weight (KG)28.9Kg  (not including   len)
Packaging Box Dimensions
    (WxHxD mm)		745**370*630  (not   including len)
Gross. Weight (KG)34Kg  (not including len)
PackageCarton
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord (3m,Black), Remote control



Optional Lens
Model#MX-EG05ZLMMX-EG06ZLMMX-EG08ZLMMX-EG12ZLMMX-EG20ZLMX-EG39ZLM
Image circleΦ34.6Φ35.5Φ37.9Φ37.9Φ37.9Φ37.9
Lens TypeZoom Lens ST3Zoom Lens ST2Zoom Lens ST1Zoom Lens STDZoom Lens L1Zoom Lens L2
Zoom/FocusMotorizedMotorizedMotorizedMotorizedMotorizedMotorized
F#(Wide-Tele)1.85-2.201.84-2.251.80-2.241.80-2.241.84-2.581.85-2.42(TBD)
f(mm)12.0-14.614.4-19.119.0-27.627.7-44.343.8-86.086.8-163.5(TBD)
Throw ratio(16:10)0.53-0.650.65-0.870.86-1.251.24-2.011.98-3.953.95-7.50(TBD)
Zoom Ratio1.231.341.451.621.991.90(TBD)
Lens shiftH±20%±20%±25%±25%±25%±25%
V±50%±55%±65%±65%±65%±65%

Screen Size

(Performance guarantee range)

60-500inch

(80-500inch)

60-500inch

(80-500inch)

60-500inch

(80-500inch)

60-500inch

(80-500inch)

60-500inch

(80-500inch)

60-500inch

(80-500inch)
