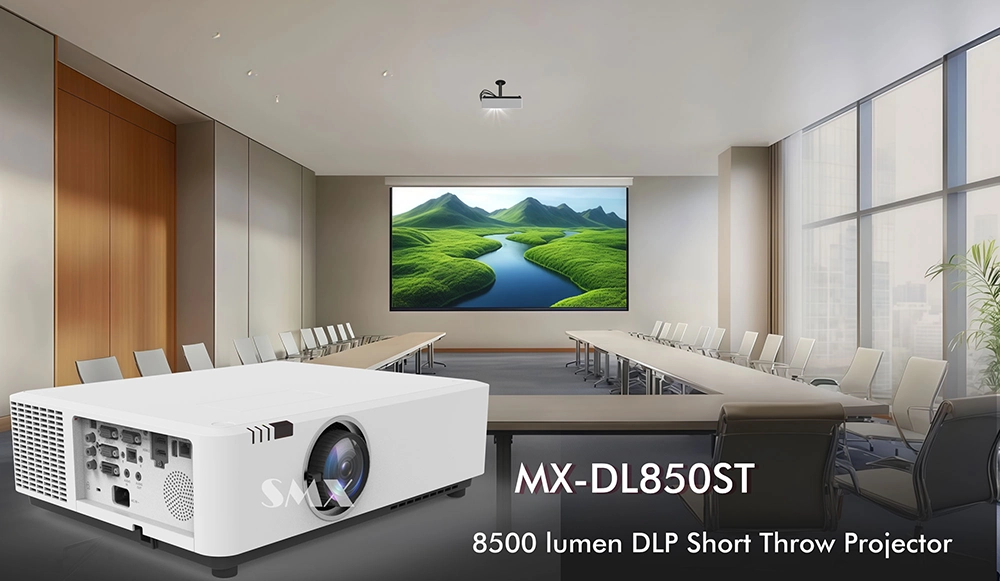

8500 Lumen Short Throw Laser Projector (WUXGA) for Meeting Rooms & Conference | SMX

Brightness: 8500 lumens
Resolution: WUXGA
Display Technology: DLP
Light Source: Laser
Throw Ratio: Short Throw
Availability:
Quantity:
  • MX-DL850ST

  • SMX

8500 Lumen Short Throw Laser Projector (WUXGA) for Meeting Rooms & Conference | SMX

Powerful 8500 lumen laser projector designed for bright environments. Short throw lens, WUXGA resolution, and long-life laser source make it ideal for conference rooms, classrooms, and professional AV installations.


Get a Quote         Catalog download

Why Choose This 8500 Lumen Laser Projector?

  • ✔ 8500 Lumens High Brightness for well-lit rooms

  • ✔ Short Throw Design – large image in small space

  • ✔ WUXGA Resolution (1920×1200) for sharp detail

  • ✔ 30,000 Hours Laser Lifespan

  • ✔ Flexible Installation with Lens Shift & 360° Projection

Applications

This short throw laser projector is ideal for:

  • Meeting rooms & conference rooms

  • Classrooms & education environments

  • Exhibition halls

  • Auditoriums

  • Simulation & training systems

Professional 8500 Lumen Laser Projection Solution

This 8500 lumen WUXGA laser projector is designed for professional environments where brightness, clarity, and flexibility are critical. With advanced DLP technology and a high contrast ratio, it delivers clear and vivid images even under strong ambient light conditions.

The short throw lens allows large image projection in limited spaces, making it perfect for meeting rooms and classrooms. Compared to traditional lamp projectors, the laser light source offers up to 30,000 hours of operation, reducing maintenance costs significantly.

Key Features

8500 Lumens High Brightness

Ensures clear images even in bright environments.

Short Throw Projection

Project large images in tight spaces with minimal distance.

WUXGA Resolution

1920×1200 resolution delivers sharp and detailed visuals.

Laser Light Source

Up to 30,000 hours lifespan with low maintenance.

Technical Specifications

Brightness

8500 Lumens

Resolution

WUXGA (1920x1200)

Technology

DLP

Light Source

Laser

Lifespan

Up to 30,000 Hours

Throw Type

Short Throw

Contrast Ratio

High Contrast

FAQ

What is a short throw projector?

A short throw projector can display large images from a short distance, ideal for small rooms.

Is 8500 lumens enough for a meeting room?

Yes, 8500 lumens is more than enough for bright meeting rooms and conference spaces.

What is WUXGA resolution?

WUXGA (1920×1200) provides higher detail than Full HD, ideal for presentations.

How long does a laser projector last?

Laser projectors can last up to 30,000 hours, much longer than lamp-based models.

Get Your OEM Projector Solution Today

✔ Factory Direct Price
✔ OEM & Custom Branding Available
✔ Global Shipping Support

Get Quote Now

Learn More

Key Parts

Model   No.MX-DL850ST
Resolution1080P
Brightness(Ansi Lumen)8500
Overall Spec
PanelDisplay Panel0.65" DMD
Display TechnologyDLP
Native Resolution1080P (1920 x 1080)
Light source Life timeNormal mode20,000hrs
ECO1 mode30,000hrs
Projection LensF2.4
f9.66mm-11.65mm
Zoom/FocusManual
Throw Ratio0.647(wide)~0.782(tele)
Zoom Ratio1.63
Screen size80-300inch
Lens Shift

V:+42%~-10%

H:±8%

CRContrast Ratio5,000,000:1
NoiseNoise(dB)39dB(Normal)  ; 36dB(ECO)
UniformityUniformity95%
ARAspect RatioNative:16:9   Compatible: 4:3/16:10
Terminal(I/O port)
InputVGA*2
HDMI 1.4B(IN)*2
HD BaseT*1(Optional)
Video*1
Audio L (RCA)*1
Audio R (RCA)*1
Audio in
(mini jack,3.5mm)
*1
OutputVGA*1
Audio out
(mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1   (Control)
USB-B*1   (For upgrade)

USB (Type A)

only supports  5V

*1
General   Spec
AudioSpeaker10W*1
Power ConsumptionPower Requirements100~240V@   50/60Hz
Power Consumption
(Normal) (Max)
670
Power Consumption
(ECO1) (Max)
520
ECO Standby Mode Power Consumption<0.5W
Temp.&HumidityOperating Temp.0m≤Altitude≤1700m, Ambient0℃~50℃
1700m<Altitude<3000m, Ambient 0℃~40℃
Operating Thumidity.20-85%
Store Temp. -10 to 50°C
High altitude0~3000m
Other Functions
KeystoneKeystone  Correction
(Lens@center)
V: ±30°
4 Corner Correction
OSDLanguages26   languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazakh, Vietnamese, Thai, Farsi
LAN ControlLAN   Control-RoomView (Crestron)Yes
LAN Control-- AMX DiscoveryYes
LAN Control-- PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH, AUTO PC, Auto Keystone
BlankYes
SuspendYes(5   minutes no signal as default)
Picture modeDynamic, Standard, Cinema, Blackboard
Cooling time0s
Auto CeilingYes
D-Zoom±5
Others360° projectionYes
3DYes
Dimension&Weight

MAX Dimensions (WxDxH mm)460(W)*355(D)*142.6(H)
Net. Weight (KG)~10KG
Packaging Size
(WxDxH mm)
574(W)*554(D)*268(H)
Gross. Weight (KG)12.5kg
Accessories

Standard AccessariesPower cord, HDMI cable, Remote control
