MX-WPL500U
SMX

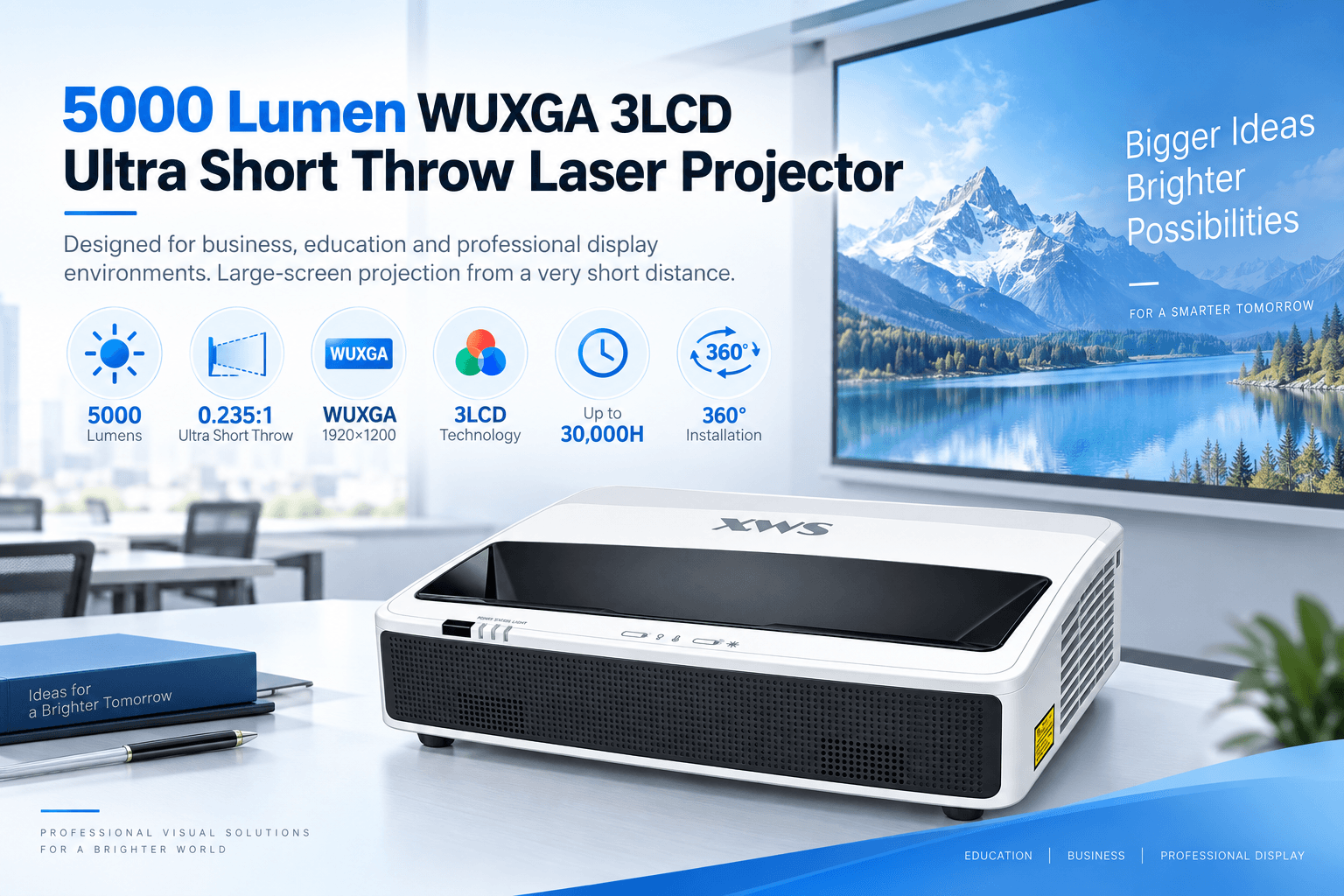

Designed for laser TV-style large-screen installations, home entertainment and professional display applications, this 5000-lumen 3LCD laser projector combines native WUXGA resolution with a 0.235:1 ultra-short-throw optical system.
5000 Lumens High Brightness
0.235:1 Ultra Short Throw
WUXGA 1920 × 1200
3LCD Professional Imaging
80–120" Large Screen Projection
30,000H Up to ECO2 Laser Life

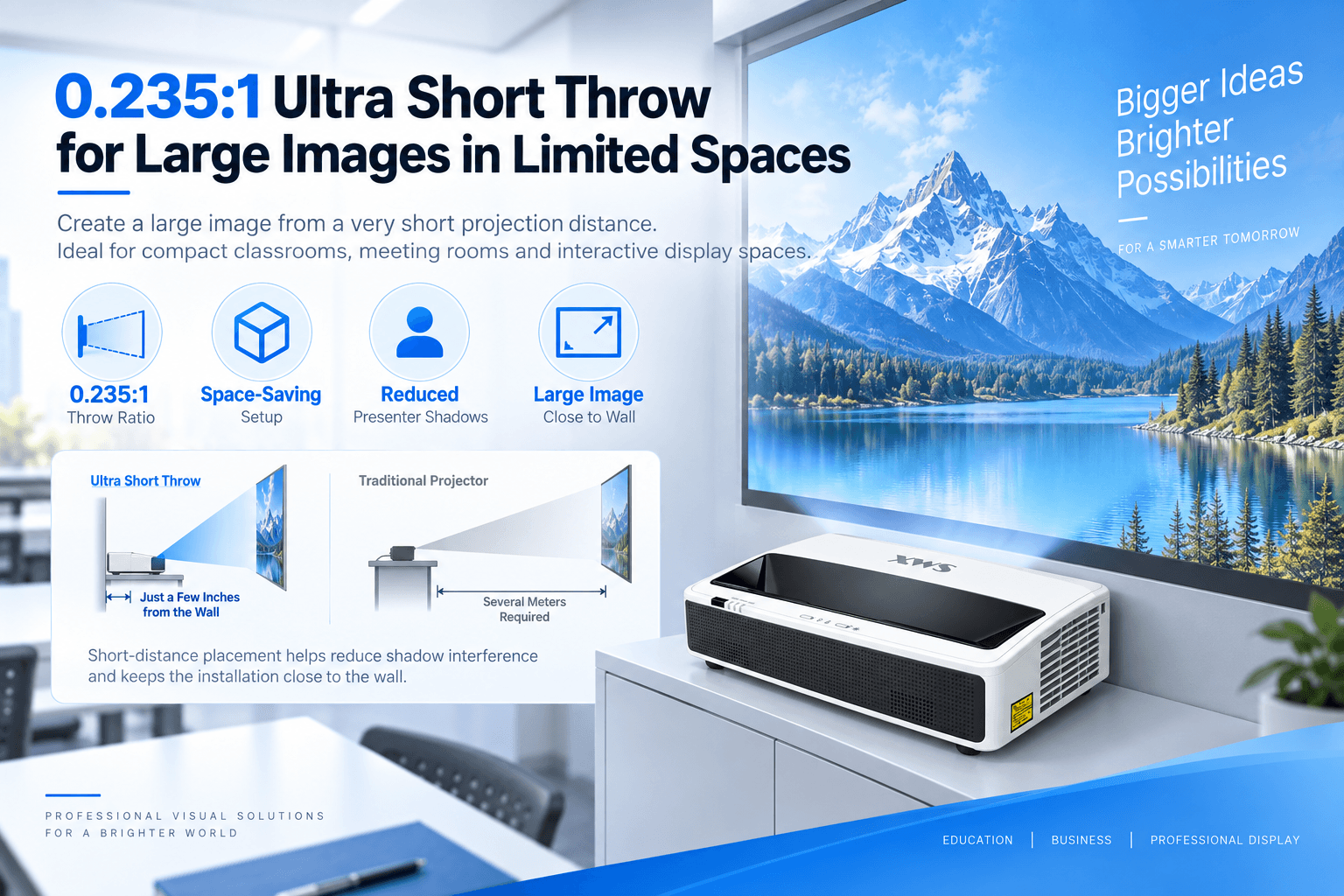

The 0.235:1 ultra short throw optical system creates a large projected image from a very short distance, reducing the room space required between the projector and the projection surface.
Short-distance placement can also help reduce presenter shadows and visual obstruction compared with conventional longer-throw installations.
0.235:1 Throw Ratio Short Projection Distance Reduced Shadow Interference Space-Saving Installation
Enter your required image width and lens-to-screen distance to calculate the required throw ratio and evaluate the initial installation layout for your projection project.
5000 lumens of brightness supports large-screen visual presentation in home entertainment, commercial display and professional indoor environments where some ambient lighting may be present.
Large-screen entertainment for dedicated living spaces.
Bright visual content for branded environments.
Reliable projection for large-format visual communication.

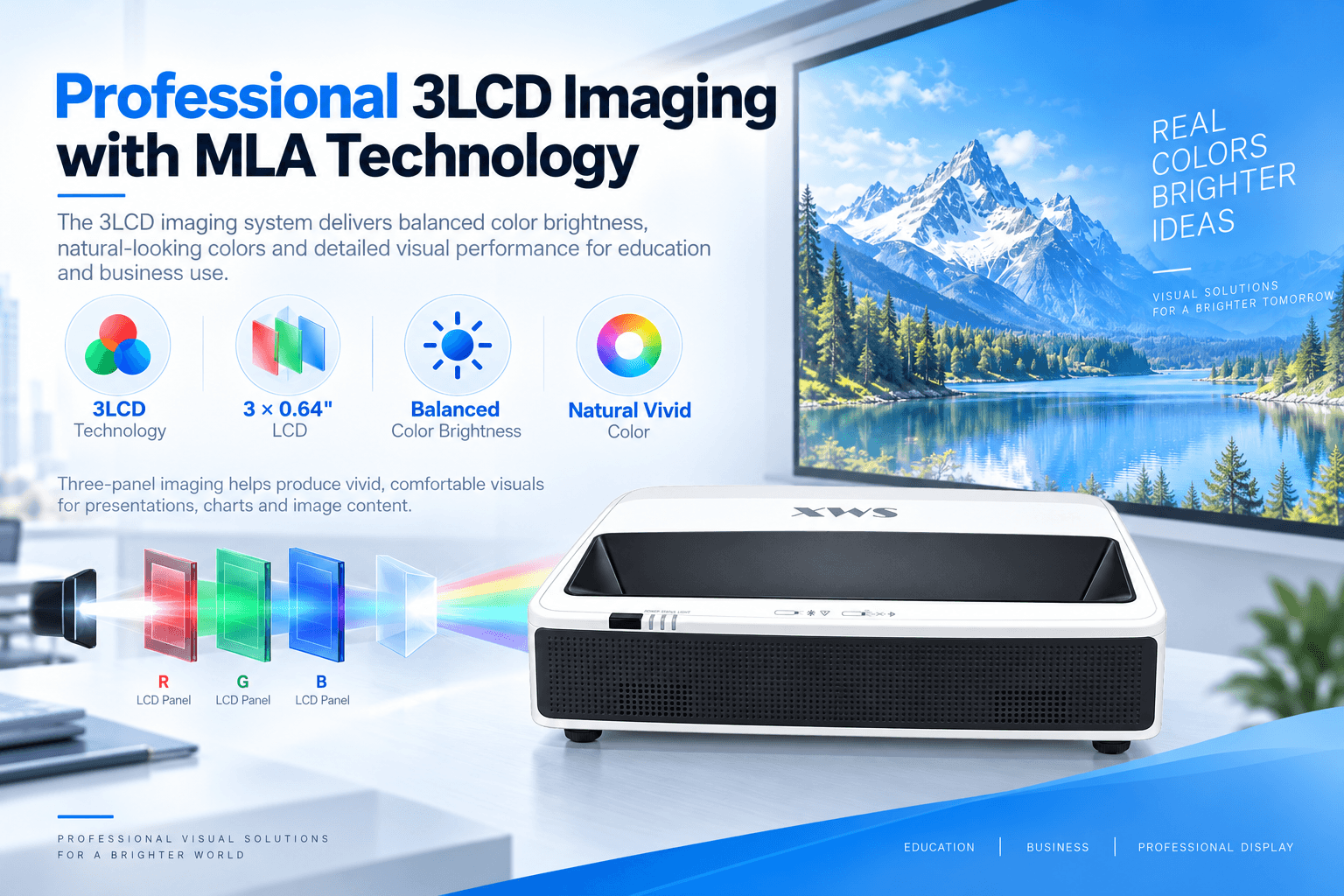

The three-panel 3LCD imaging system uses 0.64-inch LCD panels with MLA technology to provide balanced color brightness, natural-looking color reproduction and detailed visual performance.
Three-panel professional display architecture.
LCD panels with MLA technology.
Suitable for video, graphics and large-screen visual content.
Native WUXGA 1920×1200 resolution provides detailed 16:10 images for movies, presentations, graphics, commercial content and professional large-screen visualization.
The projector supports computer input signals up to 4K@30Hz while displaying content at its native WUXGA resolution.
WUXGA 1920×1200 16:10 Native 4K@30Hz Signal Support Sharp Text & Graphics

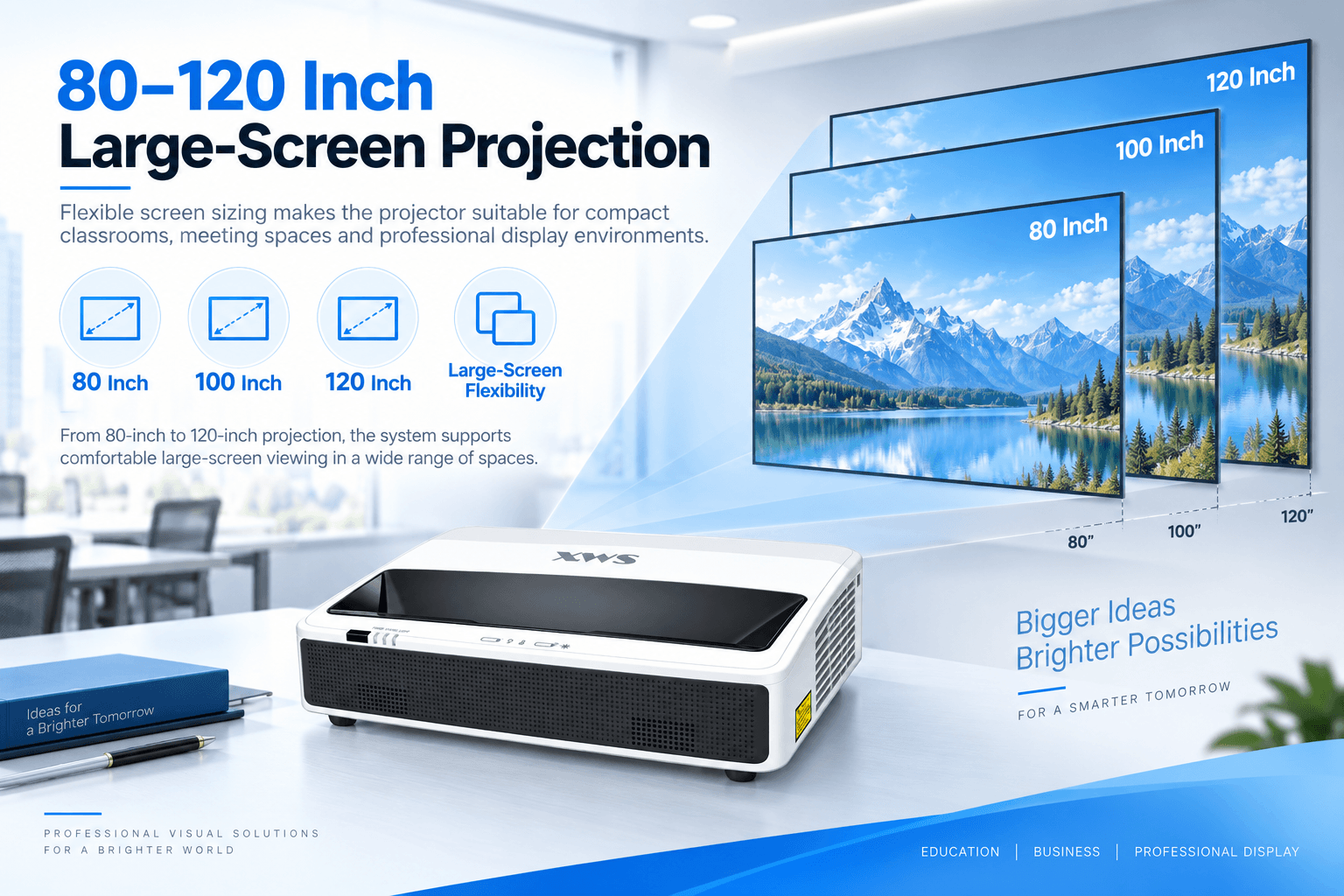

The 80–120 inch projection range supports large-screen viewing in living rooms, home entertainment spaces, commercial displays and professional visual environments.
Combined with the 0.235:1 ultra short throw optical system, the projector can create a large image while maintaining a very short installation distance.
Suitable for more compact large-screen installations.
Popular size for home entertainment and commercial display.
Expanded visual impact for larger viewing environments.

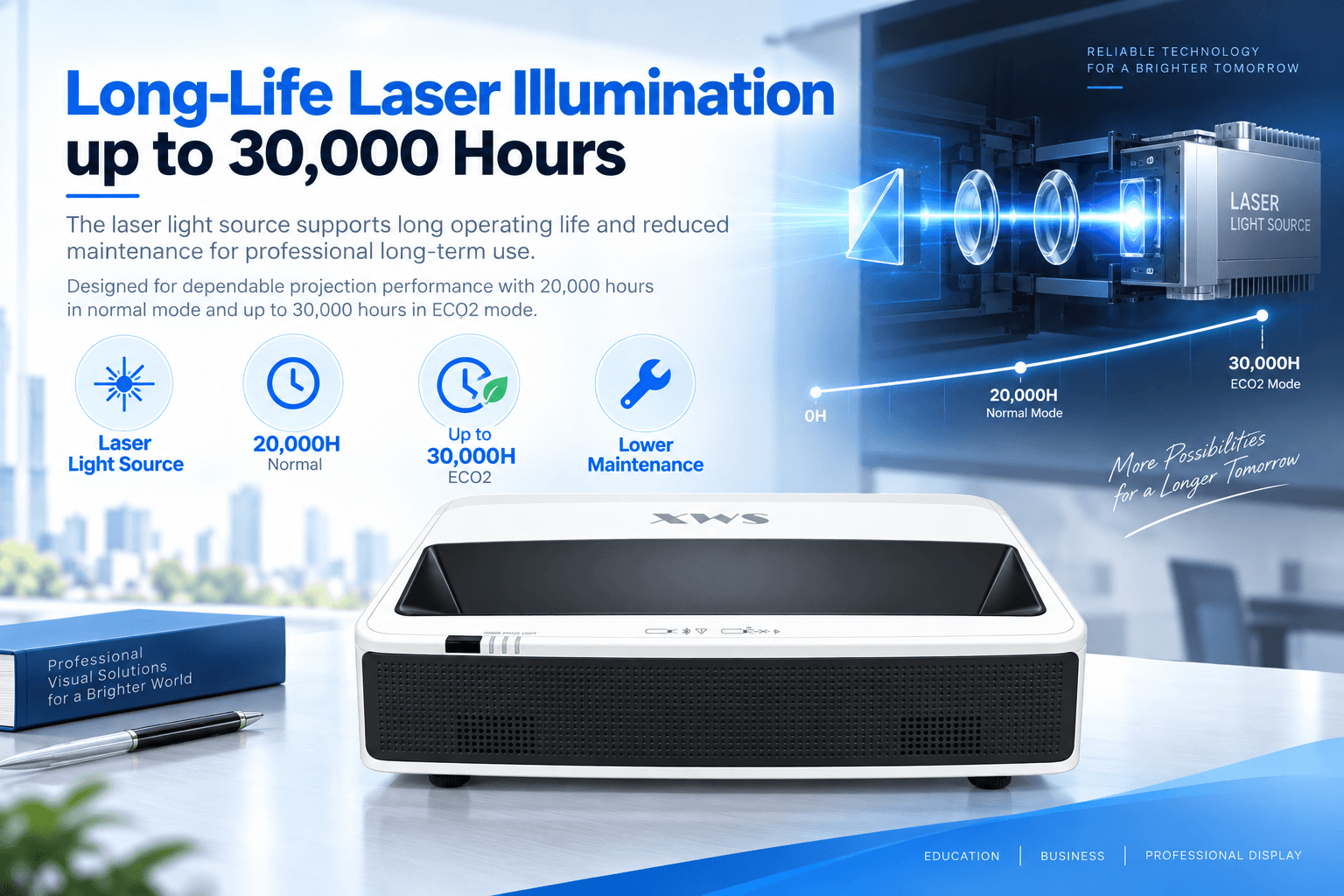

The laser light source provides stable illumination while reducing routine lamp replacement requirements, supporting both home and professional fixed-installation applications.
Normal mode laser life.
Reduced routine light-source replacement requirements.
Extended laser life in ECO2 mode.

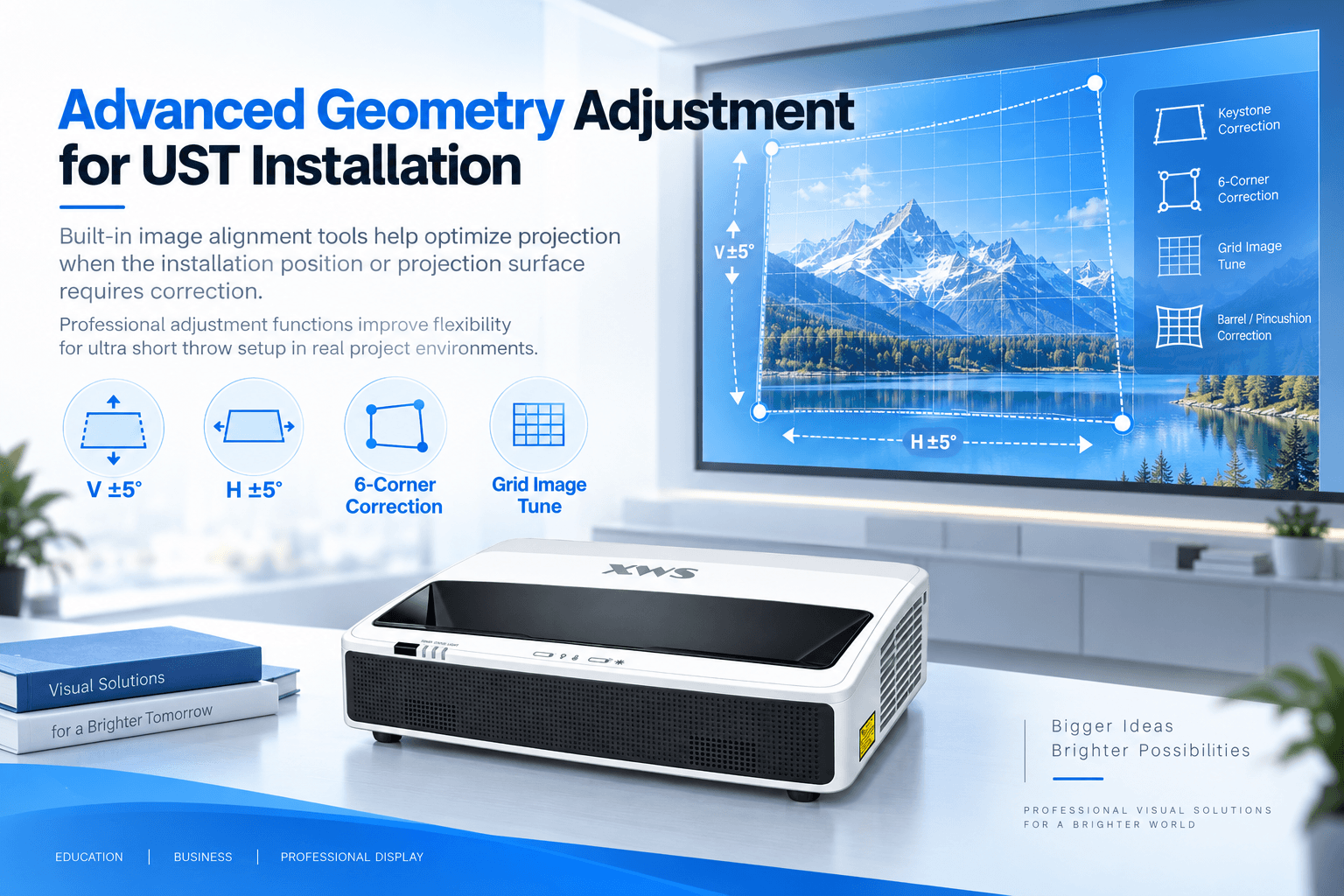

Professional image adjustment tools help optimize image alignment during ultra short throw installation when the screen, mounting position or installation environment requires fine correction.
Vertical keystone adjustment.
Horizontal keystone adjustment.
Flexible multi-point geometry correction.
Detailed image alignment adjustment.
6-Corner Correction Grid Image Tune Pincushion Correction Barrel Correction

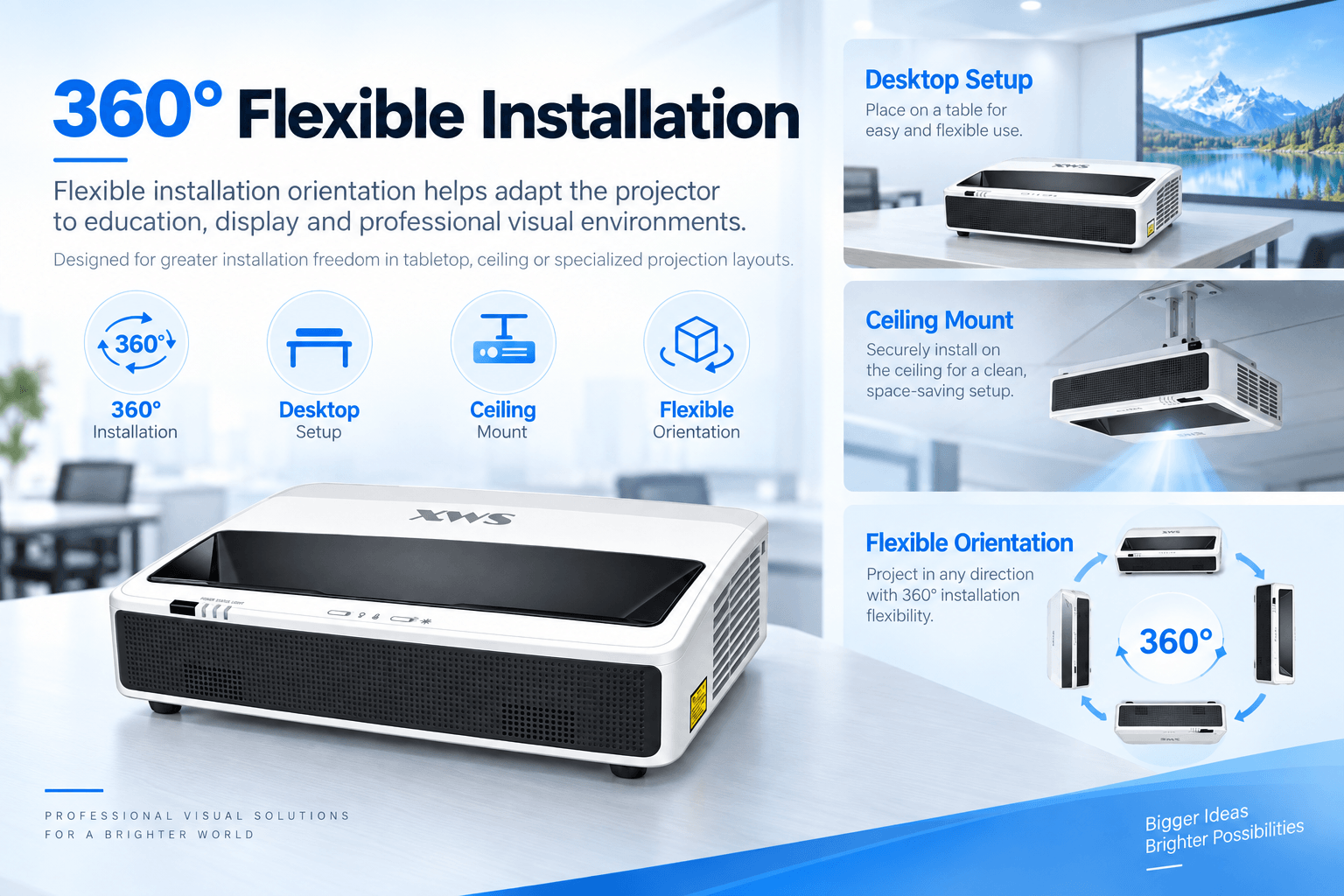

360° installation capability provides additional freedom when integrating the projector into living spaces, exhibitions, commercial display installations and professional AV environments.

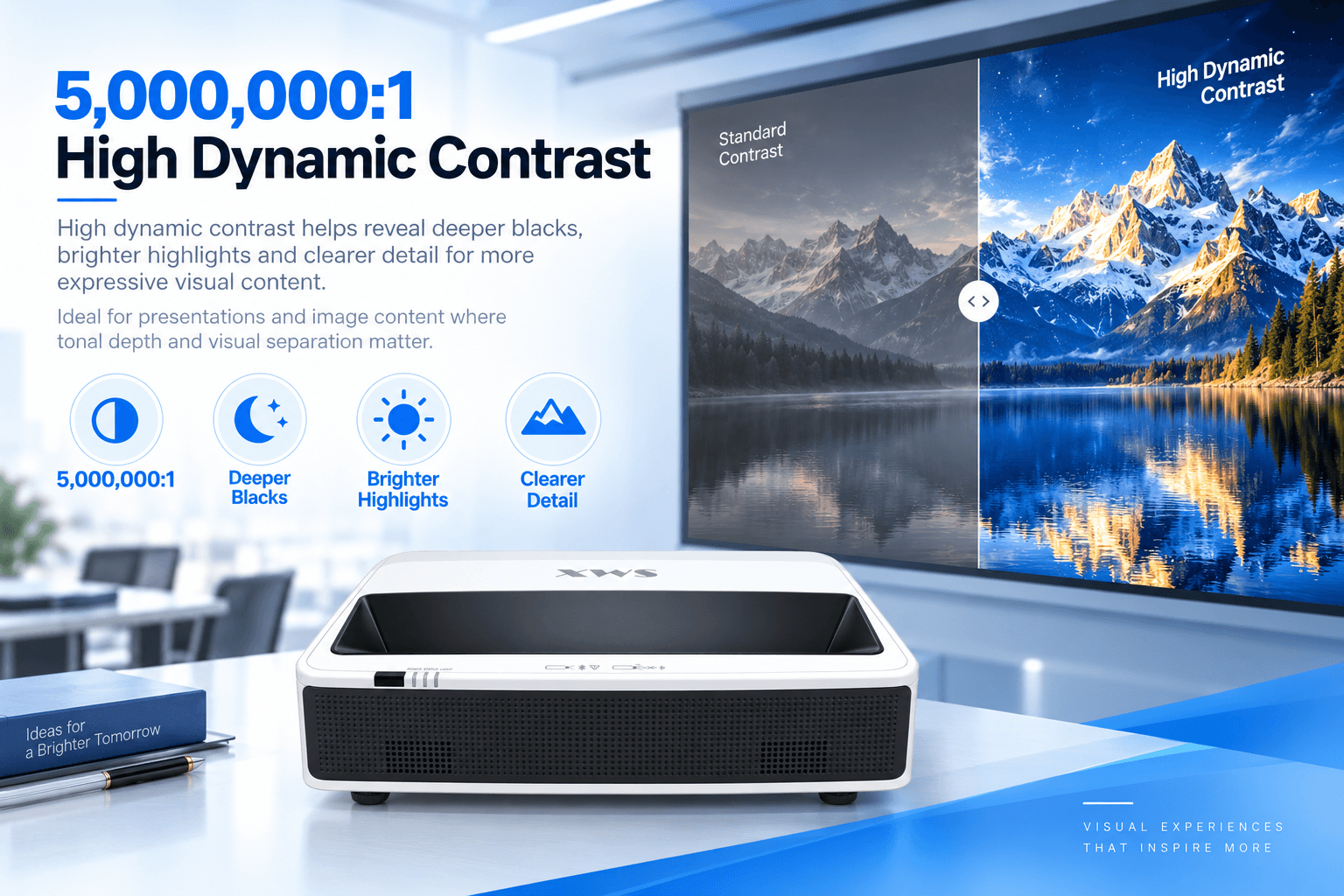

High dynamic contrast helps improve separation between bright highlights and darker image areas, creating stronger perceived visual depth across movies, graphics and professional content.
5,000,000:1 Deeper Dark Detail Bright Highlights Clear Visual Detail

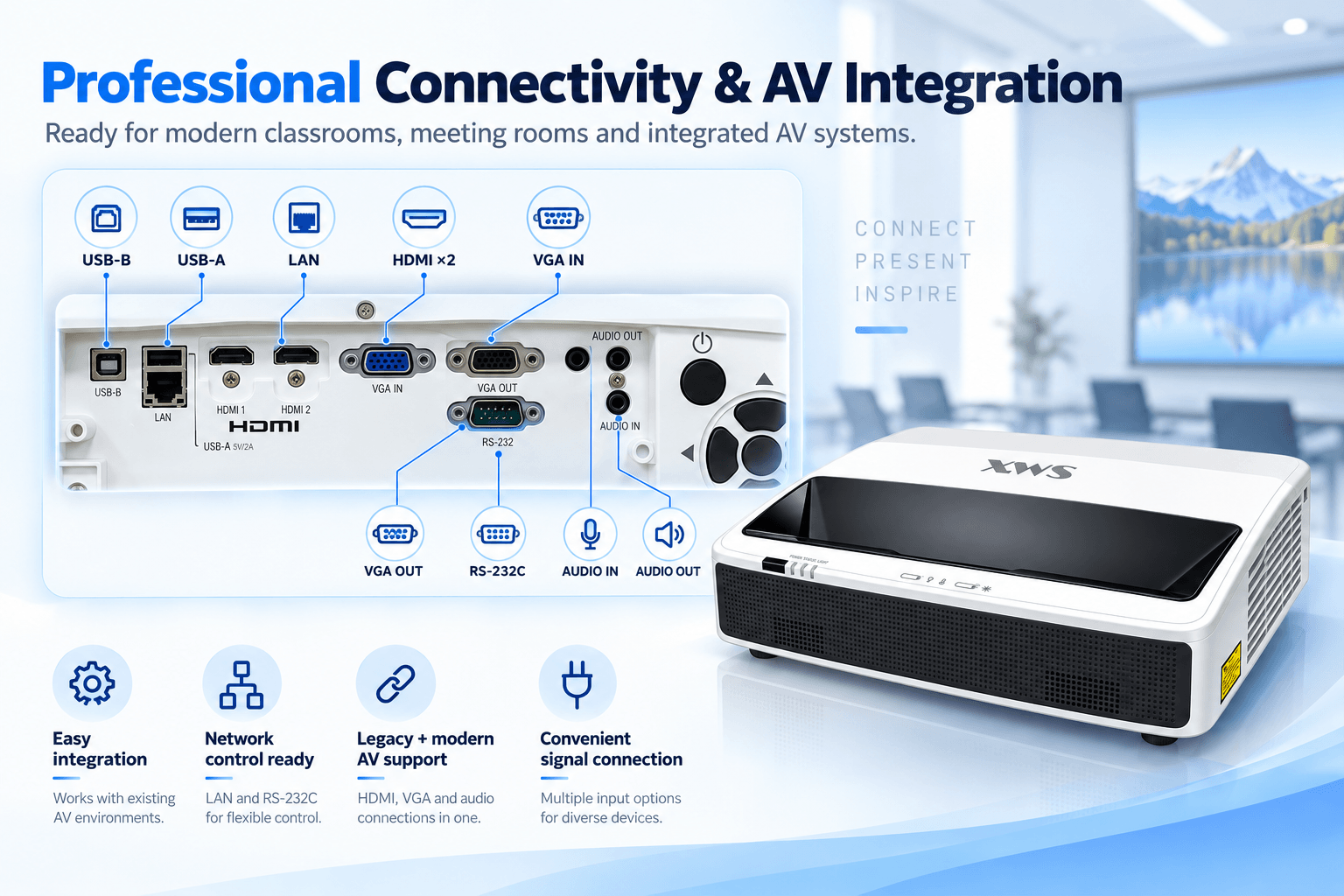

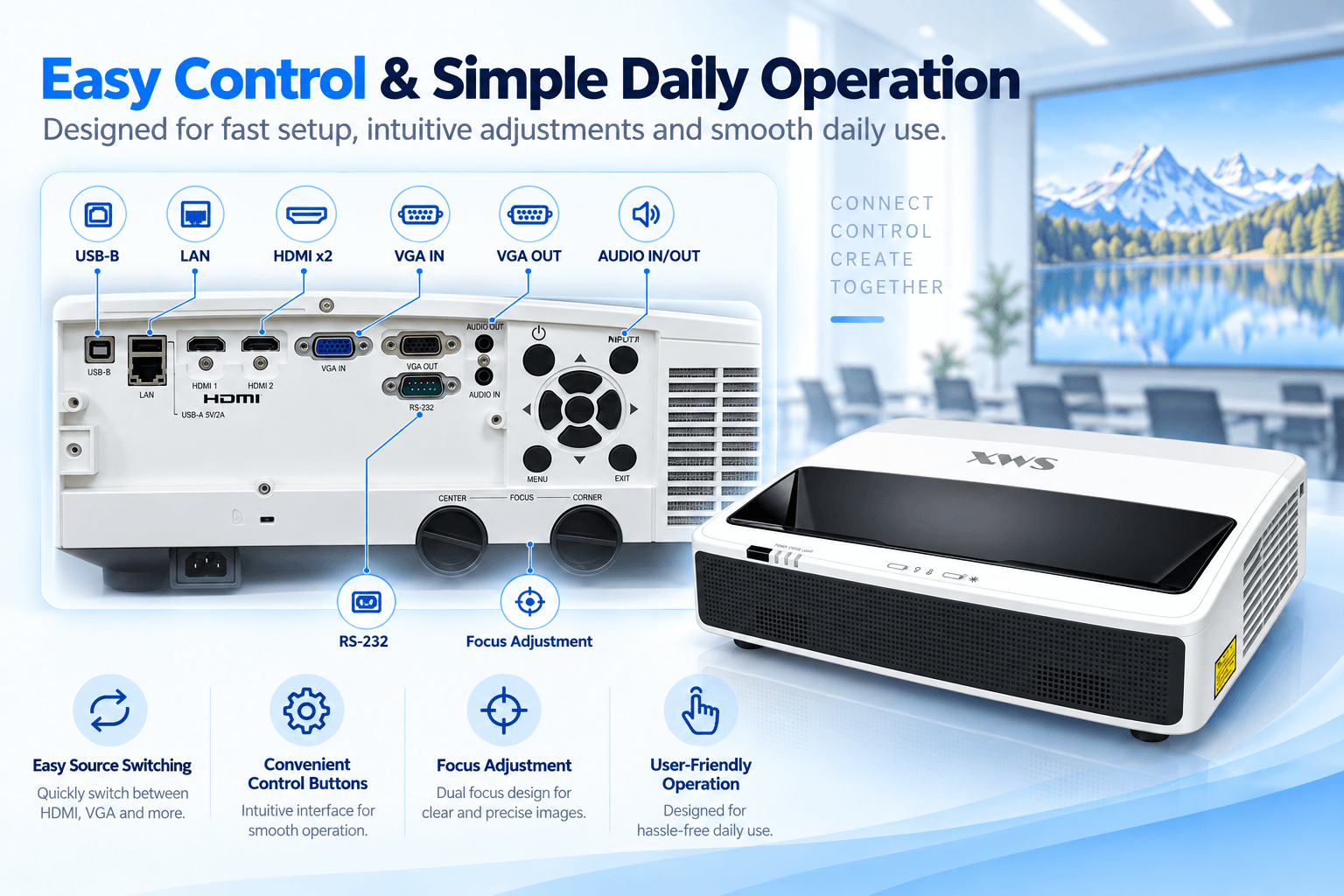

Digital, analog, network and control interfaces allow the projector to integrate with entertainment sources, computers, commercial display systems and professional AV equipment.
Digital video inputs for modern source devices.
Compatibility with legacy computer systems.
USB-A and USB-B connectivity.
Professional network and system control.
Industry-standard control protocols support integration with centrally managed commercial, enterprise and professional AV systems.
Centralized projector monitoring and management.
Integration with compatible professional AV systems.
Standardized projector network management.

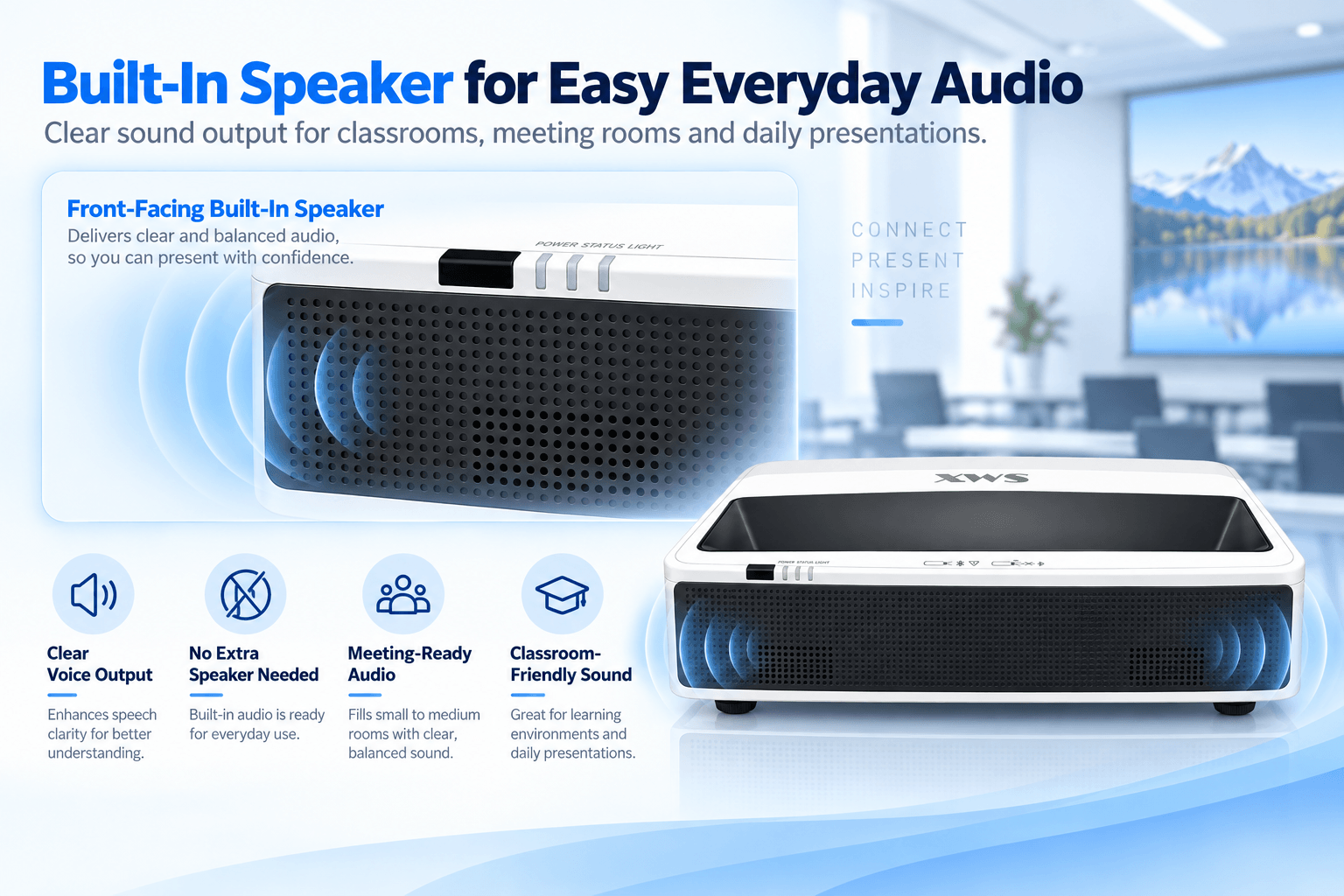

The integrated 16W speaker provides convenient sound for entertainment, presentations and commercial display installations where a separate external audio system may not be required.
16W Speaker Integrated Audio Simplified Installation
Longer projection distances require more installation depth and may create more shadow interference when people move between the projector and screen.
Short-distance projection creates a large image close to the screen, helping save installation space and reduce shadow interference.
Ultra short throw optics, 5000-lumen brightness and flexible installation make this projector suitable for both large-screen entertainment and professional visual communication.
Specification | Details |
|---|---|
Brightness | 5000 Lumens |
Display Technology | 3LCD |
LCD Panel | 3 × 0.64" with MLA |
Native Resolution | WUXGA 1920 × 1200 |
Contrast Ratio | 5,000,000:1 |
Light Source | Laser |
Laser Life | 20,000 Hours Normal / Up to 30,000 Hours ECO2 |
Throw Ratio | 0.235:1 |
Screen Size | 80–120 Inch |
Lens | RICOH |
Geometry Correction | Vertical ±5° / Horizontal ±5° / 6-Corner / Grid Image Tune / Pincushion-Barrel Correction |
360° Installation | Yes |
Connectivity | HDMI ×2 / VGA IN & OUT / USB-A / USB-B / LAN / RS232 |
Network Control | Crestron RoomView / AMX Discovery / PJLink |
Speaker | 16W ×1 |
Dimensions | 520 × 435 × 168 mm |
Net Weight | Approx. 11 kg |
Send us your required screen size, available installation distance, application and order quantity. Our team can help evaluate whether the 0.235:1 ultra-short-throw projector is suitable for your project.
Please provide:
Screen Size • Installation Distance • Room Size • Installation Position • Application • Required Quantity
