6000 Lumens WUXGA 3LCD Laser Short Throw Projector | Immersive Projection Solution

6000 lumens 3LCD laser projector with WUXGA resolution and 0.44:1 short throw, ideal for immersive and professional applications.6000 lumens 3LCD laser projector with WUXGA resolution and 0.44:1 short throw, ideal for immersive and professional applications.
  • 6000 Lumens High Brightness
  • WUXGA 1920×1200 Resolution
  • 0.44:1 Short Throw Projection
  • 3LCD True Color Technology
  • 20,000 Hours Laser Lifespan
Availability:
Quantity:
  • MX-SL6000U

  • SMX

6000 Lumens WUXGA 3LCD Laser Short Throw Projector

High brightness short throw projector for immersive projection and professional applications.

  • ✔ 6000 Lumens High Brightness

  • ✔ WUXGA 1920×1200 Resolution

  • ✔ 0.44:1 Short Throw Ratio

  • ✔ 3LCD True Color Technology

  • ✔ 20,000 Hours Laser Lifespan

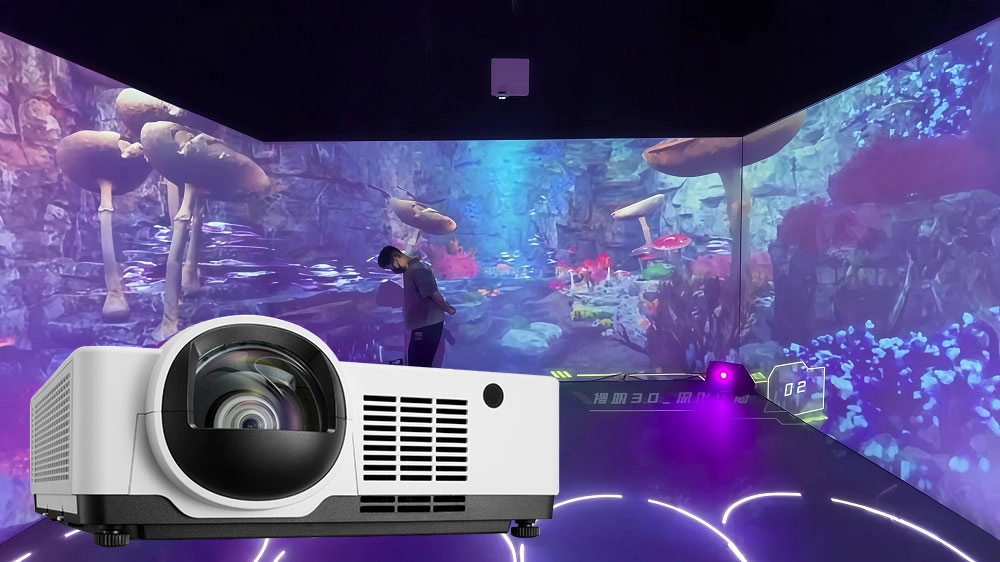

6000 Lumens WUXGA 3LCD Laser Short Throw Projector.webp

Professional 6000 Lumen Short Throw Laser Projector

The 6000 lumens WUXGA 3LCD laser projector is designed for immersive projection, simulation environments, and business applications. With a 0.44:1 short throw ratio, it can project large images in limited spaces, making it ideal for classrooms, exhibitions, and interactive installations.

Powered by advanced 3LCD technology and a laser light source, this projector delivers high color brightness, stable performance, and a long lifespan of up to 20,000 hours.

Key Features

  • 6000 Lumens Brightness – Clear images even in bright environments

  • Short Throw Ratio 0.44:1 – Large image in small space

  • 3LCD Technology – Accurate and vibrant colors

  • Laser Light Source – 20,000 hours lifespan

  • High Contrast Ratio – Up to 5,000,000:1

Applications

  • Immersive projection & projection mapping

  • Golf simulator

  • Education & classrooms

  • Museums & exhibitions

  • Conference rooms

Specifications

Item

Specification

Brightness

6000 Lumens

Resolution

WUXGA (1920×1200)

Display Technology

3LCD

Light Source

Laser

Throw Ratio

0.44:1

Contrast Ratio

5,000,000:1

Lifespan

20,000 Hours

Screen Size

55–300 inch

Why Choose a 6000 Lumens Short Throw Projector?

A 6000 lumen projector is ideal for environments with ambient light, ensuring clear and bright images. Short throw design reduces shadow interference and allows flexible installation in limited spaces.

Compared to standard projectors, short throw models are easier to install and provide better user experience in interactive environments.

Related Guides

Get the Best Projection Solution

Contact us for pricing, OEM solutions, and technical support.

Get Quote
Browse More Projectors

2ModelMX-SL6000U

Brightness(Lumen)6000
Overall Spec
PanelDisplay Panel3x0.64" with MLA
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source
Life time
Normal mode 20000hrs
ECO1 mode30000hrs
Lens Lens VendorRICOH
Projection LensFF1.6
f6.39mm
Zoom/FocusManual
Throw Ratio0.44:1
Screen size55-300inch
CRContrast Ratio (FOFO)5000000:1
NoiseNoise(dB)37dB (Normal) / 27dB (ECO)
UniformityUniformity(Actual Min)
-JISX6911
80%
ARAspect   RatioNative:16:10 / Compatible: 4:3/16:9
Terminal(I/O port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1   (Display)
RJ45*1   (Display)
HD BaseT*1   (Optional)
Audio in
(mini jack,3.5mm)
*1
OutputVGA*1
Audio out
(mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1   (Control)
USB-B*1   (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
(Normal) (Max)
360
Power Consumption
(ECO1) (Max)
280
Power Consumption
(ECO2) (Max)
230
ECO Standby Mode
Power Consumption
<0.5W
Temp.&HumidityOperating Temp.0   to 40°C
Operating Thumidity.20-80%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other Functions
KeystoneKeystone Correction
(Lens@center)
V:   ±15°
H:  ±15°
Pincushion/Barrel Correction
6 Corner  correction
4 Corner Correction
Grid image tune
OSD Languages

26   languages:

English, German, French, Italian, Spanish, Polish, Swedish, Dutch   ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN Control-RoomView
(Crestron)
Yes
LAN Control--
AMX Discovery
Yes
LAN Control--
PJ Link
Yes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer  Signal InputVGA,   SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,Auto Keystone
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green)
Cooling time0s,Normal,30s
Auto CeilingYes
D-Zoom1~33
Others 360° ProjectionYes
Dimension&Weight

MAX Dimensions

(WxHxD mm)

405(W)×404(D)×164(H)
Net. Weight (KG)8.1kg
Packaging
(WxHxD mm)
510(W)×498(D)×260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord (EU)/power cord (Ja), Remote control
