MX-VL720U
SMX
Professional 3LCD Laser Projection
The SMX MX-VL720U is a professional laser projector designed for business presentations, educational environments and commercial AV installations. Combining 7200 lumens of brightness, native WUXGA resolution and 3LCD display technology, it provides a versatile projection solution for a wide range of professional spaces.
Its RICOH projection lens, manual optical zoom, adjustable lens shift and image geometry tools help AV installers plan and align the projected image for different room layouts.
High Brightness Projection
With a specified brightness of 7200 lumens, the MX-VL720U is designed for applications where projected content needs to remain visible on larger screens or in spaces with some ambient lighting. It is suitable for business presentations, educational content and commercial display applications.
Actual on-screen brightness depends on image size, screen gain, room lighting and installation conditions. Projector selection should consider the complete projection environment rather than brightness alone.
Present slides, business reports and visual materials in professional meeting environments.

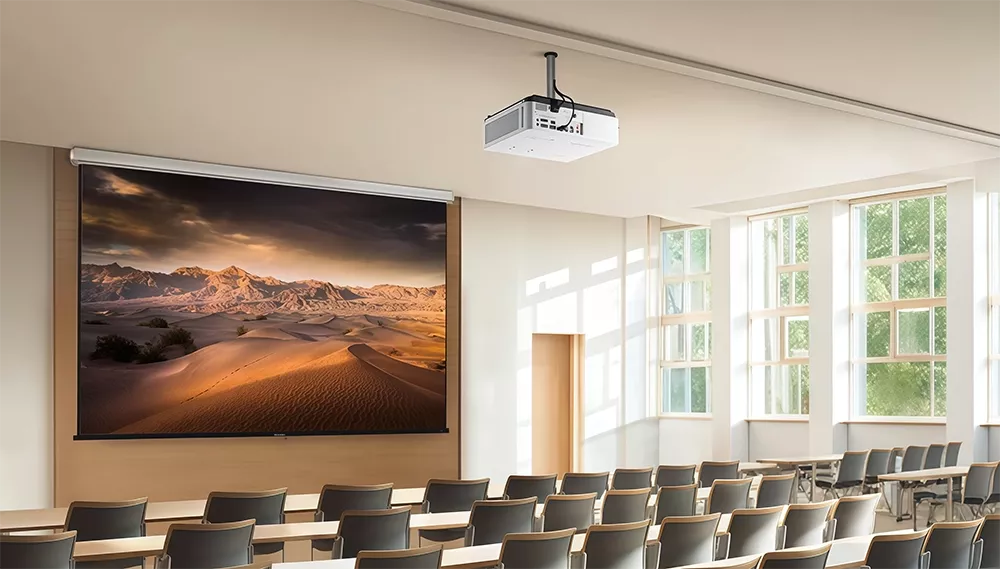

Display teaching materials, diagrams and presentation content in classrooms and training centers.
Support large-format visual presentations in showrooms and commercial spaces.
Image Detail & Display Technology
The MX-VL720U combines native WUXGA 1920 × 1200 resolution with a three-panel LCD display system. Its native 16:10 aspect ratio provides additional vertical image space compared with a 16:9 format, making it useful for documents, spreadsheets, charts and professional presentation materials.
Designed to display detailed presentation content with a native 16:10 image format. Compatible aspect ratios include 4:3 and 16:9.
Uses three 0.64-inch LCD panels with MLA to form the projected image through liquid crystal display technology.
Laser Illumination
The MX-VL720U uses laser illumination instead of a conventional replaceable projection lamp. The specified light source lifetime reaches 20,000 hours in Normal Mode and 30,000 hours in ECO1 or ECO2 Mode, providing a practical option for professional environments with regular projection requirements.
Specified laser light source lifetime in Normal operating mode.
Specified laser light source lifetime in ECO1 operating mode.
Specified laser light source lifetime in ECO2 operating mode.
Optical Installation Planning
The MX-VL720U is equipped with a RICOH projection lens featuring a 1.2–2.0:1 throw ratio and 1.6× manual optical zoom. This configuration allows installers to plan different projector-to-screen distances while adjusting the image size optically within the supported lens range.
Supports a range of projection distances relative to image width.
Manual optical zoom provides flexibility during projector placement.
Specified projection size range for different presentation environments.
For initial installation planning, multiply the required image width by the throw ratio to estimate the projection distance. Final positioning should be checked against the actual lens specifications and installation conditions.
Use Our Projector Throw Ratio Calculator →
Lens Position Adjustment

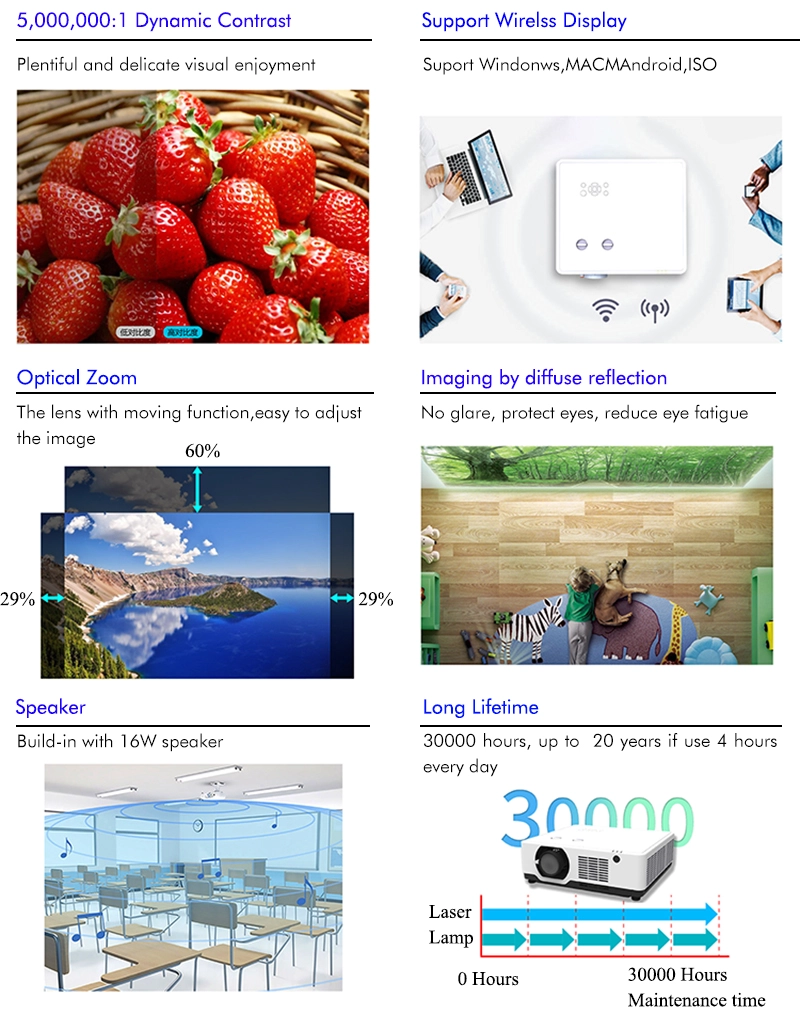

Lens shift provides additional installation flexibility by allowing the projected image to be repositioned optically without relying entirely on digital keystone correction. This is particularly useful when ceiling mounts, room layouts or screen positions restrict the projector's ideal placement.
Adjust the vertical image position within the specified lens shift range.
Adjust the horizontal image position to accommodate installation requirements.
Combined with the 1.6× manual optical zoom and 1.2–2.0:1 throw ratio, lens shift helps installers accommodate different mounting positions and projection screen layouts.
Image Alignment & Geometry

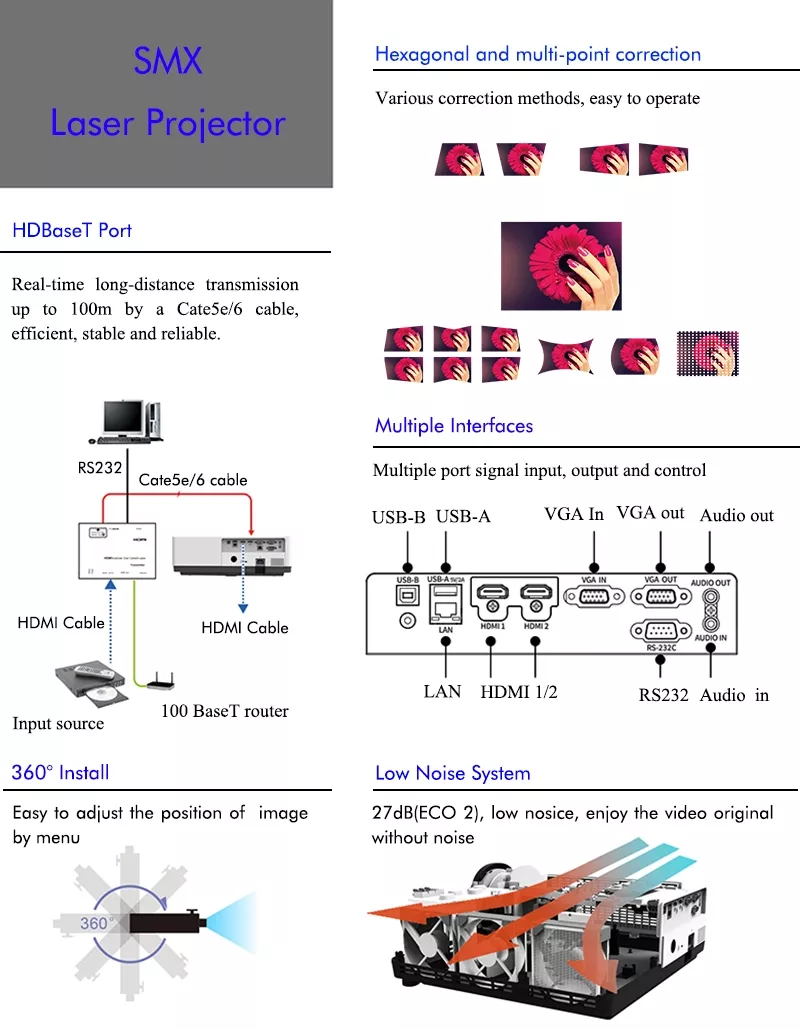

The MX-VL720U includes multiple image correction tools to assist with projection alignment. These functions help installers adjust the image when the projector cannot be positioned directly in front of the screen or when additional geometric fine-tuning is required.
Correct vertical trapezoidal image distortion within the specified range.
Adjust horizontal keystone distortion caused by angled projector positioning.
Adjust individual image corners to improve alignment.
Provides additional geometric adjustment points for image correction.
Correct selected inward or outward image curvature distortions.
Fine-tune projected image geometry using a grid-based adjustment tool.
Professional AV Connectivity

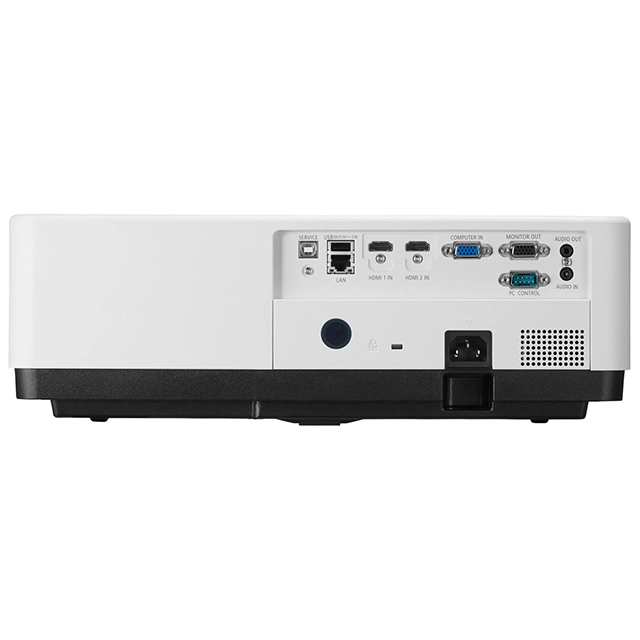

The MX-VL720U provides a selection of video, audio and control interfaces for connection to presentation computers, AV equipment and supported control systems. Dual HDMI inputs, VGA, USB and network connections help accommodate different professional installation requirements.
Business & Commercial Applications
Combining 7200 lumens of brightness, native WUXGA resolution and flexible optical adjustment, the MX-VL720U can be considered for a variety of professional presentation environments. Installation planning should account for screen size, room lighting, mounting position and source equipment.
Support business presentations, charts, video content and collaborative meetings.
Display educational presentations, teaching materials and visual demonstrations.
Provide large-format visual content for professional workshops and group training.
Present product visuals, demonstrations and promotional materials in commercial spaces.
Support presentation requirements for business seminars and organized events.
Integrate projection with compatible video sources and supported control interfaces.
Product Technical Data
Review the principal optical, imaging, installation, connectivity and physical specifications of the SMX MX-VL720U professional 3LCD laser projector.
Specifications are based on the supplied MX-VL720U product data sheet. Optional configurations and technical details should be confirmed before ordering. Specifications may be subject to product revisions.
Frequently Asked Questions
Find answers to common questions about projector resolution, laser light source life, installation flexibility, connectivity and professional AV applications.
The MX-VL720U features native WUXGA 1920 × 1200 resolution with a 16:10 aspect ratio. It also supports compatible 4:3 and 16:9 display formats.
No. Its native resolution is WUXGA 1920 × 1200. The projector supports compatible 4K@30Hz computer input signals, but displays images at its native WUXGA resolution.
The specified laser light source life is 20,000 hours in Normal Mode and 30,000 hours in ECO1 or ECO2 Mode. Actual operating life depends on usage and environmental conditions.
The MX-VL720U has a 1.2–2.0:1 throw ratio and 1.6× manual optical zoom. These specifications help installers determine suitable projection distances for different screen widths.
Yes. The specified lens shift range is vertical 0% to +60% and horizontal ±29%, providing additional flexibility when positioning the projected image.
The projector supports vertical and horizontal keystone correction of ±30°, 4-corner correction, 6-corner geometry correction, pincushion/barrel correction and grid image tuning.
Yes. The manufacturer specification lists 360° projection support. Mounting, ventilation and operating conditions should follow the product installation instructions.
Yes. The MX-VL720U provides RS232 and RJ45 control connections and supports Crestron RoomView, AMX Discovery and PJLink for compatible AV control applications.
No. HDBaseT is listed as an optional interface. Please confirm the required configuration with SMX before placing an order.
Please provide the application, required screen size, available projection distance, installation environment, source equipment and purchasing quantity. You can submit your project requirements through our Contact Page.
