7500 Lumens WUXGA 3LCD Short Throw Laser Projector for Immersive & Education | SMX MX-SL7500U

  • 7500 Lumens High Brightness
  • WUXGA 1920×1200 Resolution
  • 3LCD True Color Technology
  • Short Throw Projection (Space Saving)
  • Edge Blending Supported
  • 360° Flexible Installation
  • 20,000 Hours Laser Lifespan
Availability:
Quantity:
Inquire Add to Basket

  • MX-SL7500U

  • SMX

7500 Lumens WUXGA 3LCD Short Throw Laser Projector

Ideal solution for immersive projection, education, and exhibition environments.

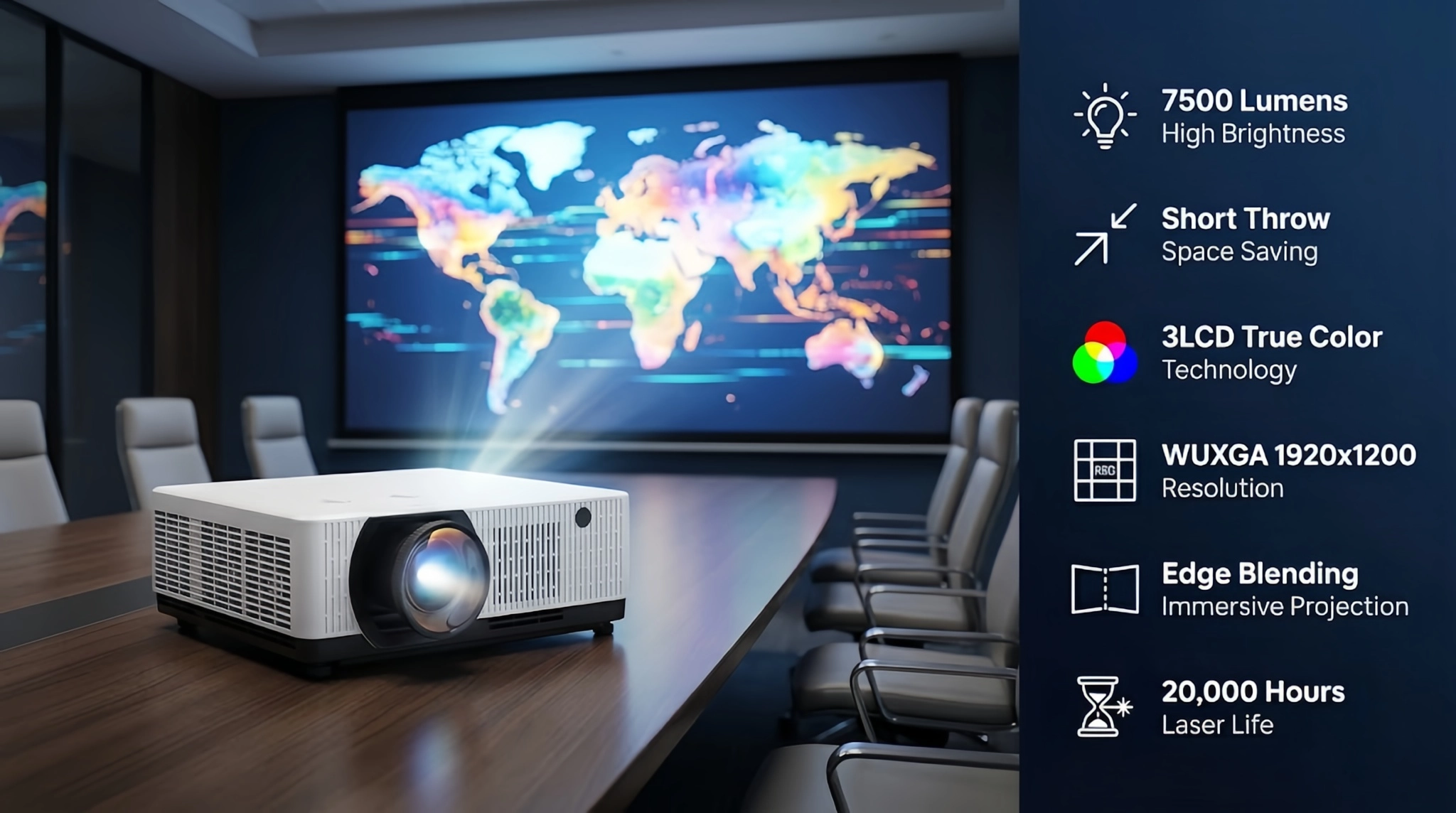

7500 lumen short throw laser projector.webp

7500 Lumen Short Throw 3LCD Laser Projector

This 7500 lumens WUXGA short throw 3LCD laser projector is designed for immersive projection environments, education spaces, and museum installations.

Short throw technology allows large image projection in limited spaces, while 3LCD technology ensures vibrant and accurate color performance—ideal for content-rich environments.

Key Features

  • 7500 Lumens Brightness – Suitable for medium to large environments

  • Short Throw Projection – Large image at close distance

  • 3LCD Technology – Superior color brightness vs DLP

  • WUXGA Resolution – Clear and detailed image

  • Edge Blending – Seamless multi-projector setup

  • Flexible Installation – 360° projection & lens shift

  • Laser Light Source – 20,000 hours lifespan

Applications

  • Immersive projection rooms

  • Museums & exhibitions

  • Education & classrooms

  • Retail experience centers

  • Simulation systems


Specifications

Item

Specification

Brightness

7500 Lumens

Resolution

WUXGA (1920×1200)

Display

3LCD

Light Source

Laser

Projection Type

Short Throw

Contrast Ratio

5,000,000:1

Lifespan

20,000 Hours

Installation

360° Support

Why Choose a 3LCD Short Throw Projector?

3LCD projectors deliver higher color brightness and more accurate color reproduction, making them ideal for educational and immersive environments.

Short throw design enables large images in small spaces, reducing shadows and improving installation flexibility.

Related Solutions

Create Your Immersive Projection Experience

Contact SMX for professional solutions, OEM services, and pricing.

Get Quote

OEM Project

All Products

Key Parts

Model No.MX-SL7500U
Brightness(Lumen)7500
ResolutionWUXGA
Light source LASER
Overall Spec
PanelDisplay Panel3x0.64" with MLA
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x1200)
Light source
Life time		Full Normal/Normal mode 20000hrs
ECO1 mode 30000hrs
ECO2 mode30000hrs
Projection LensF1.7~1.8
f9.66mm-11.65mm
Zoom/FocusManual
Throw Ratio0.68 (wide)-0.82 (tele)
Zoom Ratio1.21
Screen size50-300inch
Lens Shift V:＋50%～0%
H:±20%
CRContrast Ratio5000000:1
Noise Noise(dB)  *139dB(Normal) / 31dB(ECO1) / 29dB(ECO2)
UniformityUniformity(Actual Min)
-JISX6911 		80%
ARAspect RatioNative:16:10  / Compatible: 4:3/16:9
Terminal(I/O   port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1 (Display)
RJ45*1 (Display)
HD BaseT*1(Optional)
Audio in
(mini jack,3.5mm)		*1
OutputVGA*1

Audio out

 (mini-jack,3.5mm)

*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating Temp.  0m≤Altitude≤1700m,
Ambient0℃~50℃
1700m＜Altitude＜3000m,
Ambient 0℃~40℃
Operating humidity.20-85%
Store Temp.-10 to 50°C
High altitude 0~3000m
Other Functions
KeystoneKeystone Correction
(Lens@center)		V:   ±15°
H: ±15°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune
OSD Languages

26 Languages:

English, German, French,Italian, Spanish,Polish, Swedish,Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,Hungarian, Czech,Kazak,Vietnamese,Thai,Farsi

LAN ControlLAN Control-RoomView
(Crestron)		Yes
LAN Control--AMX DiscoveryYes
LAN Control-- PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,Auto Keystone
BlankYes
SuspendYes(5 minutes no signal as default)
Picture modeDynamic,Standard,Cinema,Colorboard, sim DICOM,Blackboard(Green)
Cooling time0snormal30s
Auto CeilingYes
D-Zoom1~33
Others 360° ProjectionYes
Edge BlendingYes
Dimension&Weight

Product Size (mm)405(W)×404(D)×164(H)
Net. Weight (KG)8.1kg
Packaging Size(mm)510(W)×498(D)×260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord, HDMI cable, Remote control


download SMX 7000-7500Lumen Short Throw Laser Projector Specification.pdf
