8200 Lumens WUXGA Laser Projector | Professional Installation Projector for Large Venues | SMX

  • 8200 Lumens High Brightness: Perfect for large venues and bright environments.
  • WUXGA Resolution (1920x1200): Crystal-clear, detailed images for professional use.
  • Laser Light Source: Up to 20,000 hours of maintenance-free operation.
  • 3LCD Technology: Vivid colors and accurate image reproduction.
  • Flexible Lens Options: Customizable for various installation needs.
  • Edge Blending Support: Seamless multi-projector setups for large visuals.
  • Ideal for Professional AV Systems: Perfect for conference rooms, educational institutions, and exhibitions.
Availability:
Quantity:
  • MX-VL820U

  • SMX

8200 Lumens WUXGA Laser Projector

Professional installation projector for large venues, corporate environments, and educational spaces.

8200 lumens laser projector.webp

Key Specifications

  • Brightness: 8200 Lumens

  • Resolution: WUXGA (1920×1200)

  • Display Technology: 3LCD

  • Light Source: Laser

  • Lamp Life: 20,000 Hours

  • Lens: Flexible Lens Options

  • Edge Blending Support

Professional Projector for Large Venues & Installations

The SMX MX-VL820U 8200 lumens WUXGA laser projector is engineered for professional installations, delivering exceptional brightness and clarity in large venues, conference rooms, and educational settings. This projector utilizes laser technology, offering up to 20,000 hours of maintenance-free performance. It’s perfect for long-term use in demanding environments, ensuring crisp, clear visuals even in bright spaces.

Applications

  • Large Venue Projection

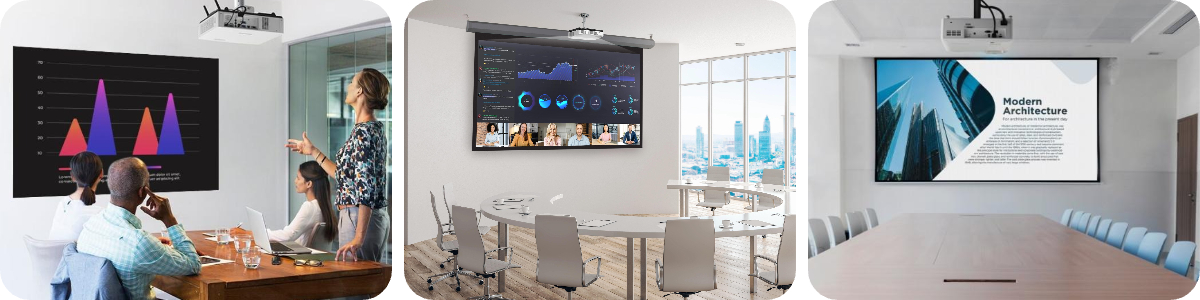

  • Corporate Conference Rooms

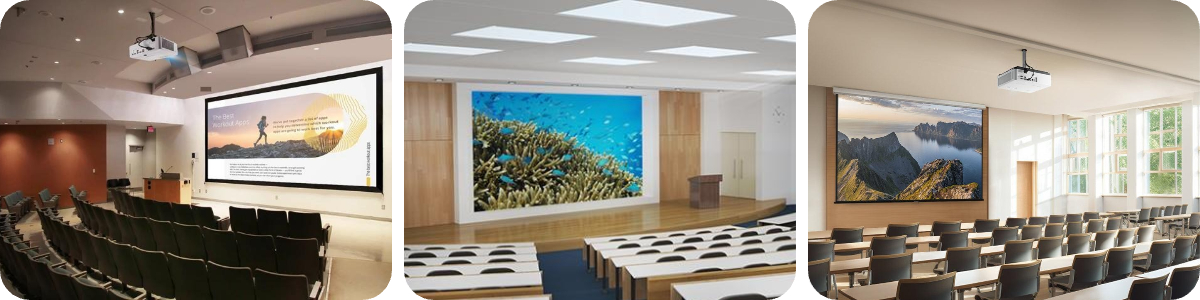

  • Educational Institutions

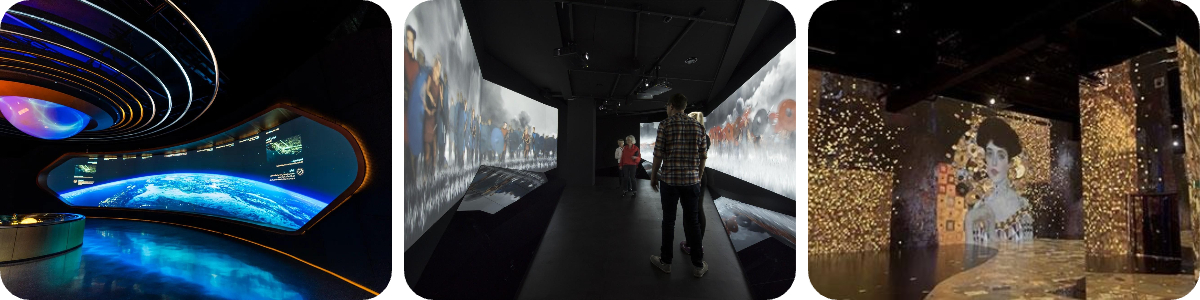

  • Exhibition Spaces

Explore event projectors

Key Features

8200 Lumens Brightness

Ideal for large spaces, offering vibrant and bright images even in well-lit environments.

3LCD Technology

Ensures precise color reproduction and image clarity for professional AV systems.

Laser Light Source

Up to 20,000 hours of maintenance-free operation for long-term use in various settings.

Edge Blending Support

Perfect for multi-projector setups, providing seamless visuals across large surfaces.

OEM & ODM Projector Solutions

SMX offers custom projector solutions for AV integrators, rental companies, and distributors worldwide. Our OEM/ODM services ensure that the projectors meet your specific requirements.

  • Private Labeling

  • Custom Hardware & Firmware

  • Mass Production

Start Your OEM Project

Frequently Asked Questions

Is this projector suitable for large venues?

Yes, with its high brightness and 3LCD technology, this projector is ideal for large venues and bright environments.

What is the lifespan of the laser light source?

The laser light source can last up to 20,000 hours, ensuring long-term reliability.

Can this projector be used for multi-projector setups?

Yes, it supports edge blending for seamless integration of multiple projectors.


Get Museum Projection Solution

Contact SMX for high-performance museum projectors and customized solutions.

Request Quote OEM Projector Download Catalog

Key   parts

Model No.MX-VL820U
Brightness(Lumen)8200
ResolutionWUXGA
Light source NICHIA LASER
Overall Spec
PanelDisplay   Panel3x0.64"  with MLA
Display TechnologyLiquid   Crystal Display
Native ResolutionWUXGA   (1920 x 1200)
Light source Life timeFull   Normal/Normal mode 20000hrs
ECO1 mode 30000hrs
ECO2 mode30000hrs
Projection LensF1.58-2.02
f15.3mm-24.6mm
Zoom/FocusManual
Throw Ratio1.08   (wide)-1.76 (tele)
Zoom Ratio1.6
Screen size30-300  inch
Lens Shift V:+45%~0%、
    H:±21%
CRContrast   Ratio
    (FOFO)
5000000:1
Noise Noise(dB)   *139dB(Normal)
    31dB(ECO1)
    29dB(ECO2)
UniformityUniformity(Actual   Min)
    -JISX6911
80%
ARAspect   RatioNative:16:10
    Compatible: 4:3/16:9
Terminal(I/O   port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1   (Display)
RJ45*1   (Display)
HD BaseT*1(Optional)
Audio in
    (mini jack,3.5mm)
*1
OutputVGA*1
Audio out
    (mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1   (Control)
USB-B*1   (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower   Requeirements100~240V@   50/60Hz
Power Consumption
    (Normal) (Max)
425
Power Consumption
    (ECO1) (Max)
285
Power Consumption
    (ECO2) (Max)
235
ECO Standby Mode
    Power Consumption
<0.5W
Temp.&HumidityOperating Temp.  0m≤Altitude≤1700m,
    Ambient 0°C~50°C
1700m<Altitude<3000m,
    Ambient 0°C~40°C
Operating humidity.20-85%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other   Functions
KeystoneKeystone   Correction
    (Lens@center)
V:   ±30°
    H:±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    4 Corner Correction
    Grid image tune
LAN ControlLAN   Control-RoomView
    (Crestron)
Yes
LAN Control--AMX DiscoveryYes
LAN Control--PJ LinkYes
Scanning FrequencyH-Synch   Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer   Signal InputVGA,   SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i,   480p, 576i, 576p, 720p, 1080i and 1080p
Others 360°   projectionYes
Edge BlendingYes
Dimension&Weight

Product   Size (mm)405(W)*358(D)*137(H)
Net. Weight (KG)~7.9KG
Packaging Size(mm)510(W)*498(D)*260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual   LanguagesChinese,English
Standard AccessariesPower   cord,HDMI cable,Remote control
