10,000–25,000 Lumen Laser Projectors for Architectural Mapping, Stages, Events and Large Outdoor Installations
Large-scale projection mapping projects require more than a standard projector. Building facades, stages, outdoor events and large visual installations often need significantly higher brightness to maintain image visibility across large surfaces and challenging lighting environments.
SMX supplies professional high-brightness projection mapping projectors from approximately 10,000 to 25,000 lumens for architectural projection, large venues, cultural tourism projects, exhibitions, stages and multi-projector mapping systems.
This guide explains when high-brightness projectors are required, how to choose between 10,000, 12,000, 15000，20,000, 22,000 and 25,000 lumen models, and what factors should be considered before designing a large-scale projection system.
A high-brightness projection mapping projector is a professional laser projector designed for applications where large projection areas, ambient light, longer throw distances, or outdoor environments require significantly higher light output than standard business or classroom projectors.
These projectors are commonly used for:
Architectural projection mapping
Building facade projection
Large outdoor events
Stage and performance mapping
Cultural tourism projects
Museums and large exhibitions
Large venue projection
Multi-projector edge blending systems
Brightness is one of the most important factors in large-scale mapping, but it should always be evaluated together with projection area, ambient light, surface reflectivity, lens efficiency, throw ratio, and required image contrast.
Not every projection mapping project requires a 20,000 or 25,000 lumen projector. High-brightness models become important when the project environment creates greater demands on image visibility.
As the projection area becomes larger, the projector's light output is spread across a greater surface. This reduces image luminance and often requires a higher-brightness projector or multiple projectors.
Street lighting, architectural lighting, stage lights, and other ambient light can reduce perceived image contrast. Outdoor projection mapping therefore usually requires significantly more brightness than a dark indoor environment.
Architectural mapping often requires projectors to be positioned far away from the target building. Long throw installations require suitable lenses and careful evaluation of optical efficiency and image brightness.
Dark bricks, stone, colored walls, and other low-reflectivity materials absorb more projected light than a white projection screen. Higher brightness may therefore be necessary.
Very wide or irregular surfaces may require multiple projectors. High-brightness projectors can be used individually or combined through edge blending to increase total image coverage and system brightness.
The correct brightness cannot be determined by one universal number. Project size, surface material, ambient light, and installation geometry all affect the final requirement.
The following table can be used as a general starting reference.
Brightness Level | Typical Applications | Recommended Projector Type |
|---|---|---|
10,000–12,000 Lumens | Indoor events, medium stages, museums, exhibitions | Large Venue Laser Projector |
12,000–15,000 Lumens | Medium architectural mapping, stages, large exhibitions | High Brightness Laser Projector |
20,000 Lumens | Large building facades, cultural tourism, major events | Professional Large Venue Laser |
22,000 Lumens | Large outdoor mapping, rental & staging, architectural facades | Professional Large Venue Laser |
25,000 Lumens | Large architecture, landmarks, major outdoor visual shows | Ultra High Brightness Large Venue Laser |
Multiple 20,000–25,000 Lumen Projectors | Landmark-scale mapping and extremely large surfaces | Multi-Projector Mapping System |
Important: These values are general starting references rather than fixed engineering standards. Final brightness should be evaluated according to the actual projection width, height, ambient light, surface reflectivity, lens, throw distance, and desired contrast.
10,000 to 15,000 lumen laser projectors are suitable for medium-sized professional projection mapping applications where strong brightness is required, but the project does not yet require ultra-high-output equipment.
Typical applications include:
Indoor stage mapping
Museum installations
Large exhibition booths
Conference halls
Medium venue visual projects
Indoor immersive installations
These models can also be combined in multi-projector systems for wide surfaces or immersive environments.
A 20,000 lumen laser projector provides significantly higher output for large professional AV applications.
This brightness level is commonly considered for:
Medium-to-large building facades
Outdoor event projection
Cultural tourism projects
Large stage productions
Large museum installations
Professional multi-projector systems
For very wide surfaces, multiple 20,000 lumen projectors can be combined using edge blending to create a seamless panoramic image.
A 22,000 lumen laser projector is designed for large-format professional projection where high brightness and flexible installation are required.
Typical use cases include:
Large architectural facades
Outdoor projection mapping
Rental and staging
Large events
Theme parks
Cultural tourism installations
Multi-projector edge blending systems
A 25,000 lumen laser projector is suitable for projects requiring extremely high light output across large projection surfaces.
This category is particularly relevant for:
Large architectural projection mapping
Landmark projection
Large outdoor visual shows
Major cultural tourism projects
Stadium or large venue installations
Large-scale multi-projector mapping systems
For landmark-scale projects, one 25,000 lumen projector may still not be sufficient. Multiple high-brightness projectors can be combined depending on facade size, viewing distance, and required image contrast.

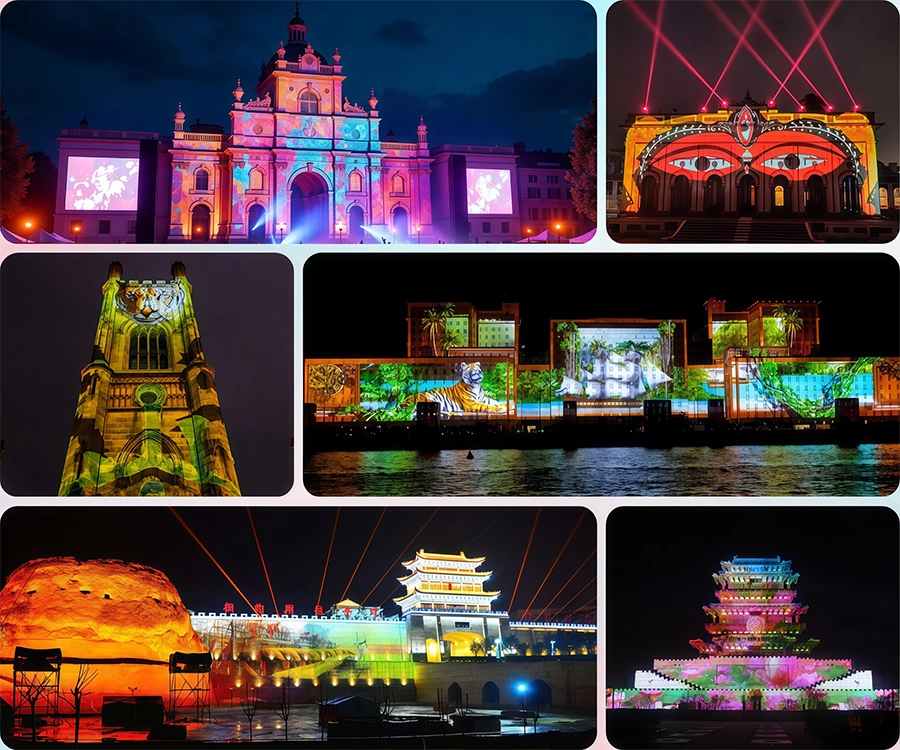

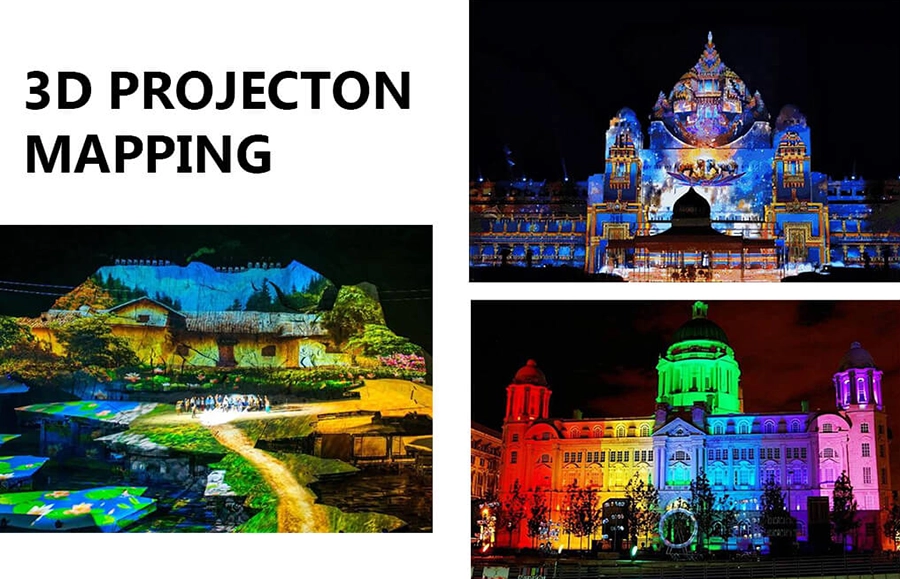

Architectural projection mapping places unique demands on projector brightness because building facades are often much larger and less reflective than conventional projection screens.
Before selecting an architectural projection mapping projector, the following information should be evaluated:
Building width and height
Projection distance
Facade color and material
Street and architectural lighting
Required image brightness and contrast
Projector installation position
Available lens options
Number of projectors
For example, a large building facade may require one or multiple 20,000–25,000 lumen projectors depending on the surface material, installation distance, and visual requirements.
Building Projection Mapping Guide
Outdoor projection mapping usually requires higher projector brightness because the projected image must compete with environmental light.
Outdoor projects may be affected by:
Street lights
Building lighting
Stage lighting
Vehicle lighting
Large projection areas
Long throw distances
For this reason, professional outdoor mapping systems often use large venue laser projectors from approximately 12,000 to 25,000 lumens or multi-projector configurations.
For more information about complete outdoor installation requirements, visit our Outdoor Projection Solutions.
One of the key decisions in large-scale mapping is whether to use one ultra-high-brightness projector or multiple projectors.
Configuration | Main Advantages | Typical Use |
|---|---|---|
One 20,000–25,000 Lumen Projector | Simpler installation and alignment | Smaller architectural surfaces or focused projection areas |
Multiple 10,000–15,000 Lumen Projectors | Flexible surface coverage | Wide or irregular surfaces |
Multiple 20,000–25,000 Lumen Projectors | Maximum brightness and coverage | Large architecture, landmarks and major events |
Multi-projector systems require careful planning of image overlap, edge blending, projector position, lens selection and content resolution.
Edge blending is an important technology when multiple projectors are used to create one large projected image.
The images from adjacent projectors overlap in controlled areas, and the transition between them is adjusted to reduce visible seams.
High-brightness multi-projector systems are commonly used for:
Wide building facades
Large event stages
Panoramic museum installations
Immersive rooms
Landmark projection
High brightness alone does not guarantee a successful mapping installation. The projector lens must also match the required installation distance and projected image width.
The basic calculation is:
Throw Ratio = Projection Distance ÷ Image Width
For example, if the projector is installed 40 meters from a building and the required image width is 20 meters:
40 ÷ 20 = 2.0:1 Throw Ratio
The selected projector lens should therefore support a throw ratio close to the required 2.0:1 range.
Architectural projects frequently require standard or long-throw lenses, while indoor immersive projects may require short-throw solutions.
No. The highest-lumen projector is not automatically the best choice for every projection mapping project.
An effective system must balance:
Brightness
Projection area
Throw ratio
Lens selection
Resolution
Installation flexibility
Image contrast
Project budget
The objective is to achieve sufficient image luminance and contrast across the target surface rather than simply selecting the projector with the highest lumen specification.
Laser light sources are widely used in professional high-brightness projectors because they are suitable for long operating periods and demanding AV environments.
Depending on the selected product platform, SMX supplies professional 3LCD and DLP laser projector solutions for large-scale applications.
Laser projector benefits can include:
Long light source life
Stable professional operation
High brightness capability
Reduced lamp replacement requirements
Suitability for fixed installations and professional AV projects
The required number of projectors cannot be determined only by brightness. A complete projection layout must consider:
Projection width and height
Surface geometry
Required pixel density
Projector native resolution
Throw distance
Lens type
Ambient light
Required overlap between projectors
Smaller architectural surfaces may be covered by one high-brightness projector, while large facades may require multiple units.
The final projector quantity should be calculated according to the actual project dimensions and required image performance.
Project Type | Recommended Brightness | Typical Configuration |
|---|---|---|
Indoor Stage Mapping | 10,000–12,000 lm | Single or Multi-Projector |
Medium Architectural Mapping | 12,000–20,000 lm | Single / Multiple Large Venue Projectors |
Large Building Facade | 20,000–22,000 lm | Professional Large Venue System |
Large Outdoor Building | 22,000–25,000+ lm | High Brightness / Multi-Projector |
Landmark-Scale Mapping | Multiple 20,000–25,000+ lm | Multi-Projector Edge Blending System |
Providing accurate project information helps determine the appropriate projector brightness, lens, and system configuration.
Project Information | Example |
|---|---|
Application | Architectural Projection Mapping |
Projection Width | 30 m |
Projection Height | 15 m |
Throw Distance | 45 m |
Surface Material | Concrete / Stone / Painted Wall |
Ambient Light | Outdoor Night with Street Lighting |
Required Resolution | WUXGA / 4K |
Projector Quantity | Need Recommendation |
Installation Position | Ground / Tower / Rooftop |
SMX supplies professional high-brightness laser projectors for distributors, AV integrators and projection solution providers.
Our high-brightness product range includes professional models from approximately 10,000 to 25,000 lumens for stages, buildings, events, exhibitions and large venue applications.
Available product categories include:
3LCD laser projectors
DLP laser projectors
Large venue laser projectors
20,000 lumen projectors
22,000 lumen projectors
25,000 lumen projectors
Projectors for edge blending and multi-projector systems
For a complete guide covering brightness, throw ratio, lens shift, resolution and projector selection, read our Projection Mapping Projector Buying Guide.
For complete system planning and application information, visit our Projection Mapping Solutions.
For distributors and professional projector brands, SMX supports practical OEM branding options on selected projector models.
Product logo customization
Startup logo setting
User manual customization
Carton packaging customization
Black or white housing options for supported models
For more OEM information, visit our Laser Projector OEM Manufacturing page.
Medium and large building mapping projects may require approximately 12,000–25,000 lumens or multiple projectors. The final requirement depends on building size, surface material, ambient light, and throw distance.
A 20,000 lumen projector can be suitable for many medium-to-large outdoor projects, but very large or brightly illuminated surfaces may require 22,000–25,000 lumen models or multiple projectors.
25,000 lumen projectors are typically considered for large building facades, landmark projection, major outdoor events and demanding professional AV installations.
Not necessarily. One high-brightness projector can simplify installation, while multiple projectors can provide wider coverage or greater layout flexibility. The correct configuration depends on the projection surface and system design.
Yes. Dark or low-reflectivity surfaces absorb more projected light and usually require more projector brightness than light-colored surfaces.
Throw distance directly affects lens selection and image size. Longer installations require a suitable throw ratio and should also consider lens efficiency and final image brightness.
Yes. Multiple projectors can be combined through edge blending to create wider and larger seamless projected images.
The best projector depends on facade size, ambient light, throw distance, and surface reflectivity. Professional large venue laser projectors from approximately 12,000 to 25,000 lumens are commonly considered for architectural mapping projects.
Send us your projection width, height, installation distance, surface material, ambient light conditions, and application.
SMX can help you evaluate the required brightness, projector category, and possible multi-projector configuration for your architectural or large-scale projection mapping project.
