7000 Lumens WUXGA 3LCD Short Throw Laser Projector for Immersive Projection & Education | SMX

  • 7000 Lumens High Brightness
  • WUXGA 1920×1200 Resolution
  • 3LCD True Color Technology
  • Short Throw (0.68–0.82 Ratio)
  • Edge Blending & 360° Projection
  • Lens Shift & Geometry Correction
  • 20,000–30,000 Hours Laser Lifespan
Availability:
Quantity:
Inquire Add to Basket

  • MX-SL7000U

  • SMX


7000 Lumens WUXGA 3LCD Short Throw Laser Projector


Designed for immersive projection, simulation, and professional installation.



7000 Lumen short Throw Laser Projector (2)




7000 Lumen Short Throw Laser Projector for Immersive Environments


The SMX MX-SL7000U is a high-performance 7000 lumens WUXGA 3LCD laser projector designed for immersive projection systems, simulation environments, and professional AV installations.


With a short throw ratio of 0.68–0.82, it enables large image projection in limited spaces, reducing shadows and installation complexity while maintaining excellent image quality.


Key Features


  • 7000 Lumens Brightness – Clear images in ambient light environments

  • Short Throw Projection – Large image at short distance

  • 3LCD Technology – Higher color brightness vs DLP

  • WUXGA Resolution – Sharp and detailed display

  • Edge Blending – Seamless multi-projector integration

  • 360° Installation – Flexible mounting options

  • Laser Light Source – Up to 30,000 hours lifespan



5000lumen ust laser projector


Laser Light lifetime


Keystone Correction



Len Shift

7000 short throw len shift


Applications


  • Immersive projection rooms

  • Simulation & training systems

  • Museums & exhibitions

  • Education & classrooms

  • Retail experience centers

  • Projection mapping

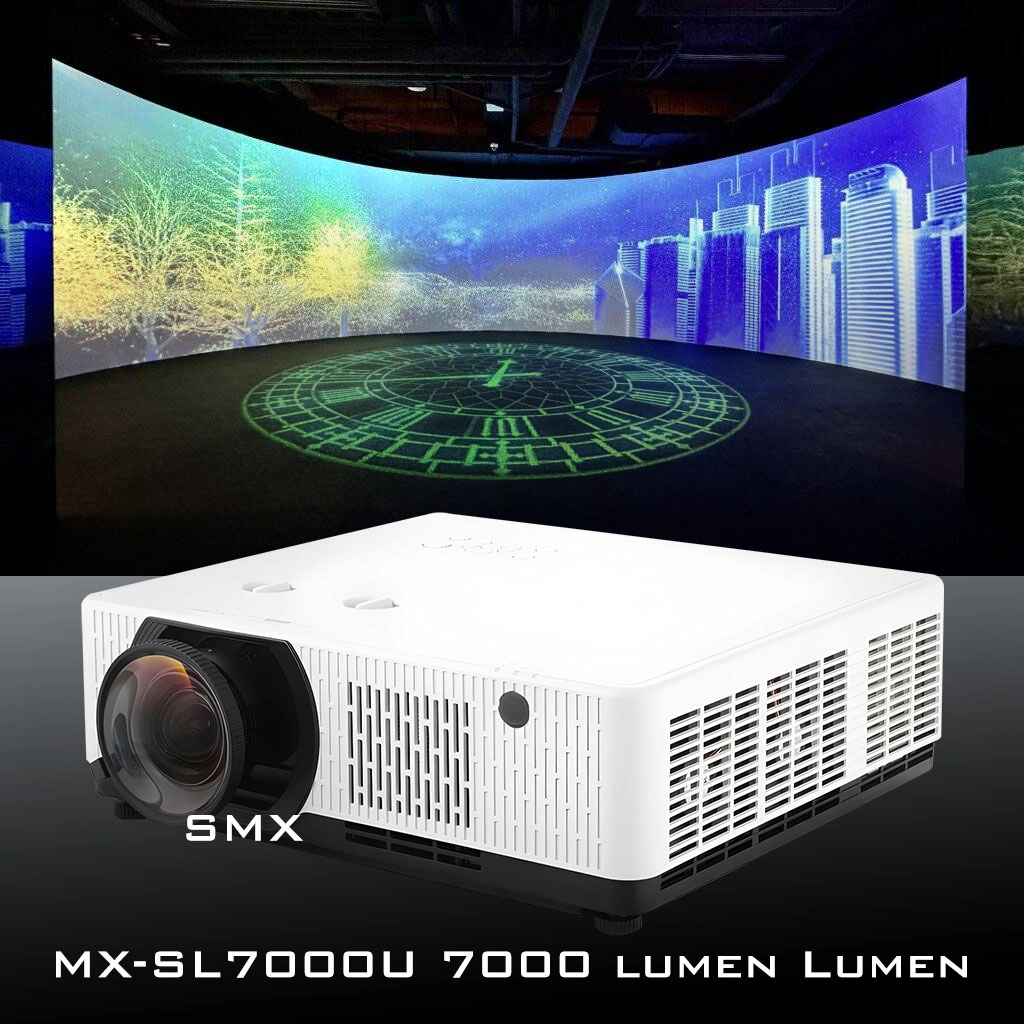

7000-Lumen-short-throw-laser-projector


Specifications

Item Specification
Brightness 7000 Lumens
Resolution WUXGA (1920×1200)
Display 3LCD
Throw Ratio 0.68–0.82
Contrast Ratio 5,000,000:1
Light Source Laser
Lifespan 20,000–30,000 Hours
Installation 360° & Edge Blending



Why Choose a 3LCD Short Throw Projector?

3LCD technology provides superior color brightness and accurate color reproduction, making it ideal for immersive projection and content-rich environments such as museums and exhibitions.

Short throw projection allows installation in limited spaces while delivering large images, reducing shadows and improving viewer experience.


Related Solutions


Build Your Immersive Projection System

Contact SMX for professional solutions, OEM services, and pricing.

Get Quote

OEM Project

All Products



Key Parts

Model No.MX-SL7000U
Brightness(Lumen)7000
ResolutionWUXGA
Light source LASER
Overall Spec
PanelDisplay Panel3x0.64" with MLA
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source
Life time		Full Normal/Normal mode 20000hrs
ECO1 mode 30000hrs
ECO2 mode30000hrs
Projection LensF1.7~1.8
f9.66mm-11.65mm
Zoom/FocusManual
Throw Ratio0.68 (wide)-0.82 (tele)
Zoom Ratio1.21
Screen size50-300inch
Lens Shift V:＋50%～0%
H:±20%
CRContrast Ratio5000000:1
Noise Noise(dB) *139dB(Normal)
31dB(ECO1)
29dB(ECO2)
UniformityUniformity80%
ARAspect RatioNative:16:10
Compatible: 4:3/16:9
Terminal(I/O port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1 (Display)
RJ45*1 (Display)
HD BaseT*1 (Optional)
Audio in
(mini jack,3.5mm)		*1
OutputVGA*1

Audio out

(mini-jack,3.5mm)

*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating Temp.0m≤Altitude≤1700m,
Ambient0℃~50℃
1700m＜Altitude＜3000m,
Ambient 0℃~40℃
Operating humidity.20-85%
Store Temp.-10 to 50°C
High altitude 0~3000m
Other Functions
KeystoneKeystone Correction
    (Lens@center)		V:   ±15°
H: ±15°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune
OSD Languages

26 Languages:

English, German, French, Italian, Spanish, Polish, Swedish, Dutch   ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN Control-RoomView
(Crestron)		Yes
LAN Control--AMX DiscoveryYes
LAN Control-- PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH, AUTO PC, Auto Keystone
BlankYes
SuspendYes(5 minutes no   signal as default)
Picture modeDynamic，Standard，Cinema，Colorboard，sim-DICOM, Blackboard(Green)
Cooling time0snormal30s
Closed captionN/A
Auto CeilingYes
D-Zoom1~33
Others 360° ProjectionYes
Edge BlendingYes
Dimension&Weight

Product   Size (mm)405(W)×404(D)×164(H)
Net. Weight (KG)8.1kg
Packaging Size(mm)510(W)×498(D)×260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual   LanguagesChinese,English
Standard AccessariesPower cord, HDMI cable, Remote control
