MX-LK6500
SMX
High brightness projector designed for home cinema and large screen immersive viewing.
The SMX MX-LK6500 delivers powerful 6500 lumens brightness with 4K UHD resolution and 3LCD technology, ideal for home cinema, large screen environments, and immersive projection setups.
Its high brightness allows clear projection even in ambient light, while high contrast ensures deep blacks and vivid color performance for cinematic experiences.

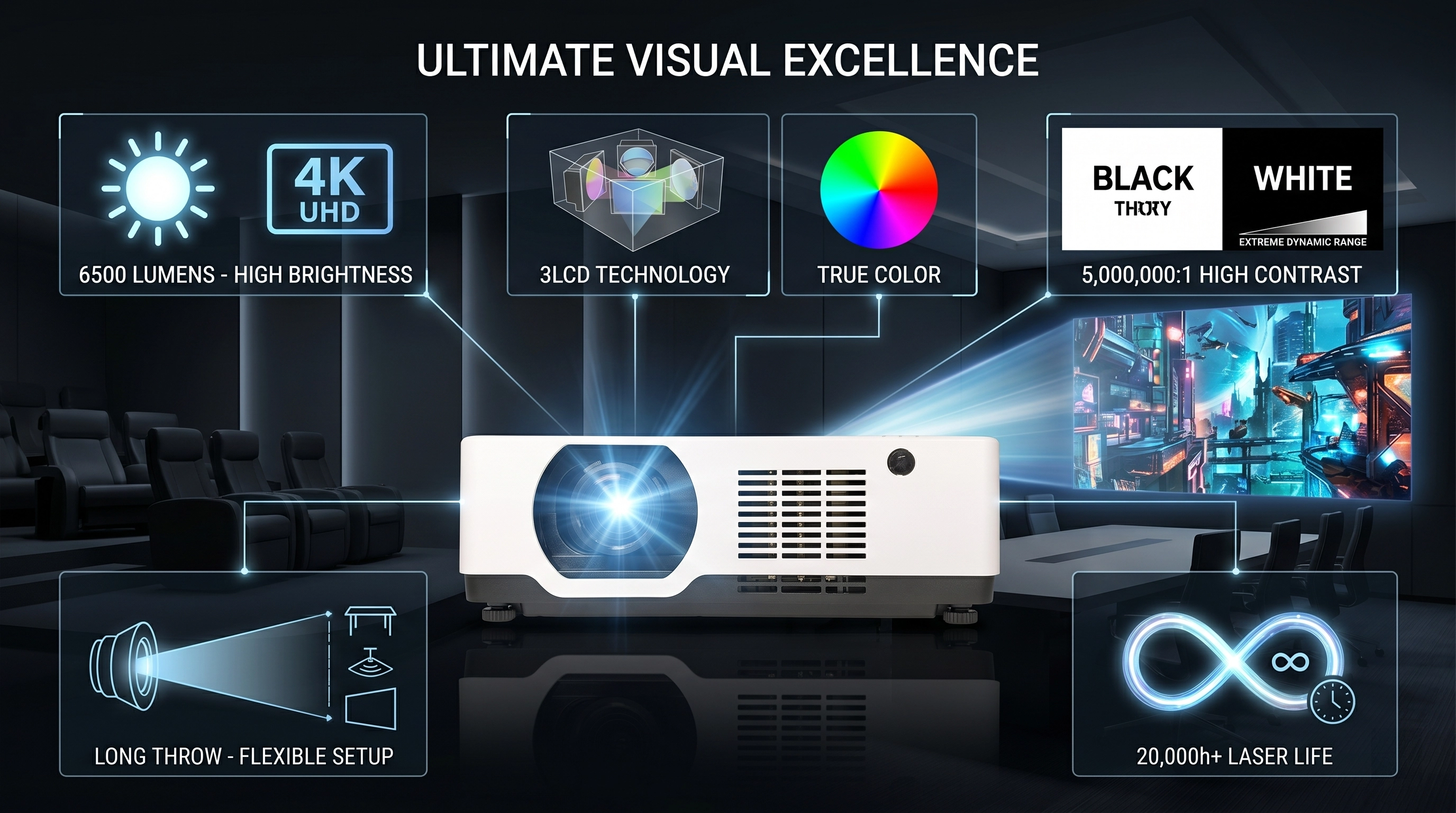

6500 Lumens Brightness – Suitable for bright rooms and large screens
4K UHD Resolution – Ultra sharp and detailed images
3LCD Technology – Accurate color performance
High Contrast 5,000,000:1 – Enhanced depth and realism
Long Throw Projection – Ideal for large spaces
Lens Shift & Keystone – Flexible installation
Laser Light Source – Up to 30,000 hours lifespan
Item | Specification |
|---|---|
Brightness | 6500 Lumens |
Resolution | 4K UHD |
Display | 3LCD |
Contrast Ratio | 5,000,000:1 |
Throw Ratio | 1.2–2.0 |
Zoom | 1.6x Optical |
Light Source | Laser |
Lifespan | 20,000–30,000 Hours |
Contact SMX for pricing, OEM/ODM services, and professional projection solutions.
| Model No. | MX-LK6500 | |
| Brightness | ||
| Brightness --Lumem | 6500 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | 4K Enhancement | |
| Light source Life time | FullNormal/Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| F | 1.58-2.08 | |
| f | 17.2mm-27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2 (wide)-2.0 (tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300inch | |
| Lens Shift | V:+0%~66% H: ±29% | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 39dB(Normal) 28dB(ECO) |
| Uniformity | Uniformity(Actual Min) -JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI 2.1(IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232C | *1 |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 390 | |
| Power Consumption (ECO) (Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Chinese |
| LAN Control | LAN Control--PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~135KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| SW setting | D-Zoom | YES (HDMI通道) |
| Wireless Projection Function | Optional | |
| laser mode | Normal/ECO | |
| Light source brightness adjustment | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Normal/ECO | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.8KG | |
| Packaging (WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.3KG | |
| Accessory | ||
| Manual Languages | Chinese , English | |
| Standard Accessaries | Power cord / Remote control/HDMI Cable | |
