6000 Lumens WUXGA 3LCD Laser Short Throw Projector for Golf Simulator| SMX SL6000U

6000 lumens WUXGA 3LCD laser short throw projector with 0.44:1 ratio, ideal for immersive, education, and commercial use.
  • Brightness: 6000 Lumen
  • Lighgt Source: Laser
  • Resolution: WUXGA 1920x1200
  • Throw Ratio: 0.44:1
  • Contrast Ratio: 5000000:1
Availability:
Quantity:
Inquire Add to Basket

  • MX-SL60U

  • SMX

6000 Lumens WUXGA 3LCD Laser Short Throw Projector

High brightness short throw projector for immersive, simulation, and commercial applications.

6000lumen laser projector WUXGA.webp

Product Overview

The SMX MX-SL6000U is a professional 6000 lumens WUXGA 3LCD laser projector designed for immersive projection, education, and engineering applications. With a 0.44:1 short throw ratio, it can project a 100-inch image from just about 1 meter, making it ideal for limited space installations.

Powered by 3LCD technology and laser light source, it delivers high color brightness, stable performance, and long lifespan up to 20,000 hours.

Key Features

  • 6000 Lumens Brightness – Clear image in ambient light

  • WUXGA Resolution – Sharp and detailed visuals

  • Short Throw 0.44:1 – Large image in small space

  • 3LCD Technology – Superior color performance

  • Laser Light Source – 20,000 hours lifespan

  • High Contrast Ratio – Up to 5,000,000:1

Specifications

Specification

Details

Brightness

6000 Lumens

Resolution

WUXGA (1920×1200)

Display Technology

3LCD

Light Source

Laser

Throw Ratio

0.44:1

Contrast Ratio

5,000,000:1

Lifespan

20,000 Hours

Screen Size

55–300 inch

Weight

8.1 kg

Applications

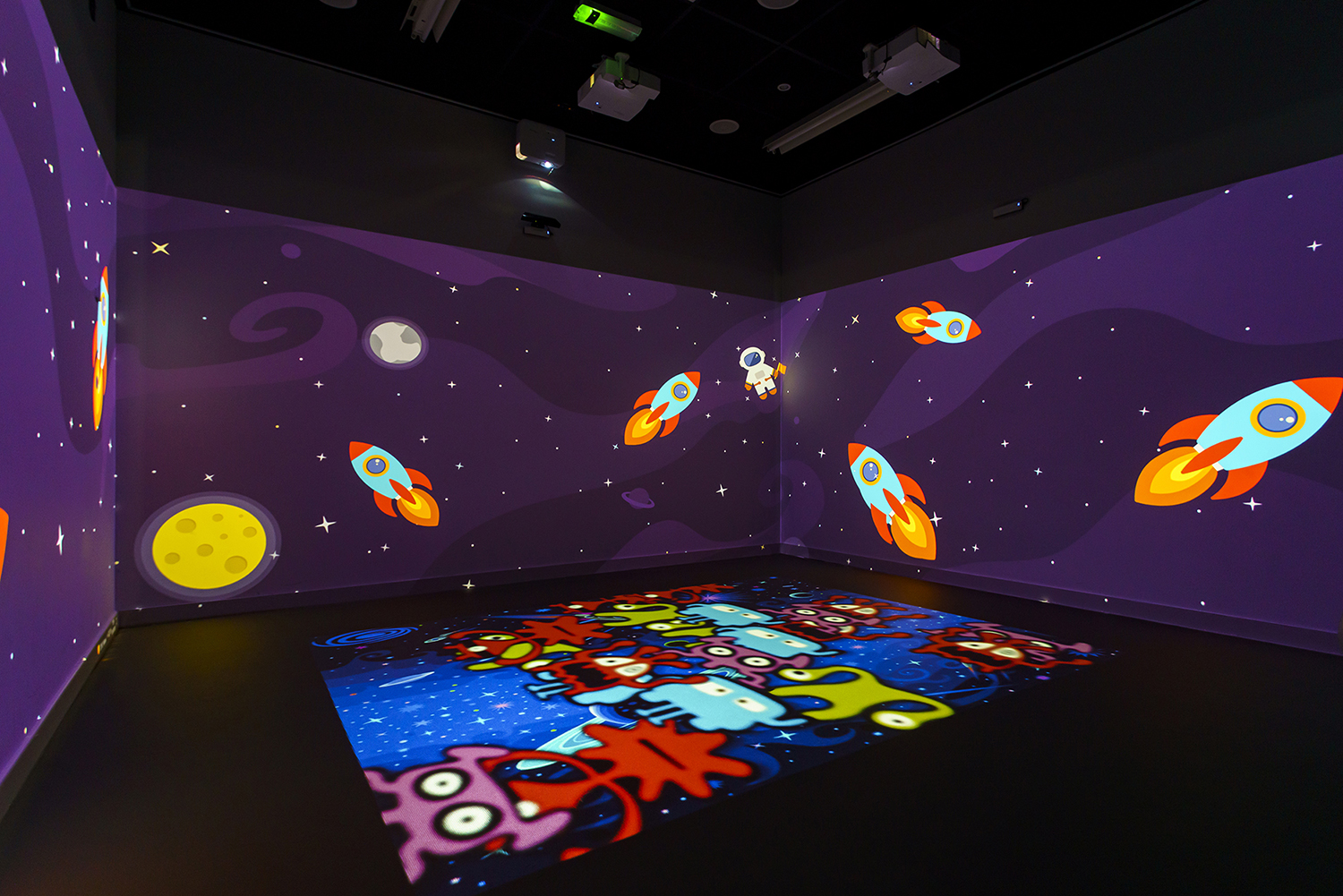

  • Immersive projection & projection mapping

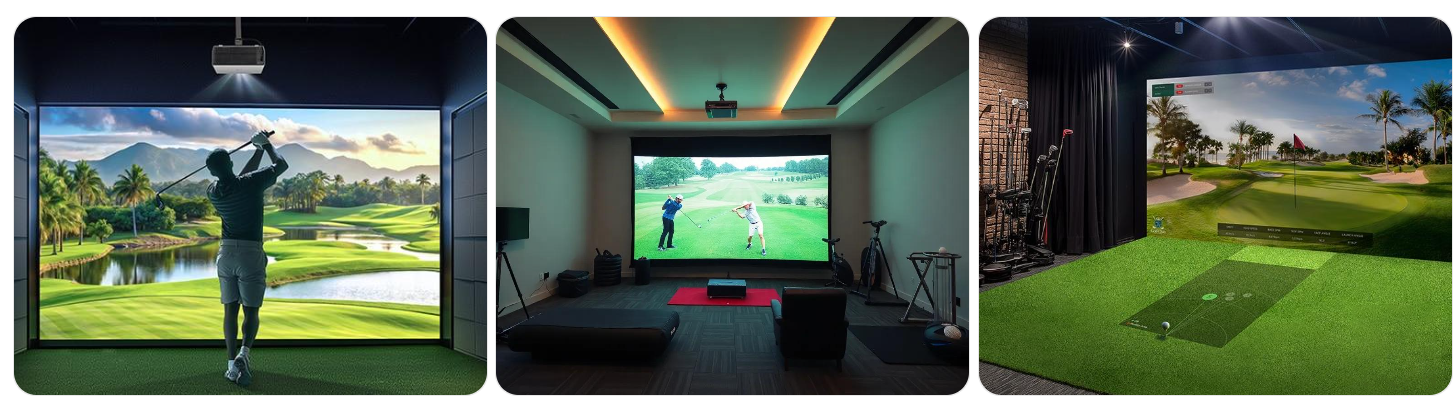

  • Golf simulator

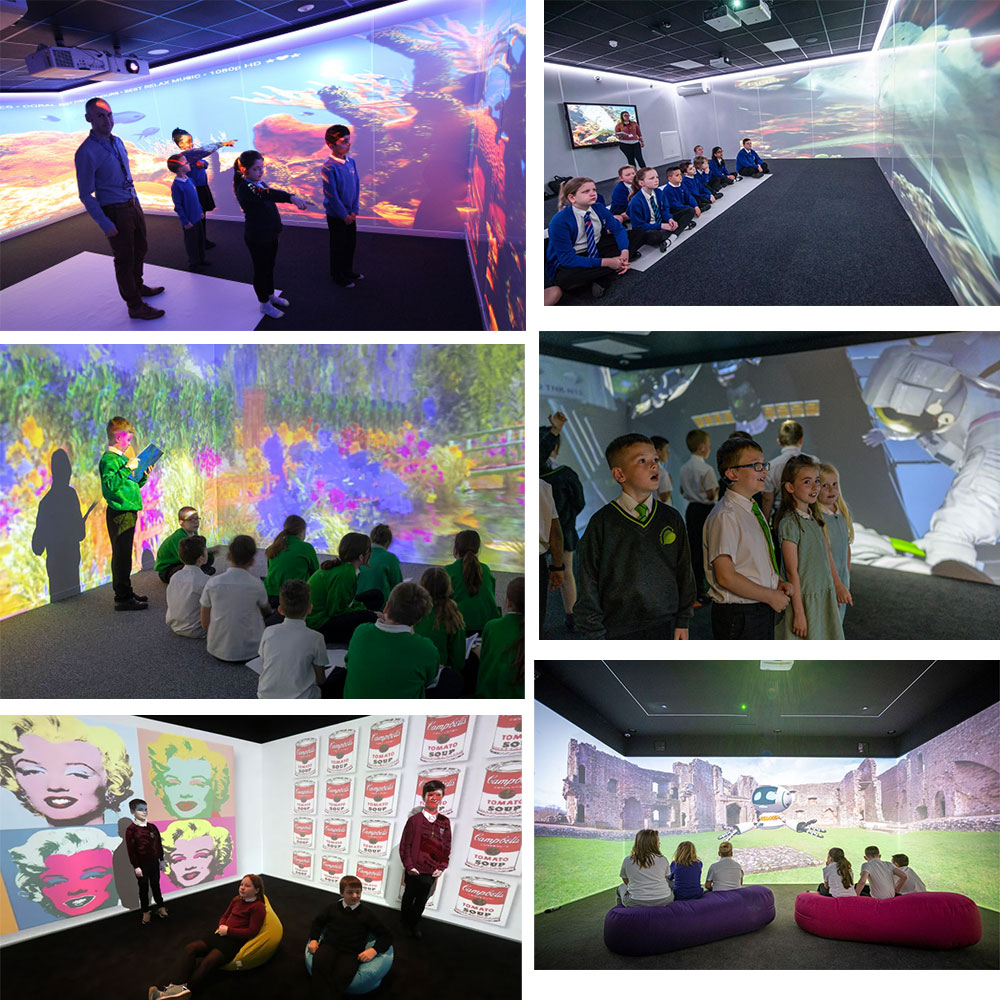

  • Classrooms & education

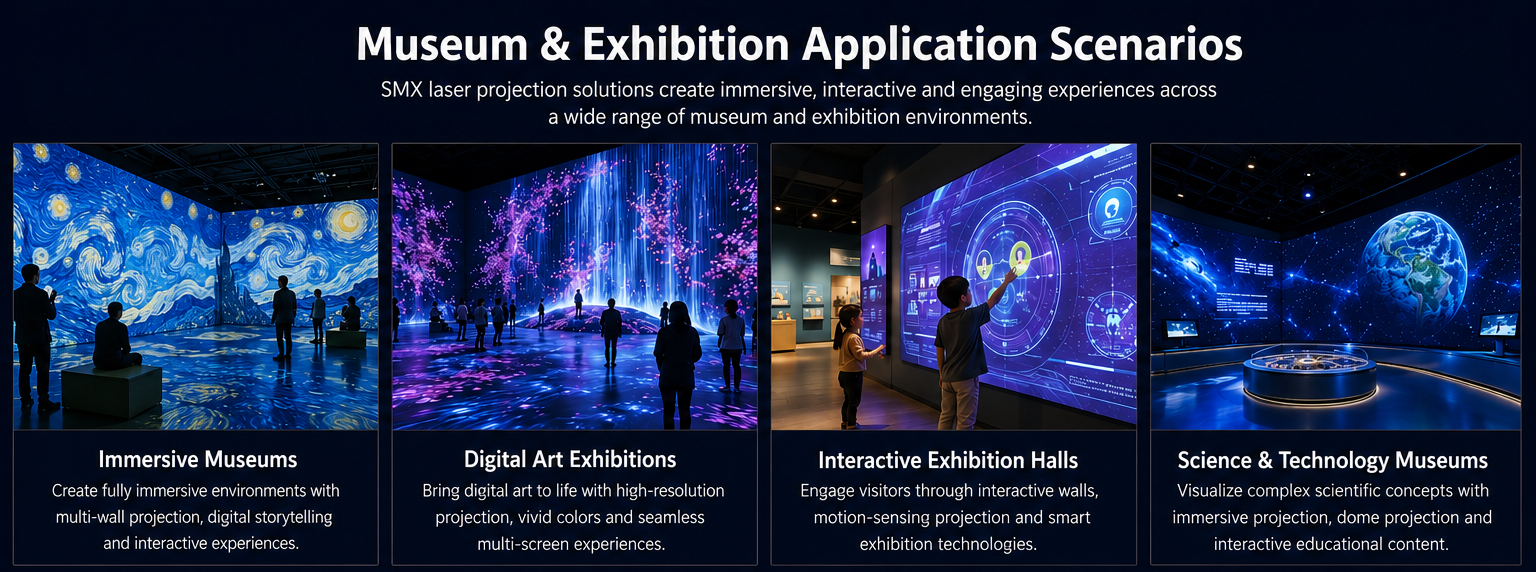

  • Museums & exhibitions

  • Meeting rooms

Why Choose This Projector?

Compared with standard projectors, short throw laser projectors reduce shadow interference and improve installation flexibility. A 6000 lumen brightness level ensures clear visuals even in bright environments, making it suitable for commercial and educational use.

Related Guides

Get a Professional Projection Solution

Contact SMX for pricing, OEM solutions, and technical support.

Get Quote
View More Projectors

Model No.MX-SL600U

Brightness(Lumen)6000
Overall Spec
PanelDisplay Panel3x0.64”  with MLA
Display TechnologyLiquid   Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source
Life time		Normal   mode 20000hrs
ECO1 mode30000hrs
Lens Lens   VendorRICOH
Projection LensFF1.6
f6.39mm
Zoom/FocusManual
Throw Ratio0.44:1
Screen size55-300inch
CRContrast   Ratio (FOFO)5000000:1
NoiseNoise(dB)37dB (Normal) / 27dB (ECO)
UniformityUniformity(Actual   Min)
-JISX6911 		80%
ARAspect RatioNative:16:10 / Compatible: 4:3/16:9
Terminal(I/O   port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1(Display)
RJ45*1   (Display)
HD BaseT*1   (Optional)

Audio in

(mini jack,3.5mm)

*1
OutputVGA*1
Audio out
(mini-jack,3.5mm)		*1
ControlRS232*1
RJ45*1   (Control)
USB-B*1   (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower Requeirements100~240V@   50/60Hz
Power Consumption
(Normal) (Max)		360
Power Consumption
(ECO1) (Max)		280
Power Consumption
(ECO2) (Max)		230
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating   Temp.0   to 40°C
Operating Thumidity.20-80%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other Functions
KeystoneKeystone Correction
(Lens@center)		V:   ±15°
H：±15°
Pincushion/Barrel Correction
6 Corner  correction
4 Corner Correction
Grid image tune
OSD Languages

26   languages:

English, German, French, Italian, Spanish, Polish, Swedish, Dutch   ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN Control-RoomView
(Crestron)		Yes
LAN Control--
AMX Discovery		Yes
LAN Control--
PJ Link 		Yes
Scanning FrequencyH-Synch   Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA,   SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,Auto Keystone
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green)
Cooling time0s,   Normal,30s
Auto CeilingYes
D-Zoom1~33
Others 360°   projectionYes
Dimension&Weight

MAX   Dimensions
(WxHxD mm)		405(W)×404(D)×164(H)
Net. Weight (KG)8.1kg
Packaging
(WxHxD mm)		510(W)×498(D)×260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord (EU)/power cord (Ja), Remote control
