3D Projection Mapping is a powerful visual technology that transforms buildings, landmarks, stages, and structures into immersive digital canvases. Behind every breathtaking projection show lies a sophisticated workflow that combines creative design, advanced software, precision engineering, and high-brightness projection technology.
From architectural surveying to final show execution, every step plays a critical role in delivering a seamless visual experience.
This guide explains the complete 3D projection mapping workflow used by professional projection studios, event companies, museums, and immersive experience creators worldwide.
Content Creation alone is not enough to create a successful projection mapping show.
A professional project follows six essential stages:
↓
↓
↓
↓
↓
Every successful projection mapping project begins with a highly accurate digital replica of the target structure.
Whether the projection surface is a historical building, modern architecture, museum exhibit, or stage set, precise measurement is essential.
Professional teams typically use:
LiDAR Scanning
3D Laser Scanning
Photogrammetry
CAD Drawings
Drone Mapping
The collected data is converted into a detailed 1:1 digital model that serves as the foundation for all visual content.
Accurate 3D models help:
Ensure perfect content alignment
Reduce installation errors
Improve visual realism
Speed up project deployment
Without precise modeling, even the most creative content may appear distorted or misaligned during projection.
Once the digital model is completed, the creative process begins.
Artists and designers develop immersive animations specifically tailored to the architectural features of the structure.
Projection mapping content often incorporates:
Forced Perspective Effects
Architectural Transformation
Visual Illusions
Motion Graphics
3D Animation
Interactive Elements

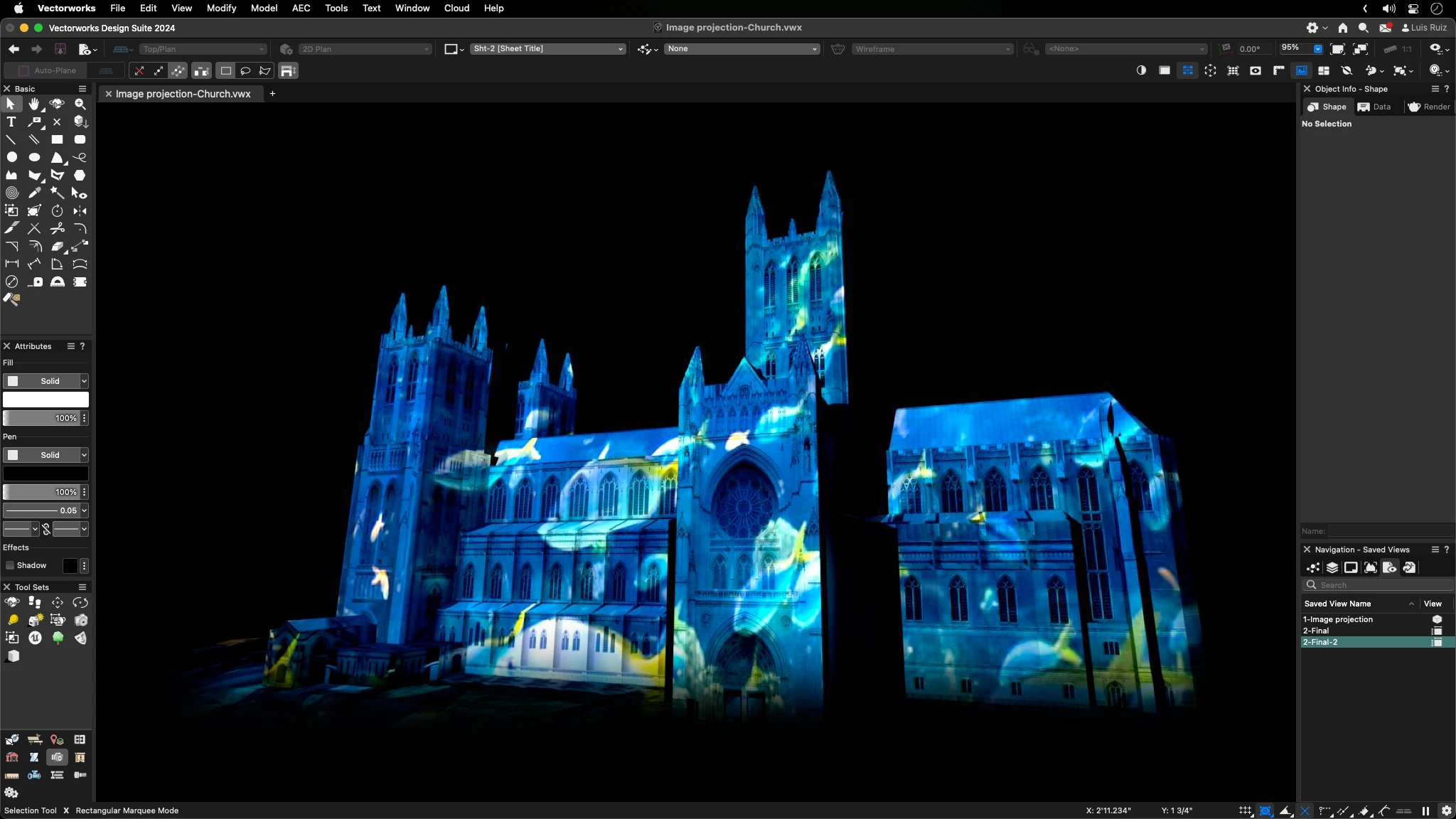

Using advanced rendering software, every animation frame is calculated to match the exact geometry of the projection surface.
The result is a visual experience where buildings appear to:
Collapse
Expand
Rotate
Reshape
Open and reveal hidden worlds
creating a powerful illusion of movement and depth.
The next stage focuses on projector system planning and installation.

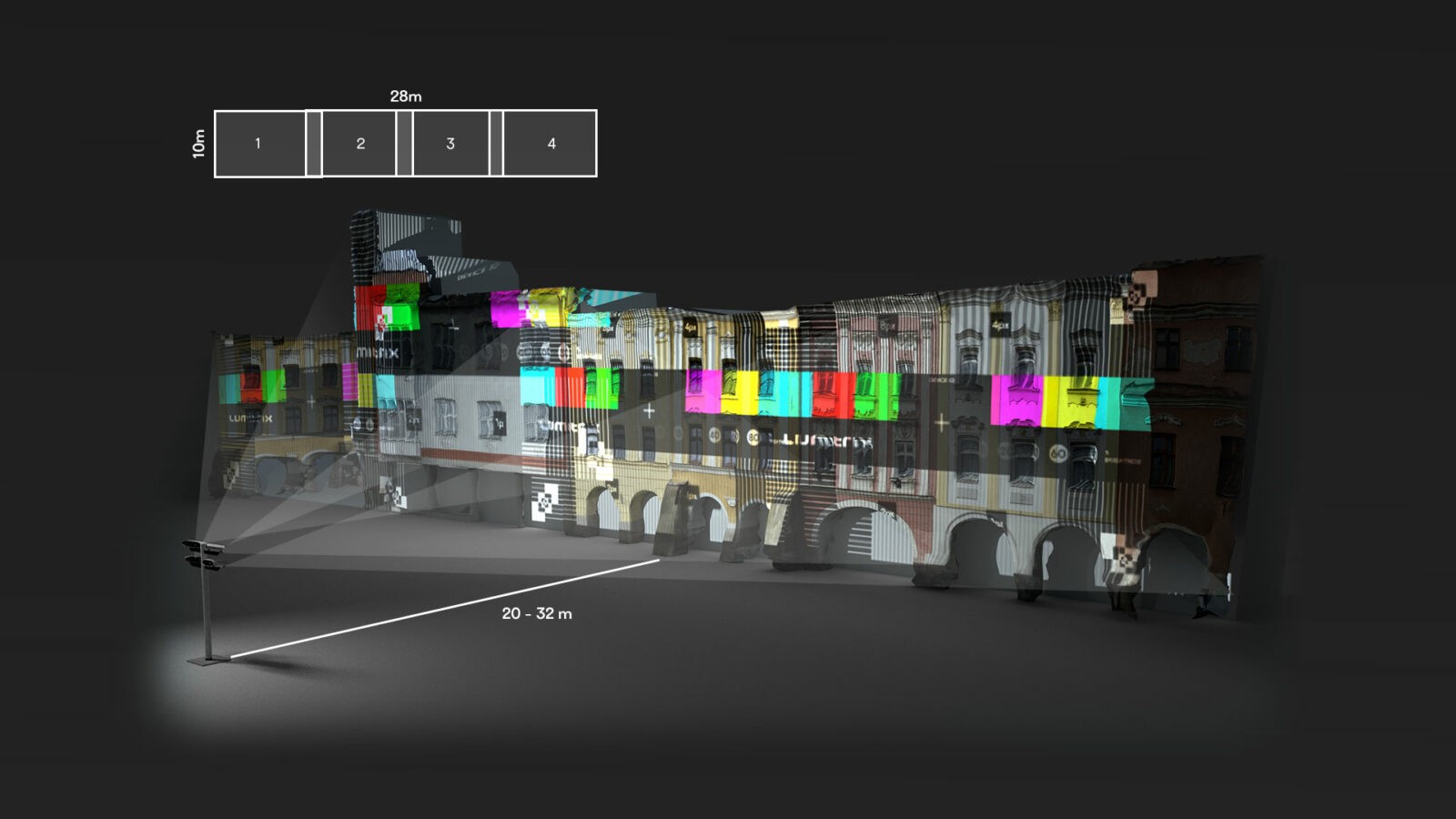

Professional engineers determine:
Projector quantity
Brightness requirements
Projection distance
Lens selection
Mounting positions
Excessive ambient light can reduce image visibility.
Solution:
Higher brightness projectors
Night-time operation
Controlled lighting environments
Irregular surfaces require more advanced calibration.
Solution:
Detailed 3D modeling
Advanced mapping software
Geometric correction tools
Large buildings often require multiple projectors.
Solution:
Edge blending
Multi-projector synchronization
Professional media servers
Application | Recommended Brightness |
|---|---|
Small Indoor Mapping | 5000–7000 Lumens |
Museum Mapping | 7000–12000 Lumens |
Stage Projection | 10000–15000 Lumens |
Building Mapping | 15000–22000+ Lumens |
For outdoor architectural mapping, high-brightness laser projectors are generally preferred because of their superior performance and reliability.
This is one of the most critical phases of the entire workflow.
The virtual content must perfectly match the physical structure.

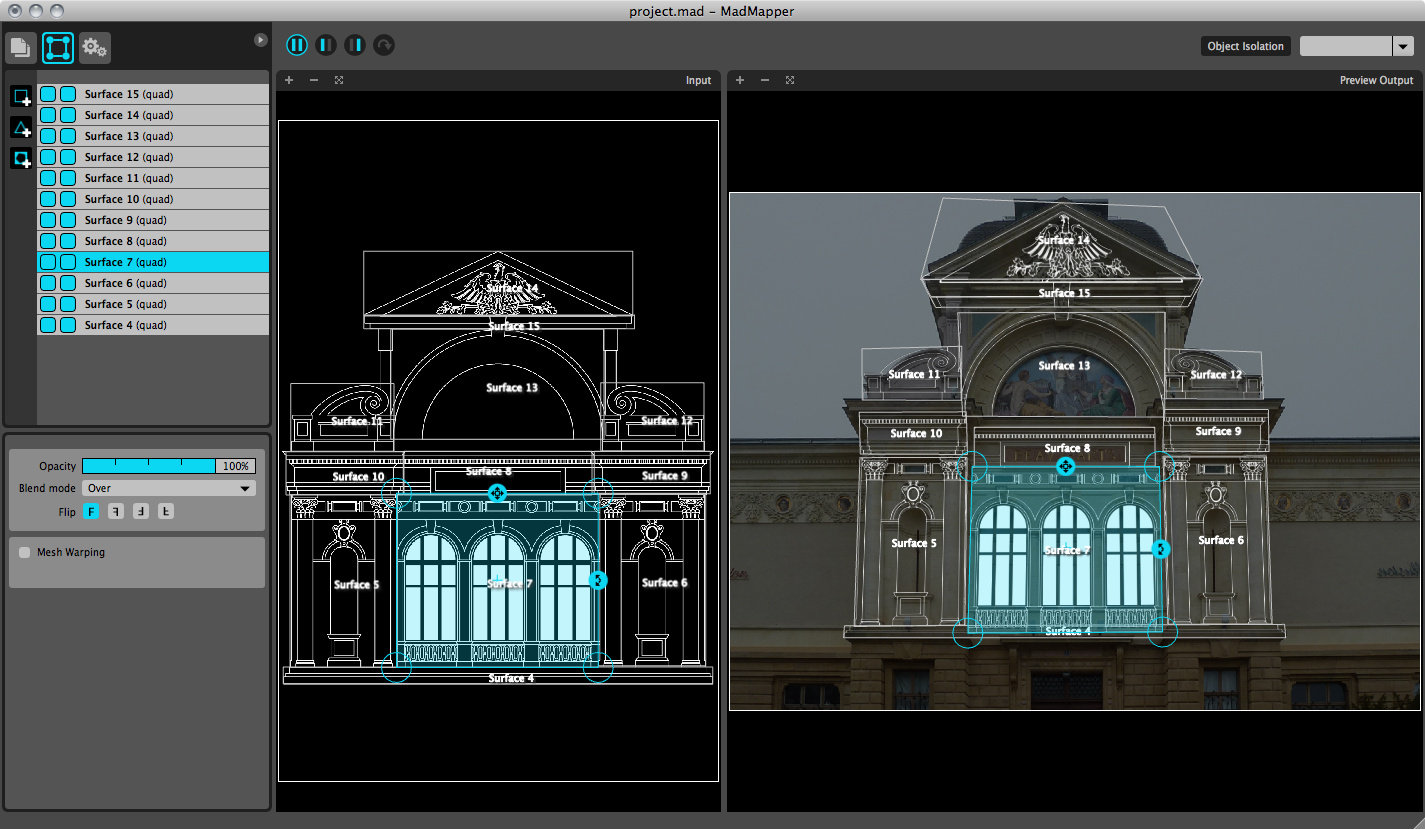

Using professional projection mapping software, technicians perform:
Geometric Correction
Projection Warping
Keystone Adjustment
Surface Calibration
Corrects image distortion caused by:
Curved surfaces
Irregular structures
Complex architecture
Large-scale projection mapping often requires multiple projectors.

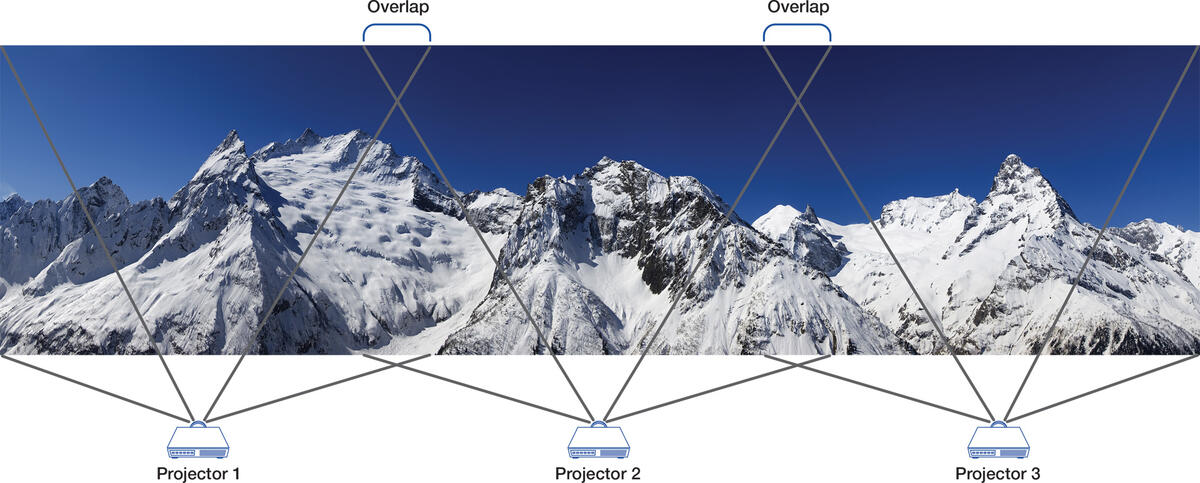

Edge blending combines overlapping images into a single seamless visual canvas.
Benefits include:
Larger projection areas
Smooth panoramic visuals
No visible image seams
Enhanced audience immersion
At this stage, digital content and architecture become perfectly synchronized.
Once projection alignment is complete, all show systems must work together as a unified platform.
Professional projection mapping projects often integrate:
Media Servers
Lighting Control Systems
Audio Systems
Interactive Sensors
DMX Controllers
Show Automation Systems
Through precise timecode synchronization, every visual effect, sound cue, and lighting transition occurs at the exact intended moment.
Multiple rounds of testing and calibration are performed to ensure flawless performance.
This stage is especially important for:
Concerts
Festivals
City Events
Cultural Celebrations
Large-Scale Projection Shows
After weeks or months of planning, production, and testing, the project enters its final stage.
During the live performance:
Media servers manage playback
Projectors operate in synchronization
Audio and lighting systems remain perfectly timed
Automated control systems monitor performance
The result is a stunning transformation of static architecture into a living canvas of light, motion, and storytelling.
Buildings become dynamic visual sculptures capable of delivering unforgettable audience experiences.
Professional projection mapping projects rely on several key technologies.
Technology | Function |
|---|---|
LiDAR Scanning | Accurate architectural measurement |
3D Modeling | Digital twin creation |
Media Server | Content playback and synchronization |
Edge Blending | Seamless multi-projector images |
Geometry Correction | Surface alignment |
Laser Projection | High-brightness image delivery |
Timecode Control | Audio-video synchronization |
Show Automation | Centralized performance management |
Modern projection mapping projects increasingly rely on laser projection technology.
Advantages include:
High brightness output
Stable long-term performance
20,000+ hour lifespan
Low maintenance costs
Superior color consistency
Fast startup and shutdown
For architectural projection mapping, laser projectors ranging from 12,000 to 30,000 lumens are commonly used.
Ideal for:
Museums
Indoor exhibitions
Small immersive installations
Ideal for:
Stage projection
Medium-scale mapping
Exhibition halls
Ideal for:
Building projection mapping
Outdoor events
City landmark shows
Large-scale immersive environments
A successful 3D projection mapping project is the result of careful planning, advanced technology, creative storytelling, and precise engineering.
From LiDAR scanning and 3D modeling to content creation, projector deployment, edge blending, and live show control, every stage contributes to transforming architecture into immersive visual art.
As cities, museums, entertainment venues, and cultural institutions continue to embrace immersive experiences, projection mapping remains one of the most powerful tools for bringing stories, spaces, and structures to life.
