MX-LS5300U
SMX
The MX-LS5300U is designed for professional presentation environments that require detailed WUXGA images, flexible projector placement and practical AV connectivity. Its 3LCD imaging system, optical zoom, lens shift and geometry adjustment tools support classroom, meeting, training and commercial presentation applications.

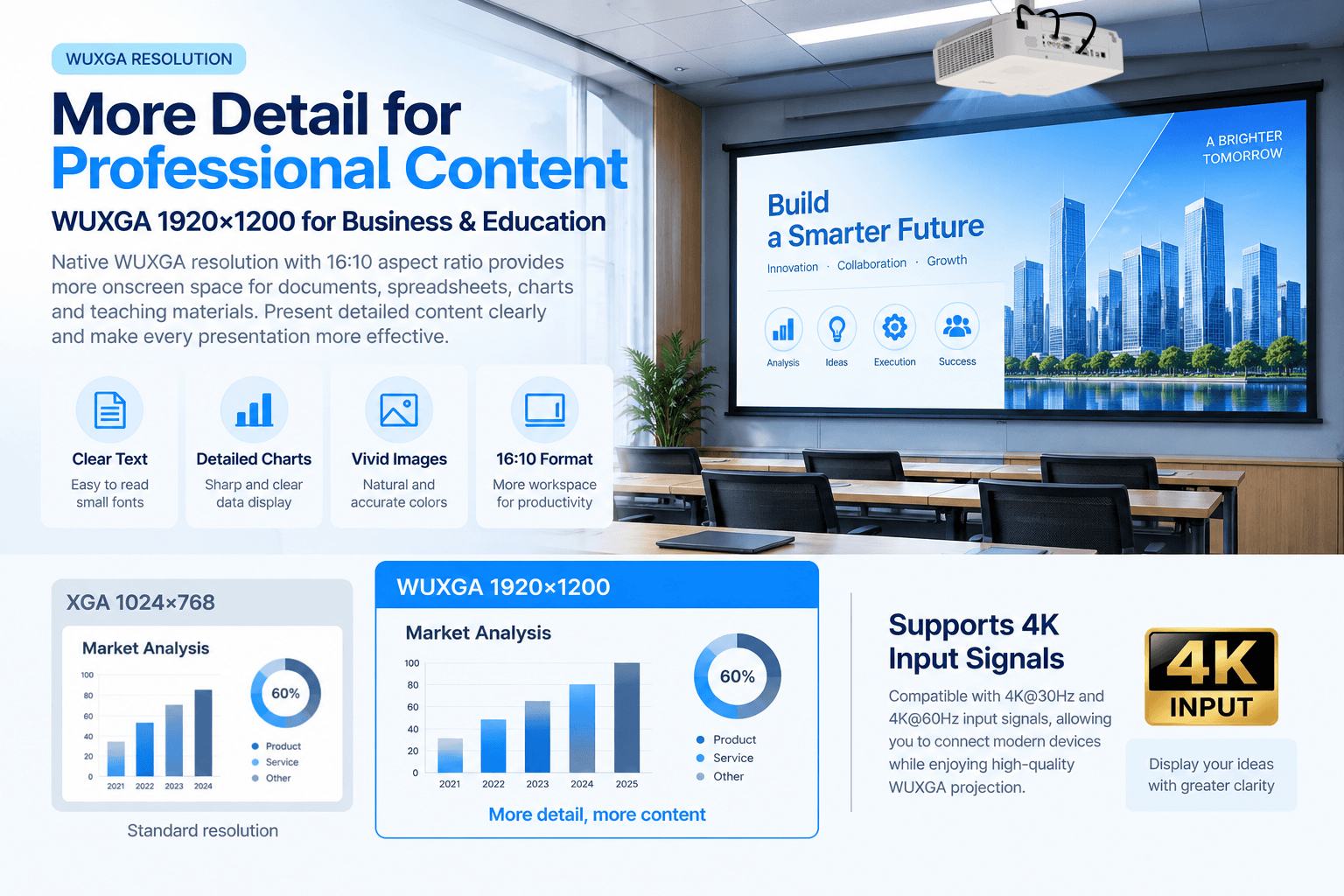

Native WUXGA 1920 × 1200 resolution provides a 16:10 image format suited to computer-based presentation content. Documents, spreadsheets, charts, diagrams, teaching materials and training information can be presented with useful image detail on a large screen.

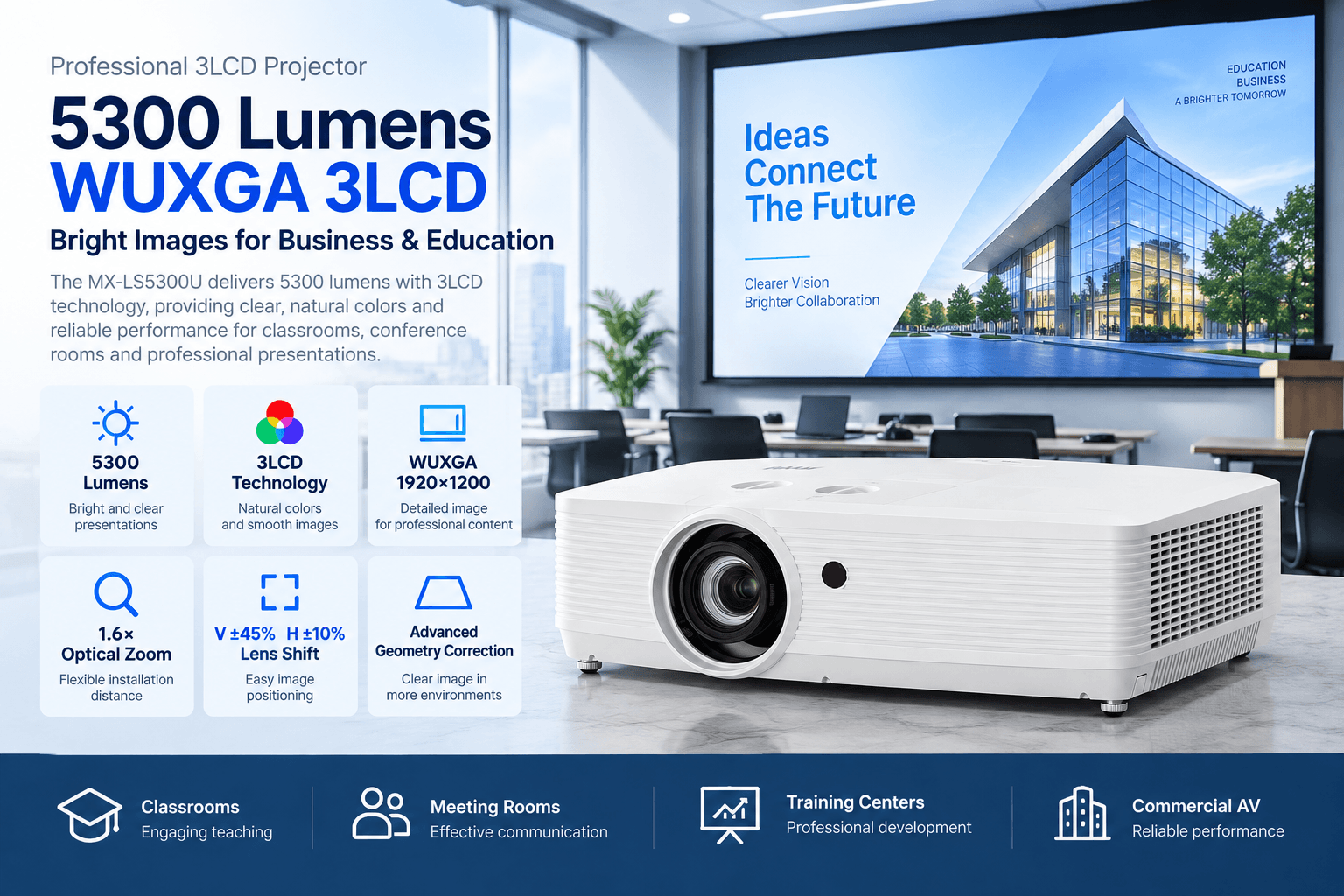

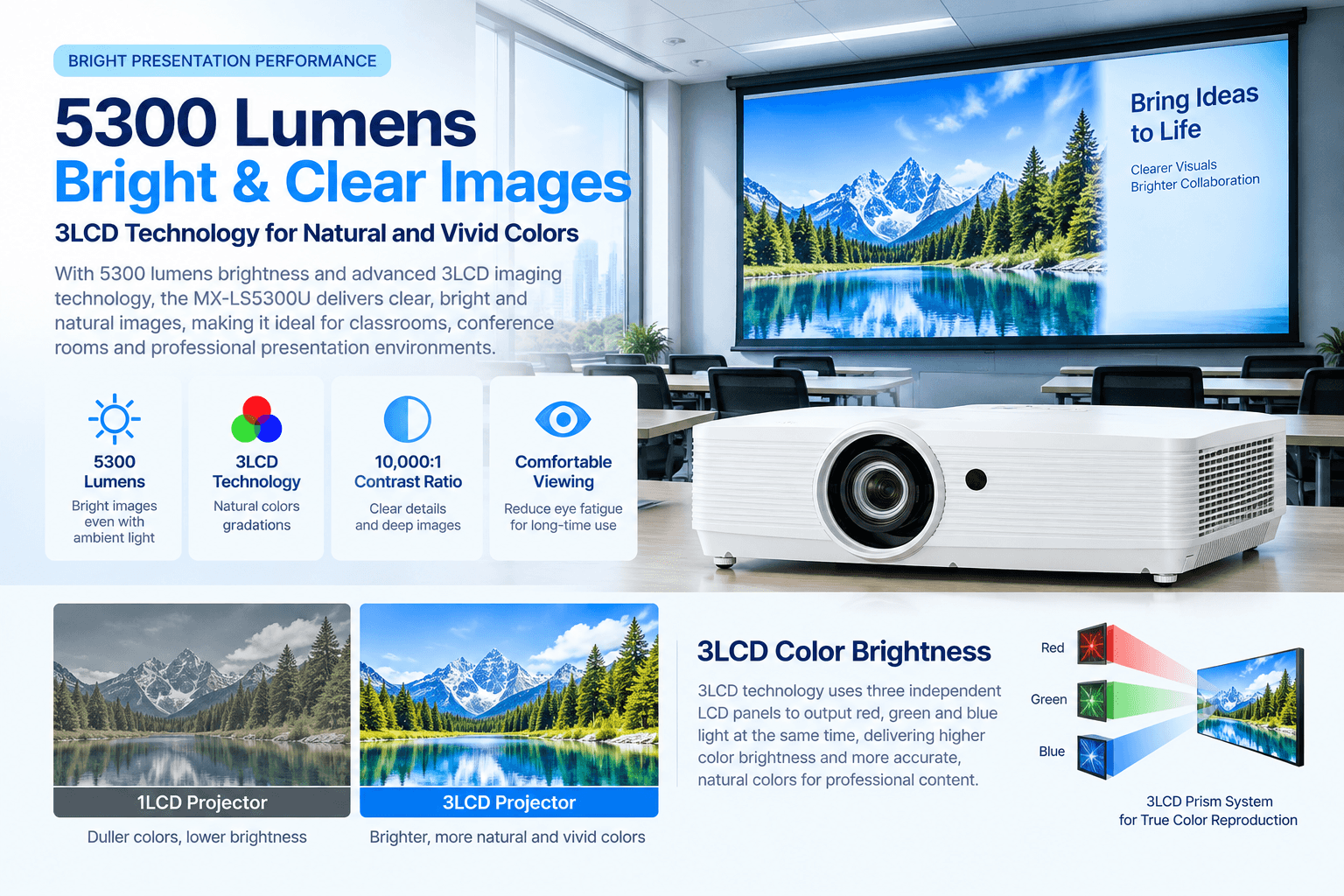

With 5300-lumen output and a three-panel LCD imaging architecture, the MX-LS5300U is designed for professional indoor presentation spaces. The projection system handles business documents, educational materials, charts, images and multimedia content across a wide range of everyday presentation applications.

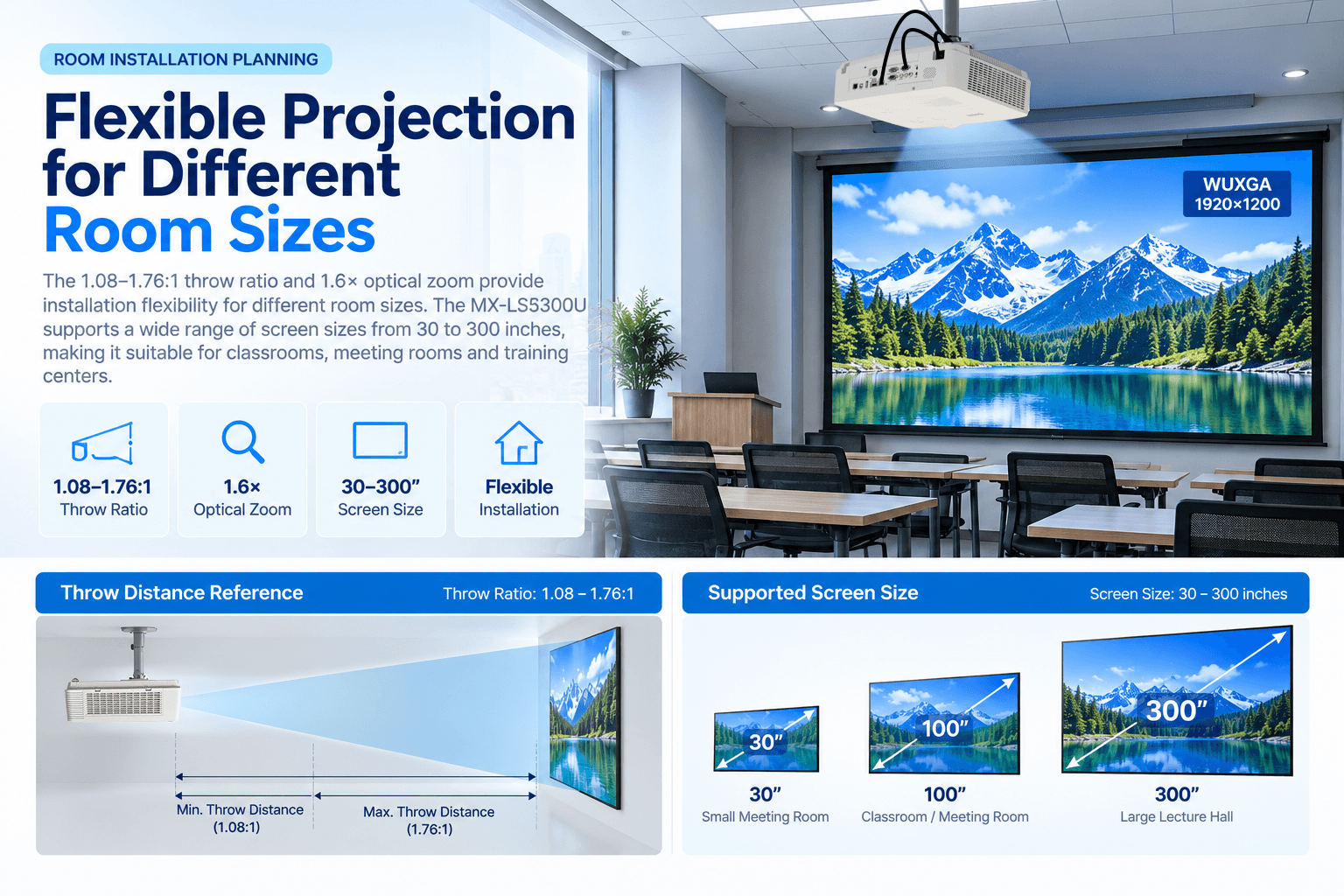

The 1.08–1.76:1 throw-ratio range gives AV planners flexibility when matching projector position to screen size and room depth. Combined with a 30–300 inch projection range, the optical system can be adapted to different classroom, meeting and training-room layouts.
Planning an installation? Calculate projector throw distance →

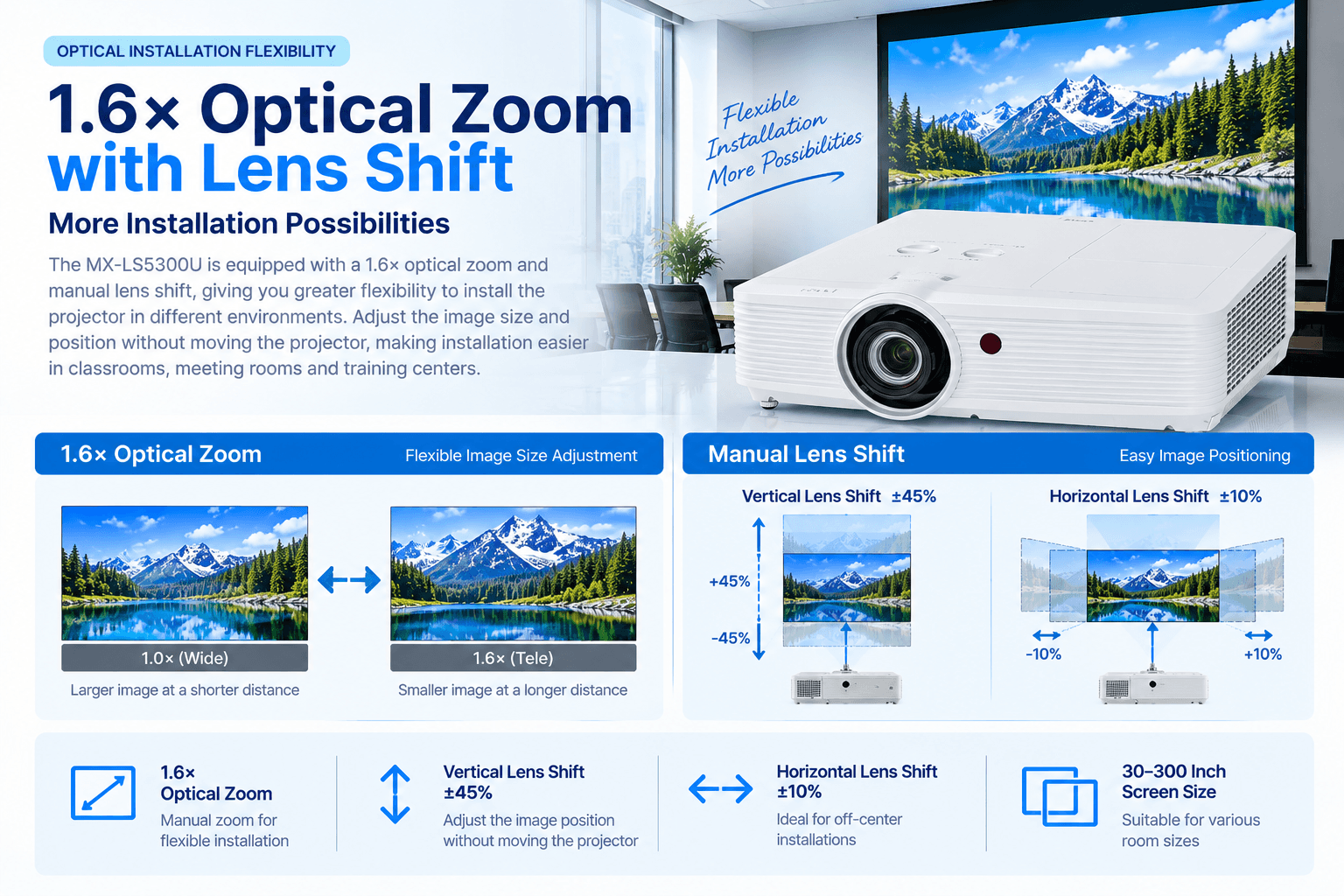

Optical zoom and manual lens shift provide additional installation flexibility after the projector position has been selected. Installers can adjust image size and move the projected image vertically or horizontally without relying only on digital image correction.

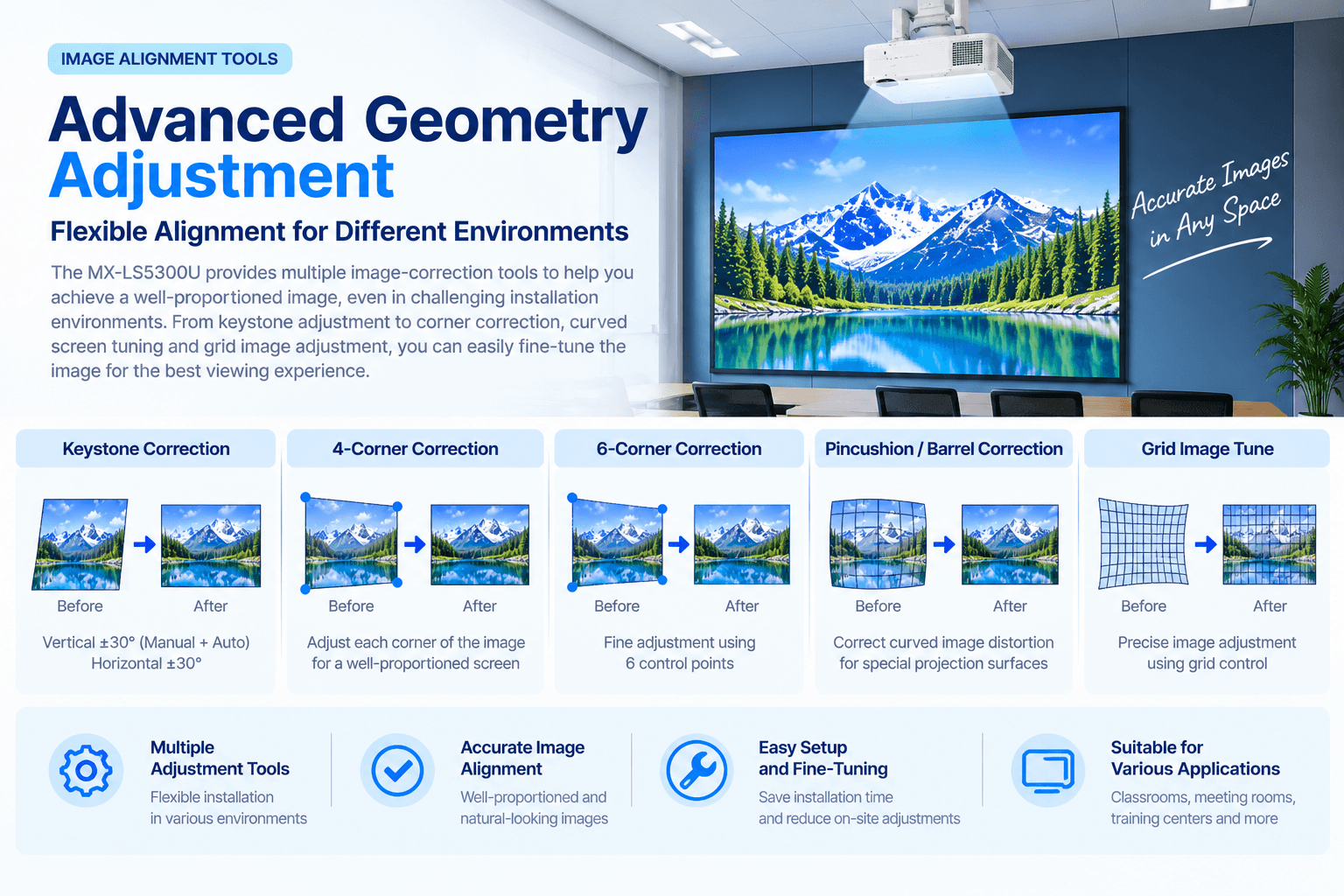

Multiple image-correction tools provide additional adjustment when projector placement or the projection surface requires geometric alignment. From standard keystone adjustment to corner, curved-image and grid tuning, installers have several ways to refine image shape.
The MX-LS5300U provides digital, analog, USB and network connections for integrating modern presentation sources as well as existing AV equipment. This connectivity supports classrooms, meeting rooms and professional installations using different source and control devices.
RJ45 network connectivity and RS232 control make the projector suitable for integration into managed AV environments. Support for established control protocols helps system integrators incorporate the projector into compatible education, meeting-room and commercial AV systems.
WUXGA image detail, optical installation controls and broad AV connectivity make the MX-LS5300U suitable for professional spaces where presentations, documents, educational content and training materials need to be displayed on a large screen.
Working with limited projection distance? Explore Short Throw 3LCD Projectors →
No. This model uses an Osram 310W projection lamp with a 3LCD imaging system.
The native resolution is WUXGA 1920 × 1200 with a 16:10 native aspect ratio.
The supplied specification lists support for compatible 4K input signals. The projector's native display resolution remains WUXGA 1920 × 1200.
Yes. Manual lens shift provides vertical adjustment of ±45% and horizontal adjustment of ±10%.
The specification includes V/H keystone, 4-corner correction, 6-corner geometry correction, pincushion/barrel correction and grid image tuning.
Yes. The projector provides RJ45 and RS232 control connectivity and supports Crestron RoomView, AMX Discovery and PJLink.
Visit the SMX Projector FAQ → for additional selection and technical information.
OEM and ODM requirements can be discussed according to configuration, order quantity, branding requirements and target market. View OEM & ODM information →
Share your screen size, projection distance, installation environment, source devices and required quantity. SMX can help evaluate a suitable projector configuration for your business, education or professional AV application.
| Model | ||
| Model No. | MX-LS5300U | |
| Brightness (Lumen) | 5300 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64"(DML) |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Lamp | Lamp Consumption(W) | Osram:310W |
| Lamp Lifetime(H) | 3000H(Normal) / 4000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 80"@1.858m, 1.08-1.76 | |
| F | F= 1.6~1.9 | |
| f | f= 15.31~24.64mm | |
| Zoom Ratio | 1.6xoptics | |
| Screen size | 0.678m~11.434m (30''~300") | |
| Lens Shift V | ±45%(Manual) | |
| Lens Shift H | ±10%(Manual) | |
| CR | Contrast Ratio(Min) | 10000:1（with IRIS&ECO mode) |
| Noise | Noise(dB)@1m | ECO : MAX 35dB Normal : 41dB; |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
Audio in (mini jack, 3.5mm) | *1 | |
| YCbCr/Component | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in (L/R)--RCA | *2 | |
| HDMI | *2 | |
| USB-A | *1 1. Support Memeory viewer | |
| USB-B | *1（Display) | |
| RJ45 | *1（Display) | |
| Output | VGA | *1（Share with VGA IN 2) |
| Audio out (mini-jack, 3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption -Normal | ~410W | |
| Power Consumption -ECO | ~310W | |
| ECO Standby Mode Power Consumption | <0.5W | |
Network standby Power Consumption | <2W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Accessory | ||
| Keystone | Keystone Correction | V: ±30°(Manual+Auto) H: ±30° 4 corner Correction Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish,Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA,XGA, SXGA, WXGA, UXGA, WUXGA,Mac, |
| Video Signal Input | PAL, SECAM,NTSC 4.43, PAL-M, PAL-N,PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p, 1080i, 4K@30Hz and 4K@60Hz | |
| Others | Auto Setup | INPUT SEARCH, AUTO PC, AUTO Keystone |
| Audio muting | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、Blackboard、Colorboard | |
| Lamp mode | NORMAL,ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 0S, 60s, 90s | |
| Closed caption | Yes | |
| High altitude | 86kPa～106kPa | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 395*319*119 | |
| Net. Weight (KG) | 4.45 | |
| Packaging Size (WxDxH mm) | 495*440*230 | |
| Gross. Weight (KG) | 6 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord,HDMI cable, Remote control | |
