MX-DL850U
SMX
Professional projector for meeting rooms and commercial installations.

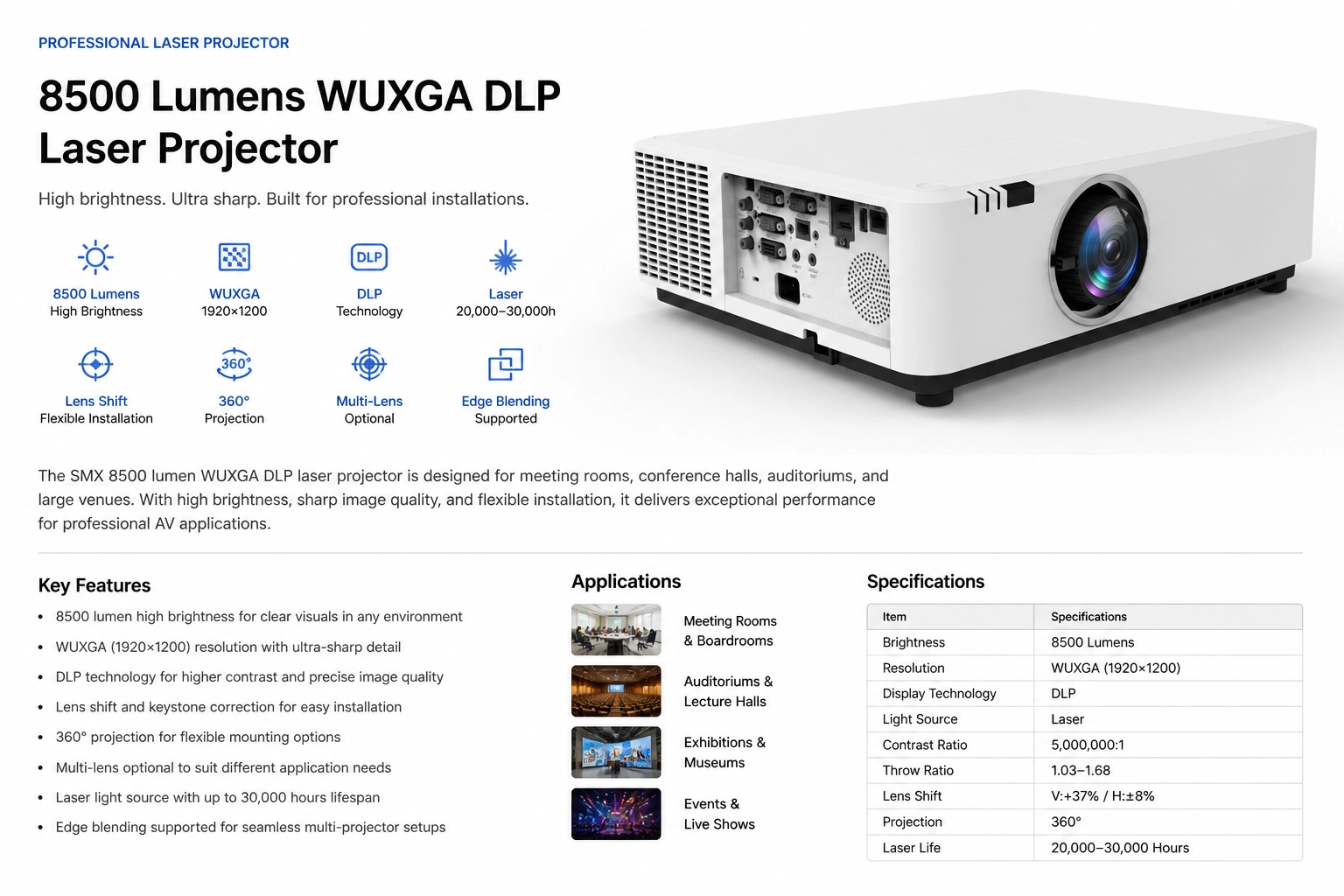

This 8500 lumens WUXGA DLP laser projector is designed for meeting rooms, corporate environments, and professional AV installations. It delivers exceptional brightness and sharp image quality, making it ideal for presentations, data visualization, and large screen projection.
DLP technology provides sharper edges and higher contrast, ensuring clear and precise visuals in business and professional applications.
8500 Lumens Brightness – Clear images in bright environments
WUXGA Resolution – Detailed and wide-format display
DLP Technology – Sharp and high-contrast visuals
Flexible Installation – 360° projection and lens shift
Multi-Lens Support – Adapt to different spaces
Laser Light Source – Up to 30,000 hours lifespan
Meeting rooms & boardrooms
Corporate presentation spaces
Auditoriums
Exhibitions & trade shows
Education & lecture halls
Item | Specification |
|---|---|
Brightness | 8500 Lumens |
Resolution | WUXGA (1920×1200) |
Display Technology | DLP |
Light Source | Laser |
Throw Ratio | 1.03–1.68 |
Contrast Ratio | 5,000,000:1 |
Lifespan | 20,000–30,000 Hours |
Installation | 360° Support |
Lens Shift | V:+37% / H:±8% |
DLP projectors are known for their sharp image quality and high contrast, making them ideal for presentations and business environments. With high brightness and long lifespan, laser DLP projectors provide a reliable and low-maintenance solution.
Contact SMX for pricing, OEM solutions, and professional AV support.
| Key Parts | ||
| Model No. | MX-DL850U | |
| Resolution | 1080P | |
| Brightness(Ansi Lumen) | 8500 | |
| Overall Spec | ||
| Panel | Display Panel | 0.65" DMD |
| Display Technology | DLP | |
| Native Resolution | 1080P (1920 x 1080) | |
| Light source Life time | Normal mode | 20,000hrs |
| ECO1 mode | 30,000hrs | |
| Projection Lens | F | 2.4 |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.03(wide)~1.68(tele) | |
| Zoom Ratio | 1.63 | |
| Screen size | 80-300inch | |
| Lens Shift | V:+37%~-10% H:±8% | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 39dB(Normal) ; 36dB(ECO) |
| Uniformity | Uniformity | 95% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
| HDMI 1.4B(IN) | *2 | |
| HD BaseT | *1(Optional) | |
| Video | *1 | |
| Audio L (RCA) | *1 | |
| Audio R (RCA) | *1 | |
| Audio in (mini jack,3.5mm) | *1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
USB (Type A) only supports 5V | *1 | |
| General Spec | ||
| Audio | Speaker | 10W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 670 | |
| Power Consumption (ECO1) (Max) | 520 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient0℃~50℃ |
| 1700m<Altitude<3000m, Ambient 0℃~40℃ | ||
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° 4 Corner Correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5 minutes no signal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Blackboard | |
| Cooling time | 0s | |
| Auto Ceiling | Yes | |
| D-Zoom | ±5 | |
| Others | 360° projection | Yes |
| 3D | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 460(W)*355(D)*142.6(H) | |
| Net. Weight (KG) | ~10KG | |
| Packaging Size (WxDxH mm) | 574(W)*554(D)*268(H) | |
| Gross. Weight (KG) | 12.5kg | |
| Accessories | ||
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
