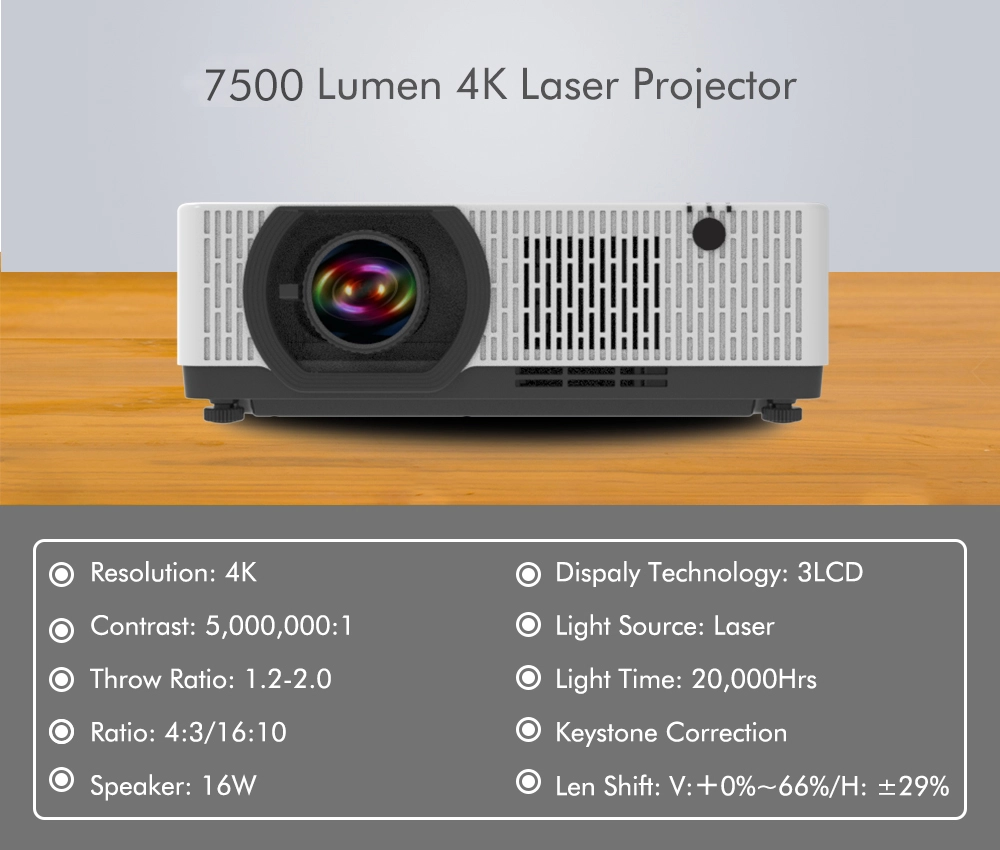

MX-LK7500K
SMX

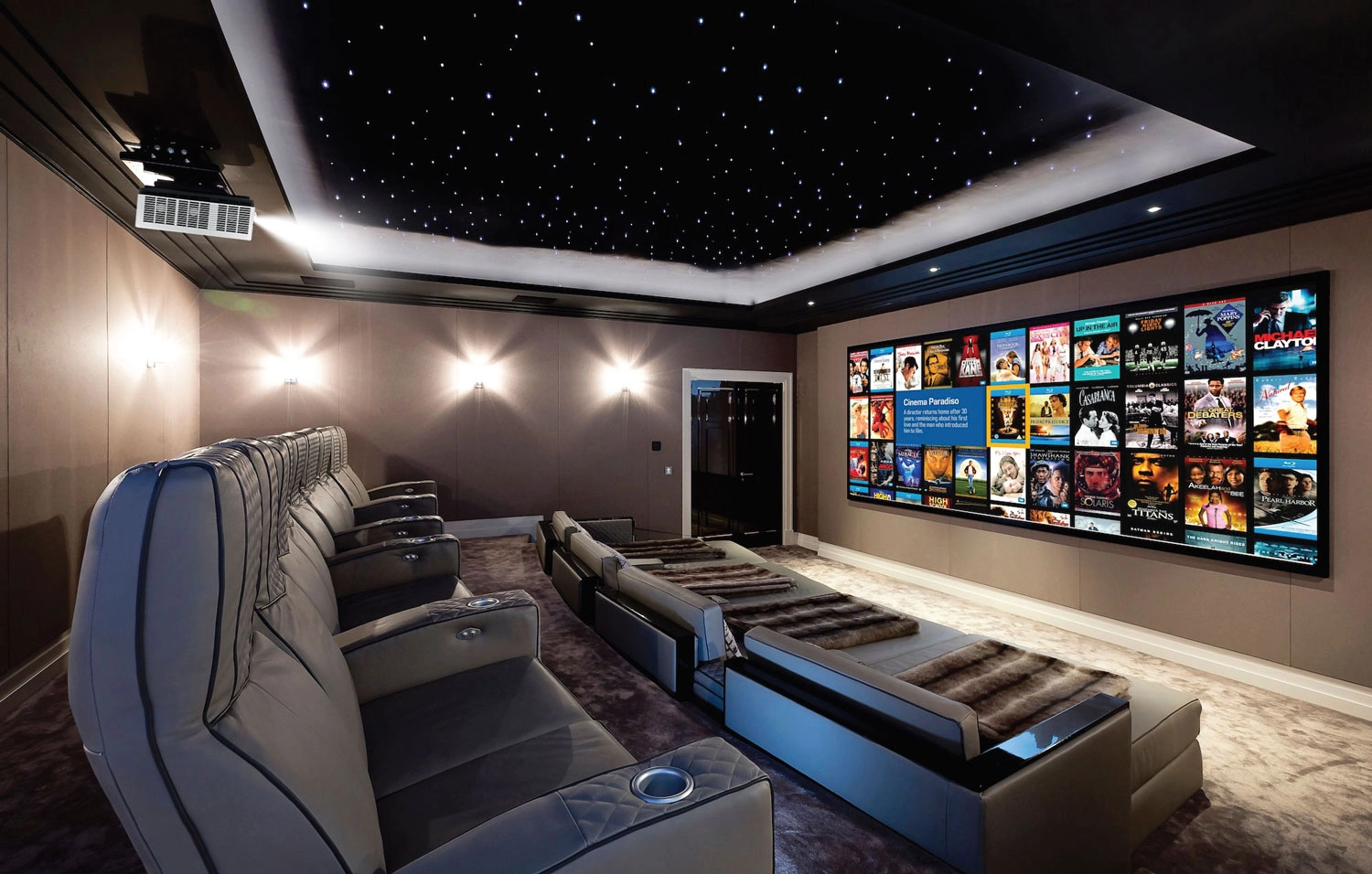

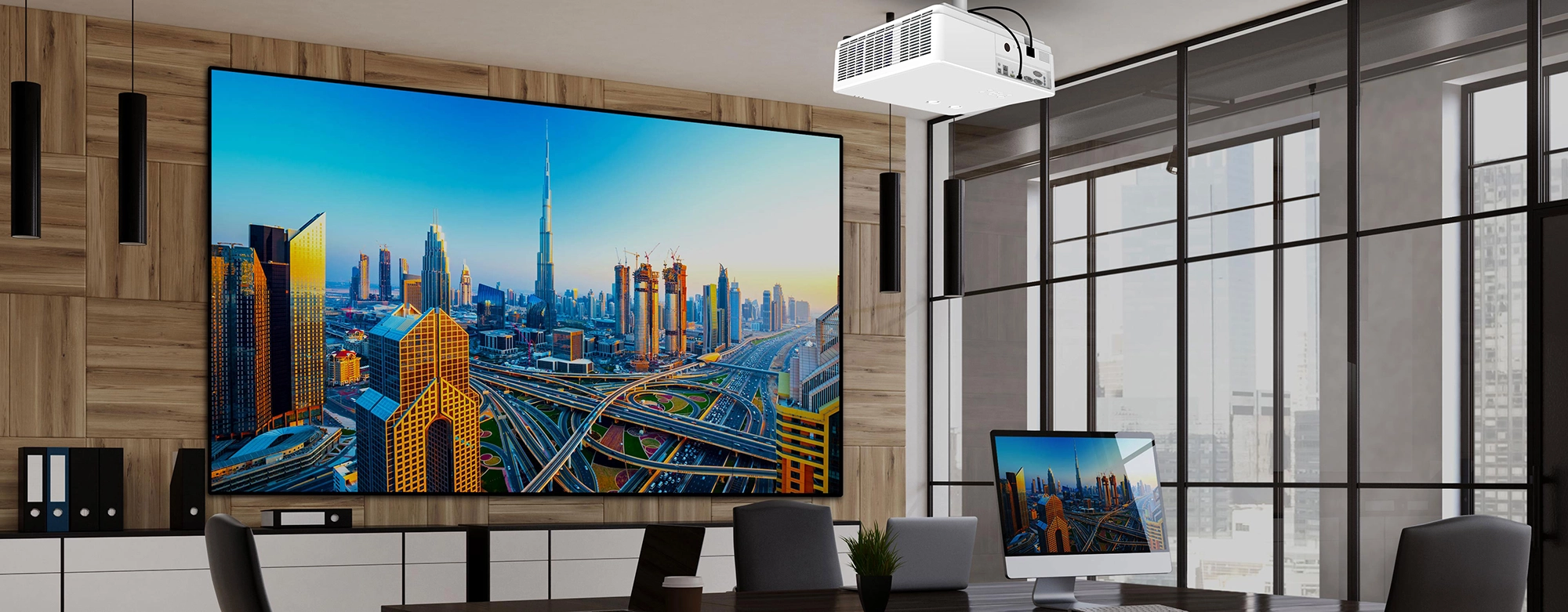

High-brightness projector designed for large venues, home cinema, and immersive projection experiences.
The SMX MX-LK7500K delivers 7500 lumens of high brightness with 4K UHD resolution and 3LCD true color technology, perfect for large venues, home cinema, and immersive projection environments.
Supports edge blending and 360° projection for seamless multi-projector setups, lens shift and keystone correction for flexible installation, and a long-lasting laser light source up to 30,000 hours.
7500 Lumens Brightness – Clear images in ambient light environments
4K UHD Resolution – Ultra-sharp, detailed images
3LCD Technology – Superior color brightness and accuracy (Learn More)
Edge Blending & 360° Projection – Perfect for immersive installations (See Projection Mapping)
Lens Shift & Keystone Correction – Flexible installation
Laser Light Source – Up to 30,000 hours lifespan
Item | Specification |
|---|---|
Brightness | 7500 Lumens |
Resolution | 4K UHD (3840×2160) |
Display | 3LCD |
Contrast Ratio | 5,000,000:1 |
Light Source | Laser |
Lifespan | 20,000–30,000 Hours |
Installation | Edge Blending & 360° Flexible Mount |
Contact SMX for OEM/ODM services, pricing, and project consultation.
| Model No. | MX-LK7200K | |
| Key parts | ||
| Lens Maker | RICOH Lens | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6X Zoom | |
| Light source | NICHIA LASER | |
| Brightness | ||
| Brightness | 7200Lumen | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K Enhancement | |
| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300inch | |
| Lens Shift | V:+0%~66% H:±29% | |
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) TBD | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity-JBMA | 80% |
| AR | Aspect Ratio | Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | VGA | N/A |
| HDMI 2.1(IN) | *2 | |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini jack,3.5mm) | *1 | |
| Control | RJ45 | *1 (Control) |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life Time | 8000h | |
| Power Consumption | Power Requirements | 100~240V@50/60Hz |
| Power Consumption (Normal) (Max) | 435 | |
| Power Consumption (ECO)(Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Chinese, |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| Voice control | Near-field RC voice | |
| Bluetooth | Bluetooth Version 5.0 | |
| Wireless Projection Function | Optional | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Size )WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power Cord, Remote control, HDMI Cable | |
