MX-SL6000U
SMX
6000 Lumens | WUXGA | 3LCD | 0.44:1 Short Throw | RICOH Lens | Laser Light Source

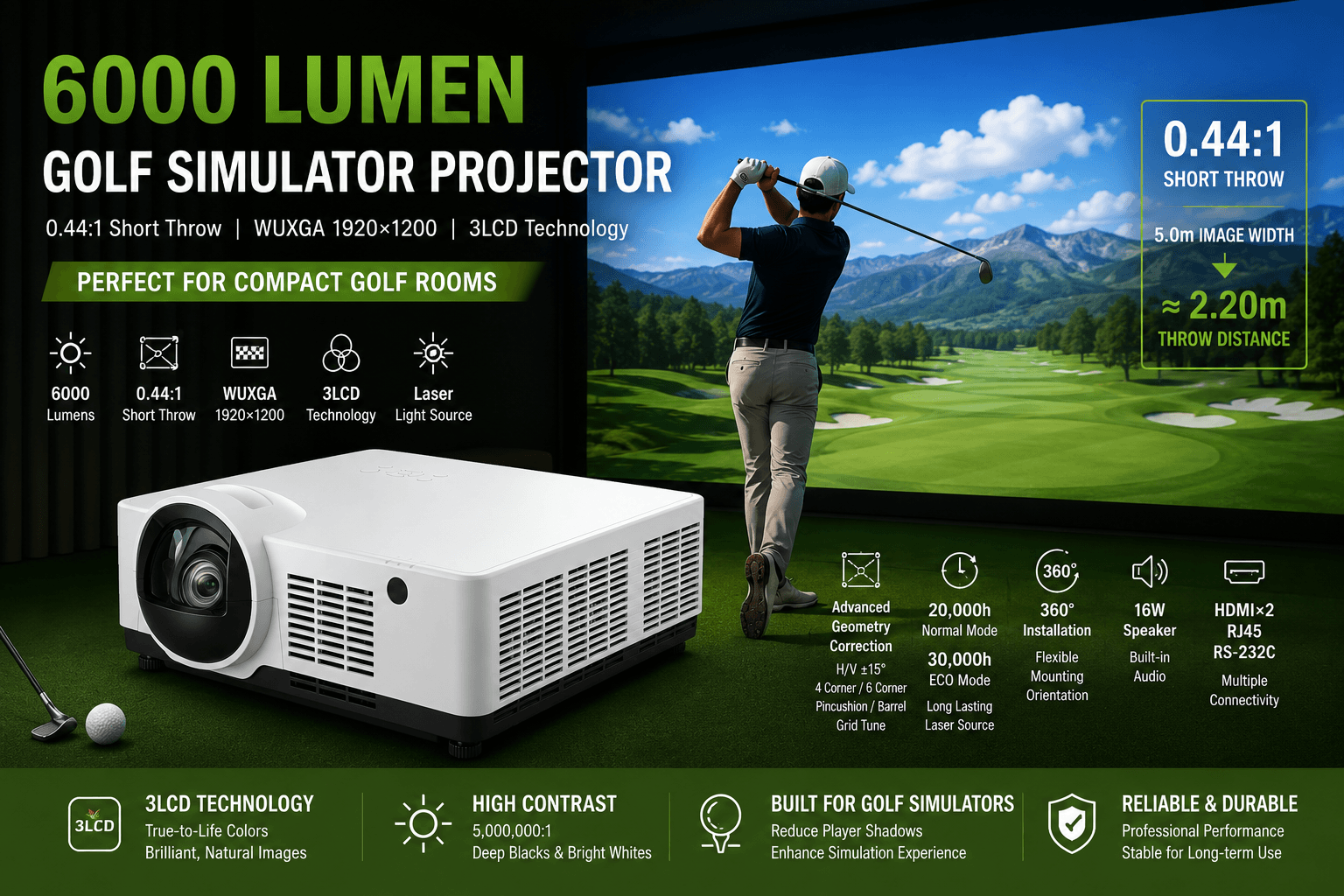

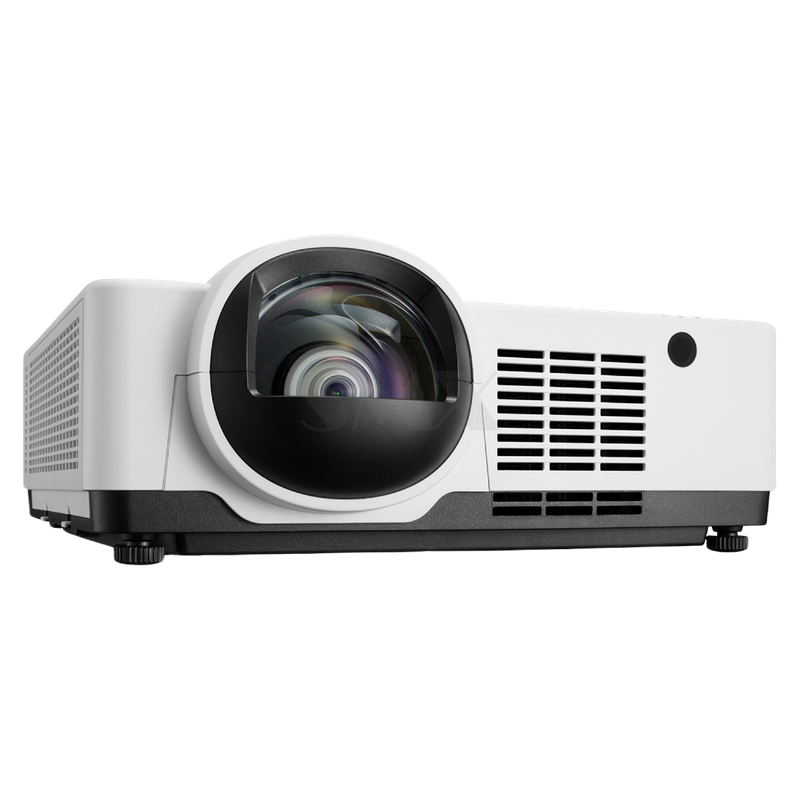

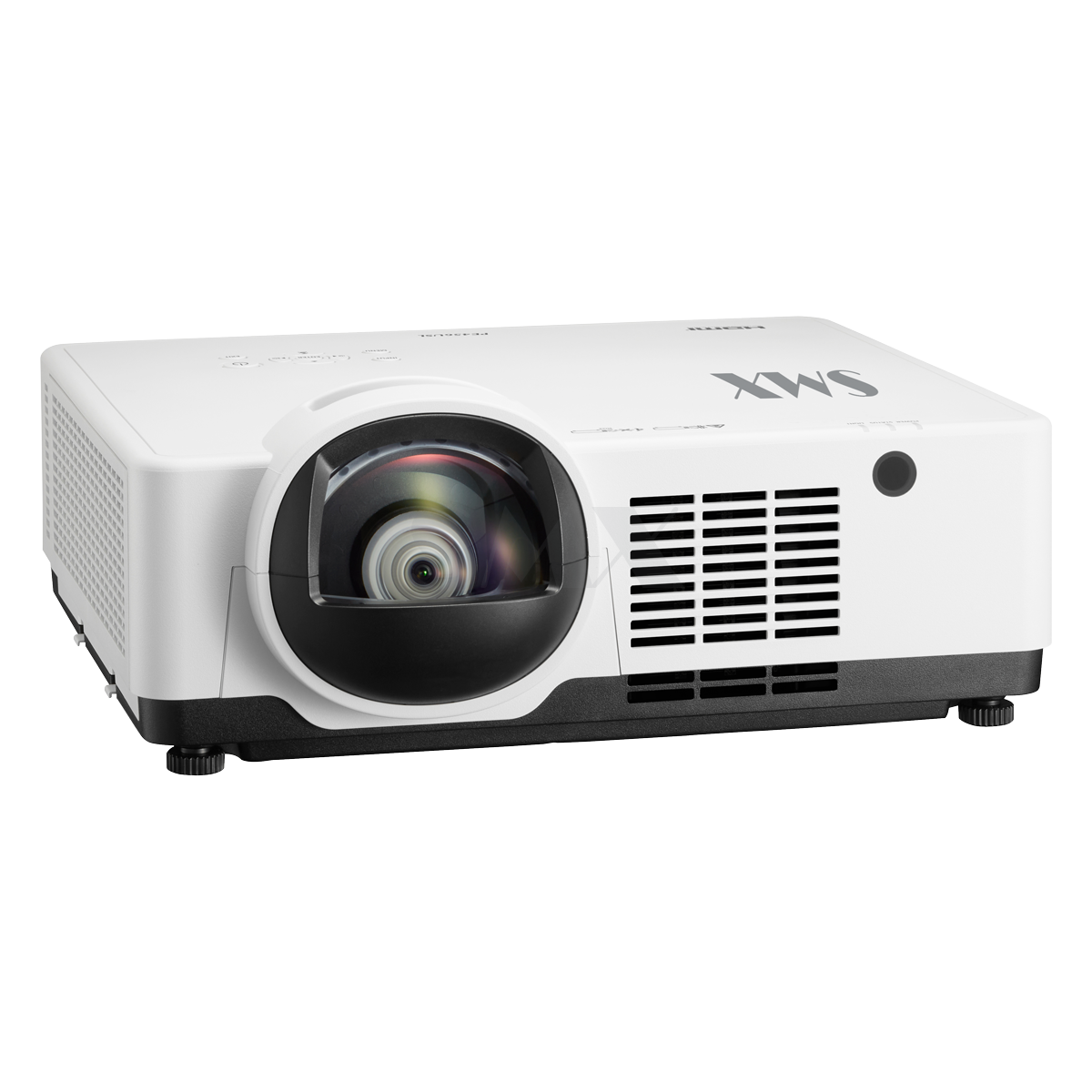

The SMX MX-SL6000U is a professional 6000-lumen golf simulator projector designed for indoor golf rooms where a large image is required from a limited projector-to-screen distance.
Its 0.44:1 short-throw lens allows the projector to create a wide golf simulation image while remaining much closer to the impact screen than a conventional projector. This makes it particularly suitable for compact golf simulator rooms, commercial golf bays and ceiling-mounted simulator installations.
With WUXGA 1920 × 1200 resolution, 3LCD display technology, a RICOH projection lens, advanced geometry correction and flexible 360° installation, the MX-SL6000U provides a practical projection platform for professional indoor golf simulator systems.

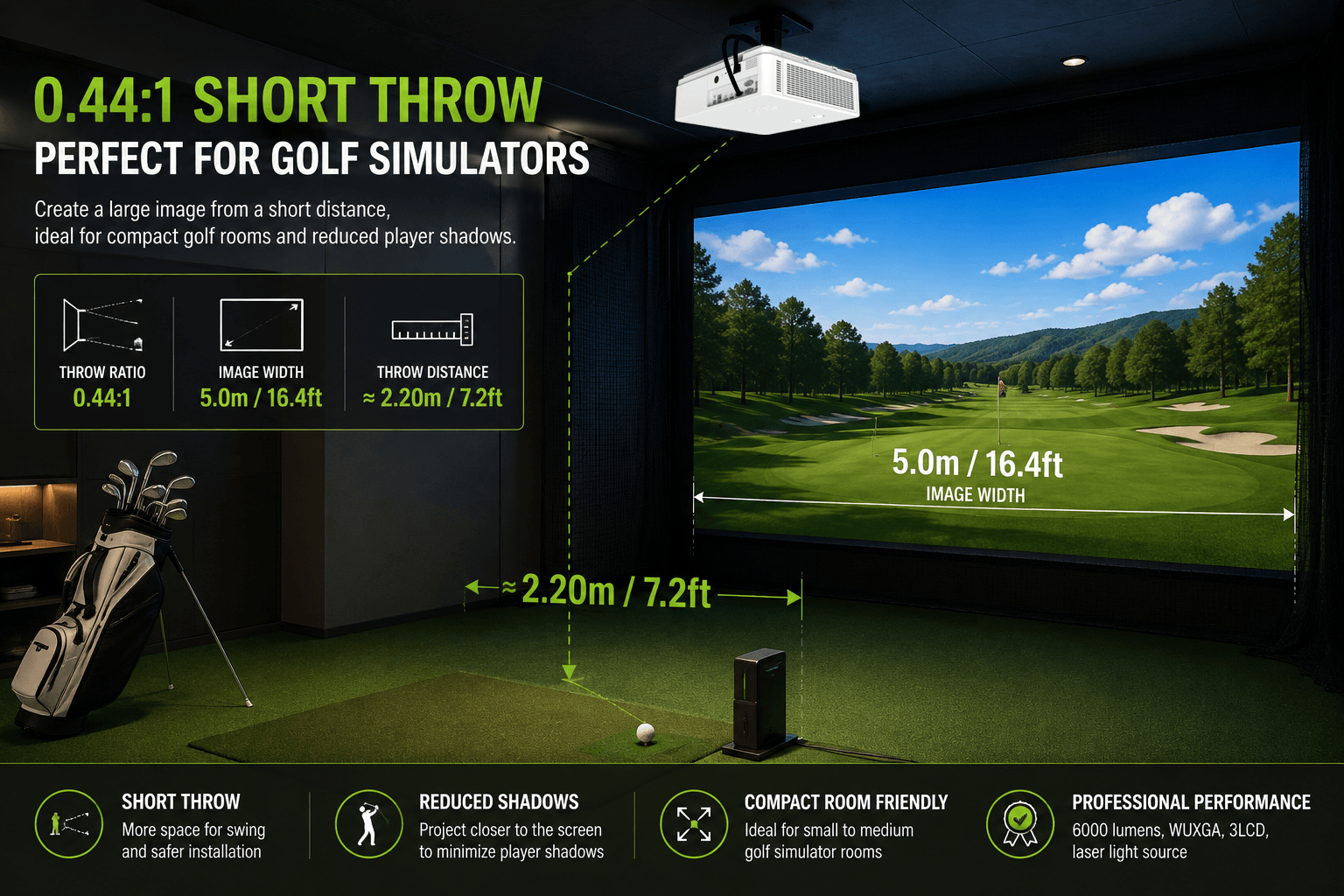

Example: For a 5-meter-wide projected image, a 0.44:1 throw ratio requires approximately 2.2 meters of lens-to-screen distance.
Golf simulator projection requires more than brightness. The projector must also fit the available room depth, avoid interfering with the golfer's swing, reduce player shadows, and cover the impact screen correctly.
The MX-SL6000U combines 6000 lumens with a 0.44:1 short throw lens, making it especially useful for installations where the projector needs to remain close to the impact screen.
Strong brightness for indoor golf simulator rooms, including installations with controlled to moderate ambient light.
Create a large image from a short distance and reduce the amount of room depth required for projector installation.
Native 1920 × 1200 resolution provides detailed golf course graphics, menus, shot information and simulator content.
Professional 3LCD imaging technology provides full-color projection suitable for simulation, training and presentation environments.
Professional RICOH optical lens with F1.6 and a 6.39 mm focal length.
Flexible installation orientation supports different ceiling and professional mounting requirements.
Throw ratio is one of the most important specifications when choosing a golf simulator projector.
The formula is:
Throw Distance = Image Width × Throw Ratio
For the MX-SL6000U:
Throw Ratio = 0.44:1
Projected Image Width | Approx. Throw Distance |
|---|---|
3.0 m | 1.32 m |
4.0 m | 1.76 m |
5.0 m | 2.20 m |
6.0 m | 2.64 m |
These calculations show why a 0.44:1 projector can be particularly useful for golf simulator rooms. A wide impact screen does not necessarily require the projector to be installed far behind the golfer.
Actual installation should also consider projector dimensions, mounting position, screen dimensions, and optical installation tolerance.

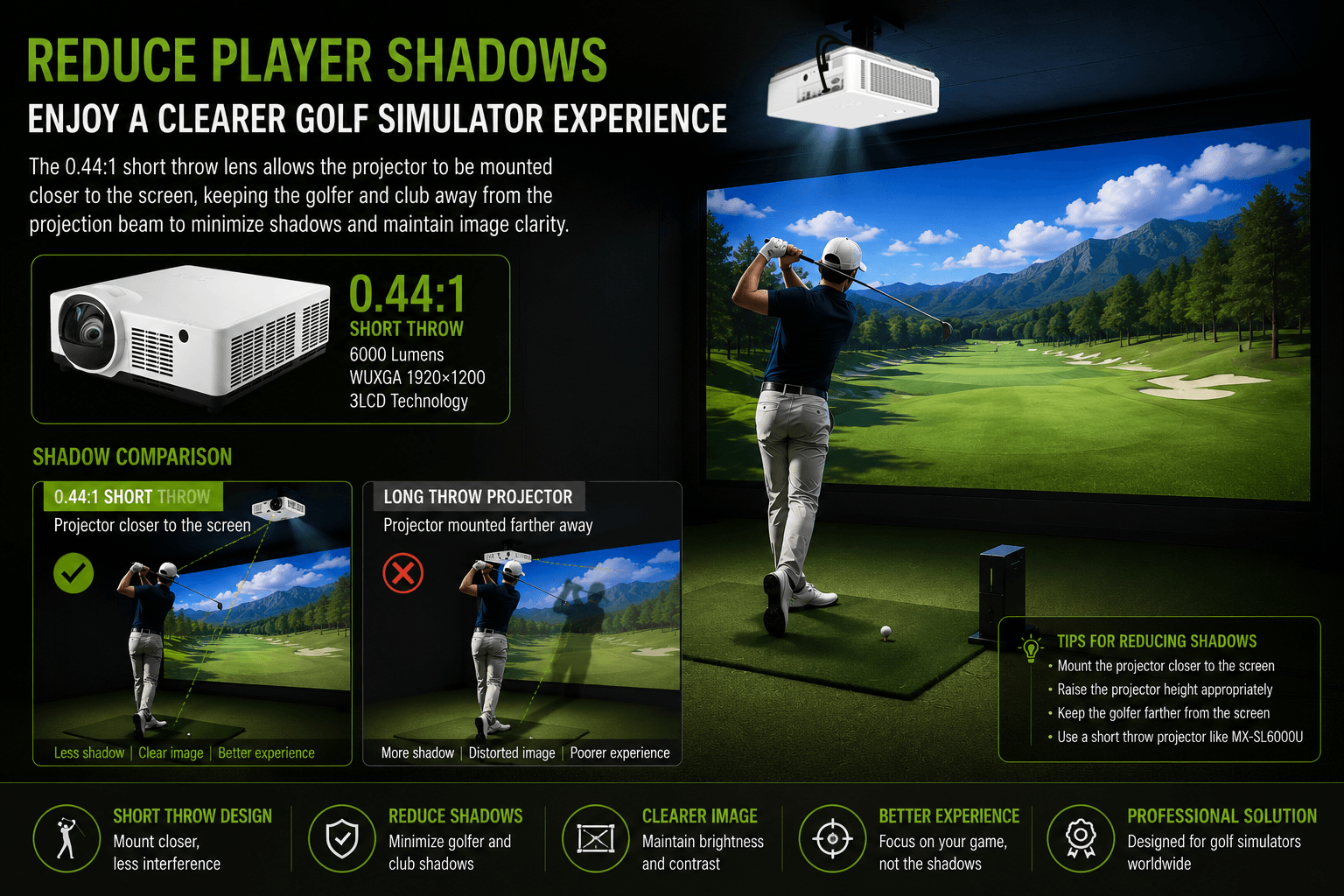

One of the most common problems in indoor golf simulators is the golfer blocking the projection beam.
When a projector is positioned too far behind the hitting area, the golfer's body and golf club can create visible shadows on the impact screen.

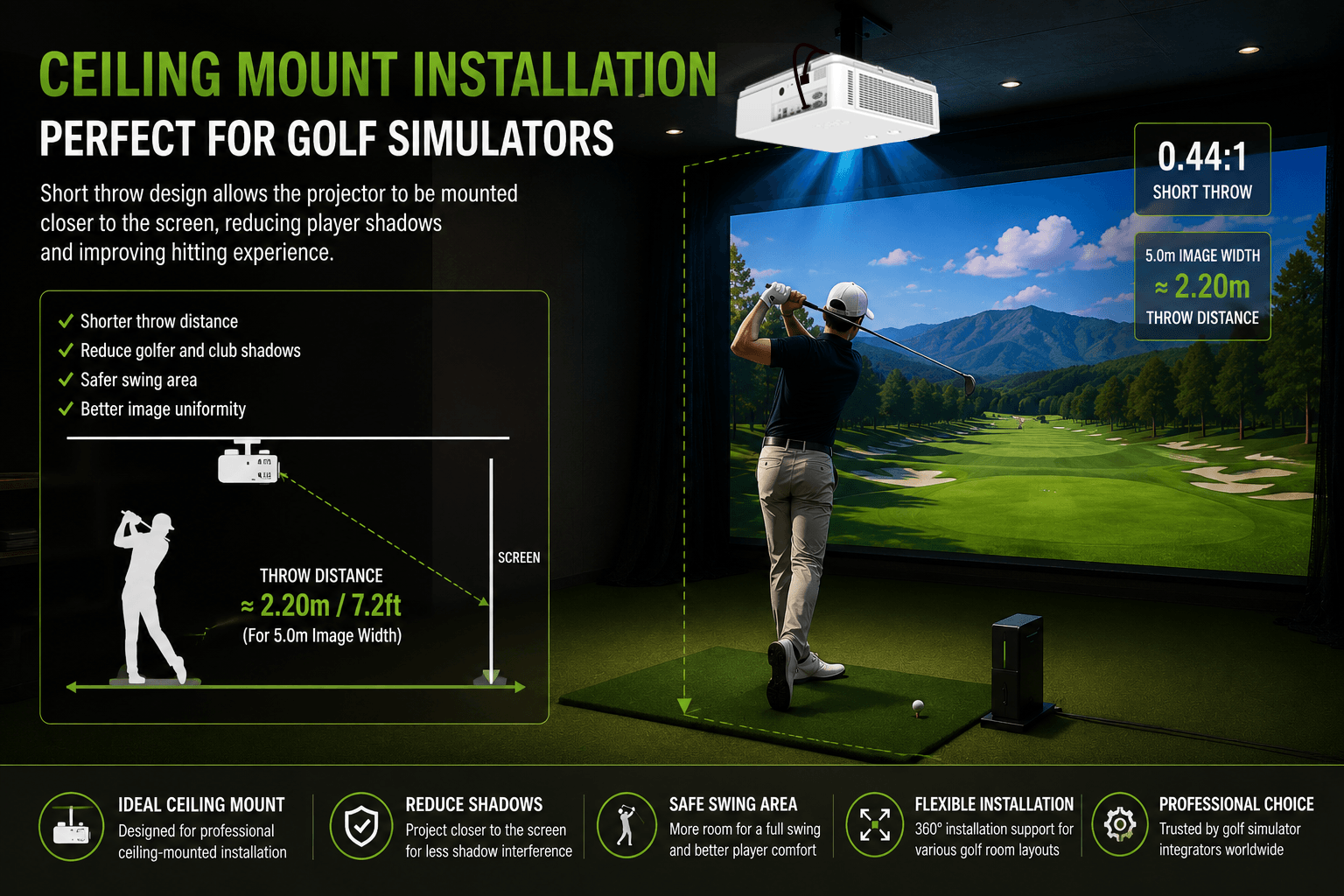

The 0.44:1 short throw lens allows the MX-SL6000U to be positioned closer to the screen. When combined with an appropriate ceiling mounting height, this can help move the main projection beam away from the golfer's body.
For best results, the final installation drawing should include:
Impact screen width and height
Projector lens-to-screen distance
Golfer hitting position
Ceiling height
Projector mounting height
Maximum golf swing clearance
The MX-SL6000U provides 6000 lumens of projector brightness, making it suitable for many professional indoor golf simulator environments.
The actual brightness required for a golf simulator depends on several factors:
Impact screen size
Ambient lighting
Impact screen reflectivity
Room wall and ceiling color
Desired contrast
Projected image area
In controlled or moderately lit rooms, 6000 lumens provides a strong starting point for home, training and commercial golf simulator installations.
For significantly larger screens or environments with stronger ambient light, a higher-brightness projector may also be considered.
The projector provides a native WUXGA resolution of 1920 × 1200 with a native 16:10 aspect ratio.
It is also compatible with 16:9 and 4:3 image formats, providing flexibility for different simulator software, computer outputs, and screen configurations.
WUXGA resolution is suitable for displaying:
Golf course graphics
Fairway and green details
Ball-flight simulation
Shot statistics
Training interfaces
Golf simulator menus and controls
The projector accepts computer signals up to WUXGA and supports 4K@30Hz signal input compatibility, while its native display resolution remains WUXGA.
The MX-SL6000U uses 3 × 0.64-inch LCD panels with MLA and 3LCD display technology.
This professional imaging platform is suitable for simulators, education, presentations, and other applications requiring large-format full-color images.
For golf simulator use, the combination of 3LCD, WUXGA resolution, and 6000-lumen brightness provides a balanced projection solution for realistic golf course visualization.

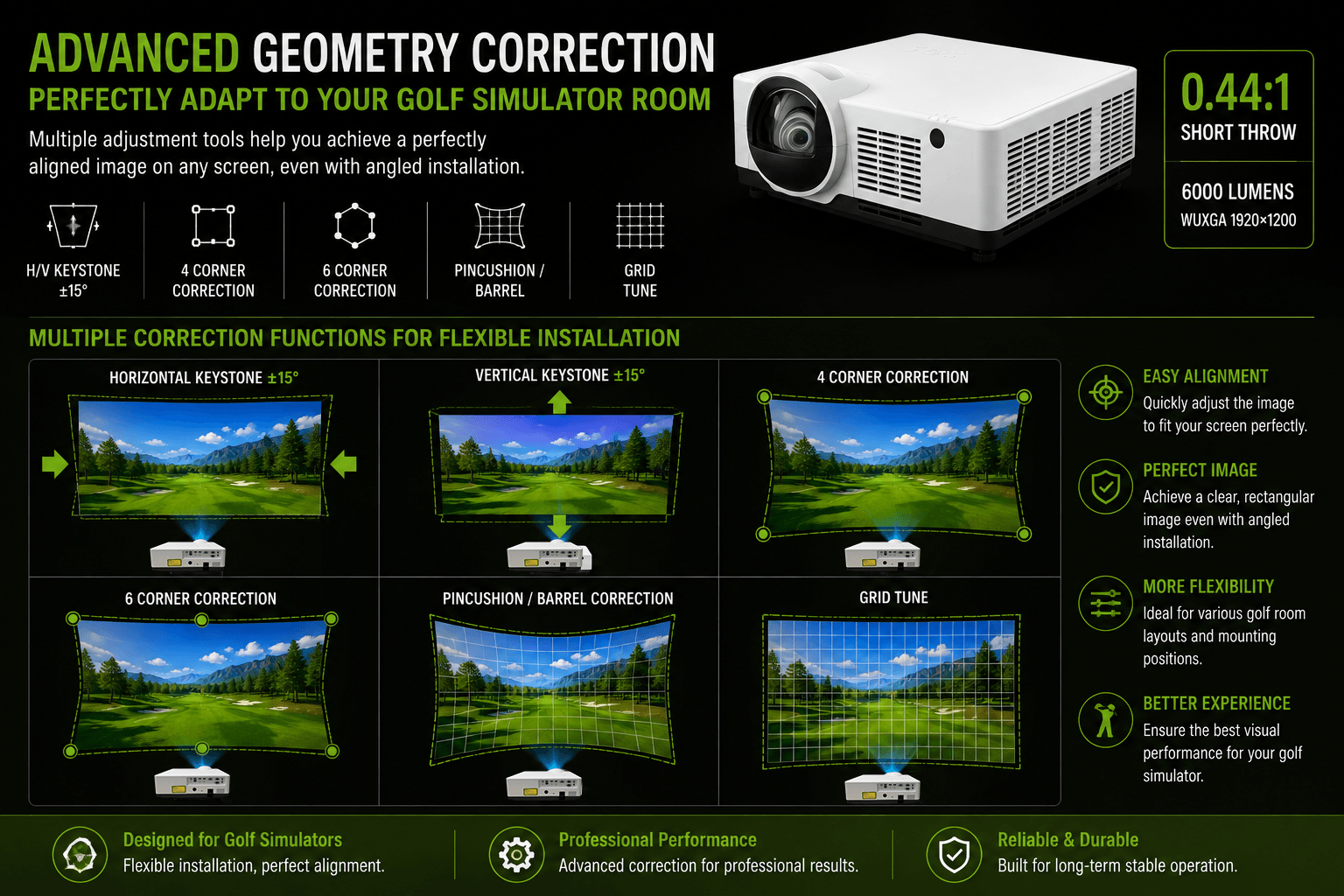

Golf simulator rooms do not always provide a perfectly centered projector mounting point.
The MX-SL6000U includes multiple geometry correction functions to assist with installation and image alignment.
Correction Function | Specification |
|---|---|
Vertical Keystone | ±15° |
Horizontal Keystone | ±15° |
4-Corner Correction | Supported |
6-Corner Correction | Supported |
Pincushion / Barrel Correction | Supported |
Grid Image Tune | Supported |
These functions provide additional adjustment flexibility when fine-tuning the projected image to an impact screen.
Whenever possible, the projector should first be positioned and optically aligned accurately. Digital correction should then be used for final image adjustment rather than replacing correct physical installation.
The MX-SL6000U supports 360° projector installation, providing greater flexibility for professional ceiling and structural mounting.
This is useful for golf simulator projects where projector placement must be coordinated with:
Hitting area
Ceiling structure
Lighting fixtures
Golf tracking equipment
Ventilation
Simulator enclosure
360° installation refers to the physical installation orientation of the projector and should not be confused with 360° panoramic projection.

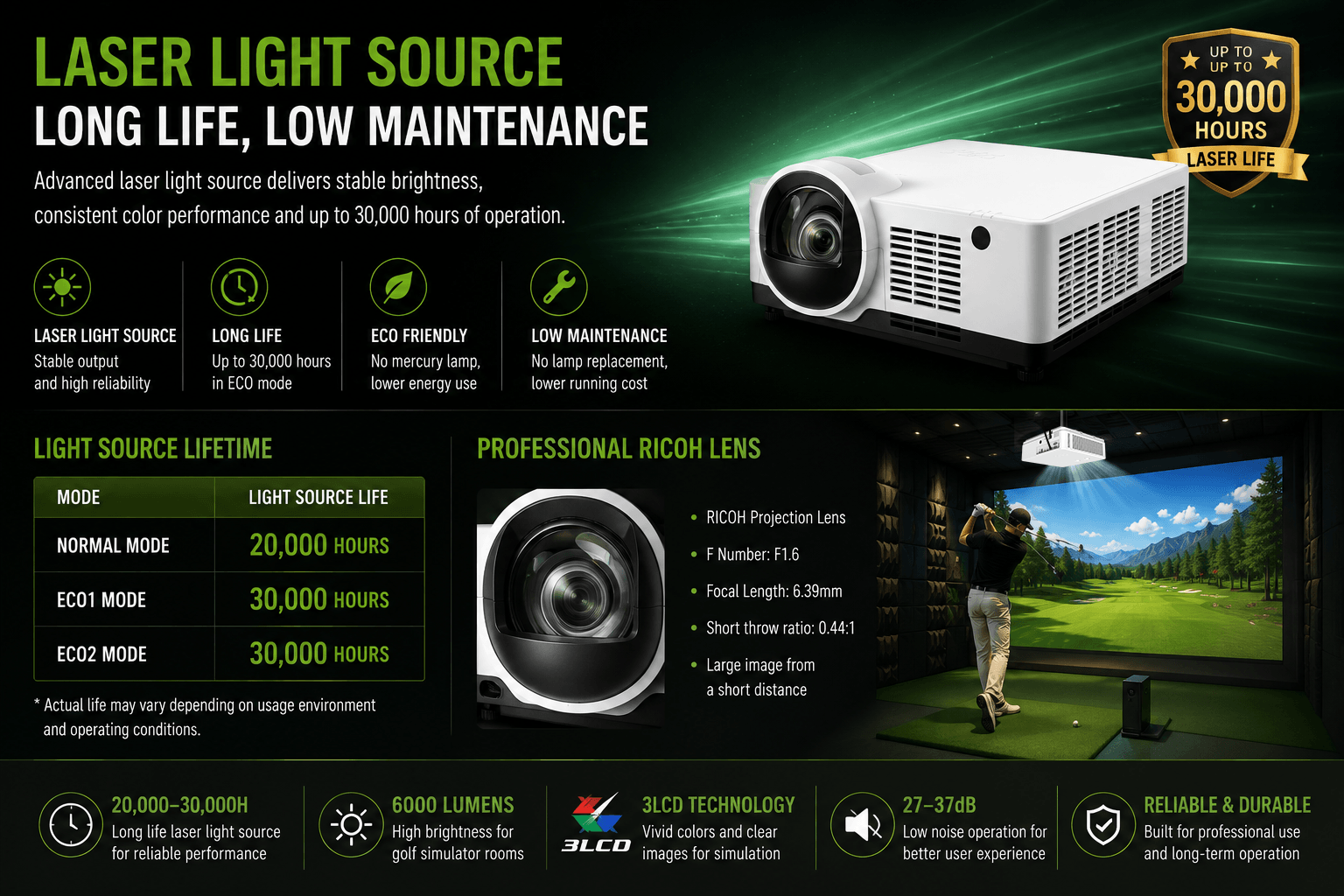

The laser light source is designed for long-term professional use.
Normal Mode | 20,000 Hours |
|---|---|
ECO1 Mode | 30,000 Hours |
ECO2 Mode | 30,000 Hours |
The long light-source lifetime reduces the need for frequent lamp replacement, making the projector practical for golf simulator rooms, training centers, and commercial indoor golf facilities.

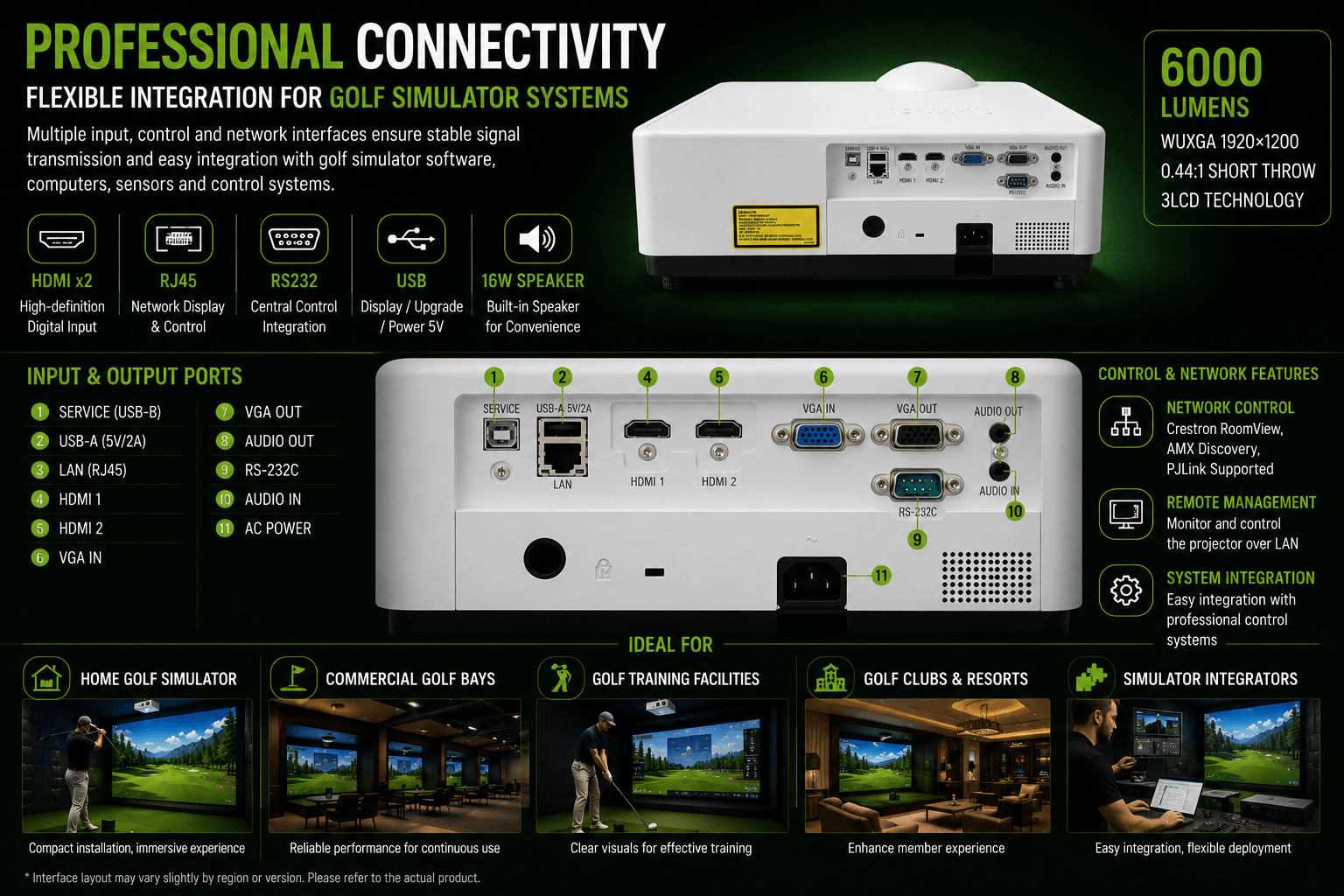

The MX-SL6000U provides multiple signal, network, and control interfaces for integration into professional simulator installations.
Connection | Quantity / Function |
|---|---|
HDMI 1.4B Input | ×2 |
VGA Input | ×1 |
VGA Output | ×1 |
USB-A | ×1 |
USB-B | Display / Upgrade |
RJ45 | Display / Control |
RS232 | ×1 |
Audio Input | ×1 |
Audio Output | ×1 |
HDBaseT | Optional |
Network control supports Crestron RoomView, AMX Discovery and PJLink, making the projector suitable for professionally managed installations.
The projector includes a 16W built-in speaker, which can provide convenient audio for testing, demonstrations or simple simulator installations.
For larger commercial golf simulator environments, an external audio system may still be preferred depending on room size and sound requirements.
The MX-SL6000U supports a projection screen range of approximately 55 to 300 inches.
For golf simulator applications, the actual projected image size should be selected according to the impact screen dimensions, room depth, and simulator aspect ratio.
When calculating installation distance, use the actual projected image width, not only the diagonal screen size.
Application | Indoor Golf Simulator |
|---|---|
Projected Image Width | 5.0 m |
Projector Throw Ratio | 0.44:1 |
Calculated Throw Distance | Approx. 2.20 m |
Projector Brightness | 6000 Lumens |
Resolution | WUXGA 1920 × 1200 |
Installation | Ceiling Mount |
This configuration is an example only. Final projector position should be confirmed using the actual impact screen dimensions, ceiling height, golfer hitting position, and room layout.
Model | MX-SL6000U |
|---|---|
Brightness | 6000 Lumens |
Display Technology | 3LCD |
LCD Panel | 3 × 0.64" with MLA |
Native Resolution | WUXGA 1920 × 1200 |
Throw Ratio | 0.44:1 |
Lens | RICOH |
Lens F Number | F1.6 |
Focal Length | 6.39 mm |
Focus | Manual |
Projection Size | 55–300 inches |
Contrast Ratio | 5,000,000:1 |
Aspect Ratio | Native 16:10; Compatible 4:3 / 16:9 |
Light Source Life | 20,000 h Normal / 30,000 h ECO |
Noise | 37 dB Normal / 27 dB ECO |
Speaker | 16W ×1 |
360° Installation | Yes |
Power Consumption | 360W Max Normal |
Dimensions | 405 × 404 × 164 mm |
Net Weight | 8.1 kg |
The MX-SL6000U is a strong starting point if:
You need a professional golf simulator projector.
Your room has limited projector-to-screen distance.
Your required throw ratio is close to 0.44:1.
You want approximately 6000 lumens of brightness.
You require WUXGA resolution.
You plan to use ceiling mounting.
You want to reduce golfer shadow interference.
You need geometry correction for installation adjustment.
If your room has significantly more installation depth and requires more brightness, a 7000-7500-lumen short throw projector may also be worth evaluating.

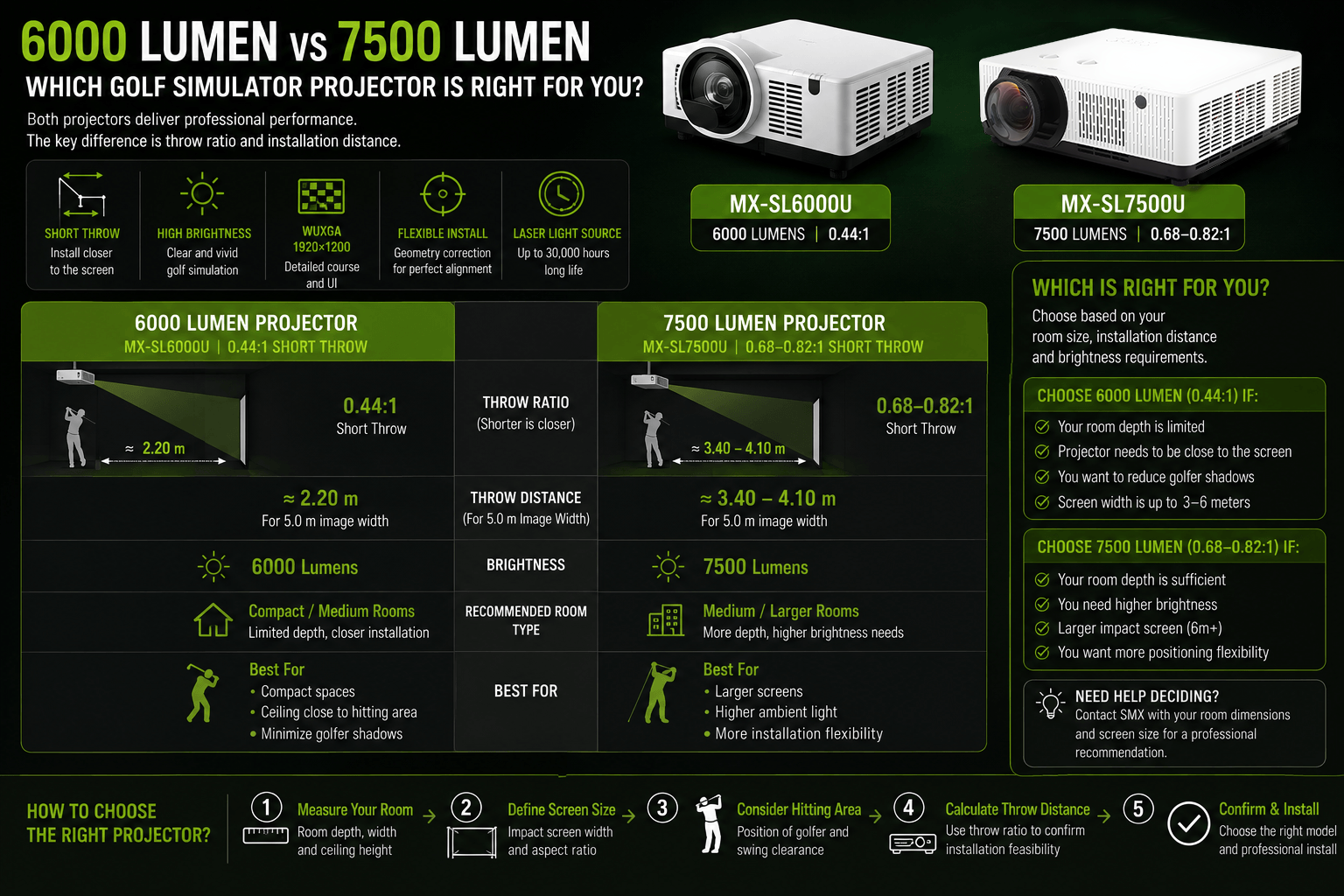

The MX-SL6000U should not be compared with a 7500-lumen model using brightness alone.
Specification | 6000 Lumen Direction | 7500 Lumen Direction |
|---|---|---|
Throw Ratio | 0.44:1 | 0.68–0.82:1 |
Typical Room Direction | Compact / Medium | Medium / Larger |
5 m Image Throw Distance | Approx. 2.20 m | Approx. 3.40–4.10 m |
Brightness | 6000 Lumens | 7500 Lumens |
Primary Advantage | Short installation distance | Higher brightness and more optical positioning flexibility |
Read our 6000 vs 7500 Lumen Golf Simulator Projector comparison for a detailed buying decision guide.
6000 lumens can be suitable for many indoor golf simulator rooms, especially where ambient light is controlled or moderate. Final brightness requirements depend on screen size and room conditions.
The MX-SL6000U uses a 0.44:1 short-throw lens.
Using a 0.44:1 throw ratio, the theoretical lens-to-screen distance is approximately 2.2 meters.
Yes. Its 0.44:1 short throw ratio makes it particularly useful for compact rooms where projector installation distance is limited.
The native resolution is WUXGA, 1920 × 1200 pixels.
The projector supports compatible signal input up to 4K@30Hz, while its native display resolution remains WUXGA.
Yes. It supports vertical and horizontal keystone correction, 4-corner correction, 6-corner correction, pincushion/barrel correction, and grid image tuning.
Yes. The projector supports flexible professional installation, including 360° installation orientation.
The specified light-source lifetime is approximately 20,000 hours in Normal mode and up to 30,000 hours in ECO modes.
Yes. The MX-SL6000U provides two HDMI 1.4B inputs, along with VGA, USB, RJ45, and RS232 connectivity.
It can be. If the room requires a throw ratio close to 0.44:1, the 6000-lumen model may fit the optical installation better than a brighter projector with a longer throw ratio.
Send SMX your room dimensions, impact screen width and height, available projector-to-screen distance, ceiling height, and golfer hitting position.
We can help evaluate whether the 6000-lumen 0.44:1 short-throw projector fits your golf simulator installation.
