MX-STD5300W
SMX

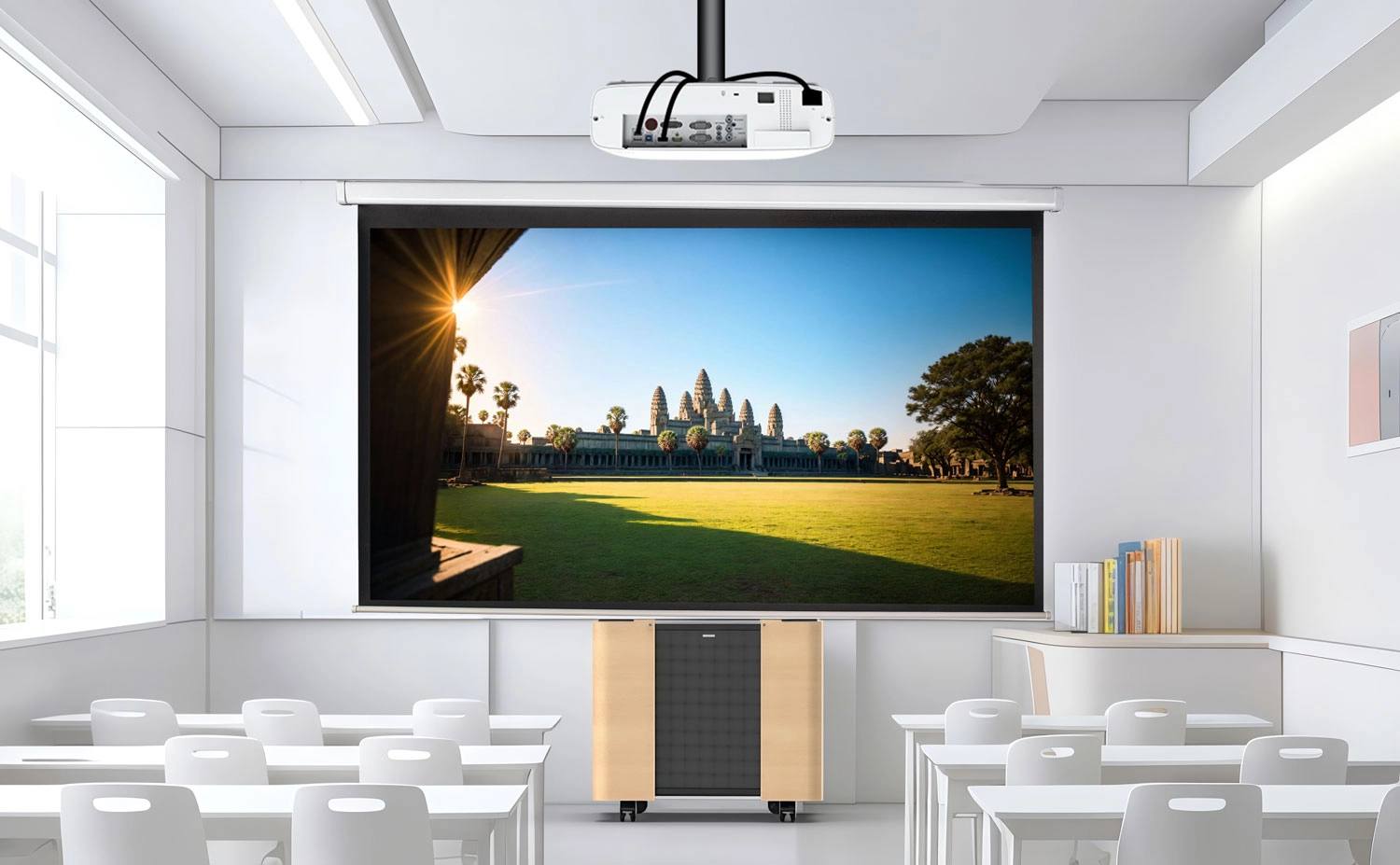

The SMX MX-STD5300W delivers 5300 ANSI lumens of brightness, providing a practical projection solution for classrooms, lecture halls, meeting rooms and corporate training environments.
Combining laser illumination with 3LCD technology, this professional classroom laser projector is designed to display teaching materials, presentation slides, charts and multimedia content with clear and colorful visuals.
The SMX MX-STD5300W features native WXGA resolution with a 16:10 widescreen aspect ratio, making it suitable for educational presentations, teaching materials, business documents and multimedia applications.
The projector also accepts compatible WUXGA and 4K@30Hz computer input signals. Incoming signals are displayed at the projector's native WXGA resolution, providing connectivity flexibility without requiring a native 4K display panel.
The MX-STD5300W combines 3LCD projection technology with a laser light source to deliver colorful images for educational and professional presentation environments.
Using three LCD panels to process red, green and blue light, 3LCD technology supports full-color image generation and is well suited for presentation graphics, classroom diagrams, educational videos and business materials.
Red, green and blue light are processed through separate LCD panels.
Designed for charts, illustrations, teaching materials and multimedia presentations.
Suitable for schools, conference rooms and commercial AV installations.
The SMX MX-STD5300W uses a laser light source designed for extended operation and reduced routine lamp replacement requirements, making it practical for educational and business projection environments.
The laser light source is rated for 20,000 hours in Normal mode. The product specification also lists a preliminary ECO1 mode lifetime target of 30,000 hours, subject to final confirmation.
*ECO1 lifetime is marked TBD in the product specification and requires final confirmation.
The SMX MX-STD5300W features a dynamic contrast ratio of 5,000,000:1, helping distinguish bright and dark image areas in projected content.
Combined with 5300 ANSI lumens brightness and 3LCD laser projection technology, the projector supports clear presentation of educational videos, business graphics, diagrams and multimedia materials across a variety of professional environments.
The SMX MX-STD5300W features a FUJIFILM projection lens with 1.66x optical zoom and a standard throw ratio of 1.26-2.09:1, providing greater flexibility when selecting the projector's installation position.
Manual zoom and focus adjustments help installers match the image size to classroom screens, meeting room layouts and professional display requirements. The supported projection screen size ranges from 30 to 300 inches.
The MX-STD5300W provides vertical and horizontal keystone correction of +/-30 degrees, together with four-corner adjustment, helping installers align the projected image with the screen.
These correction functions are especially useful for classroom ceiling installations, meeting rooms and other environments where ideal projector positioning may be difficult to achieve.
Adjust vertical trapezoidal image distortion.
Correct horizontal image alignment.
Fine-tune the position of individual image corners.
Supported automatic image correction function for convenient setup.
The SMX MX-STD5300W supports 360-degree projection installation, allowing greater flexibility in the orientation of the projector for different professional mounting requirements.
Combined with automatic ceiling orientation and keystone correction functions, the projector can adapt to a variety of classroom, conference room and commercial installation configurations.
The MX-STD5300W offers multiple input, output and control interfaces to support connection with computers, presentation equipment, audio systems and professional AV installations.
Dual HDMI inputs, VGA connectivity, USB interfaces, RS-232C and network functions provide flexible connectivity for classrooms, lecture halls, meeting rooms and training facilities.
Digital video connections for compatible presentation sources.
Analog computer connections for compatible equipment.
USB connections, including supported display and control functions.
Network display and control connectivity.
External control interface for compatible AV systems.
Audio input and output connections with additional video input.
The SMX MX-STD5300W supports network-based projector control, making it suitable for integration into compatible classroom management systems, corporate meeting rooms and professional AV installations.
Support for Crestron RoomView, AMX Discovery and PJLink provides options for managing the projector through compatible network control environments.
Supported network control integration for compatible professional AV environments.
Compatibility with supported AMX device discovery functions.
Network control protocol support for compatible projector management systems.
The SMX MX-STD5300W features a built-in 16W speaker, providing an integrated audio solution for teaching presentations, classroom multimedia content and business demonstrations.
The product specification lists target operating noise levels of 37dB in Normal mode and 27dB in ECO1 mode, providing a quieter operating option for compatible projection environments.
*Noise figures are identified as targets in the product specification.
The SMX MX-STD5300W combines 5300 ANSI lumens brightness, WXGA resolution, 3LCD laser technology and flexible installation functions to support a variety of educational and professional projection applications.
Suitable for teaching materials, classroom presentations, diagrams and educational multimedia content.
Provides high-brightness projection for lectures, seminars and educational presentations.
Supports professional presentations, charts, documents and corporate communication.
Offers optical zoom, keystone correction and network control for compatible training and AV systems.
Looking for a 5300 ANSI lumens classroom laser projector? Contact SMX to discuss product specifications, installation requirements, pricing and available manufacturing cooperation opportunities.
Explore the technical specifications of the SMX 5300 ANSI lumens WXGA 3LCD laser projector for education and professional installation applications.
| Display & Optical System | |
|---|---|
| Model | MX-STD5300W |
| Brightness | 5300 ANSI Lumens |
| Native Resolution | WXGA |
| Display Technology | 3LCD |
| Light Source | Laser |
| Laser Life | 20,000 Hours (Normal); 30,000 Hours (ECO1, TBD) |
| Dynamic Contrast Ratio | 5,000,000:1 |
| Lens Vendor | FUJIFILM |
| Lens F Number | 1.7-2.11 |
| Focal Length | 17.5-29.01 mm |
| Throw Ratio | 1.26-2.09:1 |
| Optical Zoom | 1.66x |
| Zoom / Focus | Manual |
| Screen Size | 30-300 Inches |
| Aspect Ratio | 16:10 Standard; 4:3 Compatible |
| Uniformity | 80% |
| Installation & Features | |
| Keystone Correction | Vertical +/-30 Degrees; Horizontal +/-30 Degrees |
| Corner Correction | 4-Corner Correction |
| 360-Degree Projection | Supported |
| Auto Ceiling | Supported |
| Auto Setup | Input Search, Auto PC, Auto Keystone |
| Picture Modes | Dynamic, Standard, Cinema, Colorboard, Blackboard (Green) |
| Digital Zoom | 1-19 |
| Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| OSD Languages | 26 Languages |
| Connectivity & Control | |
| HDMI Input | 2 |
| VGA Input / Output | 1 / 1 |
| Video Input | 1 |
| Audio Input | 3.5 mm Mini Jack x 1; RCA L/R x 1 Set |
| Audio Output | 3.5 mm Mini Jack x 1 |
| USB-A | 1 |
| USB-B | Display and Control Functions |
| Network | RJ45 / LAN Functions |
| RS-232 | 1 |
| LAN Control | Crestron RoomView, AMX Discovery, PJLink |
| General Specifications | |
| Speaker | 16W x 1 |
| Noise Level (Target) | 37dB Normal / 27dB ECO1 |
| Power Requirements | 100-240V AC, 50/60Hz |
| Power Consumption (Max) | 270W Normal / 175W ECO1 / 155W ECO2 |
| ECO Standby Power | Less Than 0.5W |
| Operating Temperature | 5-40 Degrees C |
| Operating Humidity | 20-80% |
| Product Dimensions | 390 x 294 x 127 mm (W x D x H) |
| Net Weight | 5 kg |
| Packing Dimensions | 492 x 443 x 239 mm |
| Gross Weight | Approx. 6.5 kg |
| Standard Accessories | Power Cord, Remote Control, HDMI Cable |
Note: ECO1 laser lifetime and noise levels are preliminary or target values as identified in the product specification. Features and specifications may be subject to final confirmation.
Find answers to common questions about the SMX MX-STD5300W 5300 ANSI lumens WXGA 3LCD laser projector, including brightness, resolution, lens specifications, installation and connectivity.
The SMX MX-STD5300W delivers 5300 ANSI lumens of brightness, making it suitable for classrooms, lecture halls, training rooms and professional presentation environments.
The projector features native WXGA resolution with a standard 16:10 aspect ratio. It accepts compatible 4K@30Hz computer input signals, but its native display resolution remains WXGA.
The laser light source is rated for 20,000 hours in Normal mode. The specification also lists a preliminary ECO1 lifetime target of 30,000 hours, subject to final confirmation.
The MX-STD5300W features a standard throw ratio of 1.26-2.09:1 with 1.66x optical zoom and manual focus. It supports projection screen sizes from 30 to 300 inches.
Yes. The MX-STD5300W supports vertical and horizontal keystone correction of +/-30 degrees, as well as 4-corner correction for image alignment.
Yes. The projector supports 360-degree projection installation and automatic ceiling orientation, offering flexible mounting options for professional installations.
The projector provides dual HDMI inputs, VGA input and output, USB-A, USB-B, RJ45/LAN, RS-232C, video input and audio connections for compatible presentation and AV equipment.
Yes. The projector supports Crestron RoomView, AMX Discovery and PJLink for integration with compatible professional AV control systems.
Yes. The projector includes a built-in 16W speaker for presentation and multimedia audio playback.
With 5300 ANSI lumens brightness, WXGA resolution, a 1.66x optical zoom lens and LAN control, the projector is suitable for classrooms, lecture halls, meeting rooms, corporate training and compatible professional AV installations.
