MX-WPL500U
SMX

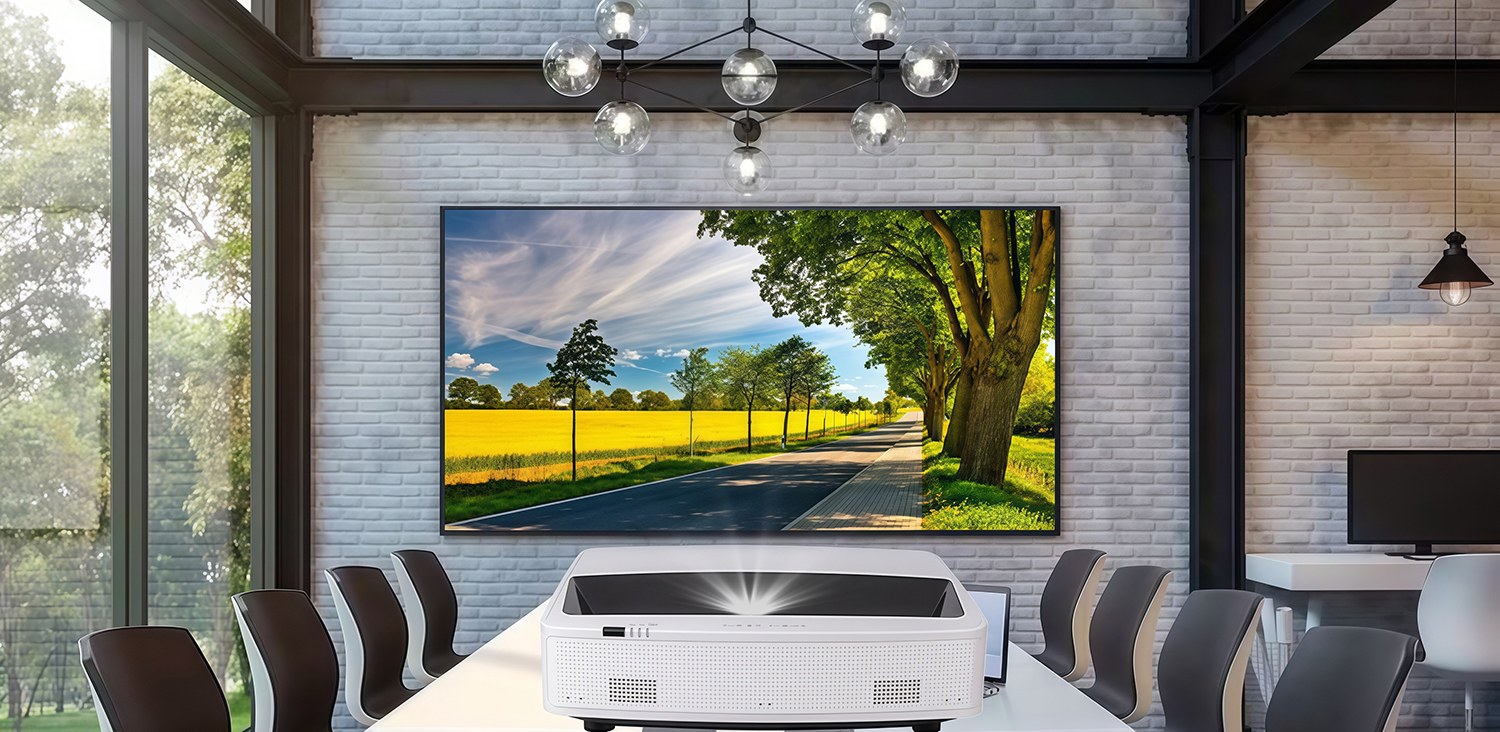

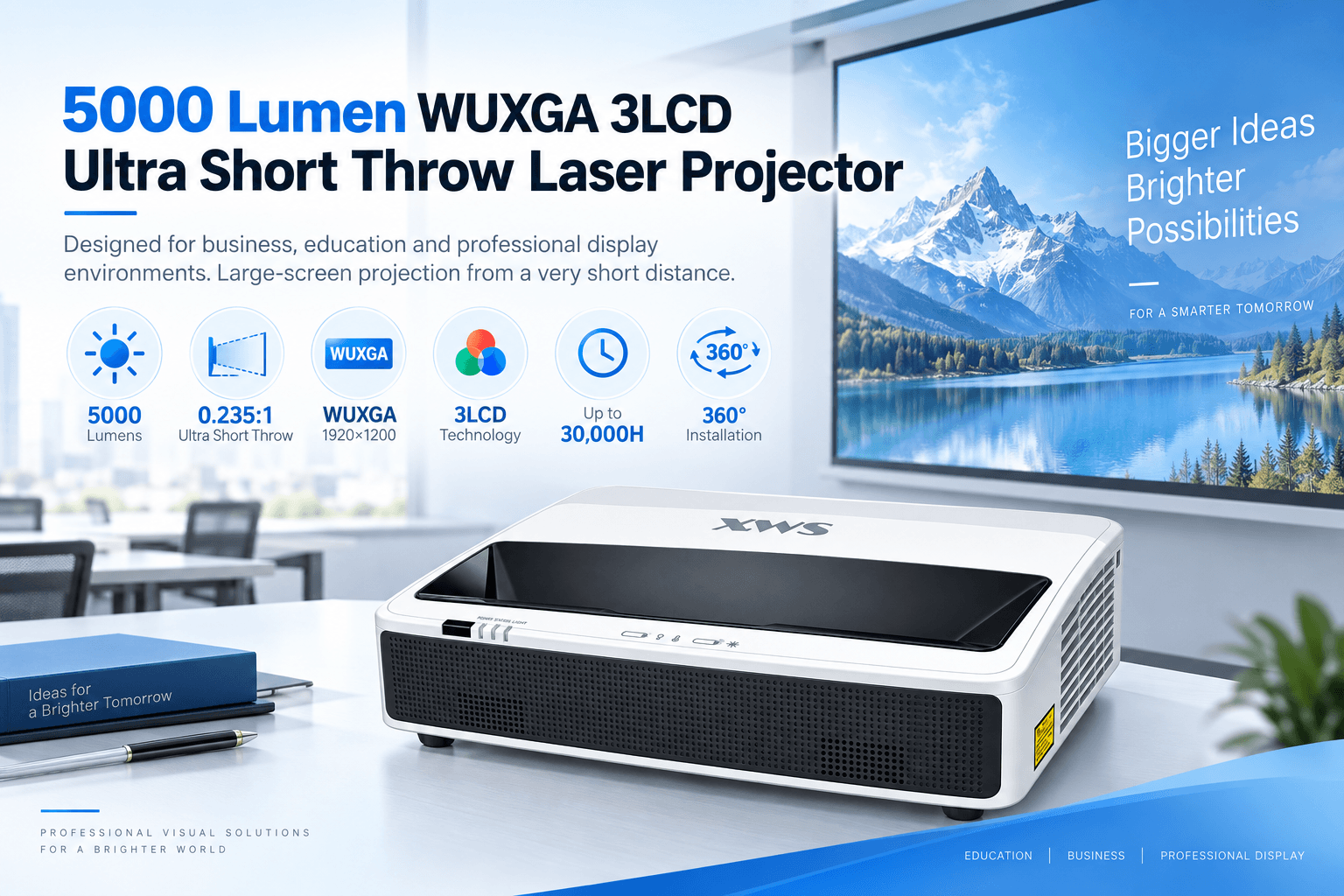

Designed for professional education, business and display environments, this ultra-short-throw laser projector combines 5000 lumens, native WUXGA resolution, 3LCD imaging and a 0.235:1 throw ratio for large-screen projection from a very short distance.
5000 Lumens High Brightness
0.235:1 Ultra Short Throw
WUXGA 1920 × 1200
3LCD Professional Imaging
30,000H Up to Laser Life
360° Flexible Installation

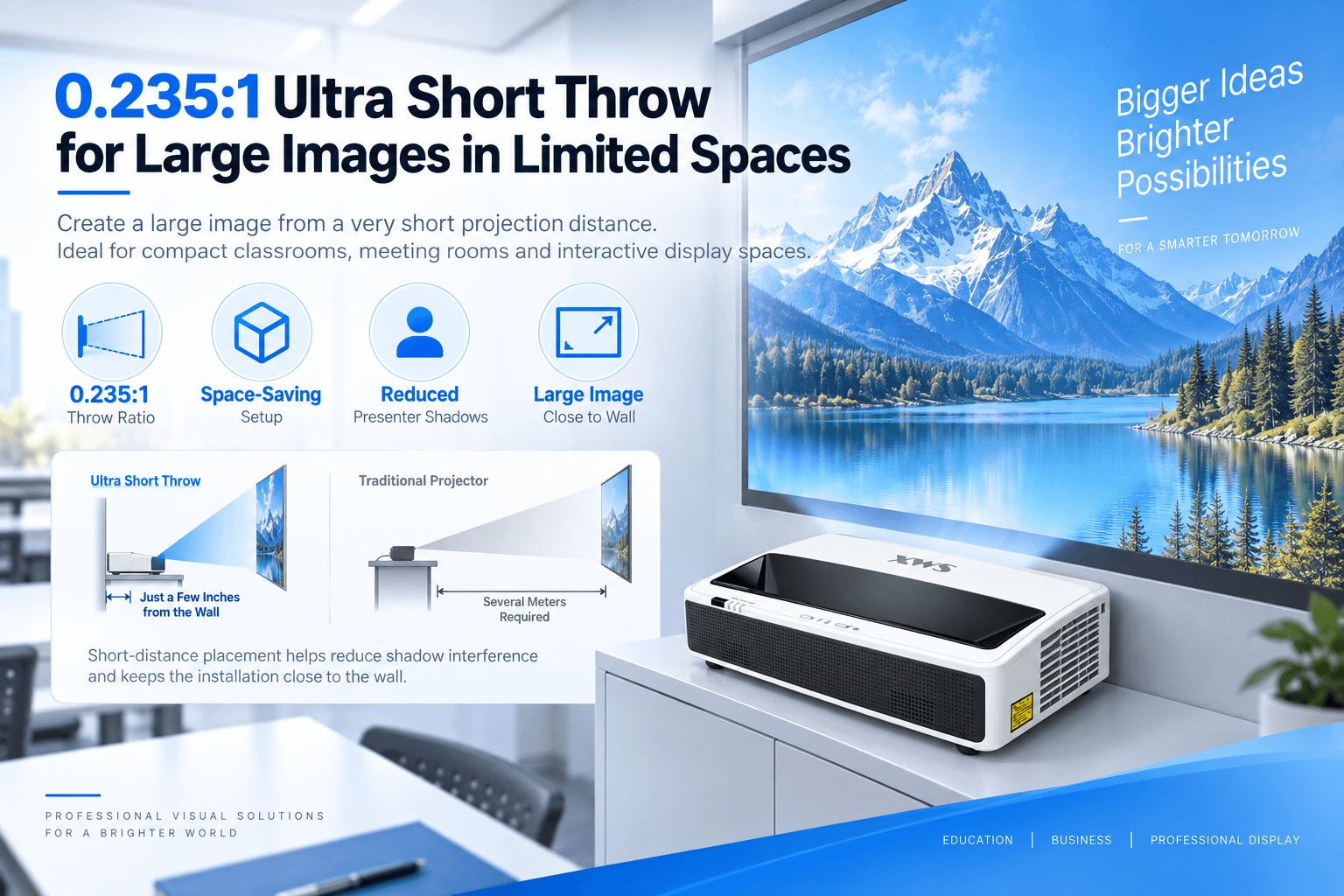

The 0.235:1 ultra-short throw optical system creates a large image from a very short projection distance, reducing the room space required between the projector and projection surface.
Short-distance placement also reduces presenter shadows and visual obstruction, making the projector well suited to classrooms, meeting rooms, training spaces, and interactive display environments.
0.235:1 Throw Ratio Short Projection Distance Reduced Shadows Space-Saving Installation

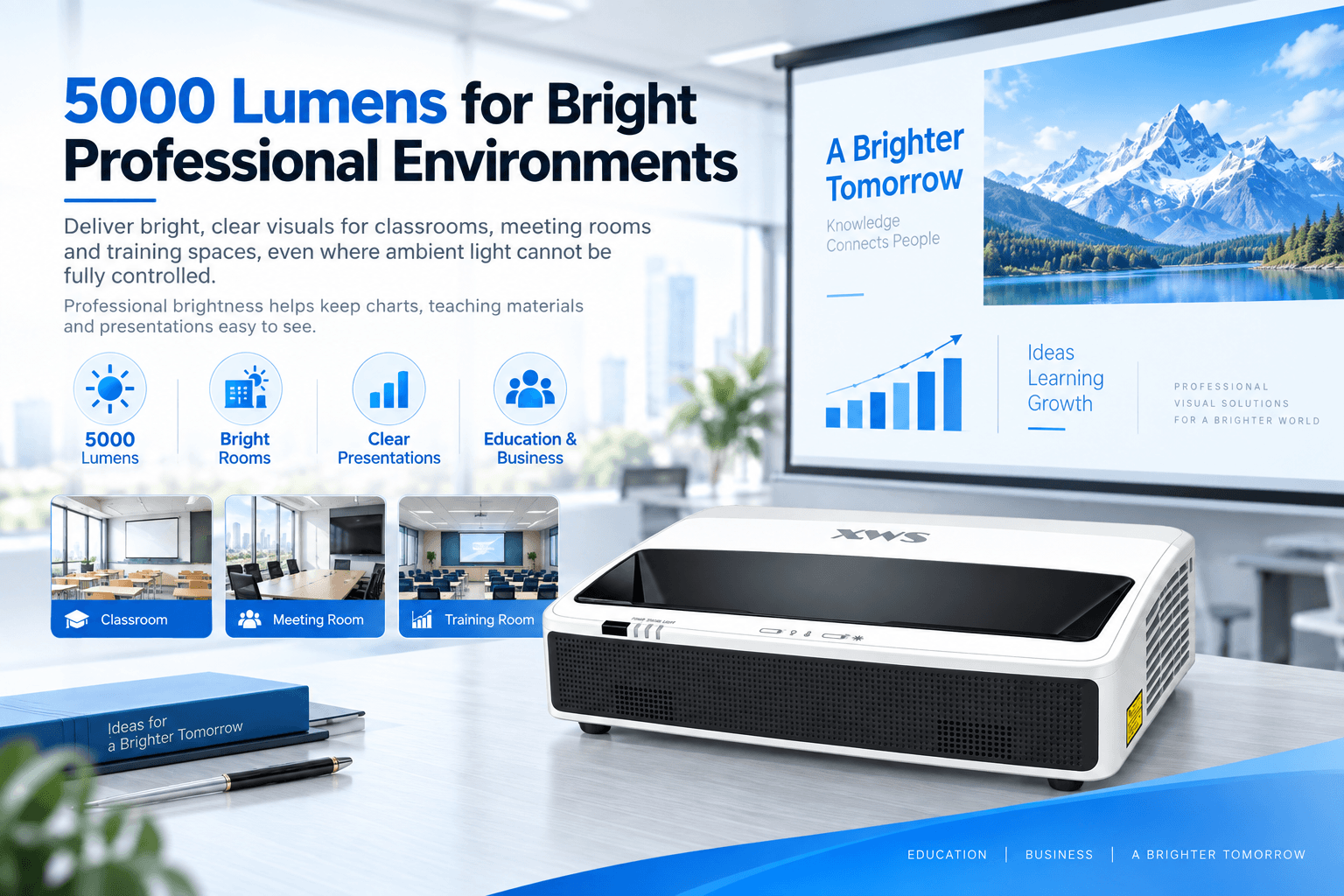

5000 lumens of brightness helps maintain clear and vivid visuals in classrooms, meeting rooms and training spaces where ambient lighting cannot always be completely controlled.
Bright teaching content for modern classrooms.
Clear charts and presentations for meetings.
Reliable large-screen visual communication.
The three-panel 3LCD imaging system uses 0.64-inch LCD panels with MLA technology to deliver balanced color brightness, natural-looking colors and detailed visual performance.
Three-panel professional display architecture.
LCD panels with MLA technology.
Balanced color brightness for presentations and images.

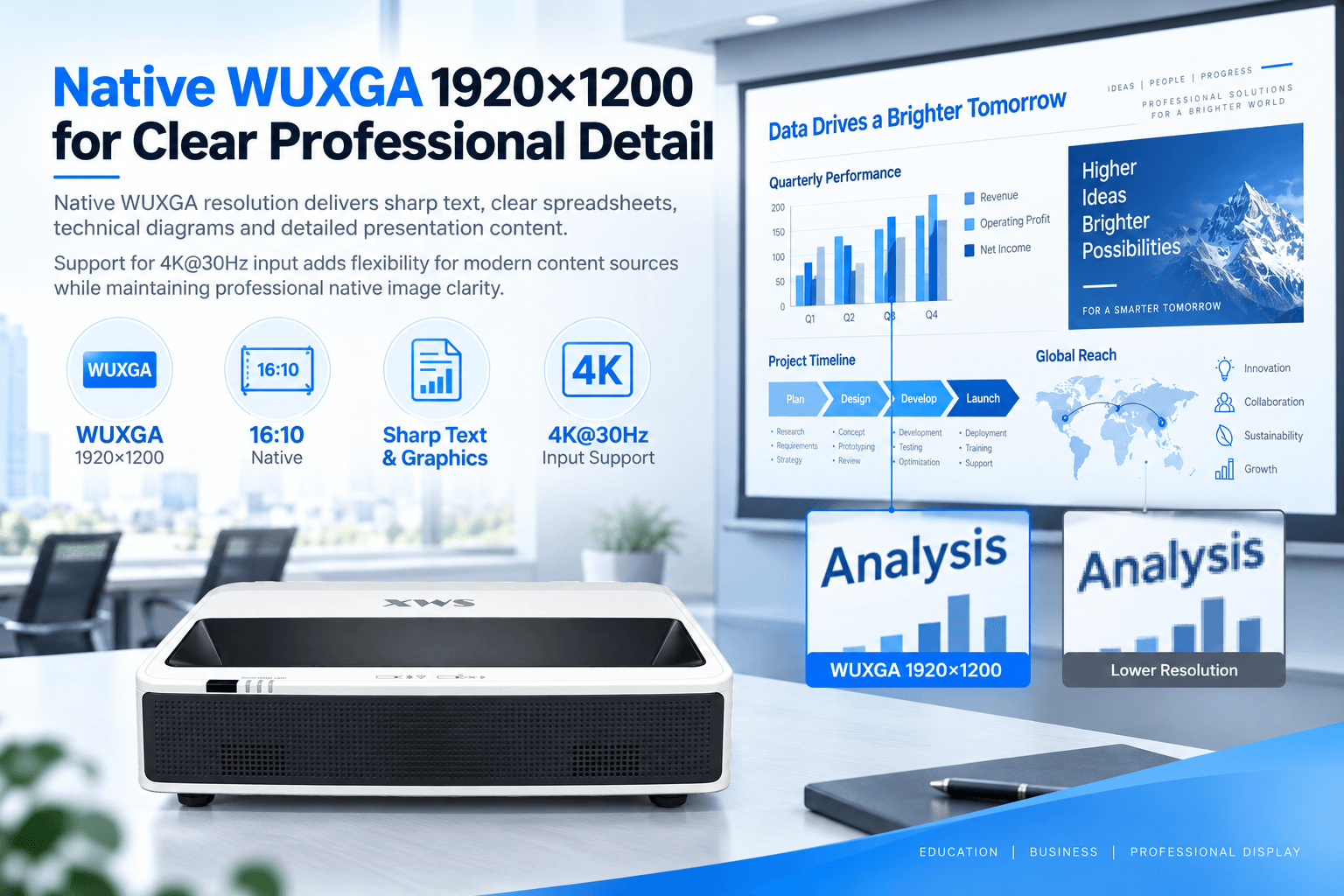

Native WUXGA 1920×1200 resolution provides a detailed 16:10 image for presentations, spreadsheets, teaching materials, technical graphics, digital content and professional visualization.
The projector supports computer input signals up to 4K@30Hz while displaying content at its native WUXGA resolution.
WUXGA 1920×1200 16:10 Native 4K@30Hz Signal Support Sharp Text & Graphics

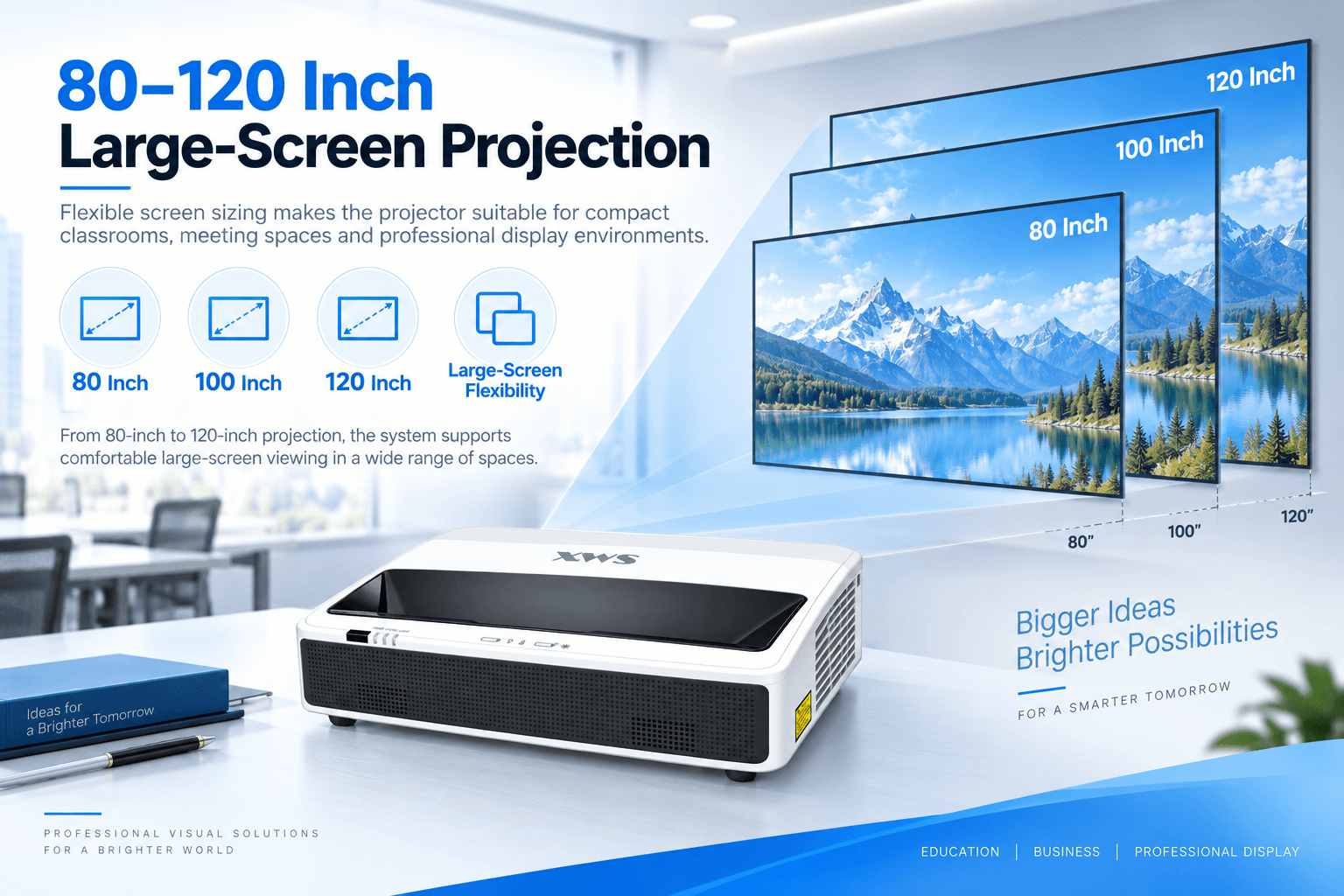

Flexible 80–120 inch projection makes the projector suitable for a wide range of professional spaces, from compact classrooms and meeting rooms to larger training and presentation environments.
Combined with the 0.235:1 ultra-short-throw optical system, large-screen visuals can be created from a very short installation distance while helping reduce shadow interference.
Ideal for compact teaching and meeting environments.
Balanced size for general professional presentation.
Large-screen display for training and visual communication.
80–120 Inch 0.235:1 Ultra Short Throw Short Installation Distance Reduced Shadow Interference
Professional geometry adjustment tools help optimize image alignment during ultra short throw installation and provide greater flexibility when the projection surface or mounting position requires correction.
Vertical keystone adjustment.
Horizontal keystone adjustment.
Flexible multi-point geometry correction.
Detailed image alignment adjustment.
6-Corner Correction Grid Image Tune Pincushion Correction Barrel Correction

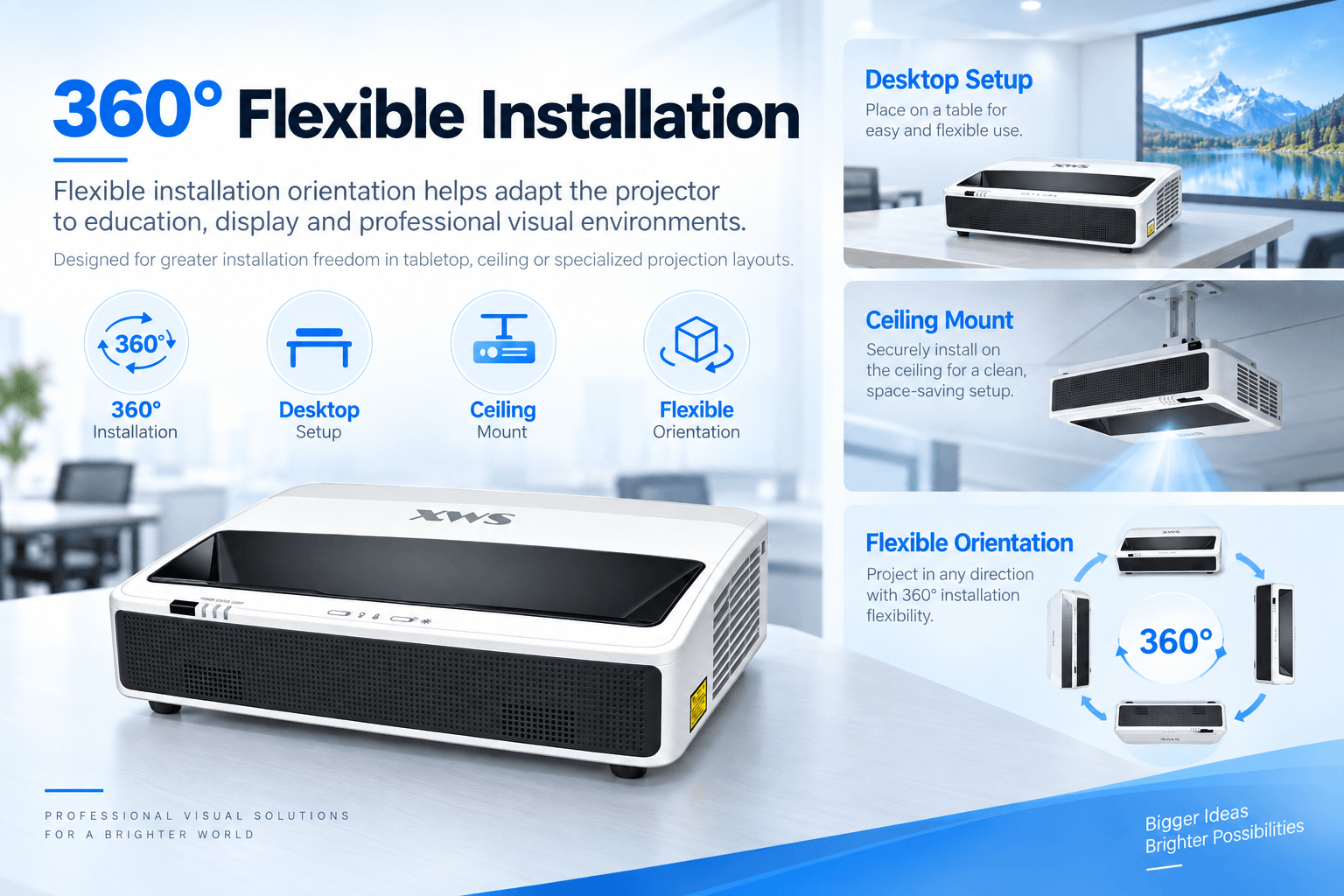

360° installation capability provides greater freedom when integrating the projector into education, exhibition, signage and professional visual environments.
Standard near-wall installation.
Professional overhead installation.
Suitable for special display environments.
Flexible orientation for creative applications.

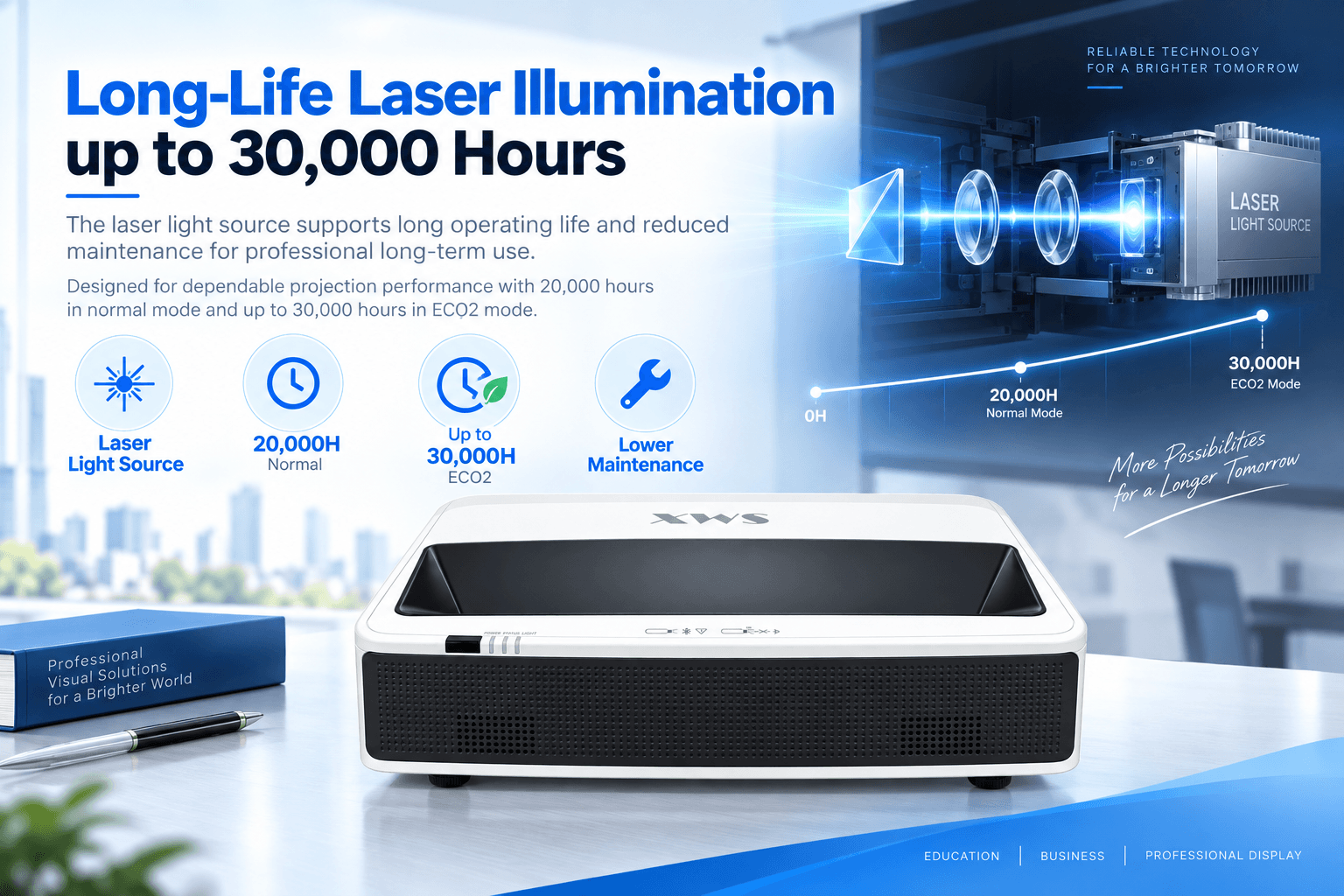

The laser light source provides stable illumination and reduces routine lamp replacement requirements, making the projector suitable for long-term professional and fixed installation applications.
Normal mode laser life.
Lower routine maintenance than lamp-based systems.
Extended light-source life in ECO2 mode.
High dynamic contrast helps improve separation between bright highlights and darker image areas, creating clearer detail and stronger visual depth across professional presentation content.
5,000,000:1 Deeper Blacks Brighter Highlights Clearer Image Detail

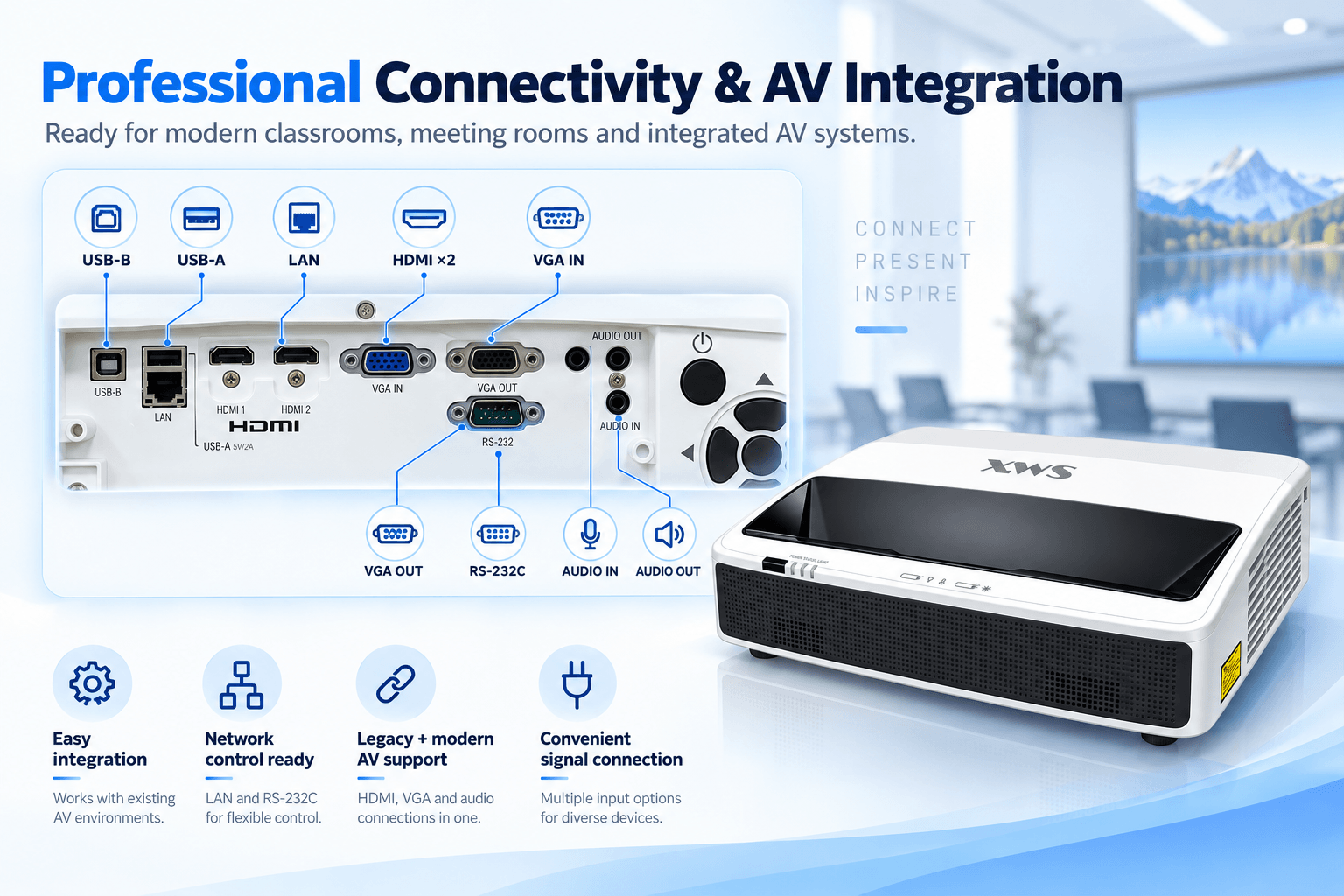

A versatile selection of digital, analog, network and control interfaces makes the projector easier to integrate with computers, classroom systems, meeting equipment and professional AV installations.
Digital video inputs for modern AV sources.
Compatibility with legacy computer systems.
USB-A and USB-B connectivity.
Professional network and system control.

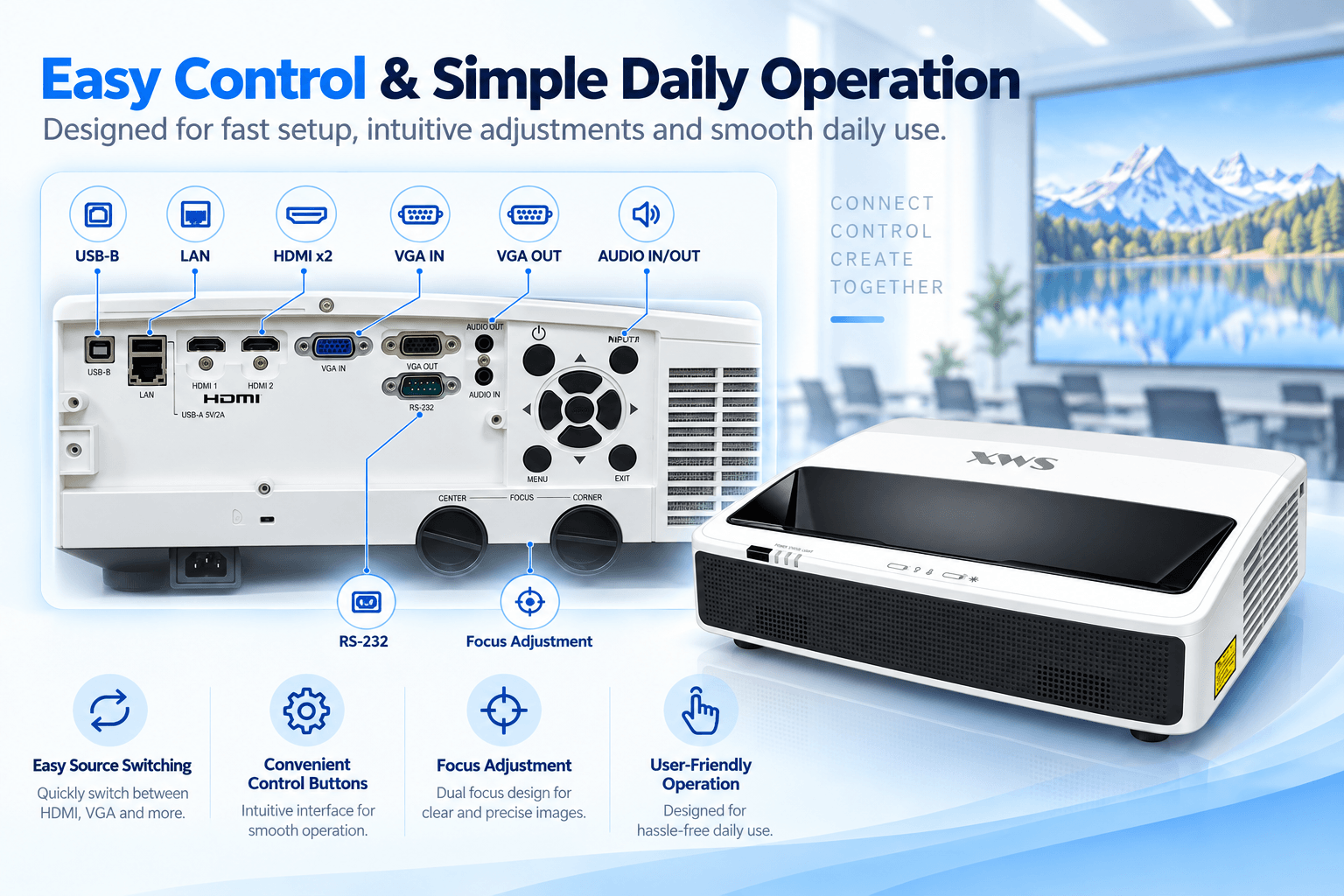

Industry-standard control protocols help integrate the projector into centrally managed education, enterprise and professional AV systems.
Centralized projector monitoring and management.
Integration with compatible professional AV systems.
Standardized projector network management.

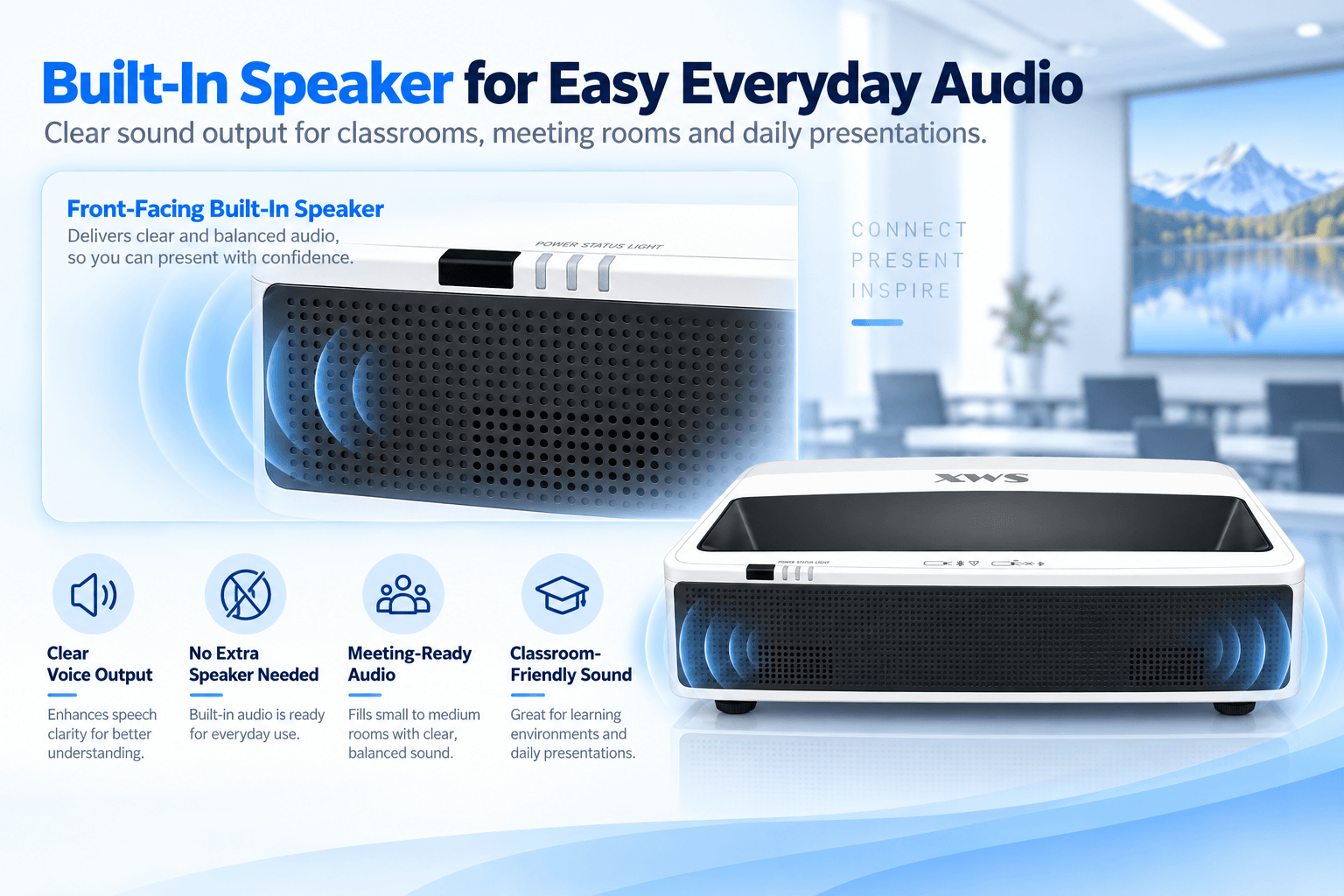

The integrated 16W speaker provides convenient audio for classroom teaching, corporate presentations and training environments where a separate audio system may not be required.
16W Speaker Clear Presentation Audio Simplified Installation Education & Business
Longer projection distance can require more room depth and may create presenter shadows when people stand between the projector and screen.
Short-distance projection creates a large image close to the wall, helping save space and reduce presenter shadow interference.
Ultra short throw optics, professional brightness and flexible installation make this projector suitable for a wide variety of modern presentation and visual communication environments.
Specification | Details |
|---|---|
Brightness | 5000 Lumens |
Display Technology | 3LCD |
LCD Panel | 3 × 0.64" with MLA |
Native Resolution | WUXGA 1920 × 1200 |
Native Aspect Ratio | 16:10 |
Compatible Aspect Ratio | 4:3 / 16:9 |
Light Source | Laser |
Laser Life | 20,000 Hours Normal / Up to 30,000 Hours ECO2 |
Contrast Ratio | 5,000,000:1 |
Lens | RICOH |
F Number | F1.7 |
Focal Length | 2.94 mm |
Throw Ratio | 0.235:1 |
Screen Size | 80–120 Inch |
Focus | Manual |
Keystone | Vertical ±5° / Horizontal ±5° |
Geometry Correction | 6-Corner Correction / Grid Image Tune / Pincushion-Barrel Correction |
360° Installation | Yes |
HDMI | HDMI ×2 |
USB | USB-A / USB-B |
VGA | VGA IN / VGA OUT |
LAN | Yes |
RS232 | Yes |
Network Control | Crestron RoomView / AMX Discovery / PJLink |
Audio | Audio IN / Audio OUT |
Speaker | 16W ×1 |
Filter Life | 8,000 Hours |
Noise | 37 / 30 / 27 dB |
Dimensions | 520 × 435 × 168 mm |
Net Weight | Approx. 11 kg |
