MX-466X
SMX
✔ 5000 Lumens Enterprise Brightness
✔ XGA Multimedia Presentation Resolution
✔ 3LCD Color Accuracy Technology
✔ Enterprise AV Connectivity
✔ Large Screen Collaboration Display
✔ Optimized for Corporate Communication
The SMX 5000 lumens multimedia projector is designed for modern enterprise collaboration spaces, hybrid work environments, training facilities, and business communication applications. Featuring advanced 3LCD projection technology and stable high-brightness performance, it enables clear and engaging large-screen presentations for corporate users.
5000 Lumens High-Brightness Performance
3LCD Full-Color Projection Technology
XGA Native Presentation Resolution
Large Screen Collaboration Capability
HDMI Digital Enterprise Connectivity
Corporate AV Integration Support
Stable Long-Term Commercial Operation
Flexible Installation Deployment
Multi-Device Presentation Compatibility
Optimized for Enterprise Communication

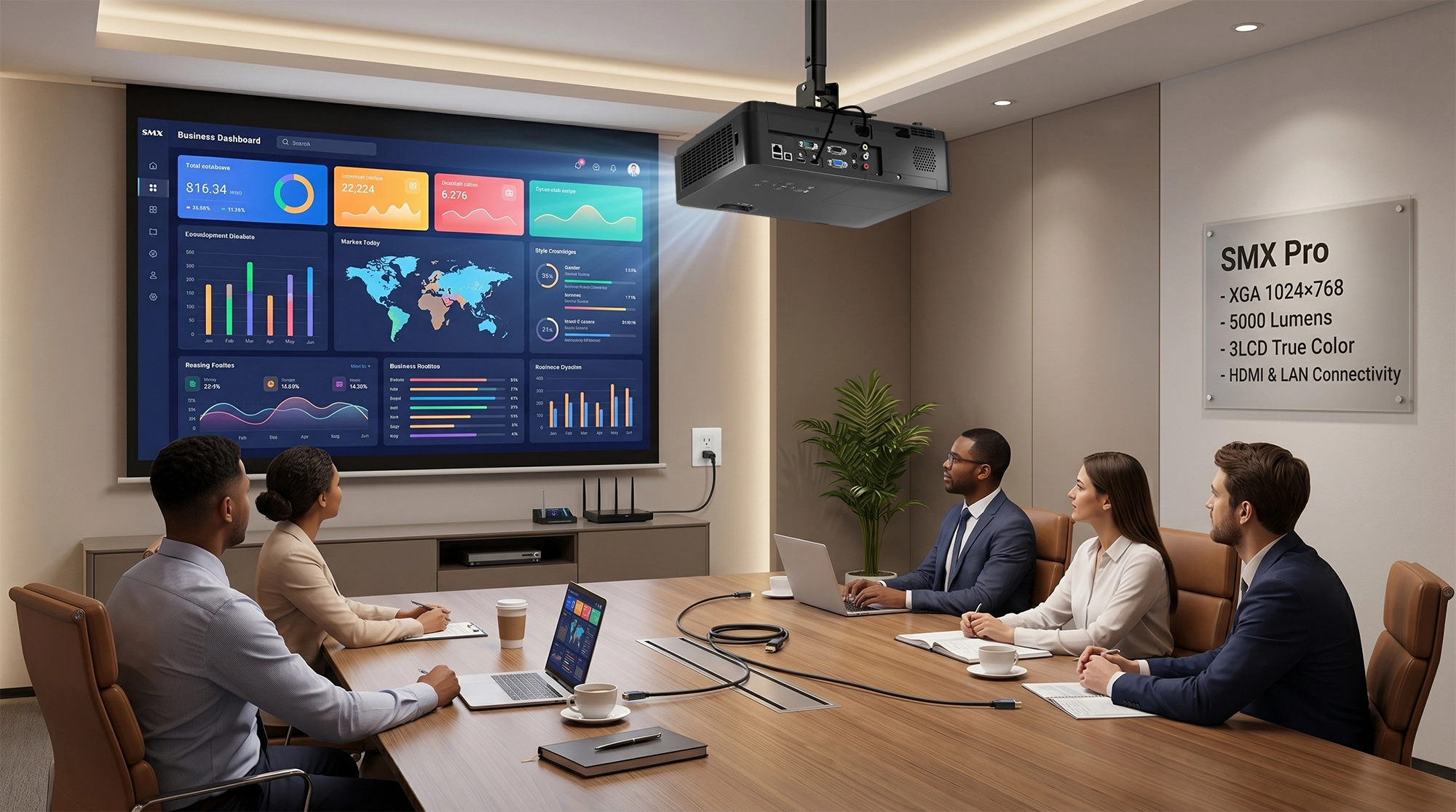

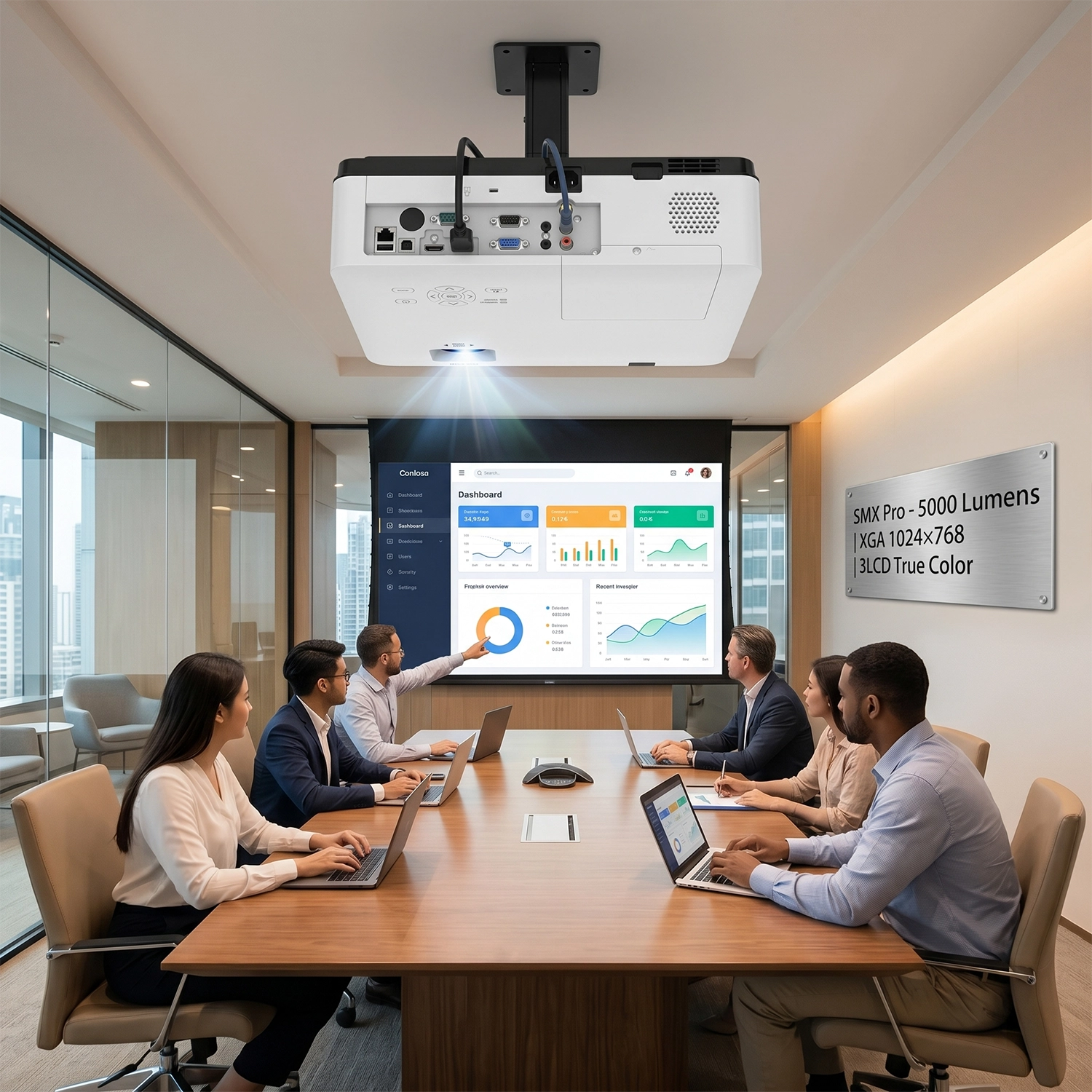

The projector is developed for hybrid office environments, enterprise collaboration spaces, seminar halls, and professional communication scenarios requiring reliable large-screen visual presentation.
With 5000 lumens brightness, the projector maintains presentation clarity and readability in office environments with ambient lighting and collaborative workspaces.
3LCD technology delivers vivid and balanced color performance for presentation slides, charts, business reports, and multimedia corporate communication.
The projector supports collaborative communication environments where digital presentation, multimedia sharing, and group interaction are essential.
HDMI and AV integration interfaces support laptops, enterprise AV systems, collaboration platforms, and multimedia presentation devices.
Large-format projection capability improves audience engagement during enterprise seminars, presentations, internal training, and collaborative discussions.
Designed for long-duration enterprise operation, the projector delivers stable performance and reduced maintenance requirements for commercial users.
Corporate Collaboration Spaces
Hybrid Office Environment
Enterprise Seminar Hall
Business Training Center
Corporate Communication Space
Commercial Presentation Environment
Enterprise AV Integration
Office Multimedia System
Brightness | 5000 Lumens |
Resolution | XGA 1024×768 |
Display Technology | 3LCD |
Contrast Ratio | High Contrast Performance |
Connectivity | HDMI ×2 / VGA / USB / RJ45 / RS232 |
Projection Size | 50-300 Inches |
Aspect Ratio | 4:3 Native / 16:9 Compatible |
Applications | Conference Room / Business / Office |
10+ Years Projection Manufacturing Experience
Professional OEM & ODM Projection Solutions
Commercial AV Projection Expertise
CE / FCC / RoHS Certified
Strict Factory Quality Inspection
Global Conference Room Projects
Yes. The projector is optimized for meeting rooms, conference spaces, and office presentation environments.
Yes. The 5000 lumens brightness provides clear visibility even in meeting rooms with ambient lighting.
3LCD technology provides brighter and more natural colors, improving presentation readability and multimedia visibility.
Yes. HDMI inputs support laptops, office AV systems, and video conferencing devices.
| Main Spec | ||
| Model No. | MX-466X | |
| Resolution | 5000 | |
| Resolution | XGA | |
| Light source | Lamp:240W | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.63” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024x768) | |
| Lamp | Lamp Consumption(W) | signify:240W Infinity(Lamp) |
| Lamp Lifetime(H) | 10000H(Normal) /20000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 60"@1.78m ; 1.46~1.76 :1 | |
| F | 1.61~1.76 | |
| f | 19.1~23mm | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 0.876~10.860m (30"~300") | |
| CR | IRIS | *1 |
| Contrast Ratio | 15000:1 | |
| Noise | Noise(dB)@1m | Normal: 38dB ECO1: 34dB; ECO2:28dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 4:3 (Standard)/ 16:9(Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm ) | *1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm ) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 1*16W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power consumption (W) | 340 | |
| Power Consumption (ECO) | 150 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <2W | |
| Cooling Setting | Operating Temp. | 5°C~40°C(35~ ECO) |
| Store Temp. | -10℃~~50℃ | |
| Oparating Humidity | 20%~80% | |
| High altitude | 0 to 3000 m | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°/ H:±30° 4 corner Correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA, UXGA,WUXGA,Mac, 4K@30Hz |
| Video Signal Input | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、 Blackboard、Colorboard | |
| Lamp mode | Boost/Normal/ECO1/ECO2 | |
| Filter Cleaning Cycle | 500/1000/2000 hours | |
| Cooling time | 0s, 30s, 60s(normal) | |
| Closed caption | Yes | |
| Signal Power On | Yes | |
| Turn on countdown | Customized -(5S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 steps | |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) | 345*261*99 | |
| Net. Weight (KG) | ~3.3 | |
| Packaging Size (WxHxD mm) | 442*386*195 | |
| Gross. Weight (KG) | 4.7 | |
| Accessory | ||
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
