MX-LK4800
SMX

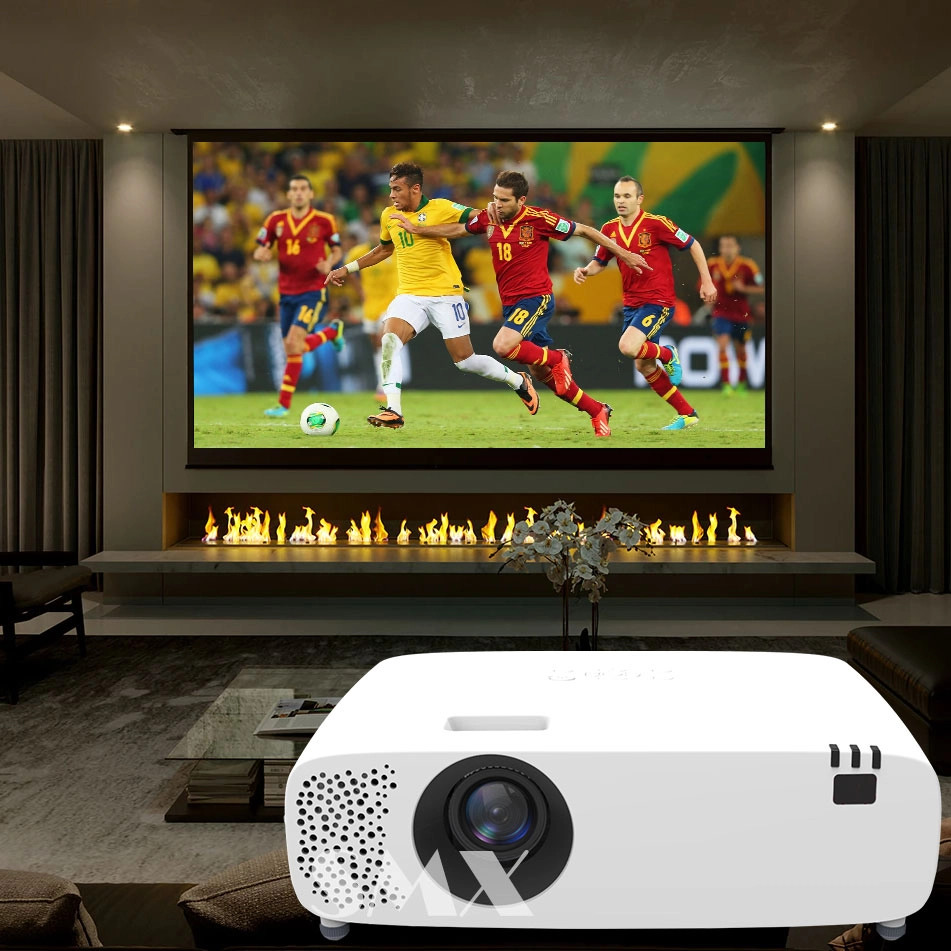

Optimized for home theater, gaming, and immersive entertainment experiences.
The SMX MX-LK4800 delivers 4800 lumens brightness with 4K UHD resolution and HDR input, designed for home cinema, gaming, and immersive projection environments.
Its long throw design enables large screen projection in spacious environments, while HDR and high contrast ensure deep blacks and vivid colors for cinematic and gaming experiences.
4800 Lumens Brightness – Bright and clear images even with ambient light
4K UHD + HDR Input – Enhanced contrast and realistic visuals
3LCD Technology – Superior color brightness (Learn More)
Gaming Optimized – Low latency and smooth performance
Long Throw Projection – Ideal for large rooms and installations
Laser Light Source – Up to 30,000 hours lifespan
Item | Specification |
|---|---|
Brightness | 4800 Lumens |
Resolution | 4K UHD |
Display | 3LCD |
HDR | HDR10 Supported |
Throw Type | Long Throw |
Contrast Ratio | High Contrast |
Light Source | Laser |
Lifespan | 20,000–30,000 Hours |
Contact SMX for pricing, OEM/ODM services, and project consultation.
| Main Specification | ||
| Model No. | MX-LK4800 | |
| Brightness (Lumen) | 4800 | |
| Resolution | 4K enhancement | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Light source Lifetime | Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | Zmax Lens |
| F | 1.61~1.76 | |
| f | 19.1~23mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.35~1.63: 1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300inch | |
| CR | Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 40dB(Normal )30dB(ECO) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI (2.0IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232C | *1 |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Lifetime | 7000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 330 | |
| Power Consumption (ECO1) (Max) | 190 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating humidity. | 20-80% | |
| Storage Temp. | -10 to 50°C | |
| Storage humidity. | 10-85% | |
| High altitude | 0-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Simplified Chinese |
| LAN Control | LAN Control--PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | up to 4K 60Hz |
| SW setting | D-Zoom | YES(HDMI) |
| laser mode | Normal/ECO | |
| Light source brightness adjustment | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Yes | |
| Standby mode | Normal/ECO | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product (WxDxH mm) | 390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, Remote control,HDMI Cable | |
