MX-LS6300X
SMX
High-brightness 3LCD projector with flexible optical adjustment, professional connectivity and network control for classrooms, conference rooms, training centers and business presentation environments.

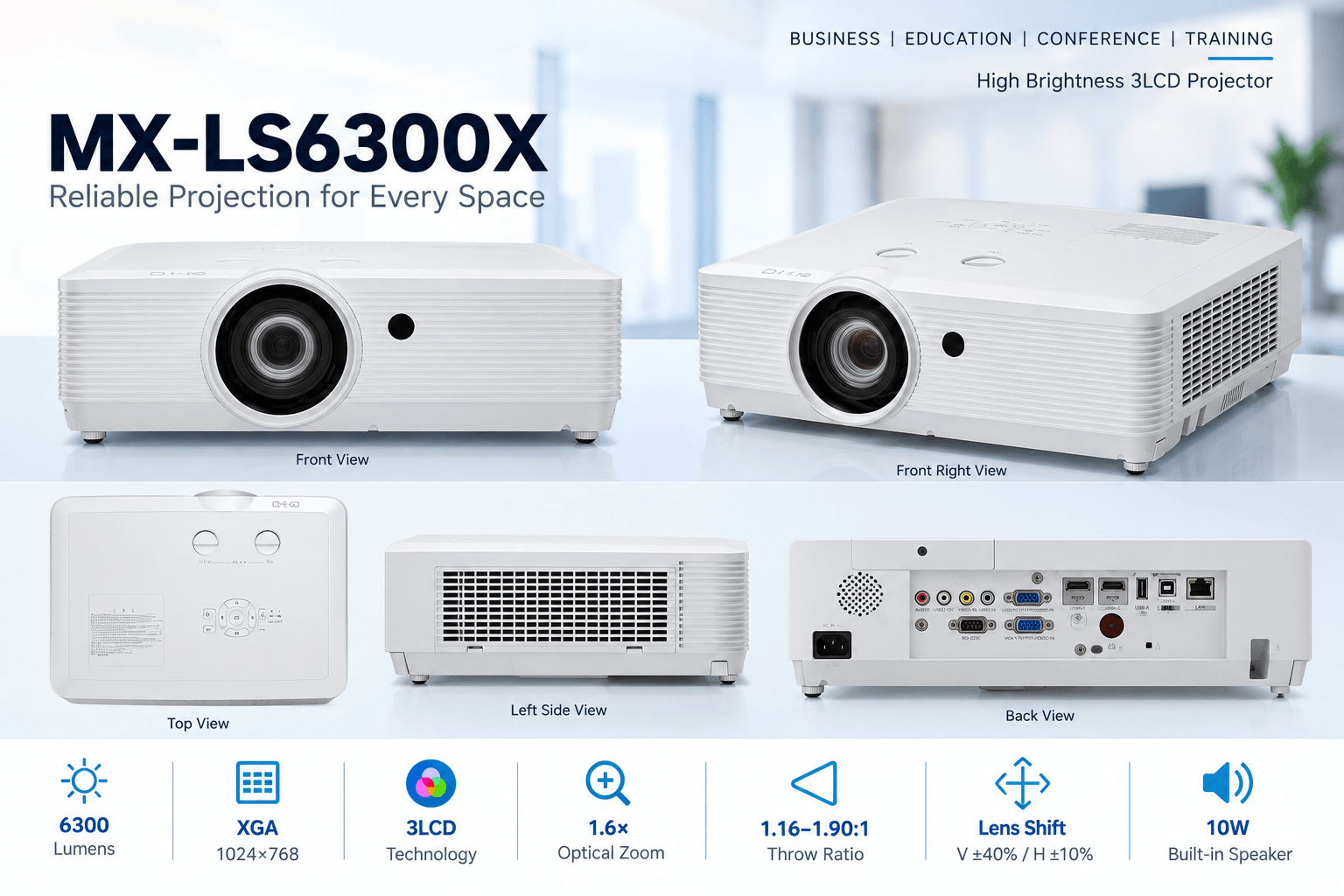

The MX-LS6300X combines 6300-lumen brightness with 3LCD display technology and flexible installation functions. A 1.6× optical zoom lens, manual horizontal and vertical lens shift, dual HDMI inputs and professional network control make it suitable for business, education and fixed AV installations.

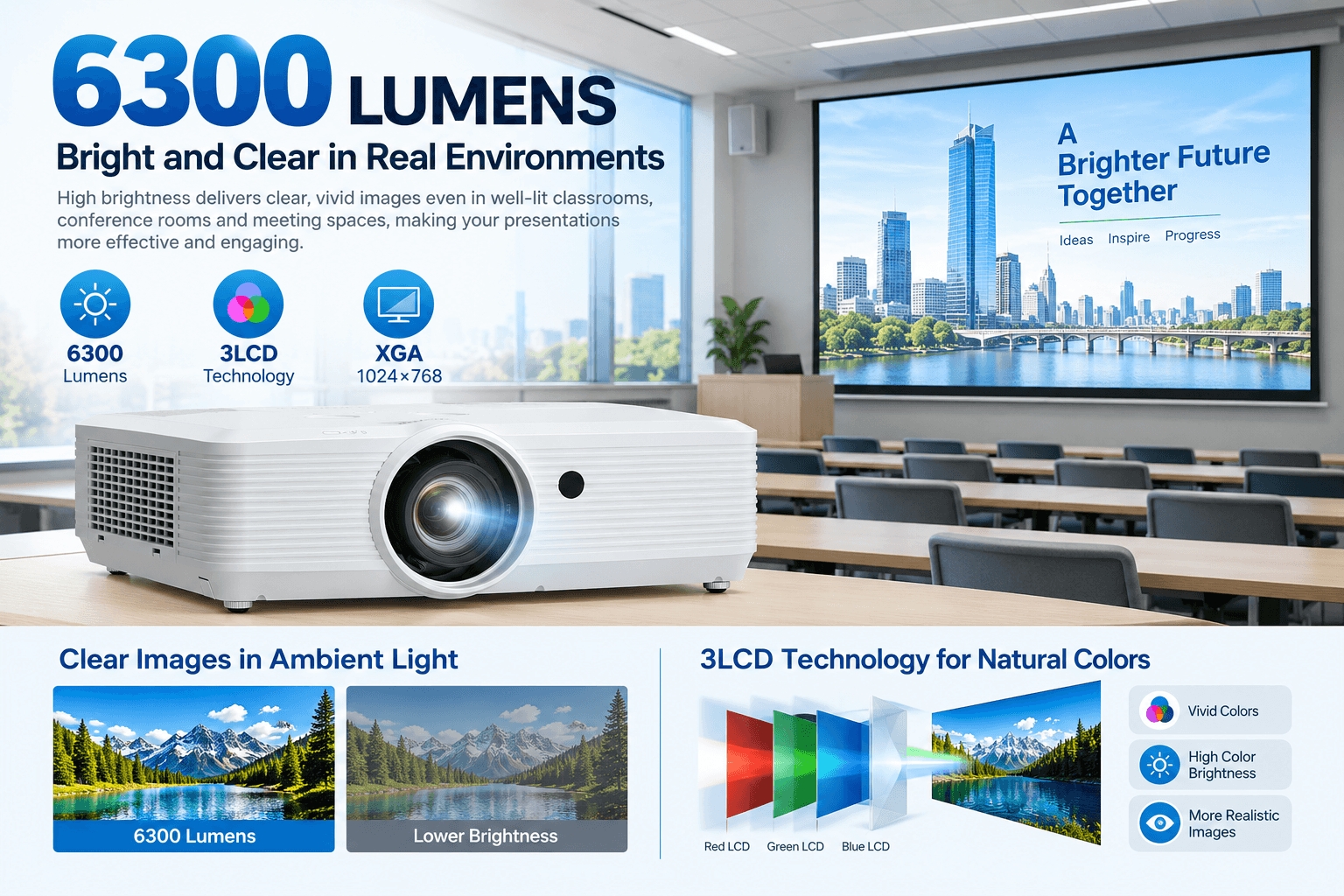

The MX-LS6300X delivers 6300 lumens of brightness for large-screen presentations in classrooms, conference rooms, training centers and other indoor environments. Its 3LCD imaging system uses three LCD panels to produce the red, green and blue image components for balanced color reproduction.

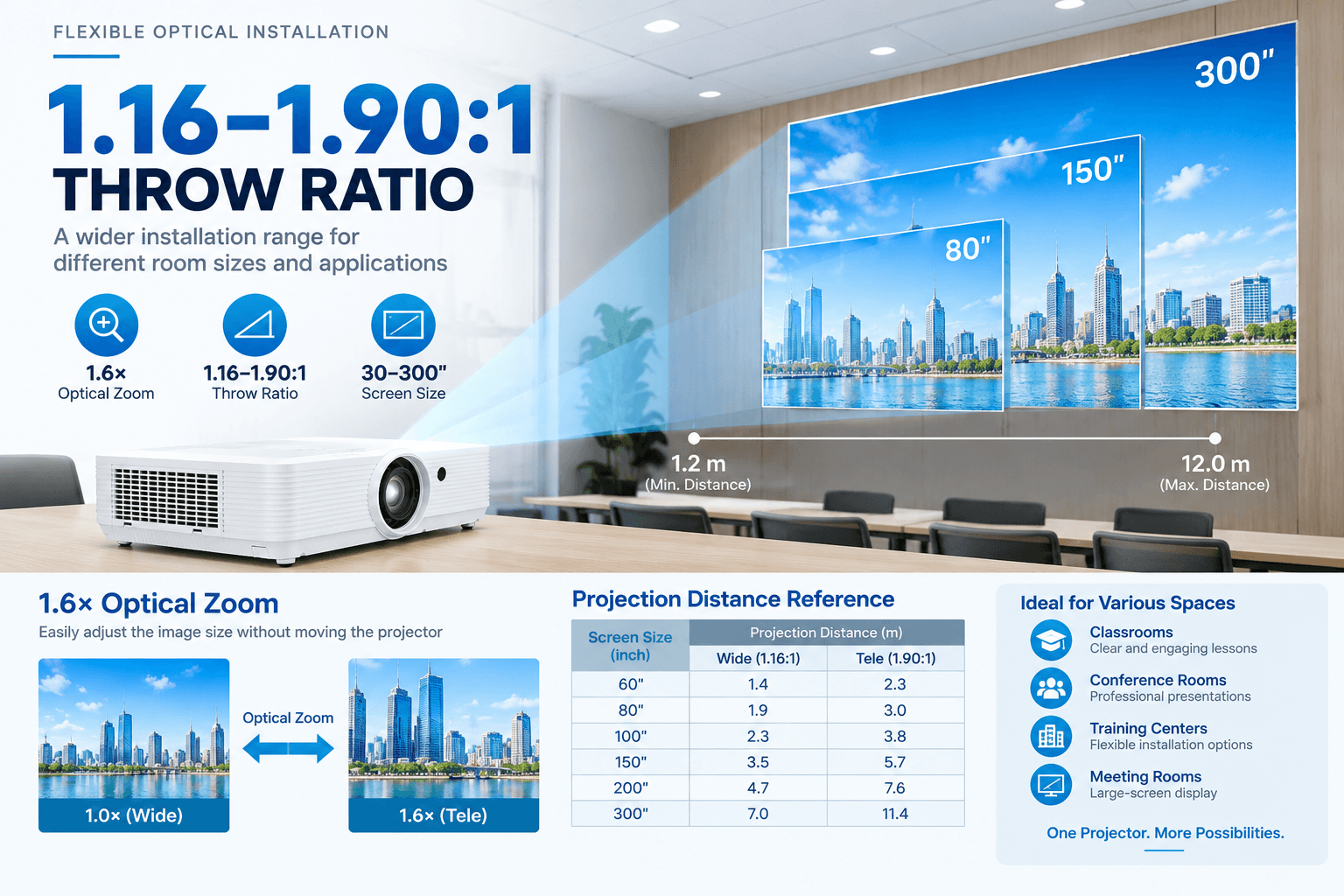

The 1.16–1.90:1 throw-ratio range and 1.6× optical zoom provide flexibility when matching the projector to different room dimensions and screen sizes. The projector supports approximately 30–300 inch images.
Need help estimating installation distance? Use our Projector Throw Ratio Calculator .

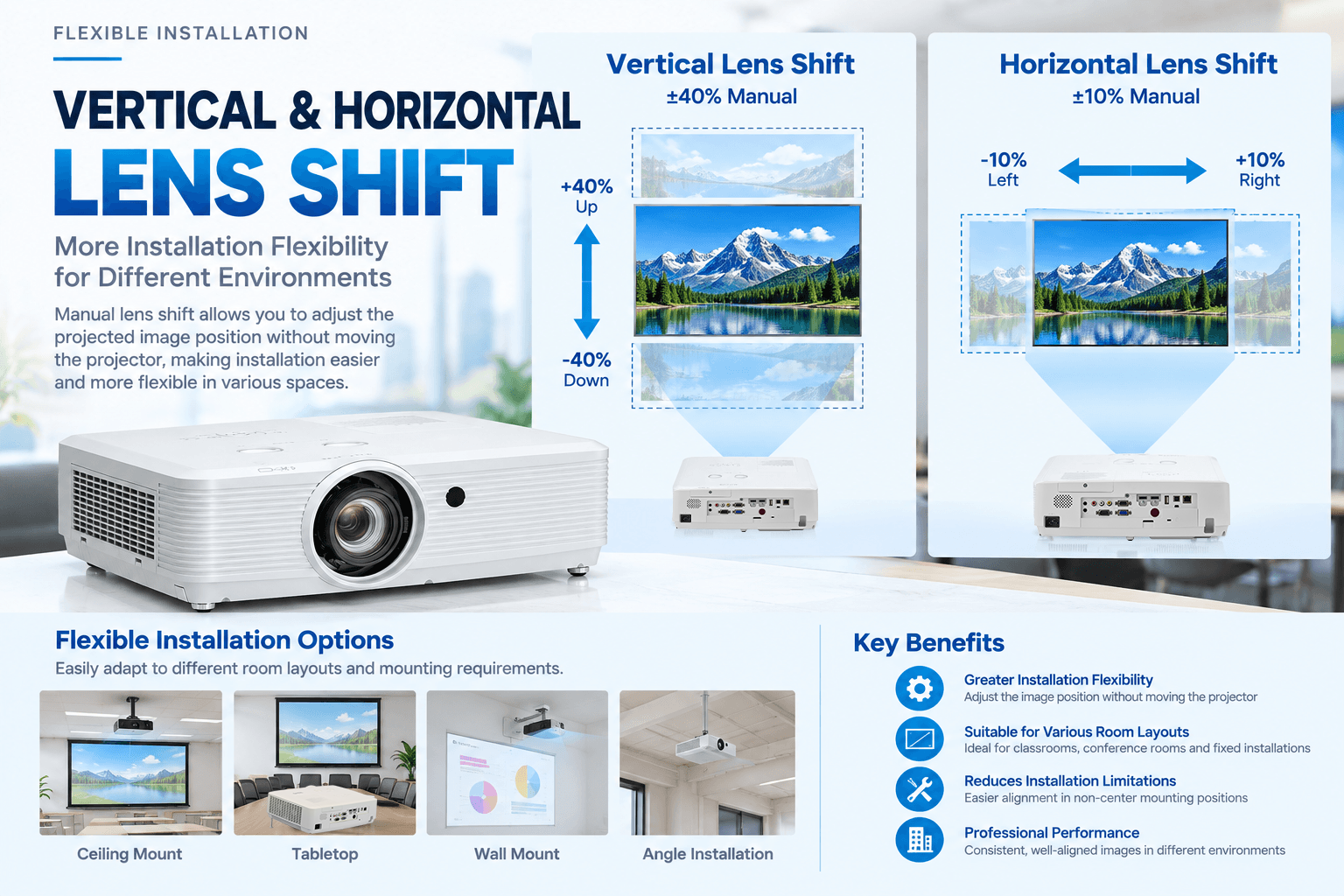

Manual vertical and horizontal lens shift provides additional installation flexibility by allowing the projected image position to be adjusted optically. This is useful when the projector cannot be positioned directly in line with the center of the screen.

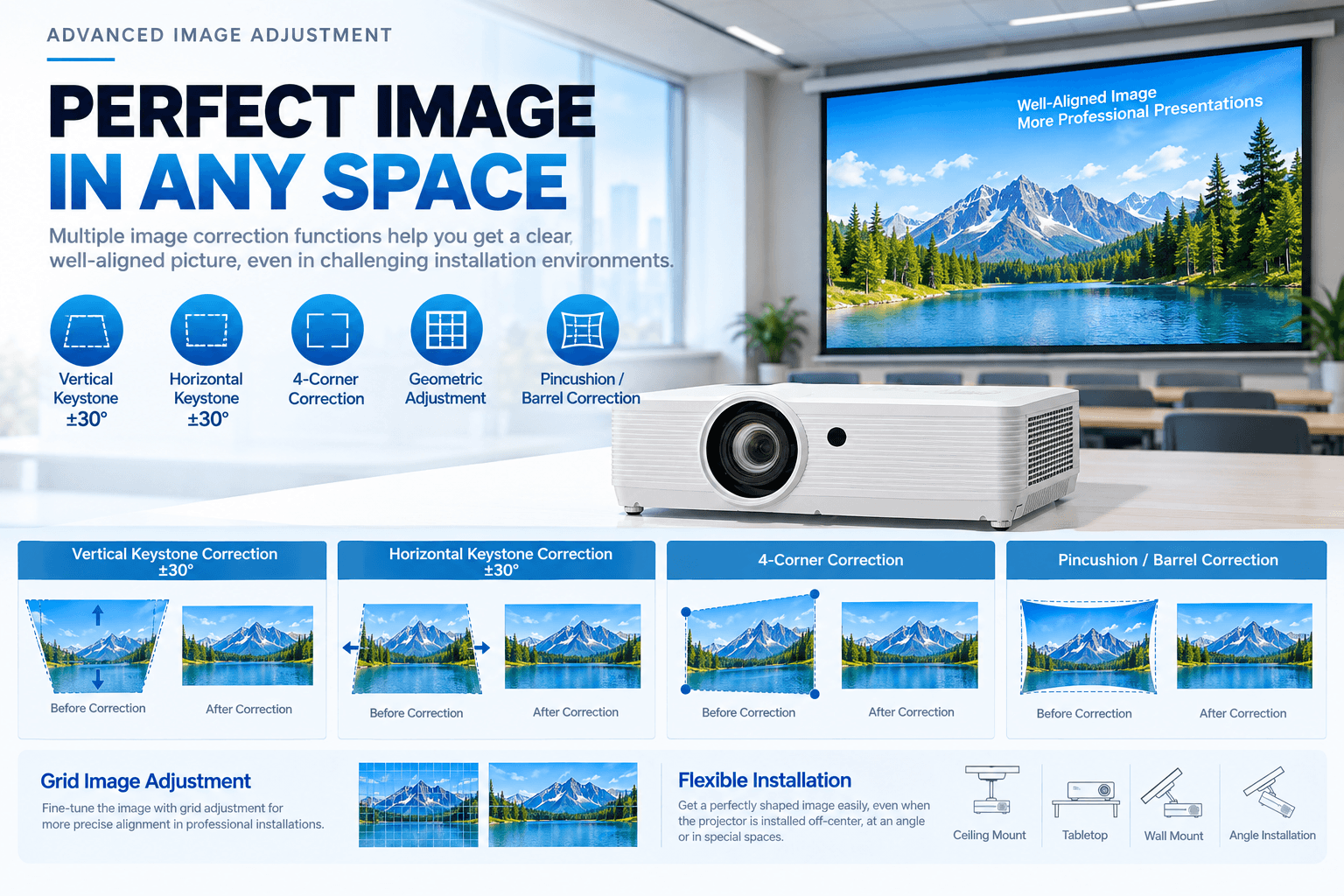

Vertical and horizontal keystone correction helps compensate for angled projector placement, while 4-corner correction provides additional control over individual image corners for more accurate screen alignment.

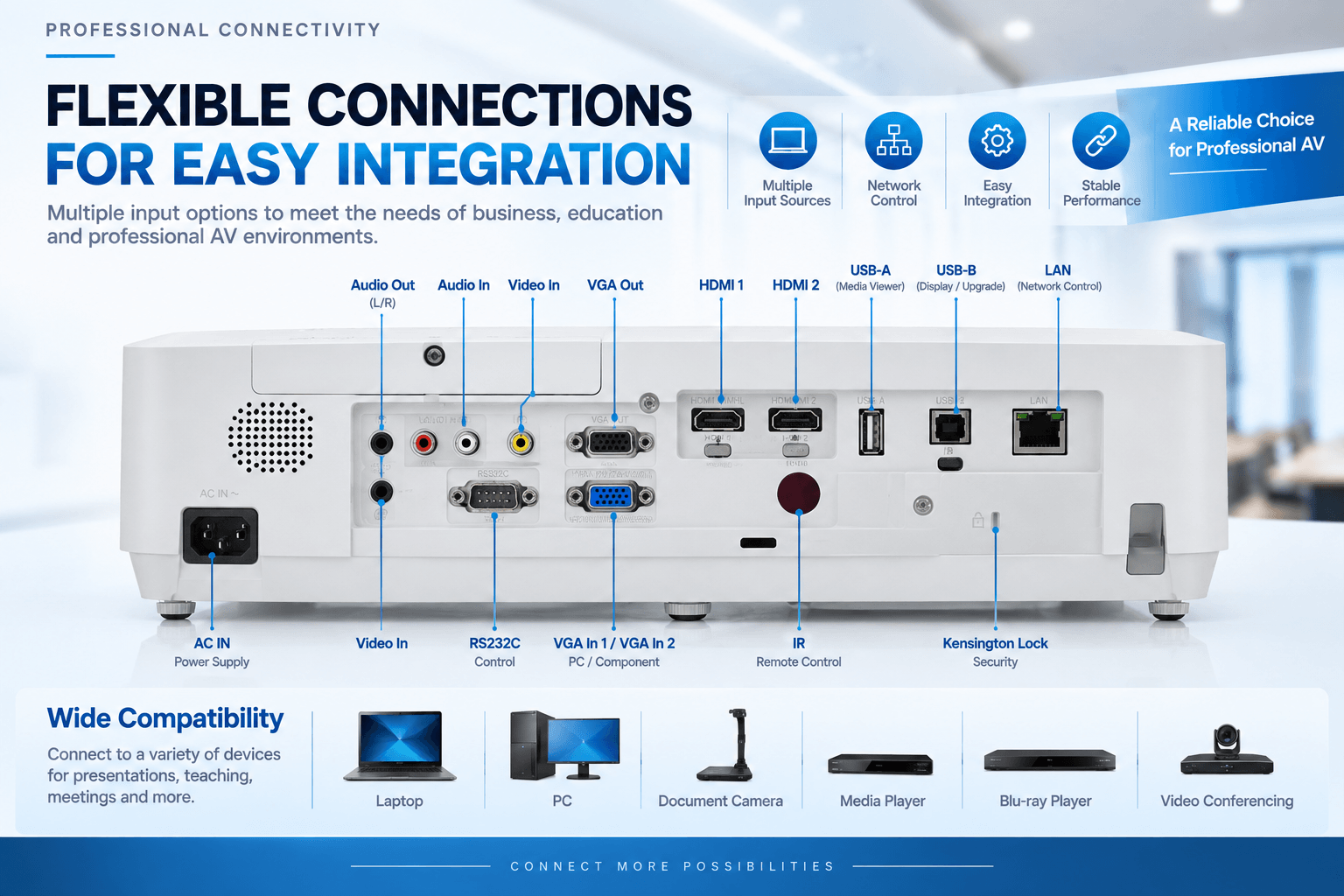

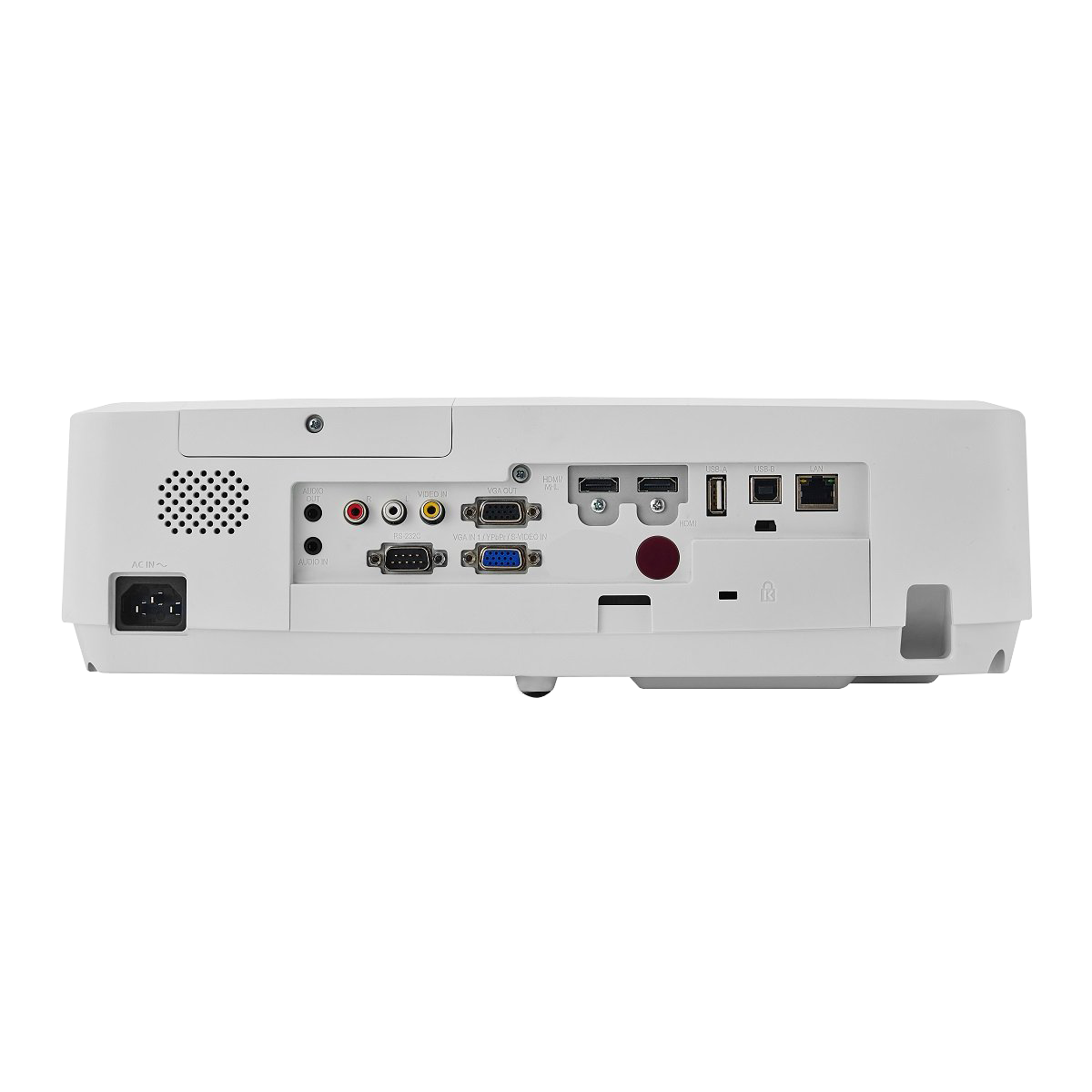

Multiple digital, analog, USB, audio and network connections simplify integration with computers, presentation sources and AV control systems in classrooms, meeting rooms and fixed installations.

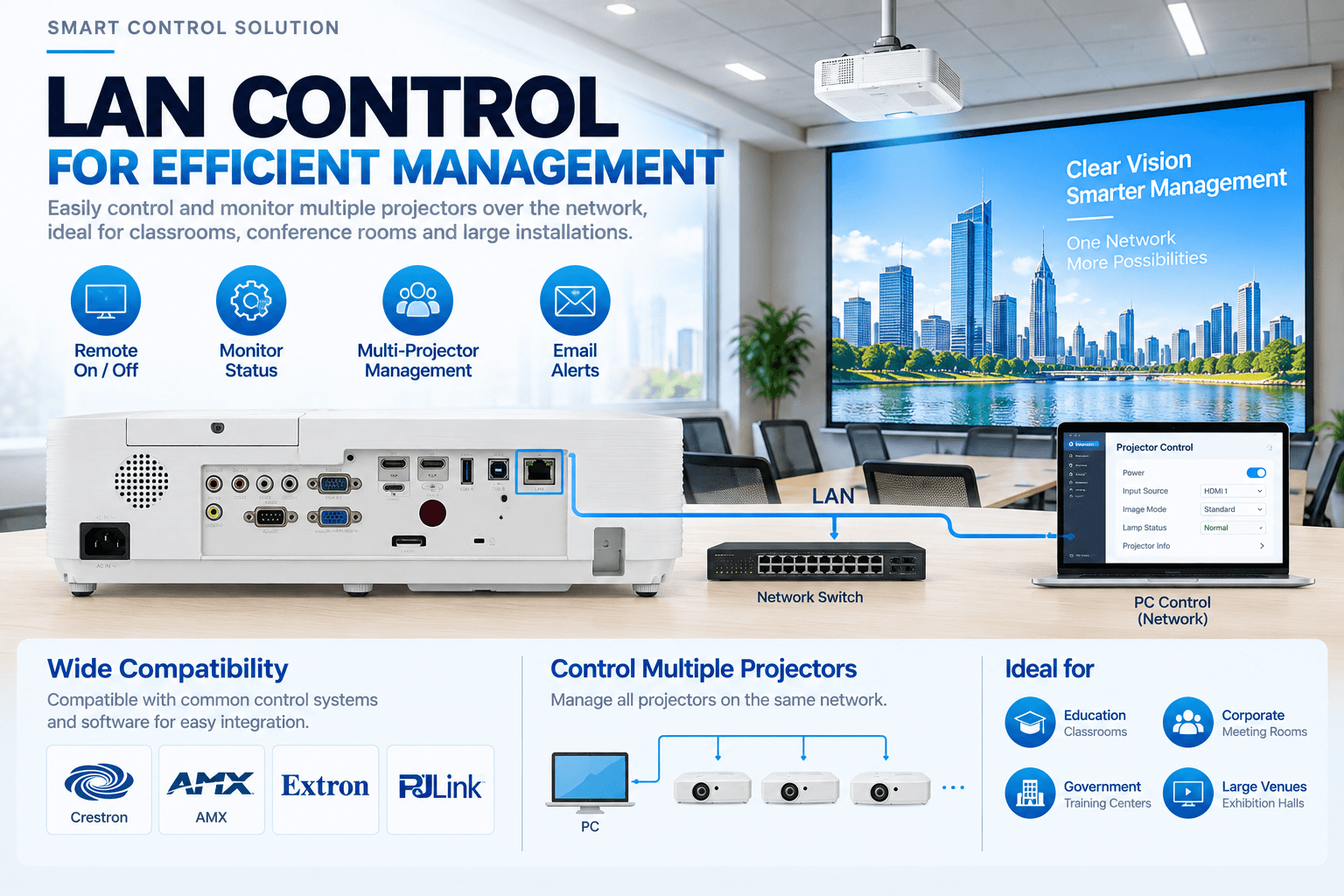

Network control support makes the projector easier to integrate into managed classroom, conference and commercial AV environments. The MX-LS6300X supports common professional network-control protocols for centralized projector management.
High brightness, flexible optical adjustment, multiple signal inputs and network control make the MX-LS6300X suitable for a range of indoor presentation and fixed-installation applications.
For more general projector selection and technical information, visit our Projector FAQ & Technical Support .
No. The MX-LS6300X is a 3LCD lamp projector using a 310W Osram lamp.
The 6300-lumen brightness makes this model suitable for many classroom, meeting and training environments. Actual brightness requirements depend on screen size, ambient light, projection distance and viewing conditions.
The native resolution is XGA 1024×768, suitable for presentations, educational materials, documents, charts and other business display content.
The projector provides a 1.16–1.90:1 throw ratio with 1.6× optical zoom. For installations with limited projection distance, explore our Short Throw 3LCD Projectors .
Yes. It provides manual vertical lens shift of ±40% and horizontal lens shift of ±10%.
The projector supports vertical keystone correction up to ±30°, horizontal keystone correction up to ±30°, and 4-corner correction.
Yes. RJ45 and RS232 connectivity are available, with support for Crestron RoomView, AMX Discovery and PJLink.
OEM and ODM cooperation can be discussed according to the projector model, order quantity, target market and customization requirements. Learn more about SMX OEM & ODM projector services .
Send us your application, screen size, projection distance, quantity and target market. SMX can help evaluate projector selection and discuss OEM & ODM requirements for distributors, AV integrators and professional buyers.
| Model | ||
| Model No. | MX-LS6300X | |
| Brightness (Lumen) | 6300 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64"(DML) |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024 x 768) | |
| Lamp | Lamp Consumption(W) | Osram:310W |
| Lamp Lifetime(H) | 3000H(Normal) / 4000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 80"@1.893m, 1.16-1.9 | |
| F | F 1.6~1.9 | |
| f | f= 15.31~24.64mm | |
| Zoom Ratio | 1.6xoptics | |
| Screen size | 0.691m~11.65m (30''~300") | |
| Lens Shift V | ±40%(Manual) | |
| Lens Shift H | ±10%(Manual) | |
| CR | Contrast Ratio(Min) | 10000:1（with IRIS&ECO mode) |
| Noise | Noise(dB)@1m | ECO : MAX 35dB,Normal : 41dB; |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
| Audio in (mini jack, 3.5mm) | *1 | |
| YCbCr/Component | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in (L/R)--RCA | *2 | |
| HDMI | *2 | |
| USB-A | *1 1. Support Memeory viewer | |
| USB-B | *1（Display) | |
| RJ45 | *1（Display) | |
| Output | VGA | *1（Share with VGA IN 2) |
| Audio out (mini-jack, 3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption -Normal | ~410W | |
| Power Consumption -ECO | ~310W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <2W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Accessory | ||
| Keystone | Keystone Correction | V: ±30°(Manual+Auto) H：±30° 4 Corner Correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p, 1080i 4K@30Hz and 4K@60Hz | |
| Others | Auto Setup | INPUT SEARCH, AUTO PC, AUTO Keystone |
| Audio muting | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、Blackboard、Colorboard | |
| Lamp mode | NORMAL, ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 0S, 60s, 90s | |
| Closed caption | Yes | |
| High altitude | 86kPa～106kPa | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 395*319*119 | |
| Net. Weight (KG) | 4.45 | |
| Packaging Size (WxDxH mm) | 495*440*230 | |
| Gross. Weight (KG) | 6 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
