MX-LS5800W
SMX

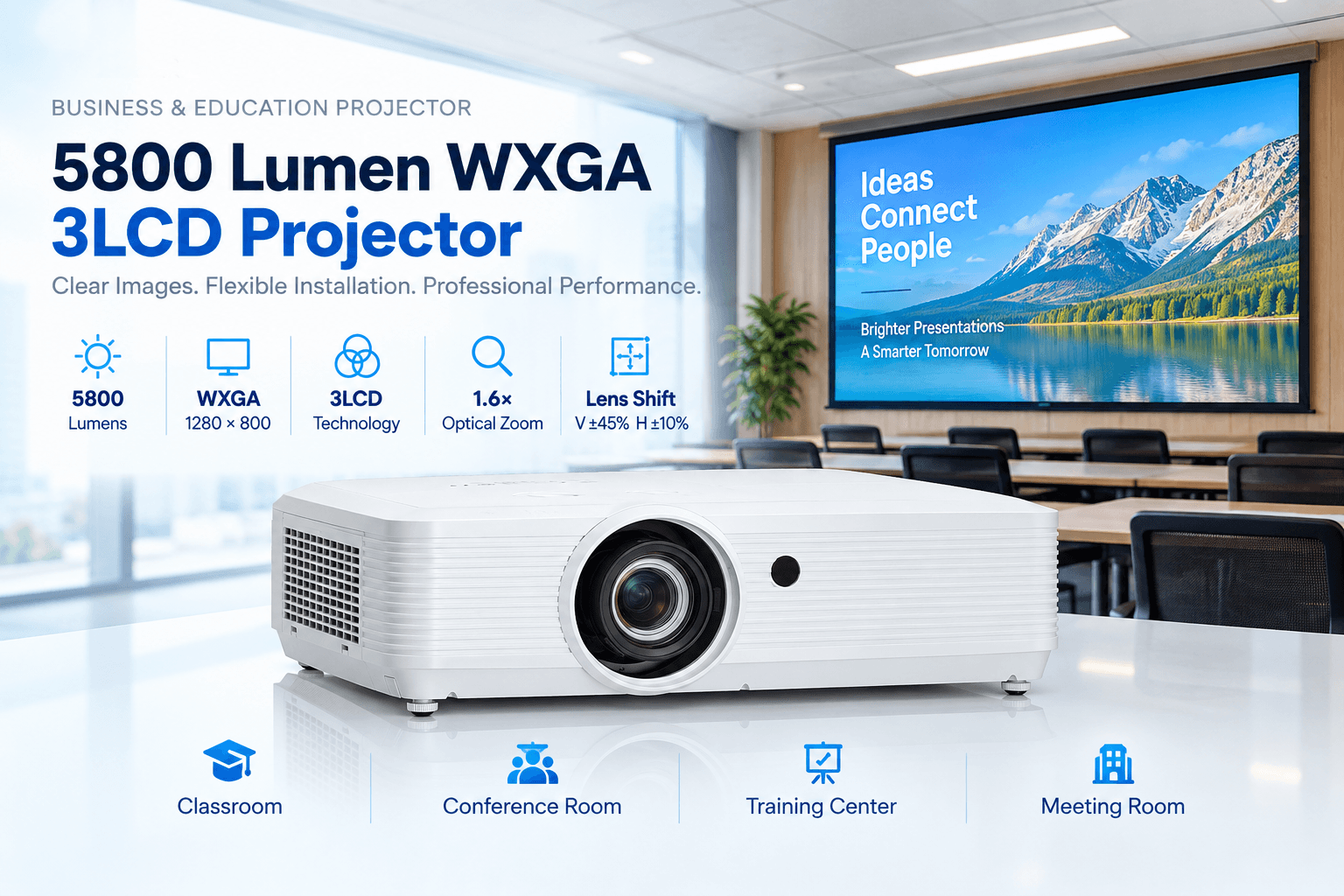

The SMX MX-LS5800W is designed for classrooms, conference rooms, training centers and professional presentation environments, combining 3LCD display technology with flexible optical adjustment, image correction and professional AV connectivity.

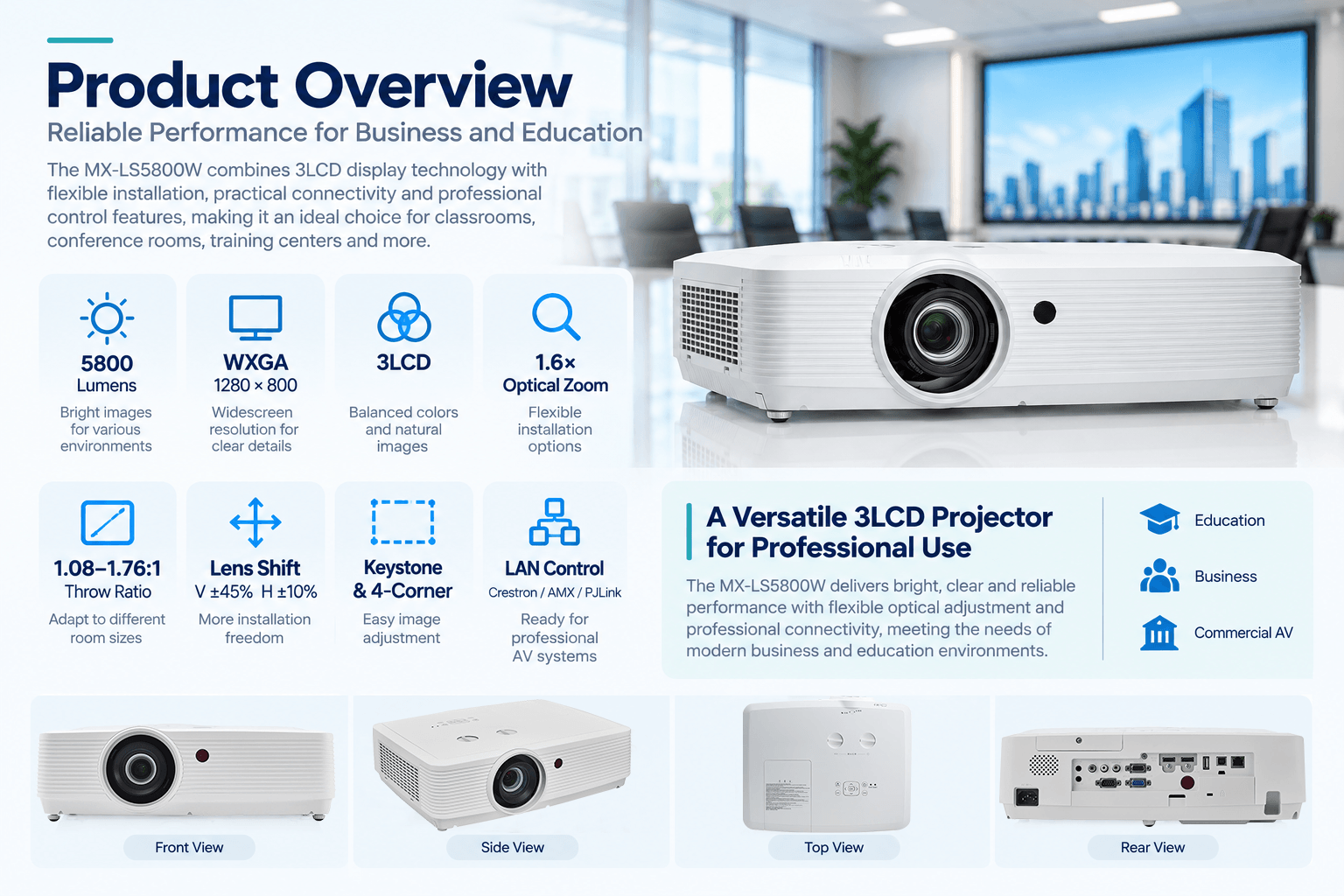

Designed for everyday professional presentation environments, the MX-LS5800W combines a 16:10 WXGA image format with flexible optical positioning and practical AV integration. Its wide zoom range, vertical and horizontal lens shift, image correction and network-control capabilities simplify installation across different room layouts.
With 5800 lumens of brightness, the MX-LS5800W is designed for presentations in classrooms, meeting rooms and training environments where some ambient light may be present. Its 3LCD imaging system uses three LCD panels to produce the red, green and blue image components for balanced color presentation.
A 1.08–1.76:1 throw-ratio range combined with 1.6× optical zoom gives installers more flexibility when matching projection distance to different screen sizes and room dimensions.
Planning your installation? Calculate projection distance and screen size with the SMX Throw Ratio Calculator →
Manual lens shift allows the projected image position to be adjusted optically without requiring the projector lens to be perfectly aligned with the center of the screen. This provides additional flexibility for ceiling mounts, existing installation points and rooms with positioning constraints.
Vertical and horizontal keystone correction helps compensate for angled projector placement, while 4-corner correction provides additional control over individual image corners for more accurate alignment with the projection surface.
Multiple digital, analog, USB and control interfaces allow the projector to connect with presentation computers, media sources and professional AV control systems.
RJ45 network connectivity helps integrate the MX-LS5800W into managed classroom, meeting-room and commercial AV environments. Support for established control protocols provides additional flexibility for professional system integration.
Flexible installation, professional connectivity and network-control capability make the MX-LS5800W suitable for a wide range of indoor presentation and fixed-installation environments.
Working with a limited projection distance? Explore SMX Short Throw 3LCD Projectors →
For additional projector selection, installation and technical information, visit the SMX Projector FAQ →
No. The MX-LS5800W is a 3LCD lamp projector using an Osram 310W lamp.
The projector has a native WXGA resolution of 1280 × 800 with a 16:10 native aspect ratio.
The MX-LS5800W uses a 1.08–1.76:1 throw-ratio range. Enter your screen dimensions and installation requirements into the SMX Projector Throw Ratio Calculator for initial planning.
Yes. Manual lens shift provides vertical adjustment of ±45% and horizontal adjustment of ±10%.
The projector supports vertical keystone correction up to ±30°, horizontal keystone correction up to ±30°, and 4-corner correction.
For rooms where a shorter lens-to-screen distance is required, compare the available SMX Short Throw 3LCD Projectors →
Yes. The projector provides RJ45 and RS232 connectivity and supports Crestron RoomView, AMX Discovery and PJLink.
OEM, ODM and private-label options can be evaluated according to the selected projector platform, order quantity, branding requirements and target market. Explore SMX OEM & ODM Projector Services →
Tell us your application, required screen size, available projection distance, quantity and target market. SMX can help evaluate a suitable projector configuration for distributors, AV integrators, education projects and professional B2B buyers.
| Model | ||
| Model No. | MX-LS5800W | |
| Brightness (Lumen) | 5800 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64"(DML) |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WXGA (1280 x 800) | |
| Lamp | Lamp Consumption(W) | Osram:310W |
| Lamp Lifetime(H) | 3000H(Normal) / 4000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 80"@1.858m, 1.08-1.76 | |
| F | F 1.6~1.9 | |
| f | f= 15.31~24.64mm | |
| Zoom Ratio | 1.6xoptics | |
| Screen size | 0.678m~11.434m (30''~300") | |
| Lens Shift V | ±45%(Manual) | |
| Lens Shift H | ±10%(Manual) | |
| CR | Contrast Ratio(Min) | 10000:1（with IRIS&ECO mode) |
| Noise | Noise(dB)@1m | ECO : MAX 35dB,Normal : 41dB; |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
| Audio in (mini jack, 3.5mm) | *1 | |
| YCbCr/Component | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in (L/R)--RCA | *2 | |
| HDMI | *2 | |
| USB-A | *1 1. Support Memeory viewer | |
| USB-B | *1（Display) | |
| RJ45 | *1（Display) | |
| Output | VGA | *1（Share with VGA IN 2) |
| Audio out (mini-jack, 3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption -Normal | ~410W | |
| Power Consumption -ECO | ~310W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <2W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Accessory | ||
| Keystone | Keystone Correction | V: ±30°(Manual+Auto) H：±30° 4 Corner Correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p, 1080i 4K@30Hz and 4K@60Hz | |
| Others | Auto Setup | INPUT SEARCH, AUTO PC, AUTO Keystone |
| Audio muting | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、Blackboard、Colorboard | |
| Lamp mode | NORMAL, ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 0S, 60s, 90s | |
| Closed caption | Yes | |
| High altitude | 86kPa～106kPa | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 395*319*119 | |
| Net. Weight (KG) | 4.45 | |
| Packaging Size (WxDxH mm) | 495*440*230 | |
| Gross. Weight (KG) | 6 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
