MX-LS5800U
SMX
The MX-LS5800U combines 5800-lumen brightness, native WUXGA resolution and 3LCD imaging with flexible optical adjustment and professional system connectivity. It is designed for business presentations, education, training and fixed AV installations where image detail and installation flexibility are important.
Native WUXGA resolution provides a 1920 × 1200 image with a 16:10 aspect ratio, giving professional presentations more usable vertical image area. Text, spreadsheets, diagrams, training materials and detailed presentation content can be displayed clearly on a large projection screen.
The MX-LS5800U delivers 5800 lumens for professional indoor presentation environments. Its 3LCD imaging architecture uses separate LCD panels for red, green and blue image components, supporting balanced color presentation across business, education and training content.
A 1.08–1.76:1 throw-ratio range and 1.6× optical zoom provide useful flexibility when planning projector-to-screen distance. The optical system supports screen sizes from 30 to 300 inches, making the projector adaptable to different presentation-room dimensions.
Need to estimate installation distance? Use the SMX Projector Throw Ratio Calculator →
Manual vertical and horizontal lens shift allows the projected image to be repositioned optically without moving the entire projector. This is particularly useful when working with existing ceiling mounts, off-center installation positions or room layouts where projector placement is restricted.
Beyond standard keystone adjustment, the MX-LS5800U provides multiple geometry tools for correcting image shape after installation. These controls give installers additional options when aligning the projected image with the required display area.

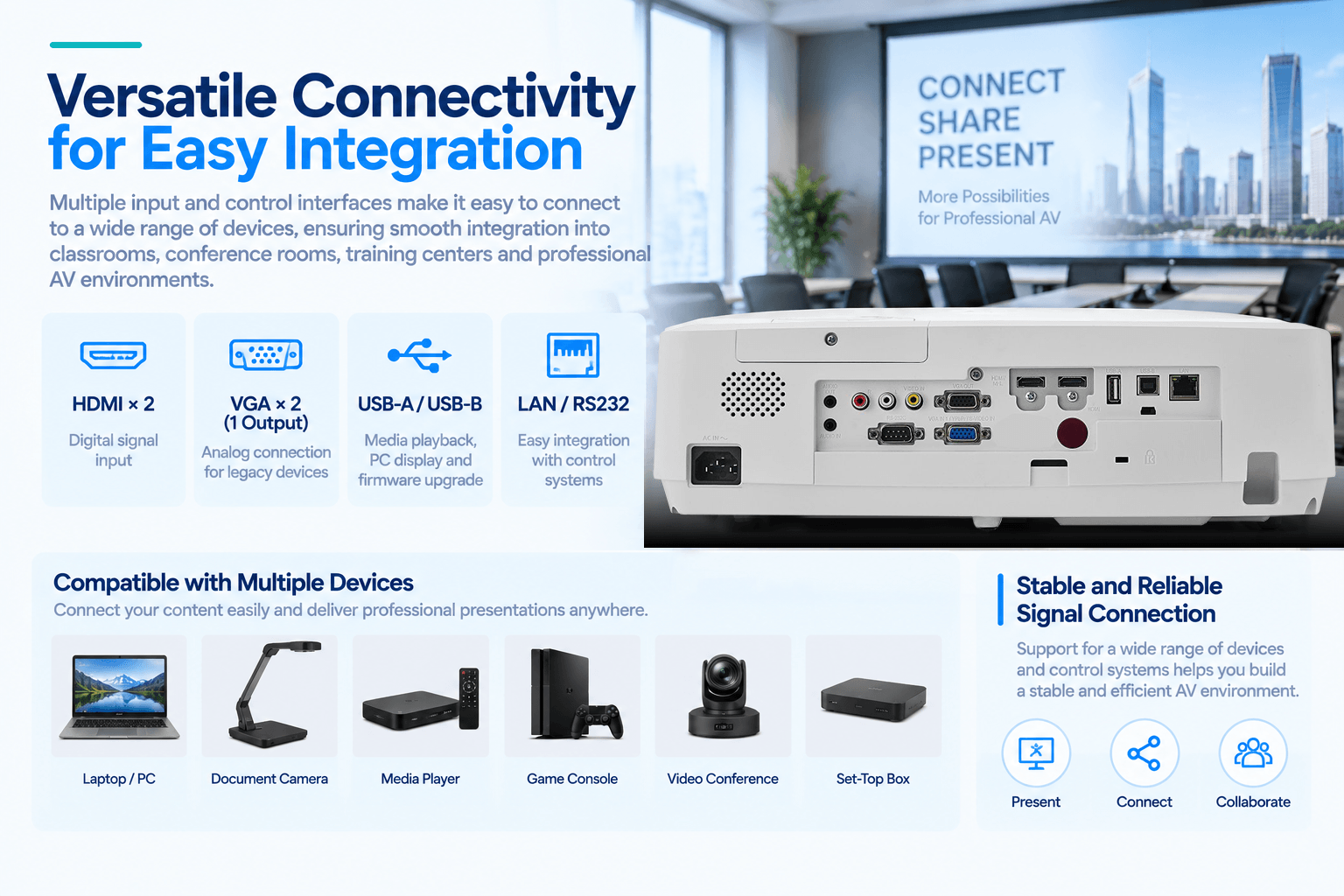

A combination of digital, analog, USB, network and serial connections helps the projector integrate with presentation computers, media devices and professional control systems.
RJ45 network connectivity and professional control-protocol support make the MX-LS5800U suitable for classrooms, meeting rooms and AV installations where projector control is integrated into a broader management system.
High-resolution presentation capability, flexible optical positioning and professional connectivity make the MX-LS5800U suitable for spaces where documents, presentations, training materials and visual information need to be displayed on a large screen.
Need a projector for a shorter installation distance? Compare SMX Short Throw 3LCD Projectors →
The projector has a native WUXGA resolution of 1920 × 1200 with a native 16:10 aspect ratio.
The specification lists support for 4K input signals. The projector itself remains a native WUXGA 1920 × 1200 display device.
Yes. Manual lens shift provides vertical adjustment of ±45% and horizontal adjustment of ±10%.
Available adjustment functions include vertical and horizontal keystone, 4-corner correction, 6-corner geometry correction, pincushion/barrel correction and grid image tuning.
Use the 1.08–1.76:1 throw ratio together with your required image size, or use the SMX Throw Ratio Calculator →
Yes. RJ45 and RS232 are provided, with support for Crestron RoomView, AMX Discovery and PJLink.
Its WUXGA image format, optical installation controls and AV connectivity make it suitable for conference rooms, classrooms, training centers and related professional presentation environments.
OEM and ODM requirements can be evaluated according to the projector configuration, order quantity, branding requirements and target market. Learn about SMX OEM & ODM services →
Send us your screen size, installation distance, room type, required quantity and control-system requirements. Our team can help evaluate the projector configuration for your business, education or commercial AV project.
| Model | ||
| Model No. | MX-LS5800U | |
| Brightness (Lumen) | 5800 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64"(DML) |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Lamp | Lamp Consumption(W) | Osram:310W |
| Lamp Lifetime(H) | 3000H(Normal) / 4000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 80"@1.858m, 1.08-1.76 | |
| F | F 1.6~1.9 | |
| f | f= 15.31~24.64mm | |
| Zoom Ratio | 1.6xoptics | |
| Screen size | 0.678m~11.434m (30''~300") | |
| Lens Shift V | ±45%(Manual) | |
| Lens Shift H | ±10%(Manual) | |
| CR | Contrast Ratio(Min) | 10000:1（with IRIS&ECO mode) |
| Noise | Noise(dB)@1m | ECO : MAX 35dB,Normal : 41dB; |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
| Audio in (mini jack, 3.5mm) | *1 | |
| YCbCr/Component | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in (L/R)--RCA | *2 | |
| HDMI | *2 | |
| USB-A | *1 1. Support Memeory viewer | |
| USB-B | *1（Display) | |
| RJ45 | *1（Display) | |
| Output | VGA | *1（Share with VGA IN 2) |
| Audio out (mini-jack, 3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption -Normal | ~410W | |
| Power Consumption -ECO | ~310W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <2W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Accessory | ||
| Keystone | Keystone Correction | V: ±30°(Manual+Auto) H：±30° 4 Corner Correction, Pincushion/Barrel Correction, 6 Corner Geometry correction, Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p, 1080i 4K@30Hz and 4K@60Hz | |
| Others | Auto Setup | INPUT SEARCH, AUTO PC, AUTO Keystone |
| Audio muting | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、Blackboard、Colorboard | |
| Lamp mode | NORMAL, ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 0S, 60s, 90s | |
| Closed caption | Yes | |
| High altitude | 86kPa～106kPa | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 395*319*119 | |
| Net. Weight (KG) | 4.45 | |
| Packaging Size (WxDxH mm) | 495*440*230 | |
| Gross. Weight (KG) | 6 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
