3800 Lumens XGA 3LCD Laser Projector for Meeting Room & Classroom SMX

  • 3800 Lumens Bright Projection
  • 3LCD True Color Technology
  • Laser Light Source with 20,000 Hours Lifespan
  • XGA Resolution for Sharp Presentations
  • Low Maintenance Commercial Solution
  • Ideal for Meeting Rooms & Classrooms
Availability:
Quantity:
  • MX-STD3800X

  • SMX

SMX 3800 Lumens XGA 3LCD Laser Projector for Meeting Room & Classroom

The SMX 3800 Lumens XGA 3LCD Laser Projector is a professional projection solution designed for classrooms, conference rooms, training centers, and business presentations. With advanced 3LCD display technology and laser light source, it delivers vivid colors, stable brightness, and low maintenance operation for long-term commercial use.

Key Features

  • 3800 Lumens High Brightness

  • 3LCD Technology with Accurate Colors

  • XGA Resolution for Clear Presentations

  • Laser Light Source up to 20,000 Hours

  • Low Maintenance Commercial Design

  • Supports 30-300 Inch Projection Size

  • Flexible Installation with Keystone Correction

  • Perfect for Classroom & Meeting Room

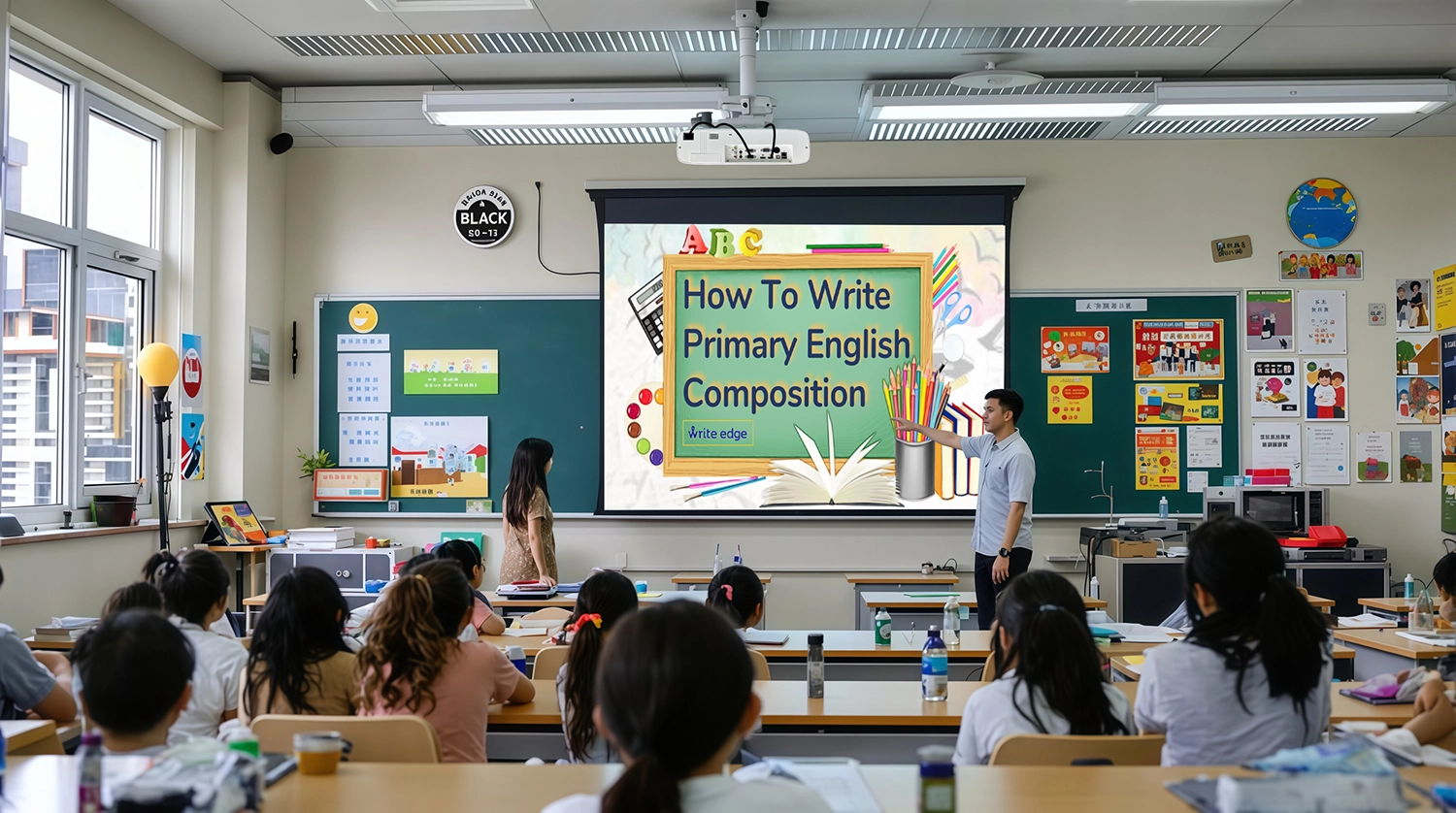

3800 lumens XGA 3LCD Laser Projector for Meeting Room and Classroom.webp

3800 Lumens High Brightness Projection

With 3800 lumens brightness, the projector provides clear and vibrant images even in rooms with ambient lighting. It is ideal for conference rooms, classrooms, and training environments where visibility and readability are essential.

Advanced 3LCD Color Technology

The 3LCD imaging system delivers accurate and vivid colors without rainbow effect, making charts, presentations, and educational content more natural and easier to view.

Long-Life Laser Light Source

The laser engine offers up to 20,000 hours lifespan, reducing maintenance costs and eliminating frequent lamp replacement for long-term commercial operation.

Designed for Education & Business

This projector is optimized for schools, offices, training rooms, and conference environments. It supports stable operation, low noise performance, and flexible installation options.

Flexible Installation

Supports ceiling mount, front projection, keystone correction, and multi-angle installation for convenient deployment in various commercial environments.

Technical Specifications

Brightness

3800 Lumens

Resolution

XGA (1024×768)

Display Technology

3LCD

Light Source

Laser

Light Source Life

20,000 Hours

Projection Size

30-300 Inches

Throw Ratio

1.48~1.78:1

Installation

Front / Ceiling Mount

Applications

Meeting Room / Classroom / Office

Why Choose SMX

  • Professional OEM & ODM Manufacturer

  • 20+ Years Projection Industry Experience

  • Strict Quality Control & Factory Testing

  • CE / FCC / RoHS Certified

  • Fast Global Delivery

  • Professional Commercial Projection Solutions

Get Latest Price

Request Catalog

Become Distributor

Related Projector Solutions

FAQ

Is this projector suitable for classrooms?

Yes. The projector is specifically designed for classrooms, training centers, and educational environments with stable long-term operation.

Does it support business presentations?

Yes. It delivers sharp text and vivid presentation quality for conference rooms and office meetings.

How long does the laser light source last?

The laser light source provides up to 20,000 hours lifespan with low maintenance requirements.

What screen size does it support?

The projector supports projection sizes from 30 inches up to 300 inches.

3800Lumen Laser Projector
Model

Model   No.MX-STD3800X
Brightness3800Lumen
ResolutionXGA
Key parts

PanelSONY 0.63"
Lens MakerRICOH  Lens
Throw Ratio1.48~1.78:1
Zoom   Ratio1.2X Zoom
Light source NICHIA LASER
Overall Spec
Light source
    Life time
FullNormal/Normal   mode20000hrs
ECO1 mode30000hrs
ECO2 mode30000hrs
Projection
    Lens
Lens   VendorRICOH
F2.1~2.25
f19.109~22.936mm
Zoom/FocusManual
Throw Ratio1.48~1.78:1
Zoom   Ratio1.2x optics
Screen size30-300  inch
CRDynamic   Contrast Ratio
    (FOFO)
5000,000:1
Native Contrast Ratio(FOFO)   400:1(Min)
NoiseNoise(dB)37dB(Normal)
30dB(ECO1)
28dB(ECO2)
UniformityUniformity(Actual   Min)
    -ISO21118
80%
ARAspect   RatioNative:4:3
Compatible: 16:9/16:10
Terminal(I/O   port)
InputVGA*1
HDMI *2
Video*1
Audio in
    (mini jack,3.5mm)
*1
Audio in
    (RCA×2) <Audio L/R>
*1
USB-A *1
USB-B*1(Display)
RJ45*1(Display)
OutputVGA*1
Audio out
    (mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1 (Control)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time7000h
Power ConsumptionPower   Requeirements100~240V@ 50/60Hz
Power Consumption
    (Normal) (Max)
235
Power Consumption
    (ECO1) (Max)
175
Power Consumption
    (ECO2) (Max)
160
ECO Standby Mode
    Power Consumption
<0.5W
Temp.&HumidityOperating   Temp.0 to 40°C
Operating Thumidity.20-80%
Storage Temp. -10 to 50°C
Storage Thumidity.10-85%
High altitude 0-3000m
Other   Functions
KeystoneKeystone Correction
    (Lens@center)
V:   ±30°
H: ±30°
4 corner
OSD Languages

26 languages:

English, German, French, Italian, Spanish, Polish, Swedish, Dutch   ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN   Control-RoomView
    (Crestron)
Yes
LAN Control--
    AMX Discovery
Yes
LAN Control--
    PJ Link
Yes
Scanning FrequencyH-Synch   Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer   Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto   SetupINPUT SEARCH,AUTO PC,Auto Keystone
Blank Yes
SuspendYes(5miniutes no singnal as default)
Picture modeDynamic, Standard, Cinema,Colorboard, Blackboard(Green)
Cooling time5s
Closed captionYes
Auto CeilingYes
D-Zoom1~19
Others 360°   projectionYes
Dimension&Weight

MAX   Dimensions
    (WxDxH mm)
390*294*128
Net. Weight (KG)5Kg
Packaging Size
    (WxDxH mm)
492*443*239
Gross. Weight (KG)~6.5Kg
Accessory

Manual   LanguagesChinese,English
Standard AccessariesPower cord,Remote control&RC Battery
