MX-L3700WT
SMX
✔ 3700 Lumens High Brightness
✔ WXGA 1280×800 Resolution
✔ Short Throw Projection Design
✔ 3LCD True Color Technology
✔ Large Screen Projection Experience
✔ Designed for Education & Business Applications

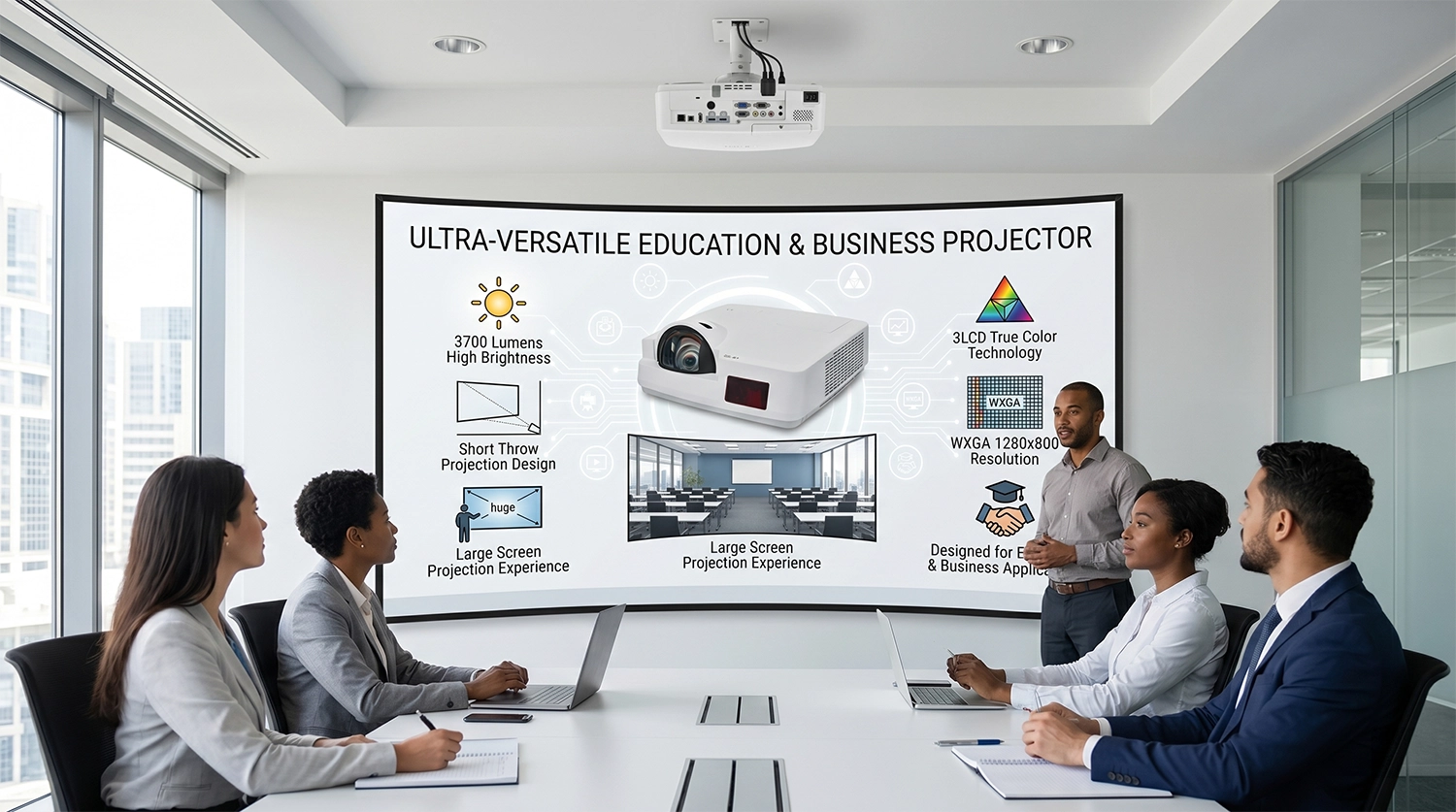

The SMX WXGA short throw 3LCD projector is developed for classrooms, conference rooms, office presentations, and training centers. Featuring 3700 lumens brightness, WXGA 1280×800 resolution, and vivid 3LCD color technology, it delivers bright and immersive projection experiences in compact environments.
3700 Lumens High Brightness Projection
WXGA 1280×800 Clear Resolution
Short Throw Space Saving Design
3LCD True Color Technology
Large Screen Projection in Small Rooms
Reduced Shadow Interference
Low Maintenance Operation
Flexible Installation Capability
HDMI / VGA / USB Connectivity
Designed for Business & Education
The projector is optimized for conference rooms, office collaboration spaces, and training environments where clear presentation quality and space-saving installation are essential.
Short throw technology allows users to create large-screen presentations from a short distance, reducing shadows and improving meeting room efficiency.
With 3700 lumens brightness, the projector delivers vivid and readable presentation content in rooms with moderate ambient lighting.
WXGA resolution provides clear presentation slides, spreadsheets, educational materials, charts, and office documents for daily business and classroom applications.
3LCD projection technology delivers brighter and more natural color performance for presentations, educational content, and multimedia applications.
The projector supports classroom teaching, training presentations, and multimedia learning environments with stable long-term performance.
The short throw design makes the projector ideal for compact meeting rooms and classrooms where installation distance is limited.
Meeting Room
Conference Room
Classroom Teaching
Training Center
Office Presentation
Education AV System
Small Room Projection
Business Collaboration Space
Brightness | 3700 Lumens |
Resolution | WXGA 1280×800 |
Display Technology | 3LCD |
Throw Type | Short Throw |
Projection Size | 50-200 Inches |
Connectivity | HDMI / VGA / USB |
Installation | Flexible Installation |
Applications | Meeting Room / Classroom / Office |
10+ Years Projection Manufacturing Experience
Professional OEM & ODM Projection Solutions
Commercial & Education Projection Expertise
CE / FCC / RoHS Certified
Strict Factory Quality Inspection
Global Projection Installation Projects
Yes. The projector is designed for education, conference rooms, office presentations, and training environments.
Short throw projectors reduce shadows and allow large-screen projection in compact spaces.
The projector features native WXGA 1280×800 resolution for clear business and educational presentations.
Yes. 3LCD technology provides brighter and more natural colors for presentations and multimedia content.
| Main Specification | ||
| Model No. | MX-L3700W | |
| Brightness(Lumen) | 3700 | |
| Optical Data | ||
| Panel | Display Panel | 3x0.59” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WXGA (1280 x 800) | |
| Lamp | Lamp Consumption(W) | Philips:218W |
| Lamp Lifetime(H) | 4000H(Normal) /10000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 80"@0.79m; 0.46 : 1 | |
| F | F=1.8 | |
| f | f=6.08mm | |
| Screen size | 0.484~1.004m(50"~100") | |
| CR | Contrast Ratio(Min) | 10000:1(with IRIS&ECO mode) |
| Noise | Noise(dB)@1m | ECO: MAX 34.9dB; Normal: 38.9dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |

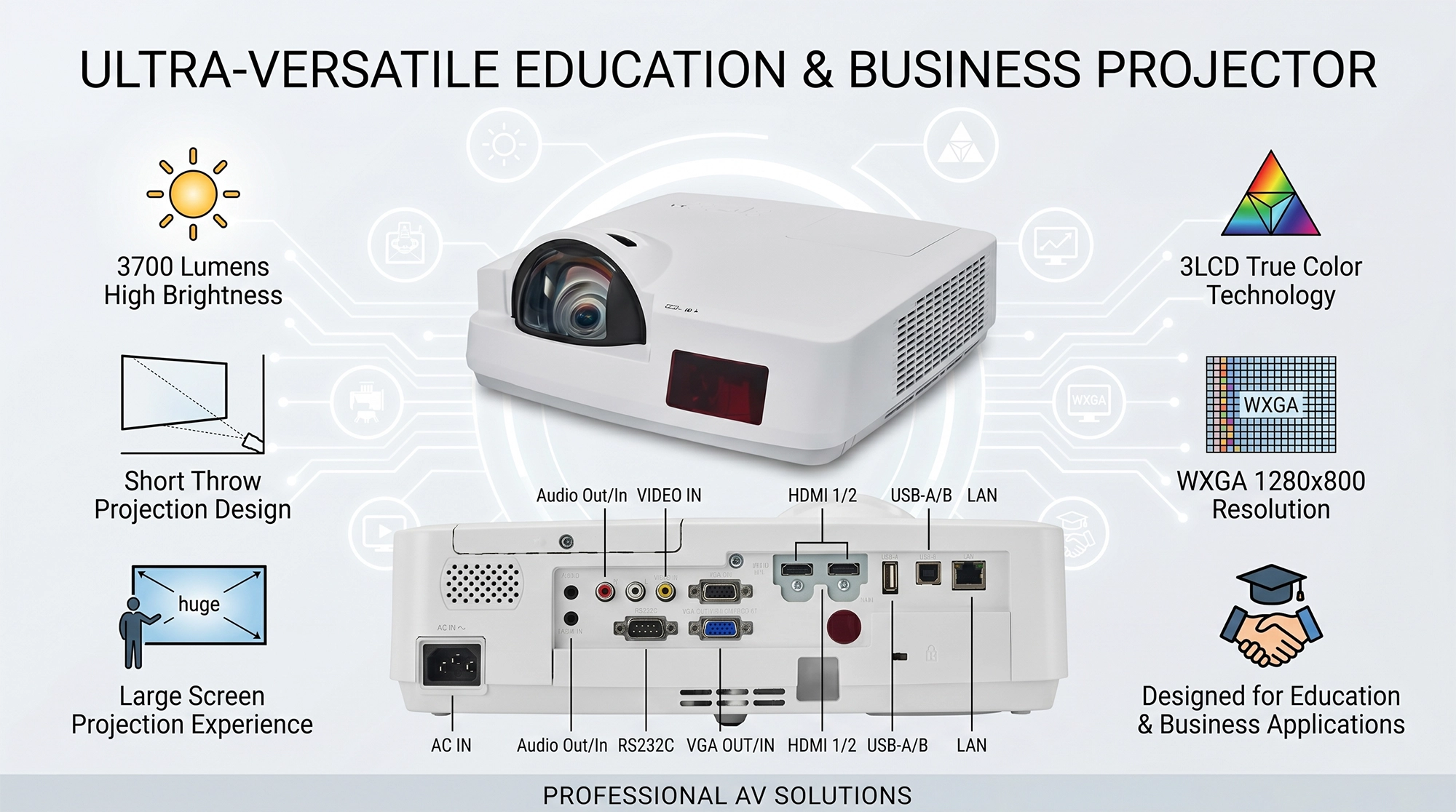

| Terminal (I/O port) | ||
| Input | VGA | *2 |
| Audio in (mini jack,3.5mm) | *1 | |
| YCbCr/Comopnent | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in(L/R) --RCA | *2 | |
| S-Video | *1(share with VGA in1) | |
| HDMI | *2(One is Compatible with MHL) | |
| USB- A | *1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) | |
| USB- B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | VGA | *1(Share with VGA IN 2) |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption | 270W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <3W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±15°(auto+manual) H:±15°(manual) Pincushion/Barrel Correction Corner Keystone |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) | 347*341*141 | |
| Net. Weight (KG) | 4 | |
| Packaging Size (WxHxD mm) | 463*458*211 | |
| Gross. Weight (KG) | 5.5 | |
| Accessory | ||
| Manual Languages | Chinese, English,Korean | |
| Standard Accessaries | Power cord, HDMI cable,Remote control | |
