Professional 12000 ANSI Lumens Laser Projection Solution for Large Venues & Immersive Experiences

MX-X12000U
Brightness: 12000Lumen
Resolution: WUXGA(1920x1200)
Contrast: 100000:1
Zoom/Focus: Manual
Availability:
Quantity:
Inquire Add to Basket

  • MX-X12000U

  • SMX

12000 ANSI Lumens Professional Laser Projector

Large Venue Projection Solution for Immersive Exhibition, Projection Mapping and Commercial AV Installations

Professional Projection Performance Beyond Brightness

The SMX MX-X12000U is a high-brightness 12000 ANSI lumens laser projector designed for professional visual applications. Combining advanced 3LCD laser technology, long-life laser reliability, and flexible installation features, it delivers exceptional image quality for museums, exhibitions, auditoriums, stage events, and large commercial spaces.

Designed for Professional Applications

12000 Lumen 3LCD Laser Projector SMX Projector Factory.png

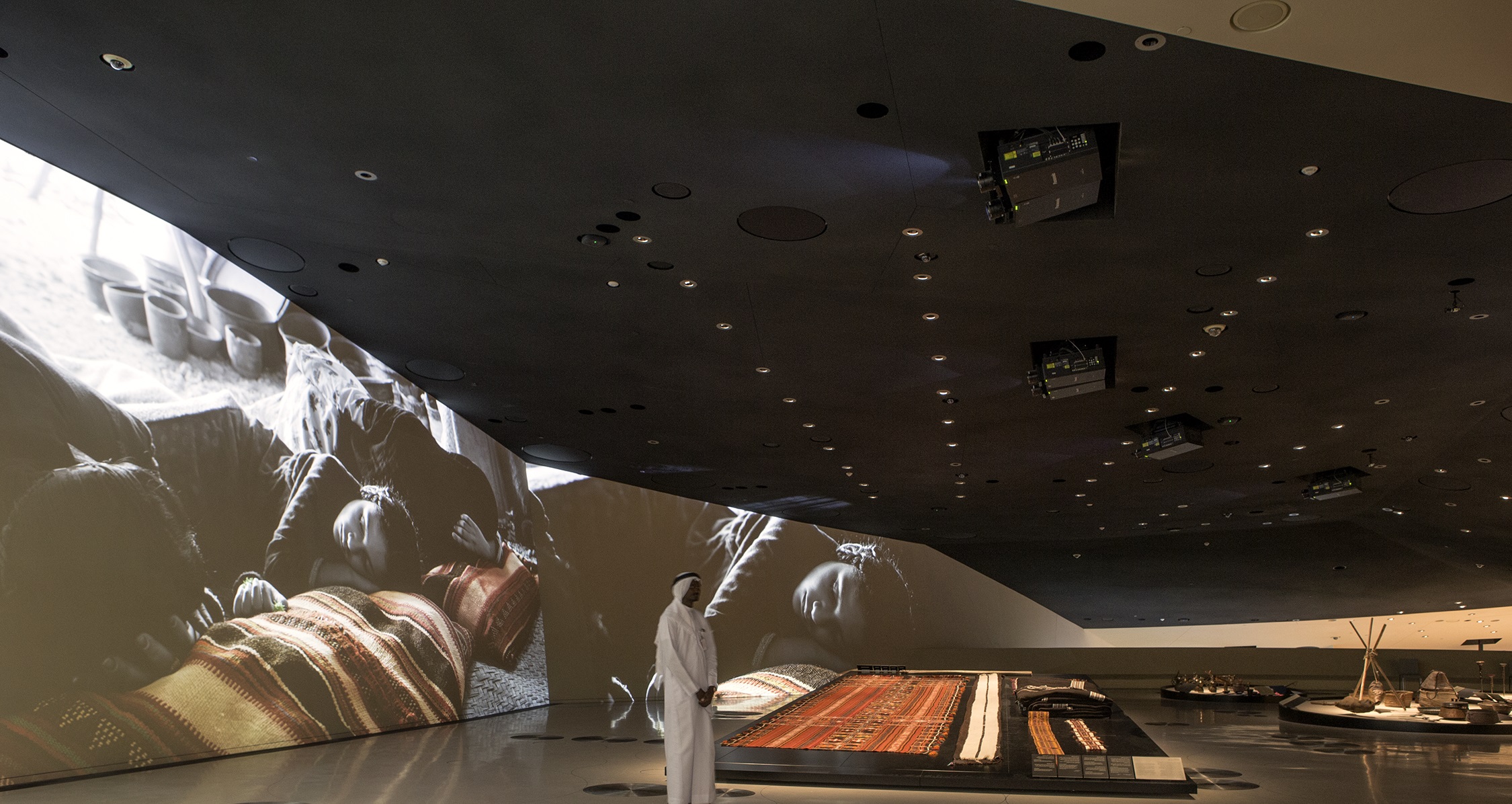

Immersive Museum & Digital Exhibition

MX-X12000U delivers powerful brightness and accurate color performance for immersive environments where image quality and reliability matter.

Advantage:

  • High brightness for large projection areas

  • Smooth color performance

  • Long-life laser operation

  • Low maintenance design

Application：

  • Digital Museum

  • Immersive Art Exhibition

  • Science Center

  • Cultural Exhibition

Museum Digital Exhibition laser projector

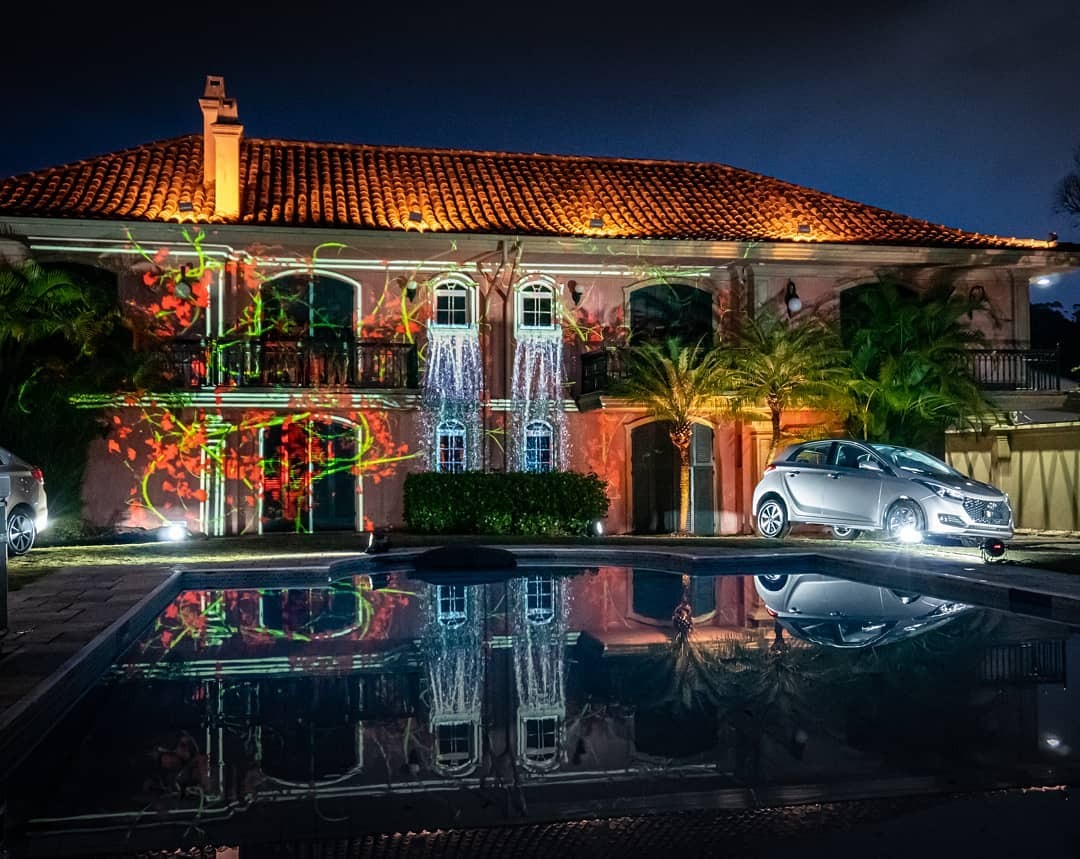

Professional Projection Mapping Performance

Perfect for indoor mapping, art installations, and creative visual projects.

Support:

  • Edge blending

  • Geometry Correction

  • Multi-projector Installation

Suitable for:

  • Indoor/Outdoor Mapping

  • Art Installation

  • Theme Exhibition

Laser Projector for building mapping projection.jpg

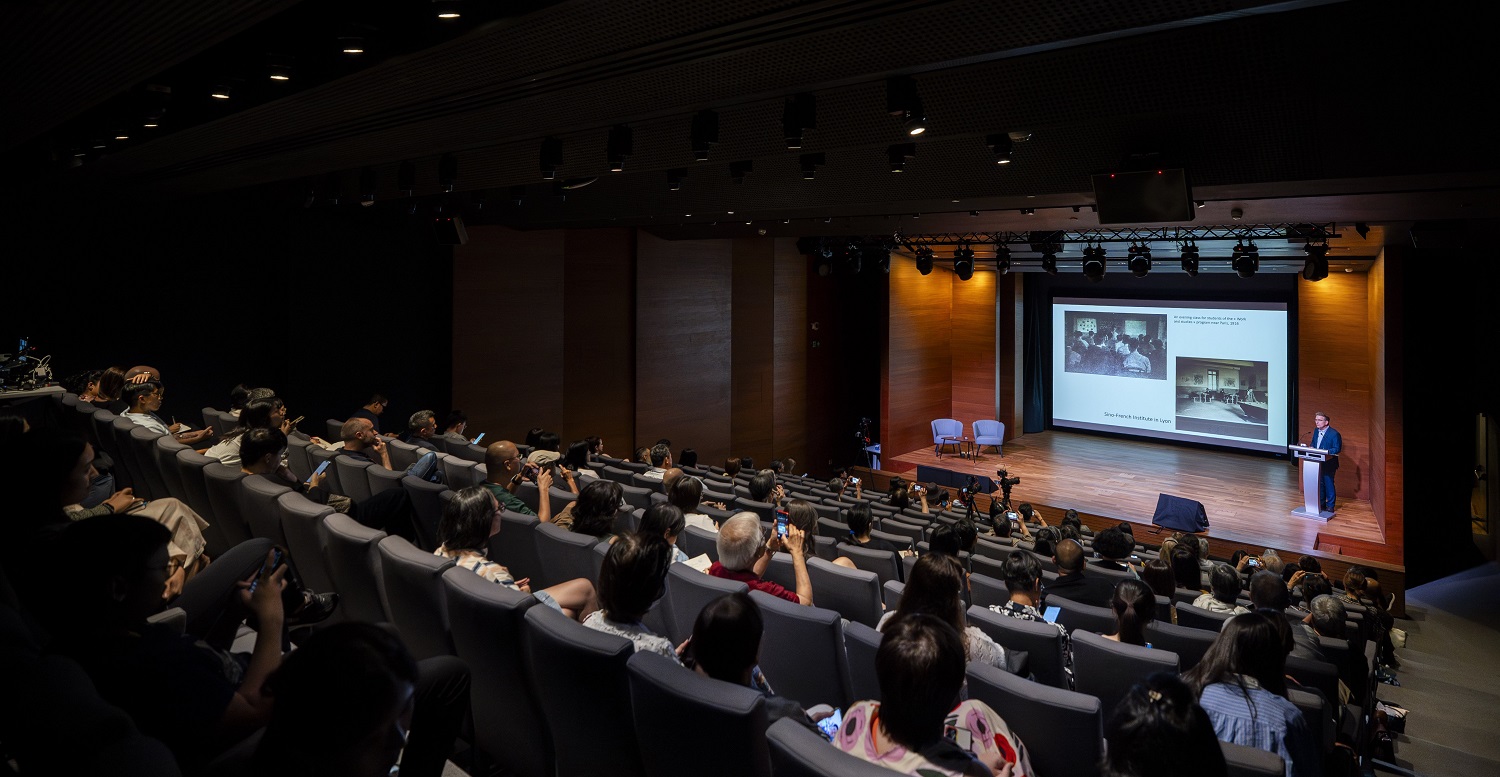

Large Auditorium & Conference Center

Deliver bright and detailed images for universities, conference centers, and corporate halls.

Advantage:

  • Bright images in large spaces

  • 4K signal compatibility

  • Flexible lenses options

  • Professional installation

Large Auditorium & Conference Center Laser Projector.jpg

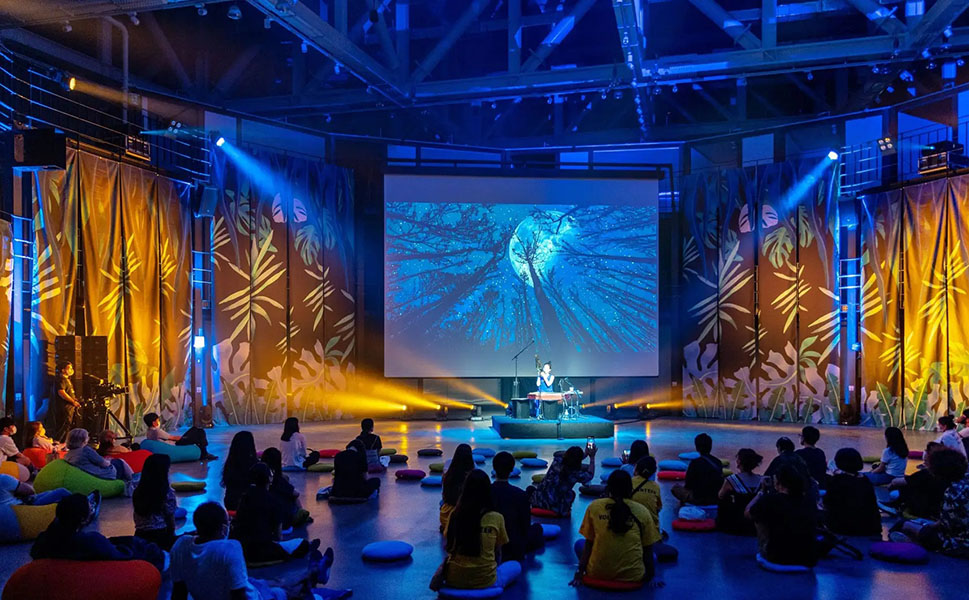

Stage Event & Performance

Reliable laser projection solution for concerts, shows, and professional events.

Support:

360° Installcation

Portrait Projection

Edge Blending

Application:

  • Concert

  • Product Launch

  • Corporate Event

  • Theater

Large Venue Live Events laser projector.jpg

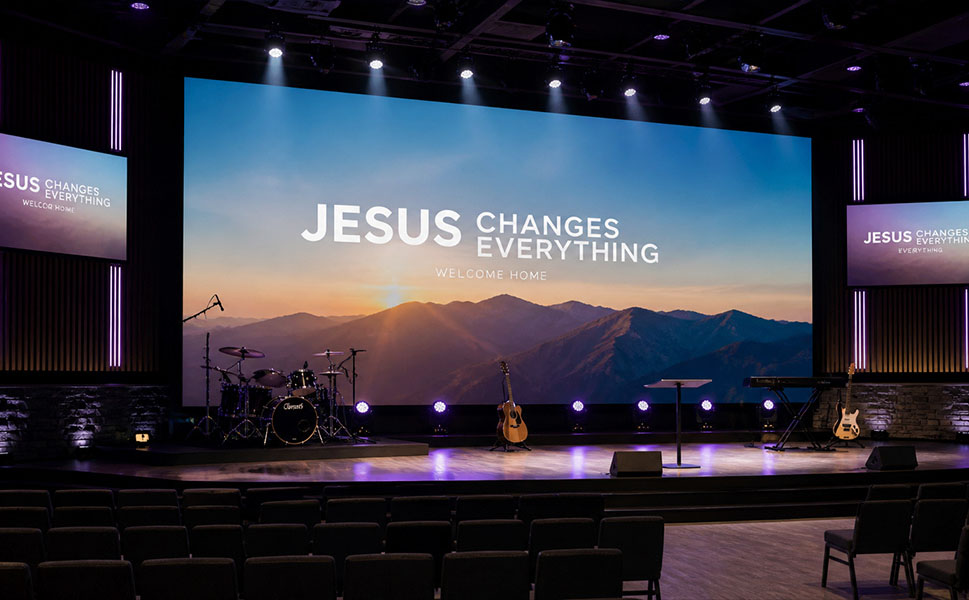

Church & Worship Venue

Church House of Worship Projector.jpg

Key Features of MX-X12000U

12000 ANSI Lumens

Powerful brightness output for large screens and professional projection environments.

3LCD Laser Technology

Superior color brightness, accurate image reproduction, and smooth visuals.

20,000+ Hours Laser Life

Long-lasting laser light source reduces maintenance costs and downtime.

Edge Blending & Flexible Installation

Supports edge blending, geometry correction, lens shift, and 360° installation.

Professional Visual Experience Solution

From immersive exhibitions to large venues, MX-X12000U provides reliable projection performance for designers, integrators, and commercial AV professionals.

  • Immersive Digital Museum Solution

  • Large Venue Projection System

  • Projection Mapping Installation

  • Professional Event Projection

  • Corporate Experience Center Display

Technical Specifications

Brightness

12000 ANSI Lumens

Technology

3LCD Laser

Resolution

WUXGA / 4K Input Compatible

Laser Life

20,000+ Hours

Installation

360° Projection / Edge Blending / Geometry Correction

OEM & ODM Custom Projection Solutions

SMX provides customized projector solutions for global distributors, AV companies, and professional projection brands.

  • Logo Customization

  • Housing Customization

  • Packaging Design

  • Technical Support

SMX Laser Projector Factory (2).png

Frequently Asked Questions

What applications are suitable for a 12000 lumen laser projector?

It is ideal for immersive museums, projection mapping, auditoriums, stage events, and commercial installations.

Can MX-X12000U support projection mapping?

Yes. With edge blending and geometry correction, it supports professional projection mapping projects.

Does SMX provide OEM service?

Yes. SMX offers OEM and ODM customization for global projector brands and distributors.

Contact SMX Professional Laser Projector Manufacturer

Model

ModelMX-X12000U
Brightness

Brightness
 ( Ansi Lumens )		12000lumen
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source lifetimeNormal mode20000hrs
ECO mode20000hrs
Projection LensLens TypeZoom Lens
Zoom/FocusMotorized
Throw Ratio（16:10）0.79-1.11
F#(Wide-Tele)2.0~2.5
f(mm)13.3-18.6
Zoom   Ratio1.4
Screen size50-500 inch
Lens Shift V+50%，-10%
Lens Shift H±20%
CRContrast Ratio100,000:1
NoiseNoise(dB)Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
UniformityUniformity80%
ARAspect RatioNative:16:10
Compatible: 4:3/16:9/normal
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1（5V/1.5A)
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)Optional
Audio in
(mini jack,3.5mm）		*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
(mini-jack,3.5mm）		*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requirements100~240V@ 50/60Hz
Power Consumption
(Boost) (Max)		850
Power Consumption
(Normal) (Max)		750
Power Consumption
(ECO1) (Max)		650
Power Consumption
(ECO2) (Max)		450
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating Temp.5 to 40°C
Operating Humidity20-80%
Store Temp.-10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSDLanguages

26 languages:

English, German, French, Italian, Spanish, Polish,   Swedish, Dutch,  Portuguese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi

LAN ControlLAN Control-RoomView
(Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH, AUTO PC,
BlankYes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic, Standard, Cinema, Colorboard, DICOM, blackboard (green)
Cooling time0s,30s,Normal
Closed captionN/A
High altitudeYes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
    (WxHxD mm)		600*218*503
Net. Weight (KG)~24kg

Accessory


Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black), Remote control
