10000 Lumens WUXGA 3LCD Laser Projector for Large Venue & Projection Mapping | SMX

MX-X10000U
Brightness: 10000Lumen
Resolution: WUXGA(1920x1200)
Contrast: 100000:1
Zoom/Focus: Manual
Availability:
Quantity:
Inquire Add to Basket

  • MX-X10000U

  • SMX

10000 Lumens WUXGA 3LCD Laser Projector

Professional solution for large venues, outdoor projection, and 3D mapping.

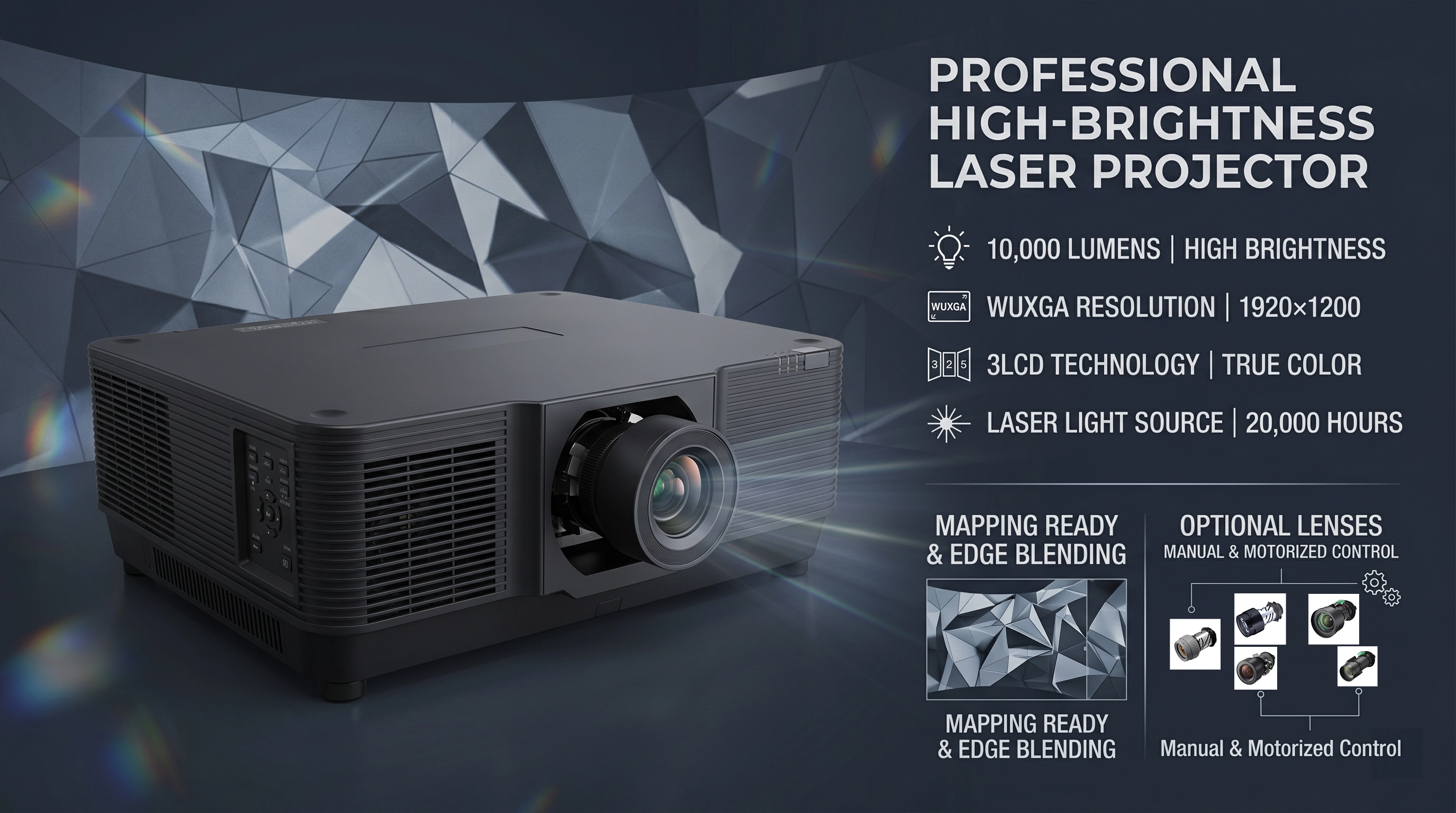

10000 Lumens WUXGA 3LCD Laser Projector.webp

10000 Lumen Large Venue Laser Projector

This 10000 lumens WUXGA 3LCD laser projector is designed for large-scale installations, including auditoriums, outdoor events, and projection mapping applications.

With high brightness and advanced optical performance, it ensures clear and vivid images even in environments with ambient light.

Key Features

  • 10000 Lumens Brightness – Ideal for large spaces

  • WUXGA Resolution – High image clarity

  • 3LCD Technology – Accurate color performance

  • Laser Light Source – 20,000 hours lifespan

  • Flexible Installation – Lens shift & keystone correction

  • Projection Mapping Ready – Supports creative installations

Applications

  • Large venue projection

  • Outdoor projection

  • 3D projection mapping

  • Auditoriums & theaters

  • Events & exhibitions

laser projector for mapping WUXGA.webp

Specifications

Item

Specification

Brightness

10000 Lumens

Resolution

WUXGA (1920×1200)

Display

3LCD

Light Source

Laser

Contrast Ratio

5,000,000:1

Lifespan

20,000 Hours

Installation

360° Installation

Lens

Optional Lenses

Why Choose a 10000 Lumens Projector?

A 10000 lumen projector is ideal for large venues where high brightness is required. It ensures clear images even on large screens and in environments with ambient light.

For projection mapping and outdoor installations, high brightness projectors provide better visibility and impact.

Related Solutions

Build Your Projection Project

Contact SMX for engineering solutions, OEM services, and pricing.

Get Quote

OEM Project

All Products

Model

ModelMX-X10000U
Brightness

Brightness
( Ansi Lumens )		10000lumen
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source Life timeNormal mode20000hrs
ECO mode20000hrs
Projection LensLens TypeZoom Lens
Zoom/FocusMotorized
Throw Ratio（16:10）0.79-1.11
F#(Wide-Tele)2.0~2.5
f(mm)13.3-18.6
Zoom Ratio1.4

Screen size

(Performance guarantee range)

50-500 inch
(80-200 inch)
Lens Shift V+50%，-10%
Lens Shift H±20%
CRContrast Ratio(Min)1000,000:1
NoiseNoise(dB)Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
UniformityUniformity(Actual Min)
-JISX6911		80%
ARAspect RatioNative:16:10
Compatible: 4:3/16:9/normal
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1（5V/1.5A)
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
Audio in
(mini jack,3.5mm）		*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
(mini-jack,3.5mm）		*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
(Boost) (Max)		850
Power Consumption
(Normal) (Max)		750
Power Consumption
(ECO1) (Max)		650
Power Consumption
(ECO2) (Max)		450
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating Temp.5 to 40°C
Operating Thumidity.20-80%
Store Temp.-10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSDLanguages

26 languages:

English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN Control-RoomView
 (Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,
BlankYes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic，Standard，Cinema，Colorboard，DICOM,blackboard（green）
Cooling time0s,30s,Normal
High altitudeYes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
 (WxHxD mm)		600*218*503
Net. Weight (KG)~24kg
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black), Remote control
