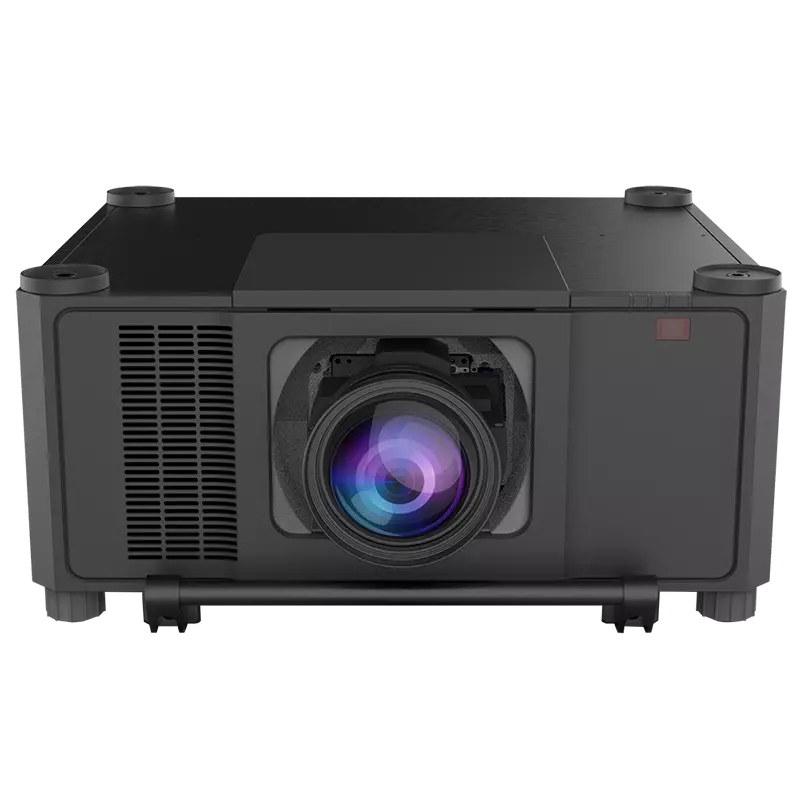

22000 Lumens High Brightness Laser Projector for Large Venue & Mapping Projects

  • Ultra high brightness 22000 ANSI lumens for professional environments
  • Designed for projection mapping, events, museums, and large venues
  • Stable laser light source with long operational lifespan
  • Supports flexible installation with lens shift and edge blending
Availability:
Quantity:
Inquire Add to Basket

  • MX-X22000U

  • SMX

22000 Lumens High Brightness Laser Projector for Large Venue & Mapping Projects


WUXGA Resolution | 3LCD Laser Engine | Dual-Color Light Source | OEM & ODM Available



The SMX MX-L22000U is a professional high-brightness laser projector designed for large-scale visual applications.


With up to 22000 lumens output and WUXGA resolution, it delivers consistent image quality in demanding environments such as projection mapping, exhibition halls, theme parks, and live events.


Built with a 3LCD laser optical engine, the system ensures accurate color reproduction, high stability, and long-term reliability for continuous commercial operation.


SMX-22000-Lumens-Laser-Projector



Where can this projector be used?

Projection Mapping Projects

Ideal for building façades, city events, and immersive visual shows.


Museum & Exhibition Display

High brightness ensures a clear and vivid visual presentation in controlled lighting environments.


Large Venue & Stage Events

Suitable for concerts, theaters, and indoor/outdoor performance venues.


Immersive Experience Spaces

Supports multi-projector edge blending for 360° immersive environments.



Why professionals choose MX-L220U



1. High Brightness Stability


Designed for continuous use in demanding environments without brightness degradation.


2. Dual Color Laser & 3LCD : Unmatched Color Fidelity


Unlike standard laser projectors, our Dual Color Laser system (utilizing both Red and Blue lasers) dramatically expands the color gamut. Paired with 3LCD technology, it provides 100% color brightness balance, eliminating the "rainbow effect" and delivering natural, lifelike skin tones and branding-accurate colors.


3LCD-Laser-Projector-22000 - Lumens


3. WUXGA Resolution with 4K Support


With native WUXGA (1920x1200) resolution in a 16:10 aspect ratio, the MX-L22000U provides significantly more vertical workspace than standard 1080p. It is fully compatible with 4K signals, ensuring your system is future-proofed for high-resolution content.


SMX-22000-Lumens-Laser-Projector-Mapping


4. 20,000-Hour Maintenance-Free Operation


The industrial-grade laser engine supports 24/7 continuous operation. With a fully sealed, dust-proof optical engine and a liquid cooling system, you can forget about lamp replacements and filter cleanings, significantly lowering the Total Cost of Ownership (TCO).


Laser-projector-Mapping-projection


5.  5,000,000:1 High Contrast


Experience cinematic clarity and professional precision with our high-performance projector, engineered to transform any viewing environment. Featuring an extraordinary 5,000,000:1 dynamic contrast ratio, this unit delivers deep, ink-black levels and brilliant, piercing highlights that bring your content to life with breathtaking realism.


3LCD-Laser-Projector-High-Contrast


6. Keystone Correction


  • V: ±30°，H：±30°

  • Pincushion/Barrel  Correction,

  • 6 Corner Geometry correction

  • Grid ImageTune correction


Laser-Projector-Keystone-Correction



Installed in Professional Projects Worldwide


SMX projectors are used in:

  • Museum exhibitions

  • Large-scale projection mapping events

  • Entertainment venues

  • Educational institutions

  • Commercial immersive installations

We support integrators in more than 50 countries with reliable projection solutions.


Laser-projector-3D-Mapping-projection


Main Technical Specifications


Attribute

Specification

Model Number

MX-L22000U

Brightness

22,000 ANSI Lumens

Display Technology

3 x 0.76" 3LCD Panels

Light Source

Dual Color Laser (Red & Blue)

Native Resolution

WUXGA (1920 x 1200)

Contrast Ratio

5,000,000:1 (Dynamic)

Lens Options

Multiple Interchangeable Lenses (Optional)

Geometry Correction

4-Corner, 6-Corner, Grid ImageTune

Installation

360° Omnidirectional

Connectivity

HDMI, HDBaseT, DVI-D, SDI (Opt), LAN

Net Weight

Approx. 50kg (without lens)


OEM & ODM Laser Projector Manufacturing


SMX provides full OEM and ODM customization services for global partners.


We support:

  • Custom brightness configuration

  • Product housing modification

  • Firmware interface customization

  • Logo and brand integration

  • Packaging and documentation customization

Our engineering team works directly with integrators and distributors to support project-based requirements.


Frequently Asked Questions


What is a 22000-lumen projector used for?

It is mainly used for large venues, projection mapping, and professional visual installations that require high-brightness output.


Is this projector suitable for outdoor use?

Yes, it can be used in controlled outdoor environments or nighttime projection mapping projects.


Do you support OEM customization?

Yes, SMX provides full OEM and ODM customization services.


What is the lifespan of the laser light source?

The laser system is designed for long-term commercial use with stable performance over extended operation hours.


Key parts

Model   No.MX-X22000U
Brightness
    ( Ansi Lumens )		22,000.00
ResolutionWUXGA (1920 x   1200)
Light sourceDual-Color   Laser(Blue+Red)
Overall Spec
PanelDisplay   Panel3x1.0”
Display TechnologyLiquid Crystal   Display
Native ResolutionWUXGA (1920 x   1200)
Laser LifetimeNormal   mode20000hrs
ECO mode30000hrs
Projection Lens (STD)Zoom/FocusMotorized
Throw Ratio（16：10）1.24-2.01   @100inch
F1.8-2.24
f27.7-44.3mm
Zoom Ratio1.62
Screen size60-500 inch
Lens ShiftV: ±65% H:±25%
CRContrast   Ratio(Min)3,000,000:1
NoiseNoise(dB)41dB
UniformityUniformityTYP：90%
ARAspect   RatioNative:16:10
    Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)*1（Display）(Optional)
Audio in（mini jack,3.5mm）*1 (VGA/DVI-D   share)
DMX512*1
OutputHDMI   1.4(OUT)*1
Audio out（mini-jack,3.5mm）*1
ControlRS232C（Input）*1
RS232C（Output）*1
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
AudioSpeakerN/A
Power ConsumptionPower   Requirements120~240V@ 50/60Hz
Power Consumption
    (Full) (Max)		1520W
Power Consumption
    (Normal) (Max)		1400W
Power Consumption
    (ECO1) (Max)		1155W
Power Consumption
    (ECO2) (Max)		795W
ECO Standby Mode
    Power Consumption		<0.5W
Temp.&HumidityOperating   Temp.0 to 45°C
Operating Thumidity.20%-80%
Store Temp. -10 to 50°C
Store Humidity.20%-80%
Other Functions
KeystoneKeystone   CorrectionV: ±30°，H：±30°

Pincushion Correction

Barrel  Correction

6 Corner

Geometry correction

Grid ImageTune correction
OSDLanguages26 languages:
    English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazakh, Vietnamese, Thai,  Farsi
LAN ControlLAN   Control-RoomView (Crestron)Yes(Crestron   1.0)
LAN Control-AMX DiscoveryYes
LAN Control-PJ LinkYes
Scanning FrequencyH-Synch   Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer   Signal InputVGA, SVGA, XGA,   SXGA, WXGA, UXGA, WUXGA,4K@30Hz
Video Signal Input480i, 480p,   576i, 576p, 720p, 1080i and 1080p
SW settingAuto   SetupINPUT   SEARCH, AUTO PC,
BlankYes
SuspendYes(5miniutes no   singnal as default)
Picture modeBright， Standard， Cinema, Colorboard, DICOM
    ,Blackboard(Green) ,Advanced
Cooling time0s,30s,Normal
High altitudeYes(0~3640m)
Auto CeilingYes
D-Zoom1~33
Others

360°   projectionYes
Edge BlendingYes
Adjustable brightnessYes
Lens position memory, lens locking functionYes
Closed dustproof design, free of maintenance   and replacement of the filter screenYes
DMX512Yes
Timing functionYes
Safety redundant circuitYes
Dynamic power control specificationsYes
Dimension&Weight

Product   size (WxHxD mm)655*311*664
Net. Weight (KG)38.7KG
Packing Size (WxHxD mm)810*741*442
Gross. Weight (KG)46KG
Accessory

Manual   LanguagesChinese, English
Standard AccessoriesPower   cord(3m,Black), HDMI Cable, Remote control


Optional Lenses
Model No.MX-EG05ZLMMX-EG06ZLMMX-EG08ZLMMX-EG12ZLMMX-EG20ZLMX-EG39ZLM
Image circleΦ34.6Φ35.5Φ37.9Φ37.9Φ37.9Φ37.9
Lens TypeZoom   Lens ST3Zoom   Lens ST2Zoom   Lens ST1Zoom   Lens STDZoom   Lens L1Zoom   Lens L2
Zoom/FocusMotorizedMotorizedMotorizedMotorizedMotorizedMotorized
F#(Wide-Tele)1.94   - 2.201.84   - 2.251.80-2.241.80-2.241.84-2.581.85   - 2.41
f(mm)12.0   - 14.614.4   - 19.119.0-27.627.7-44.343.8-86.086.2   - 164.8
Throw ratio(16:10)0.53-0.650.65-0.870.86-1.251.24-2.011.98-3.953.95-7.51
Zoom Ratio1.231.341.451.621.991.9
Lens shiftH±20%±20%±25%±25%±25%±25%
V±50%±55%±65%±65%±65%±65%
Screen Size60-500inch60-500inch60-500inch60-500inch 60-500inch60-500inch
Weight(Kg)  ±0.2kg5.305.155.054.104.954.55


download SMX 22000 Lumen 3LCD Laser Projector WUXGA -- Specification.pdf
