SMX MX-VL650U Projector 6500 Lumen WUXGA Laser Projector 3LCD for For Business

MX-VL650U
​Brightness: 6500Lumen
Display Panel: 3x0.64” LCD
Resolution: WUXGA (1920x1200)
Contrast: 5,000,000:1
Throw Ratio: 1.3(wide)-2.2(tele)
Aspect Ratio: 16:10/16:9/4:3
Speaker: 16W*1
Life Time: 30,000 Hours
Availability:
Quantity:
  • MX-VL650U

  • SMX

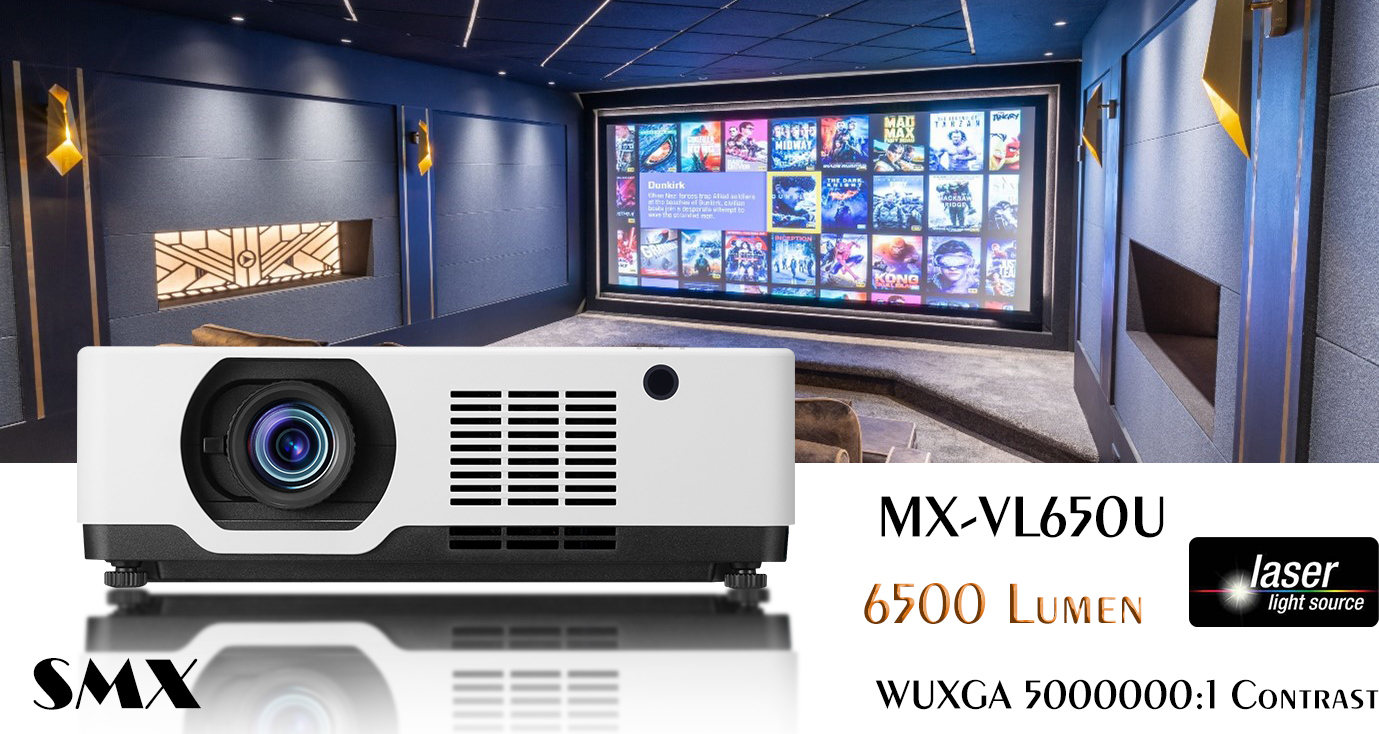

SMX MX-VL650U Projector 6500 Lumen WUXGA Laser Projector 3LCD for Home Cinema



Laser-projector-6500-Lumen-3LCD-Laser-Projector-WUXGA-SMX


6,000 ANSI lumens of brightness delivers accuracy and clarity, even in brightly lit conference rooms without loss of picture quality, magnifying productivity of business meetings.


Key Features:


  • 6500 lumens brightness with 80% uniformity

  • 5,000,000: 1 contrast ratio

  • Native WUXGA resolution

  • Support 4K input

  • Long life 20,000 hour laser,up to 30,000 hour under ECO model

  • Len Shift: V:+60%~0%、H:±29%

  • 360° Projection

  • Compatible with LAN-Crestron ToomView,AMX Discovery and PJ Link



Len Shift:


Len Shift


Keystone Correction:


install


5000000:1 Dynamic Light Control for High Contrast



5000lumen ust projector


life time


6500lumne laser projector6500lumne laser projector


Model
MX-VL650U

Brightness Lumen6500
Native ResolutionWUXGA   (1920 x 1200)
Overall Spec
PanelDisplay Panel3x0.64"  with MLA
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source Life timeFullNormal/Normal   mode 20000hrs
ECO1 mode 30000hrs
ECO2 mode30000hrs
Projection LensLens VendorRICOH Lens
F1.5~2.08
f17.2~27.7mm
Zoom/FocusManual
Throw Ratio1.3(wide)-2.2(tele)
Zoom Ratio1.6
Screen size30-300  inch
Lens Shift V:+60%~0%、H:±29%
CRContrast Ratio (FOFO)5000000:1
NoiseNoise(dB)37dB   (Normal)
    29dB (ECO1)
    27dB (ECO2)
UniformityUniformity(Actual Min)
    -JISX6911
80%
ARAspect   RatioNative:16:10 / Compatible: 4:3/16:9
Terminal(I/O port)
InputVGA*1
HDMI 1.4B(IN)*2
USB-A*1
USB-B*1   (Display)
RJ45*1   (Display)

Audio in

(mini jack,3.5mm)

*1
OutputVGA*1
Audio out
(mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1   (Control)
USB-B*1   (For upgrade)
General Spec
AudioSpeaker16W*1
Dust filter W/Filter
Filter Life time8000h
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
(Normal) (Max)
350
Power Consumption
(ECO1) (Max)
240
Power Consumption
(ECO2) (Max)
220
ECO Standby Mode
Power Consumption
<0.5W
Temp.&HumidityOperating Temp.0   to 40°C
Operating Thumidity.20-85%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other Functions
KeystoneKeystone Correction
(Lens@center)
V:   ±30°
    H:±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    4 Corner Correction
    Grid image tune
OSD Languages

26   languages:

English, German, French, Italian, Spanish, Polish, Swedish, Dutch   ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean,   Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian,   Czech, Kazak,Vietnamese,Thai, Farsi

LAN ControlLAN Control-RoomView
(Crestron)
Yes
LAN Control--
AMX Discovery
Yes
LAN Control-- PJ Link Yes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i,   480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,Auto Keystone
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic,   Standard, Cinema, Colorboard, sim-DICOM ,Blackboard(Green)
Cooling time0s、normal、30s
Auto CeilingYes
D-Zoom1~33
Others 360° ProjectionYes
Dimension&Weight

MAX Dimensions
(WxDxH mm)
405(W)*358(D)*137(H)
Net. Weight (KG)~7.9KG
Packaging
(WxDxH mm)
510 (W)*498(D)*260(H)
Gross. Weight (KG)~10.4KG
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord (EU) /power cord (Ja) / Remote control
