MX-LK7500K
SMX

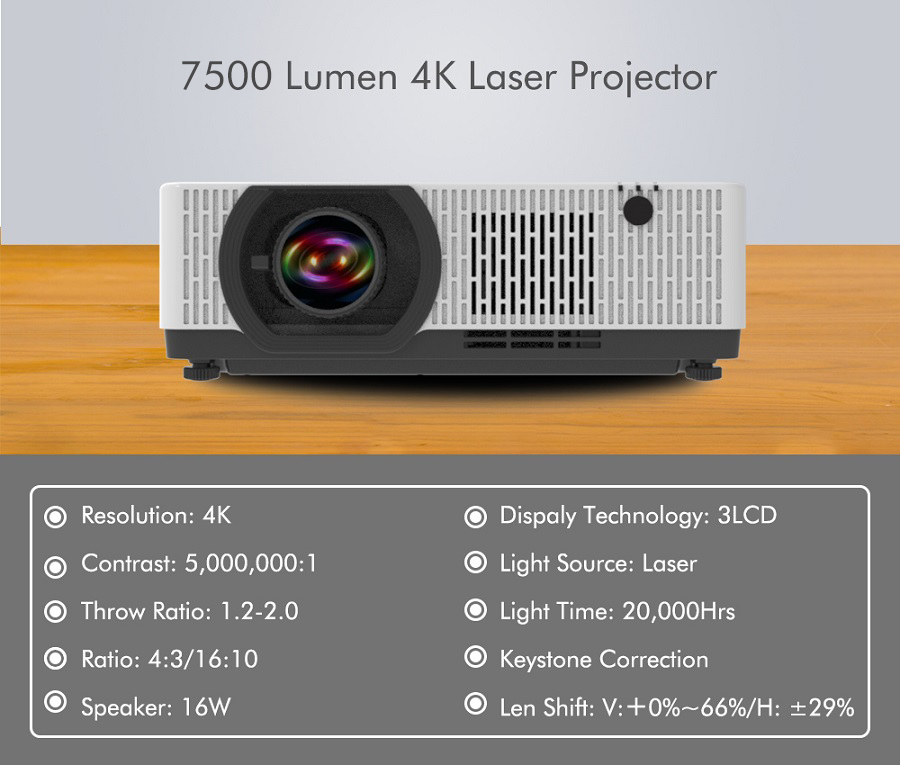

The SMX MX-LK7500K Laser Projector is the brightest choice for large venue applications, featuring superior 7,500 ANSI-lumen brightness and 5,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting.
Laser engine delivers superior color performance , support for 360° proejction and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities.
7500 Lumens High brightness, color precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.Supply wide range of installation possibilities, perfect for museums, entertainment veues and large corporate spaces.
Len Shift
Keystone Correction
Specification
| Model No. | MX-LK7500 | |
| Key parts | ||
| Lens Maker | RICOH Lens | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6X Zoom | |
| Light source | NICHIA LASER | |
| Brightness | ||
| Brightness(Lumen) | 7500 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K Enhancement | |
| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+0%~66% H:±29% | |
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) TBD | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity-JBMA | 80% |
| AR | Aspect Ratio | Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI 2.1(IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini jack,3.5mm) | *1 | |
| Control | RJ45 | *1 (Control) |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 435 | |
| Power Consumption (ECO)(Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H：±25° 4 Corner Correction |
| OSD | Languages | English, Chinese, |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| Voice control | Near-field RC voice | |
| Bluetooth | Bluetooth Version 5.0 | |
| Wireless Projection Function | Optional | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405（W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Box Dimensions (WxDxH mm) | 510（W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power Cord,Remote control, HDMI Cable | |
