Large Venue SMX Laser Projector 10000 Lumens WUXGA 3LCD Projector Outdoor 3D Mapping

MX-X10000U
Brightness: 10000Lumen
Resolution: WUXGA(1920x1200)
Contrast: 100000:1
Zoom/Focus: Manual
Availability:
Quantity:
Inquire Add to Basket

  • MX-X10000U

  • SMX

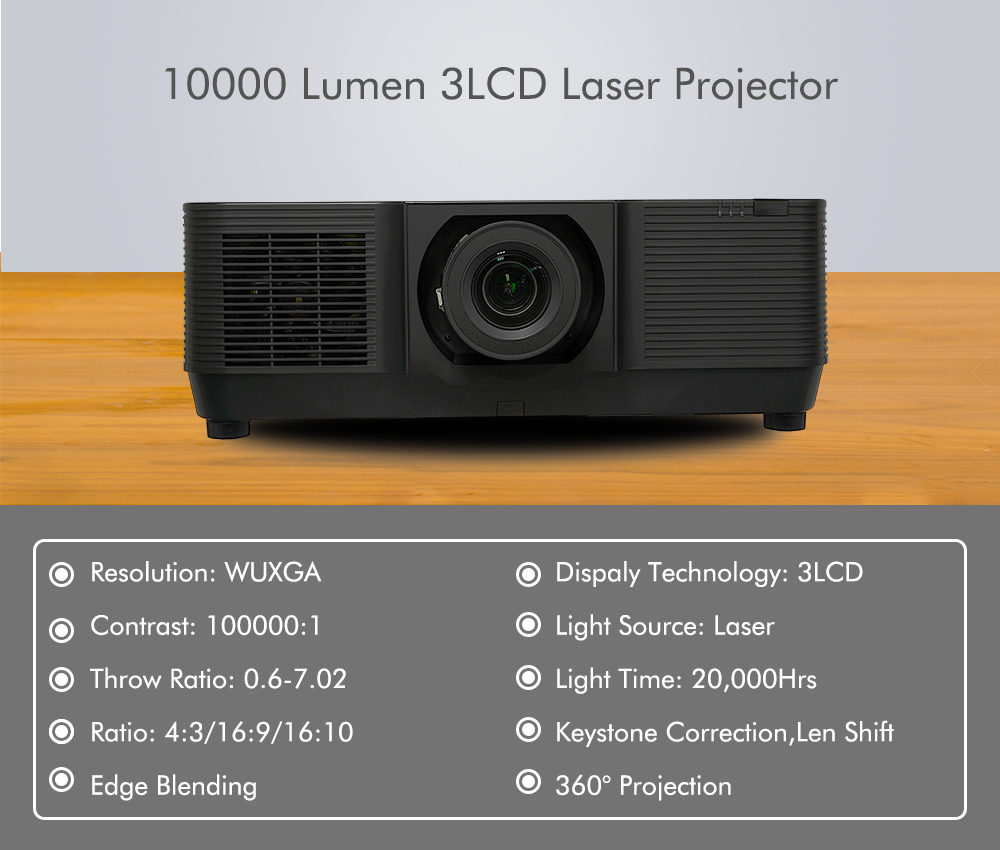

Large Venue SMX Laser Projector 10000 Lumens WUXGA 3LCD Projector


SMX-X10000U large-venue projector combines a laser light source, inorganic components and 3LCD technology for powerful images. Ideal for events staging, auditoriums and meeting room, this projector features native WUXGA performance . Offering extraordinary color brightness supply brilliant images.


Feature:

  • Brightness: 10000 lumens high brightness

  • Resolution: WUXGA 1920x1200

  • Lens Shift: V: +50%, -10% ,  H: ±20%

  • Contrast: 3,000,000:1

  • Control：LAN Control-RoomView/LAN Control-AMX Discovery/LAN Control-PJ Link

  • Input: Support 4K input

  • Throw Ratio: 0.79-1.11，save space


Lens:

Lens Shift:

  • Lens Shift  V: +50%，-10%

  • Lens Shift H: ±20%


Monalisa-变焦


Keystone Correction:

  • V: ±30°

  • H: ±30°

  • Pincushion/Barrel Correction

  • 6 Corner Geometry correction

  • Grid ImageTune correction

Monalisa-校正


Lens for Choice:


Lens for Choice - 副本

Projection Distance:

Projection

16:10 (Len Model : OL-MX40ZLM)

Projection Size

(Inch)

Image Width H

(m)

Image Height (B1+B2)

(m)

Min Projection Distance A

(m)

Max Projection Distance A

(m)
100 2.154 1.346 1.698 2.395
150 3.231 2.019 2.567 3.614
250 5.385 3.365 4.304 6.051
300 6.462 4.039 5.173 7.269
400 8.616 5.385 6.910 9.706
500 10.770 6.731 8.647 12.143


Products

12000lumen laser projector - smx

Model

ModelMX-X10000U
Brightness

Brightness
    ( Ansi Lumens )		10000lumen
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source Life timeNormal mode20000hrs
ECO mode20000hrs
Projection LensLens TypeZoom Lens
Zoom/FocusMotorized
Throw Ratio（16:10）0.79-1.11
F#(Wide-Tele)2.0~2.5
f(mm)13.3-18.6
Zoom   Ratio1.4
Screen size
    (Performance
    guarantee range)		50-500 inch
     (80-200 inch)
Lens Shift V+50%，-10%
Lens Shift H±20%
CRContrast Ratio(Min)100,000:1
NoiseNoise(dB)Normal(90%): 35dB
    ECO1(75% ): 32dB
    ECO2(45% ): 32dB
UniformityUniformity(Actual Min)
    -JISX6911		80%
ARAspect RatioNative:16:10
    Compatible: 4:3/16:9/normal
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1（5V/1.5A)
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)Optional
VideoN/A
Audio in
    （mini jack,3.5mm）		*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
    （mini-jack,3.5mm）		*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
    （Boost) (Max)		850
Power Consumption
    （Normal) (Max)		750
Power Consumption
    （ECO1) (Max)		650
Power Consumption
    （ECO2) (Max)		450
ECO Standby Mode
    Power Consumption		<0.5W
Temp.&HumidityOperating Temp.5 to 40°C
Operating Thumidity.20-80%
Store Temp.-10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
    H: ±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
OSDLanguages26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN ControlLAN Control-RoomView
    (Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ LinkYes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,
BlankYes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic，Standard，Cinema，Colorboard，DICOM,blackboard（green）
Cooling time0s,30s,Normal
Closed captionN/A
High altitudeYes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
    (WxHxD mm)		600*218*503
Net. Weight (KG)~24kg
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black), Remote control&RC Battery
