MX-SL7500U
SMX
7500 Lumens | WUXGA | 3LCD | 0.68–0.82:1 Short Throw | Lens Shift | 1.21× Zoom

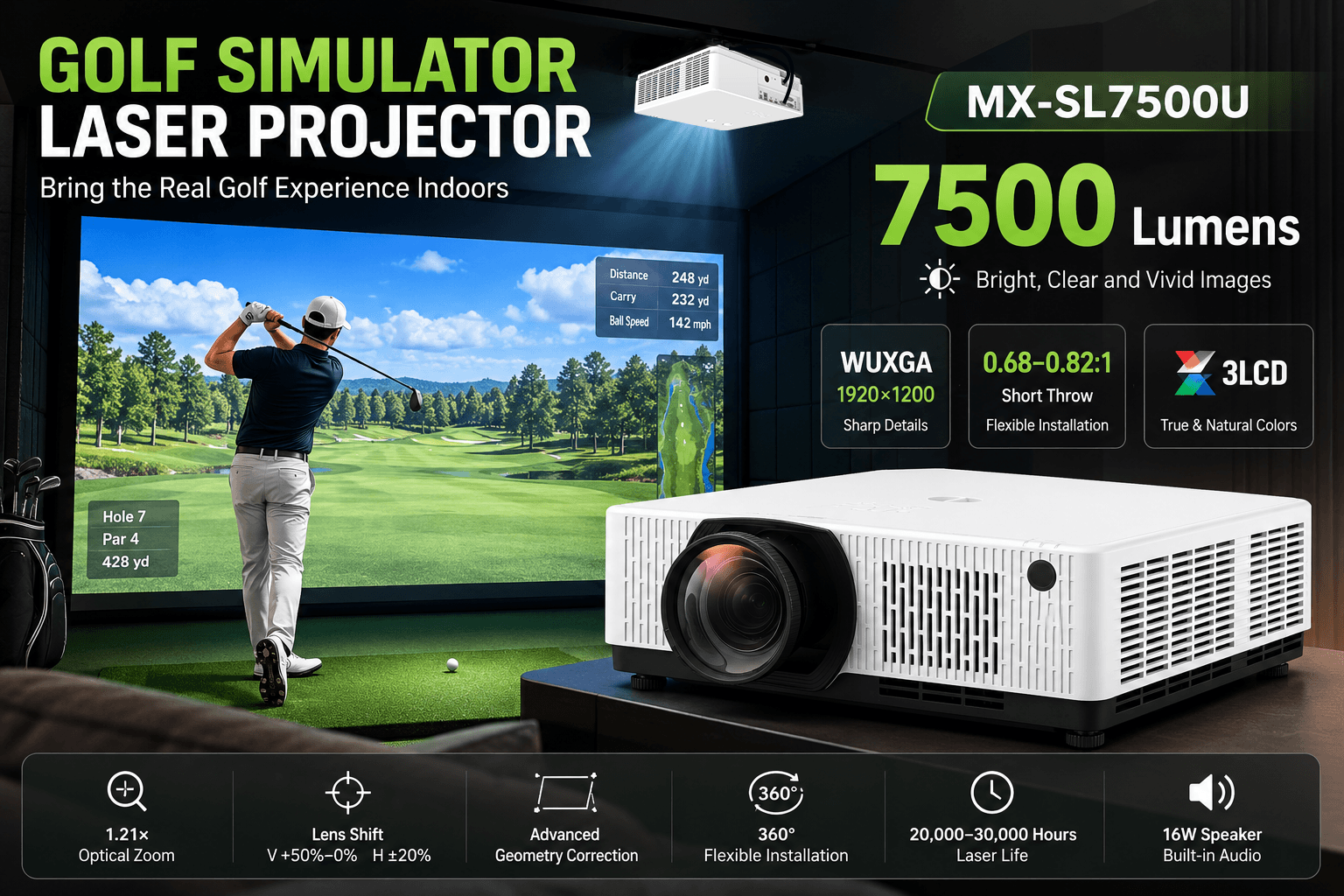

The SMX MX-SL7500U is a professional 7500-lumen golf simulator projector designed for commercial golf simulator bays, indoor golf training centers, and professional simulation rooms that require higher brightness and flexible projector placement.
Combining 7500 lumens with a 0.68–0.82:1 short-throw lens, 1.21× optical zoom and horizontal and vertical lens shift, the MX-SL7500U provides greater installation flexibility when matching a projector to different impact screen sizes and room layouts.
Its native WUXGA 1920 × 1200 resolution, 3LCD projection technology, NICHIA laser light source, advanced geometry correction and flexible 360° installation make it a practical projection platform for professional indoor golf simulator systems.
Higher brightness provides additional headroom for larger golf simulator screens and rooms with moderate ambient lighting.
Short throw optics allow large golf simulation images without requiring conventional long projector distances.
Adjust the projected image size within the supported throw range for greater installation flexibility.
Vertical and horizontal lens shift provides additional optical positioning flexibility before digital geometry correction is applied.
Native 1920 × 1200 resolution provides detailed golf course graphics, shot information and simulator interfaces.
Professional 3LCD imaging technology for full-color projection in golf simulation and other professional applications.

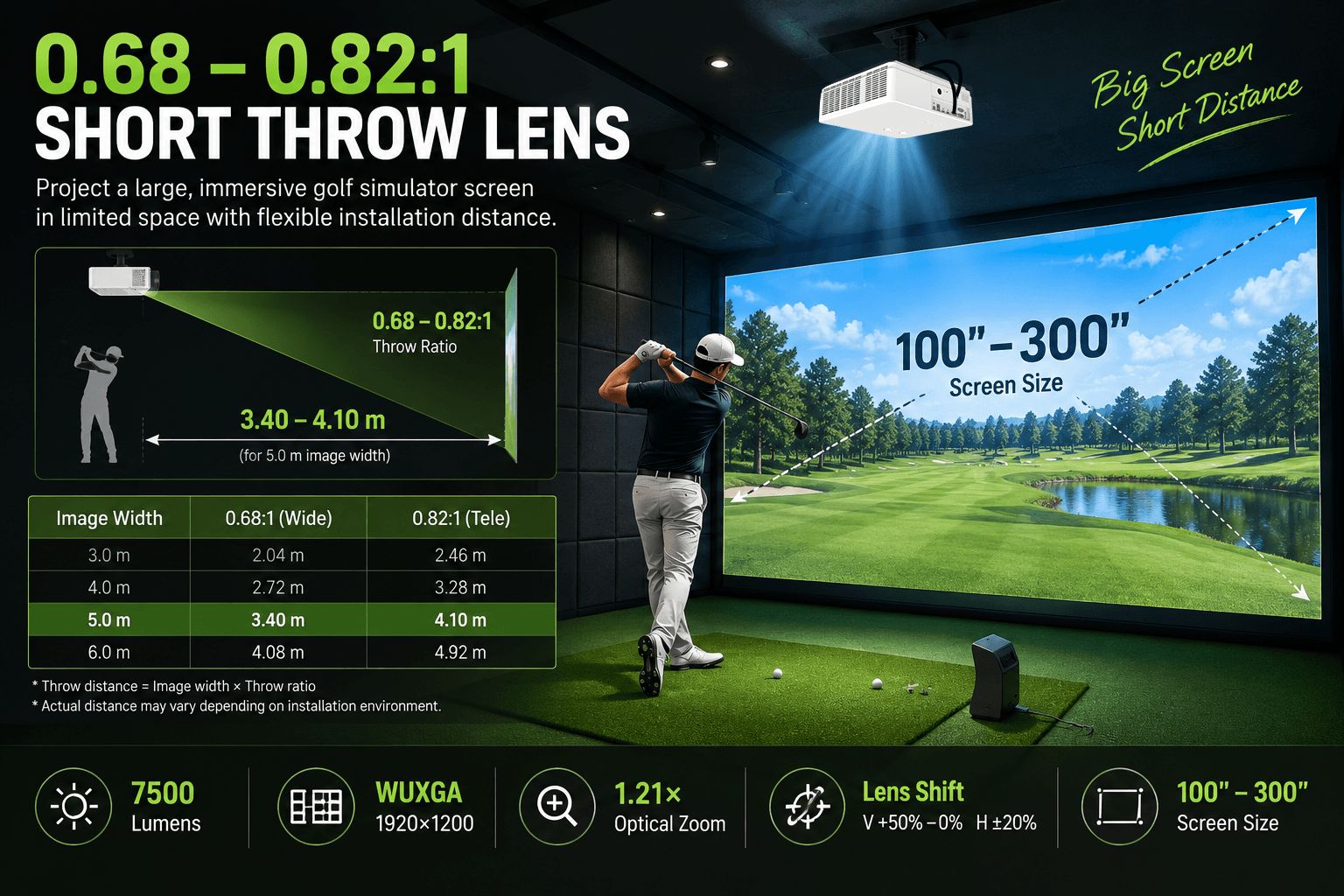

For a golf simulator projector, throw ratio determines how far the projector must be installed from the impact screen.
The MX-SL7500U provides a throw ratio range of 0.68–0.82:1.
The basic formula is:
Throw Distance = Image Width × Throw Ratio
Because this projector provides a throw ratio range rather than a single fixed ratio, the installation distance can be adjusted within a corresponding range.
Image Width | 0.68:1 Wide | 0.82:1 Tele |
|---|---|---|
3.0 m | 2.04 m | 2.46 m |
4.0 m | 2.72 m | 3.28 m |
5.0 m | 3.40 m | 4.10 m |
6.0 m | 4.08 m | 4.92 m |
For example, a golf simulator using a 5-meter-wide projected image would require approximately 3.4 to 4.1 meters of theoretical lens-to-screen distance.
Actual installation should be verified according to the projector mounting position, screen dimensions, image alignment and installation tolerances.

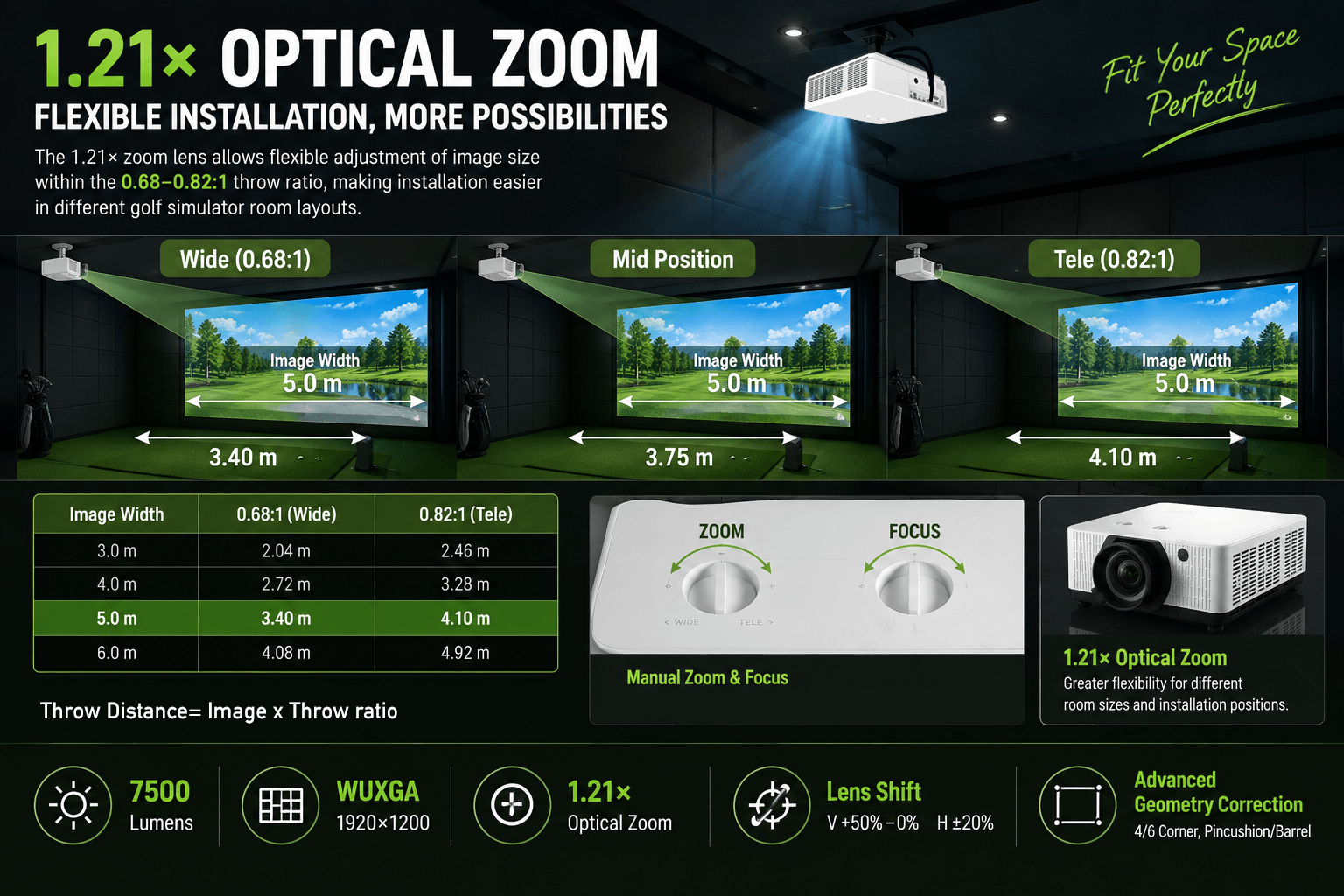

Unlike a fixed 0.44:1 short throw projector, the MX-SL7500U provides a 0.68–0.82:1 throw ratio range with a 1.21× zoom ratio.
This provides more flexibility when the ceiling mounting point cannot be positioned at one exact distance.
For golf simulator installers, this can be especially useful when working around ceiling structures, lighting, tracking equipment, ventilation systems or existing mounts.

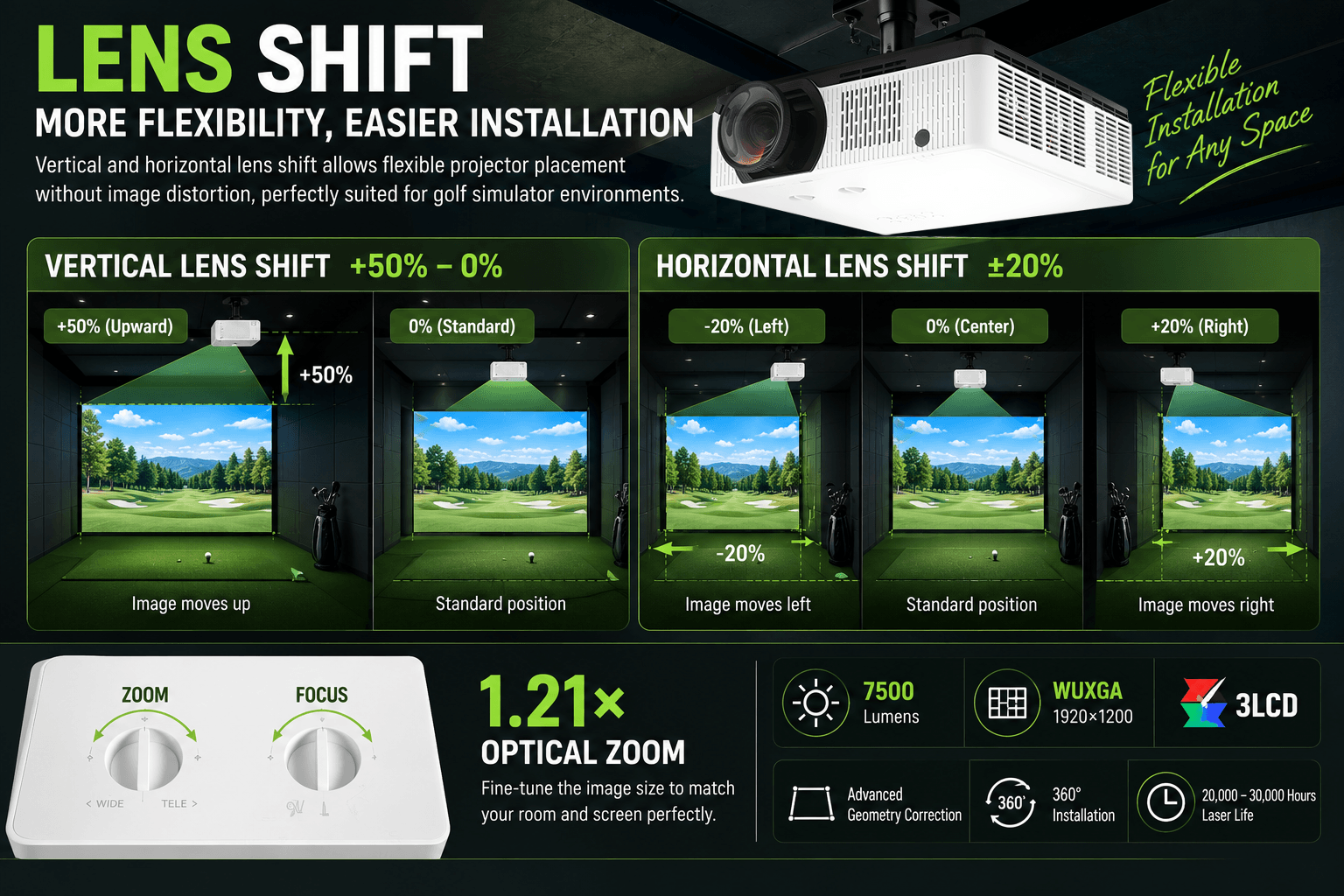

The MX-SL7500U provides optical lens shift:
Vertical Lens Shift | +50% to 0% |
|---|---|
Horizontal Lens Shift | ±20% |
Lens shift allows the projected image position to be adjusted optically without relying entirely on digital keystone correction.
This is valuable in golf simulator installations because the ideal projector mounting point may be affected by the golfer's hitting position, ceiling height, tracking equipment or structural obstacles.
Whenever possible, physical projector positioning and optical lens shift should be used first. Digital geometry correction can then be used for final alignment.
The MX-SL7500U delivers 7500 lumens of brightness, providing additional brightness headroom compared with lower-lumen short throw models.
This makes it particularly relevant for:
Commercial indoor golf simulator bays
Golf training centers
Larger impact screens
Golf rooms with moderate ambient light
Professional simulator installations
Multi-bay golf entertainment venues
Brightness requirements should not be determined by lumens alone. Impact screen size, screen reflectivity, ambient lighting, image area and desired contrast all affect the final result.
The MX-SL7500U provides a native WUXGA resolution of 1920 × 1200 with a native 16:10 aspect ratio.
It is also compatible with 16:9 and 4:3 formats, making it adaptable to different golf simulator software, PC outputs and impact screen configurations.
WUXGA resolution provides sufficient detail for displaying golf course environments, fairways, greens, ball-flight graphics, shot statistics and simulator control interfaces.
The projector accepts computer input signals up to 4K@30Hz, while the native displayed resolution remains WUXGA.
The MX-SL7500U uses three 0.64-inch LCD panels with MLA and a professional NICHIA laser light source.
This projection architecture is suitable for professional simulation, education, exhibition and large-screen applications.
For golf simulator installations, the combination of 7500-lumen brightness, WUXGA resolution and 3LCD imaging provides a balanced platform for large-format golf simulation.
Golf simulator installations may require final image adjustment after the projector has been physically mounted.
The MX-SL7500U provides several geometry correction functions:
Geometry Function | Support |
|---|---|
Vertical Keystone | ±15° |
Horizontal Keystone | ±15° |
4-Corner Correction | Yes |
6-Corner Geometry Correction | Yes |
Pincushion / Barrel Correction | Yes |
Grid Image Tune | Yes |
These functions provide additional flexibility when aligning the projected image with the golf impact screen.

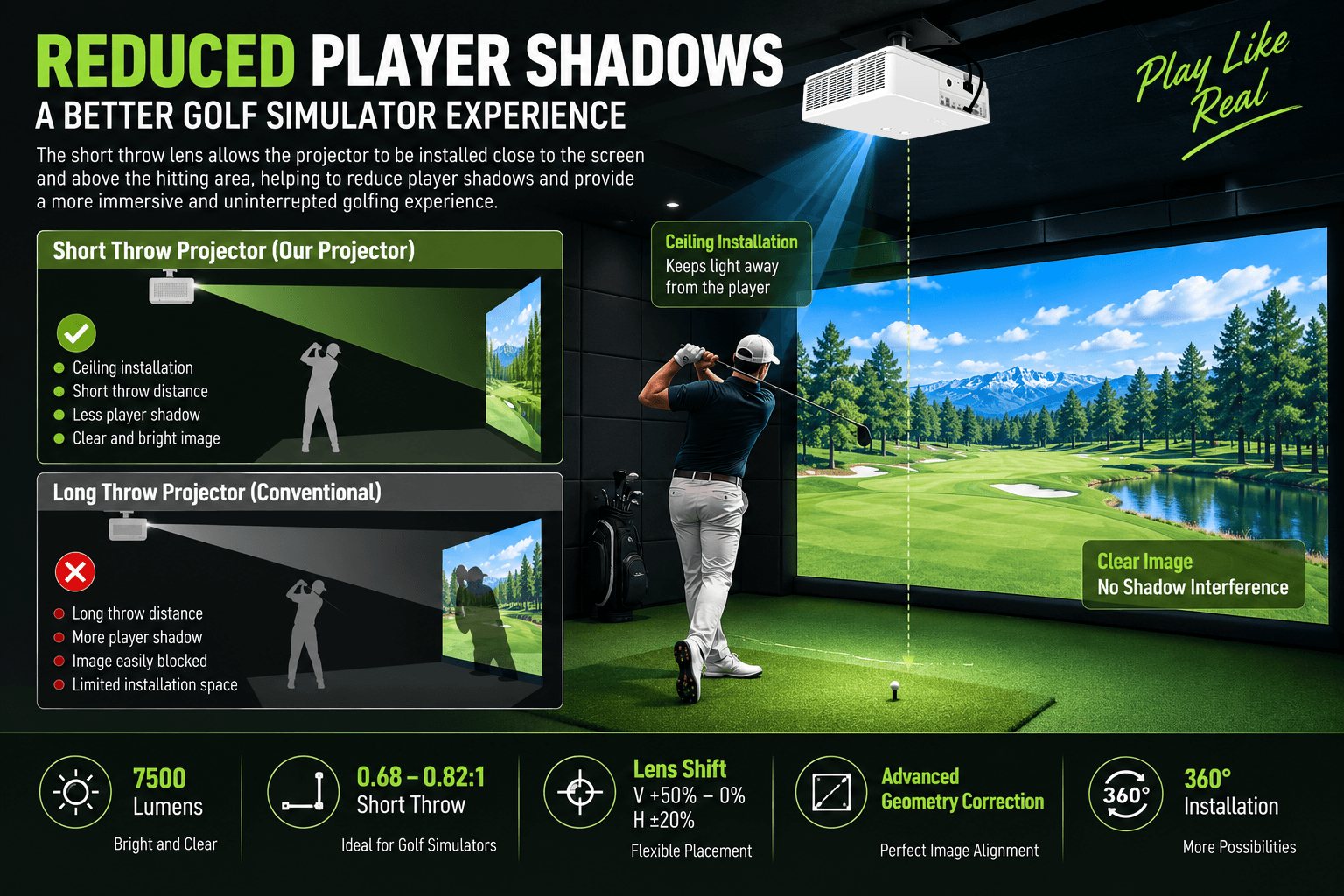

In a golf simulator, the golfer normally stands between the projector and the impact screen. This makes projector positioning an important part of system design.
The 0.68–0.82:1 short throw lens allows the projector to be installed closer to the screen than many conventional standard-throw projectors.
Combined with appropriate ceiling mounting, this can help keep the main projection beam away from the golfer's body and reduce visible shadow interference.
Before installation, consider:
Impact screen width and height
Hitting position
Ceiling height
Available throw distance
Projector mounting height
Golf club swing clearance
Launch monitor or tracking equipment location
The MX-SL7500U supports 360° projector installation, providing additional flexibility for professional mounting.
This allows installers to coordinate projector orientation with ceiling structures, simulator enclosures, tracking systems and other equipment.
360° installation describes the supported physical orientation of the projector. It does not mean that one projector creates a 360° panoramic image.
The MX-SL7500U supports edge blending, providing additional possibilities beyond a standard single-projector golf simulator installation.
Edge blending can be used when multiple projectors are required to create a wider seamless image or when the projector is used for other simulation and immersive applications.
For a conventional single-screen golf simulator, one correctly selected projector is normally preferred when it can cover the required impact screen.
Normal Mode | 20,000 Hours |
|---|---|
ECO1 | 30,000 Hours |
ECO2 | 30,000 Hours |
The long-life laser light source reduces the need for frequent lamp replacement and is well suited to golf training centers and commercial simulator venues with regular operating hours.
Projector noise can be noticeable in an enclosed golf simulator room. The MX-SL7500U provides multiple operating modes:
Normal Mode | 39 dB |
|---|---|
ECO1 | 31 dB |
ECO2 | 29 dB |
ECO modes can be useful where lower operating noise is preferred and maximum projector brightness is not required.

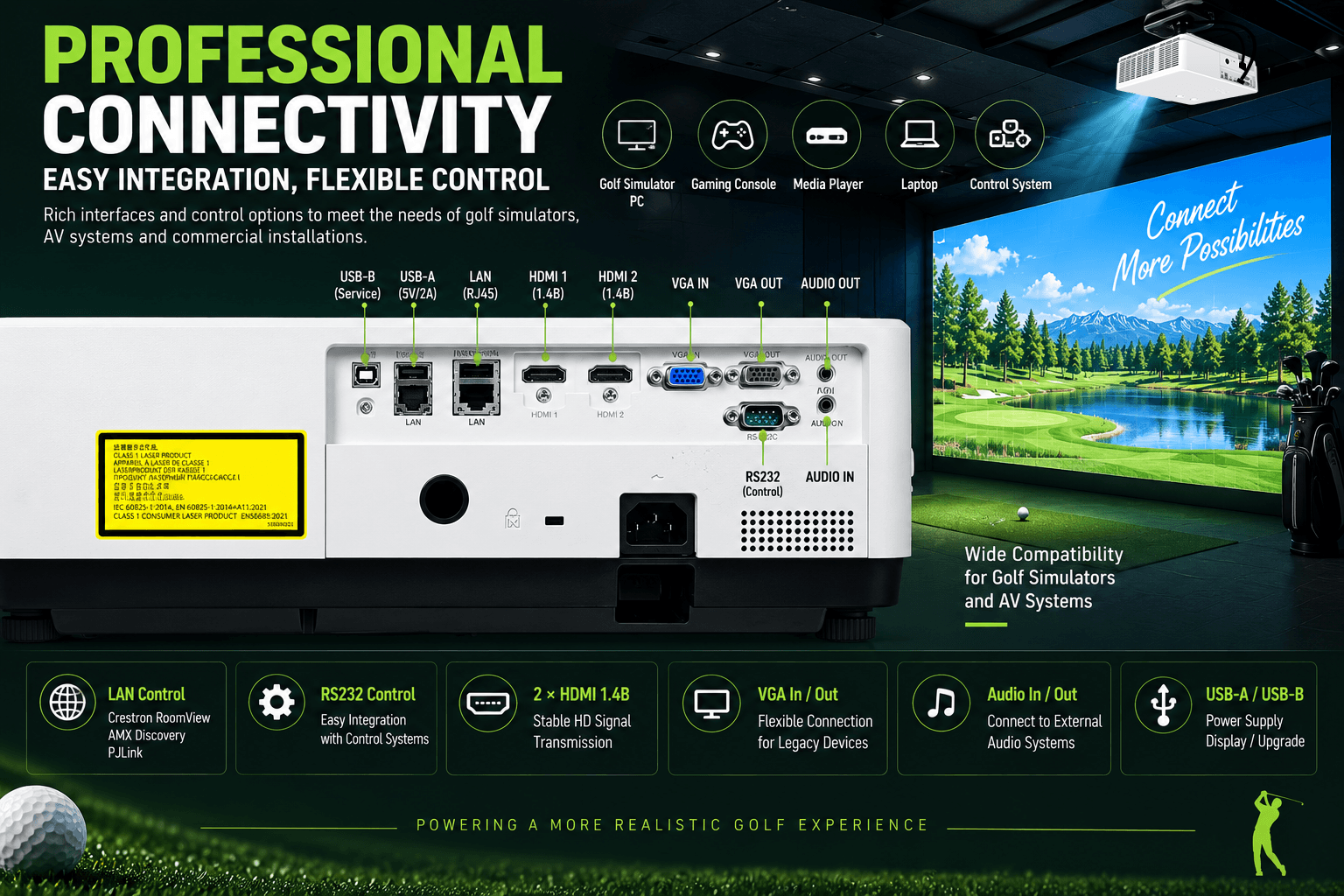

Interface | Specification |
|---|---|
HDMI 1.4B | ×2 |
VGA Input | ×1 |
VGA Output | ×1 |
USB-A | ×1 |
USB-B | Display / Upgrade |
RJ45 | Display / Control |
RS232 | ×1 |
Audio Input | ×1 |
Audio Output | ×1 |
HDBaseT | Optional |
LAN control supports Crestron RoomView, AMX Discovery and PJLink, which can be useful for commercial installations where projectors are managed through a central control system.
Image Width | 5.0 m |
|---|---|
Throw Ratio | 0.68–0.82:1 |
Approx. Throw Distance | 3.40–4.10 m |
Brightness | 7500 Lumens |
Resolution | WUXGA 1920 × 1200 |
Zoom | 1.21× |
Lens Shift | V +50%–0%; H ±20% |
Recommended Installation | Ceiling Mount |
This example demonstrates the optical relationship between image width and projector distance. The final mounting position should be verified using the actual golf room dimensions, screen size, ceiling height and golfer position.
Model | MX-SL7500U |
|---|---|
Brightness | 7500 Lumens |
Display Technology | 3LCD |
Display Panels | 3 × 0.64" LCD with MLA |
Laser Light Source | NICHIA Laser |
Native Resolution | WUXGA 1920 × 1200 |
Throw Ratio | 0.68–0.82:1 |
Zoom Ratio | 1.21× |
Lens F | F1.7–1.8 |
Focal Length | 9.66–11.65 mm |
Zoom / Focus | Manual |
Lens Shift | Vertical +50%–0%; Horizontal ±20% |
Screen Size | 50–300 inches |
Contrast Ratio | 5,000,000:1 |
Aspect Ratio | Native 16:10; Compatible 4:3 / 16:9 |
Laser Life | 20,000 h Normal / 30,000 h ECO |
Geometry Correction | H/V ±15°, 4-Corner, 6-Corner, Pincushion/Barrel, Grid Tune |
Edge Blending | Yes |
360° Installation | Yes |
Speaker | 16W ×1 |
Dust Filter | Yes |
Filter Life | 8,000 Hours |
Dimensions | 405 × 404 × 164 mm |
Net Weight | 8.1 kg |
Choosing between the SMX 6000 and 7500 lumen short-throw projectors should begin with room geometry rather than brightness alone.
6000 Lumen | 7500 Lumen | |
|---|---|---|
Brightness | 6000 Lumens | 7500 Lumens |
Throw Ratio | 0.44:1 | 0.68–0.82:1 |
5 m Image | Approx. 2.20 m | Approx. 3.40–4.10 m |
Zoom | Fixed optical direction | 1.21× |
Lens Shift | No | Yes |
Best Direction | Compact rooms / very short distance | Commercial rooms / flexible installation |
If your projector must be installed very close to the impact screen, the 6000 lumen 0.44:1 model may be the better optical fit.
If your room provides more projector distance and you need higher brightness, optical zoom and lens shift, the 7500-lumen model provides greater installation flexibility.
Compare the 6000 and 7500 Lumen Golf Simulator Projectors
Yes. 7500 lumens provides strong brightness for many medium and larger indoor golf simulator installations. Actual brightness requirements depend on screen size, ambient light and screen reflectivity.
The projector provides a short throw ratio of 0.68–0.82:1.
With a 0.68–0.82:1 throw ratio, the theoretical distance is approximately 3.4–4.1 meters.
Yes. It provides vertical lens shift from +50% to 0% and horizontal lens shift of ±20%.
Yes. The projector provides a 1.21× zoom ratio.
The native resolution is WUXGA 1920 × 1200.
It supports compatible computer input signals up to 4K@30Hz, while the native displayed resolution remains WUXGA.
Yes. It supports flexible professional installation and 360° projector orientation.
Yes. It supports H/V ±15° keystone, 4-corner correction, 6-corner correction, pincushion/barrel correction and grid image tuning.
Yes. Edge blending is supported for applications that require multi-projector image integration.
Start with the required throw ratio. The 6000-lumen 0.44:1 model is better suited to very short installation distances, while the 7500-lumen 0.68–0.82:1 model provides higher brightness, zoom and lens shift for more flexible installations.
Send us your impact screen width and height, room depth, ceiling height, available projector-to-screen distance and golfer hitting position.
SMX can help evaluate whether the MX-SL7500U 7500-lumen short-throw projector matches your golf simulator room.
